Surville Details
| Property | Value |
|---|---|
| Rupture Count | 10,780 |
| Ruptures Above Sect Min Mag | 10,776 |
| Ruptures w/ Nonzero Rates | 47 |
| Magnitude Range | [7.09, 8.60] |
| Length Range | [27, 982] km |
| Total Rate | 6.4054344E-5 /yr |
| Multi-Fault Rate | 5.6444038E-5 /yr (88.12%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 89 |
Table Of Contents

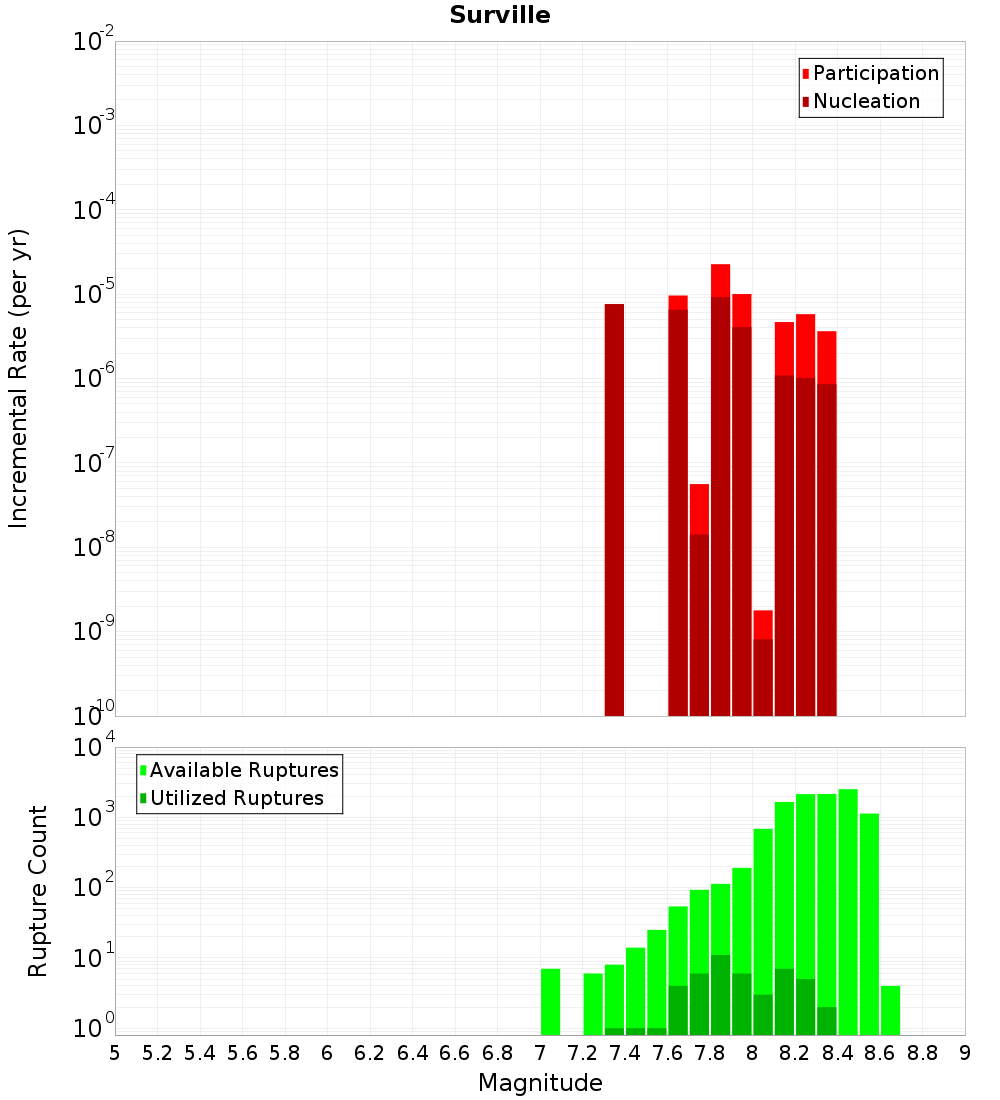

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

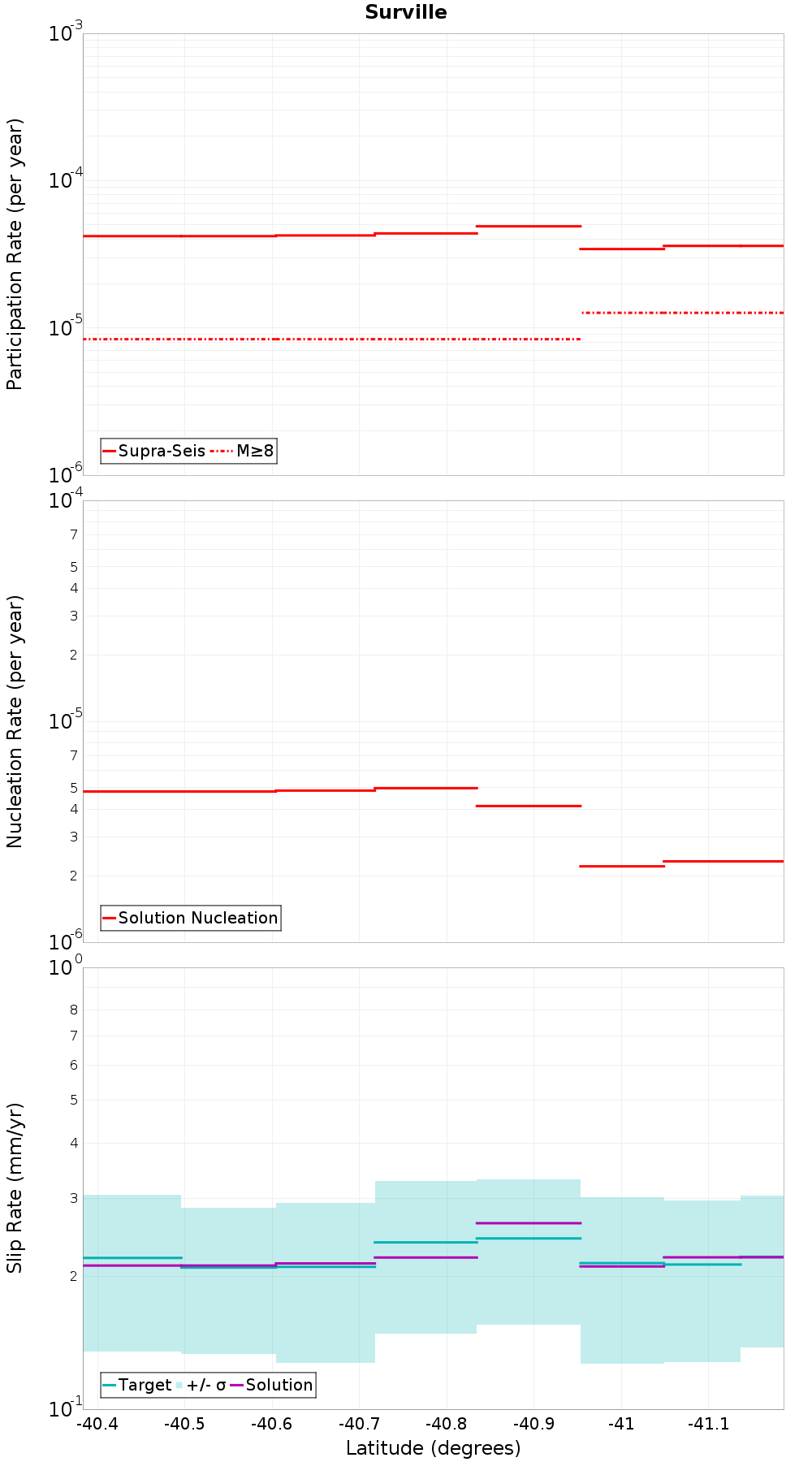

Along-Strike Values
Moment-Rates and b-Values

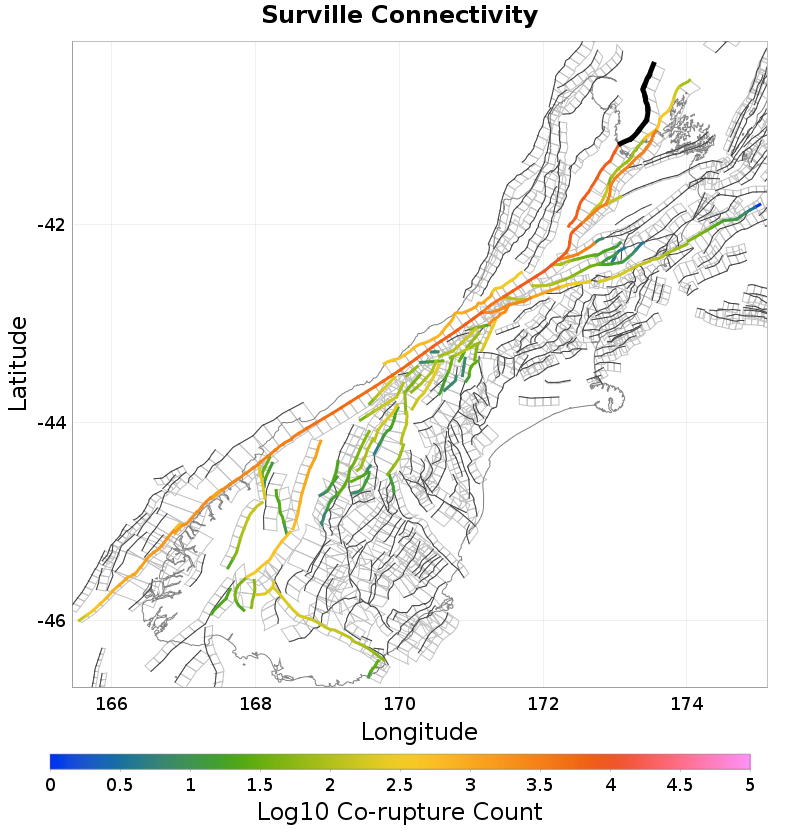

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Ruby Bay - Moutere, 0.05 km away |
| Flaxmore - Waimea - Tahunanui, 8.03 km away |
| Waimea Offshore, 9.67 km away |
| Whangamoa, 13.9 km away |
Ruby Bay - Moutere, 0.05 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjAuMEtTSFo1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 7,549 |
| Co-rupture Rate | 3.6043562E-5 |
Flaxmore - Waimea - Tahunanui, 8.03 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjAuMEtTSFo1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 215 |
| Co-rupture Rate | 1.3339913E-5 |
Waimea Offshore, 9.67 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjAuMEtTSFo1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 478 |
| Co-rupture Rate | 1.7764064E-6 |
Whangamoa, 13.9 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjAuMEtTSFo1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3,162 |
| Co-rupture Rate | 3.3174405E-5 |
