White Island 1 Details

Property	Value
Rupture Count	22,445
Ruptures Above Sect Min Mag	22,443
Ruptures w/ Nonzero Rates	1,106
Magnitude Range	[6.83, 8.45]
Length Range	[19, 789] km
Total Rate	0.0010561683 /yr
Multi-Fault Rate	0.0010561679 /yr (100.00%)
Directly-Connected Faults	10
All Co-Rupturing Faults	93

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

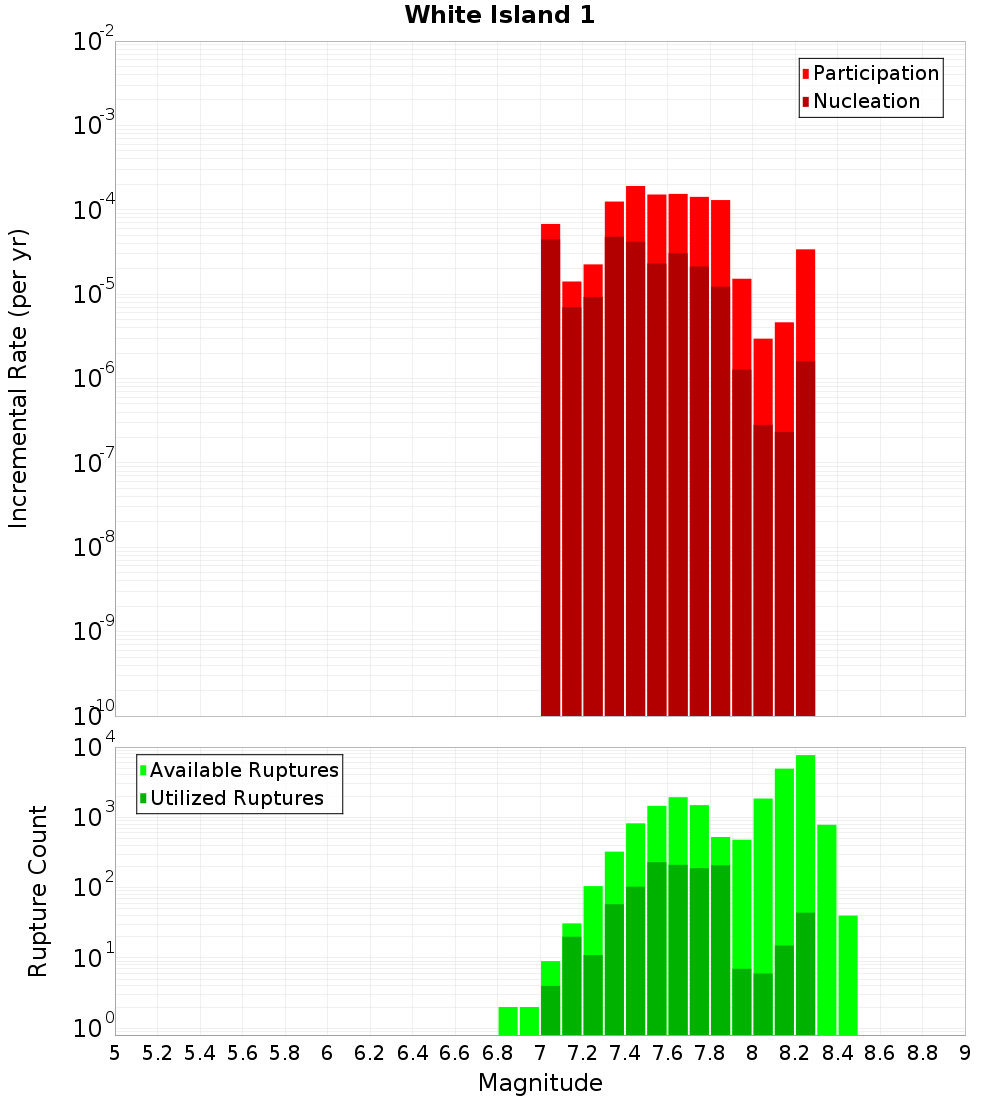

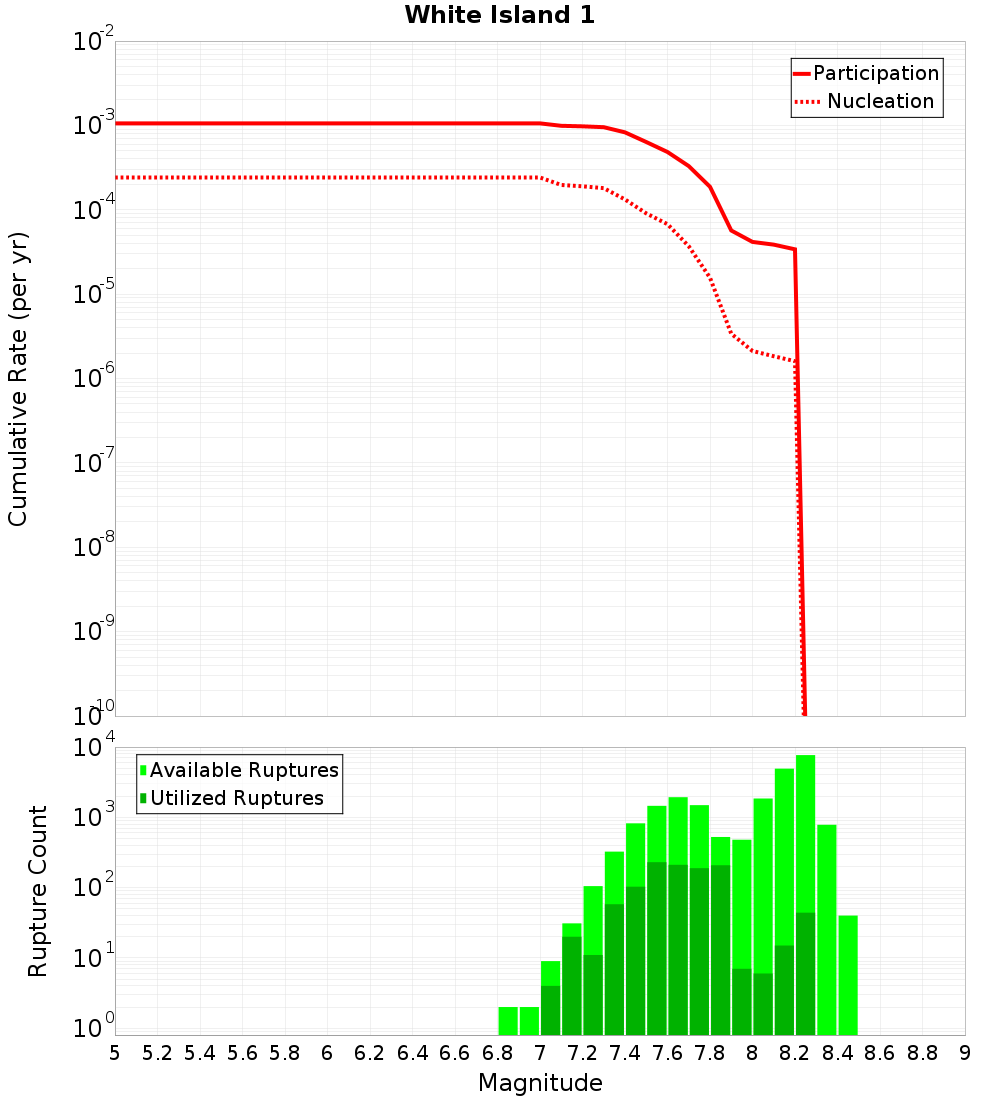

Magnitude-Frequency Distribution

Incremental	Cumulative

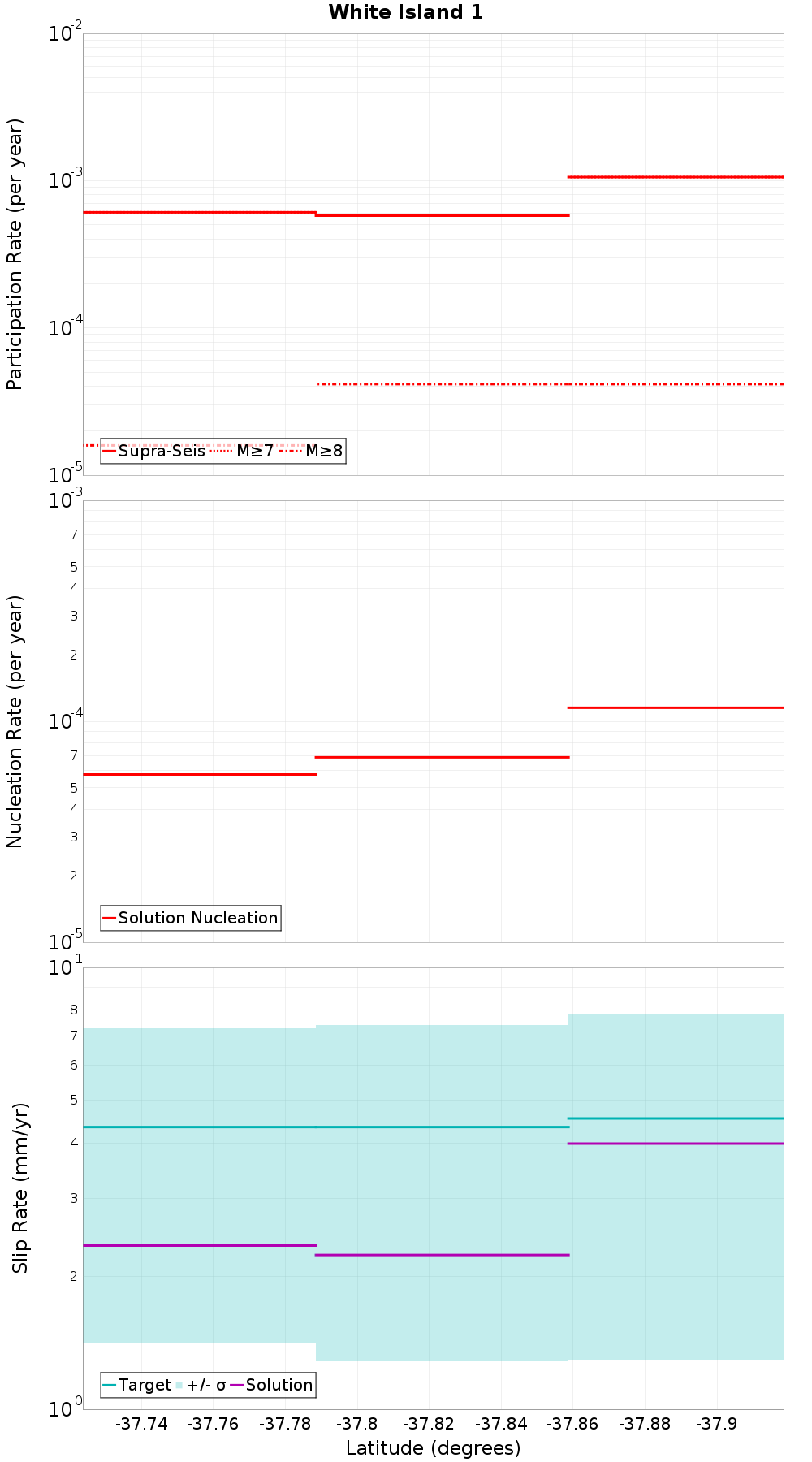

Along-Strike Values

Moment-Rates and b-Values

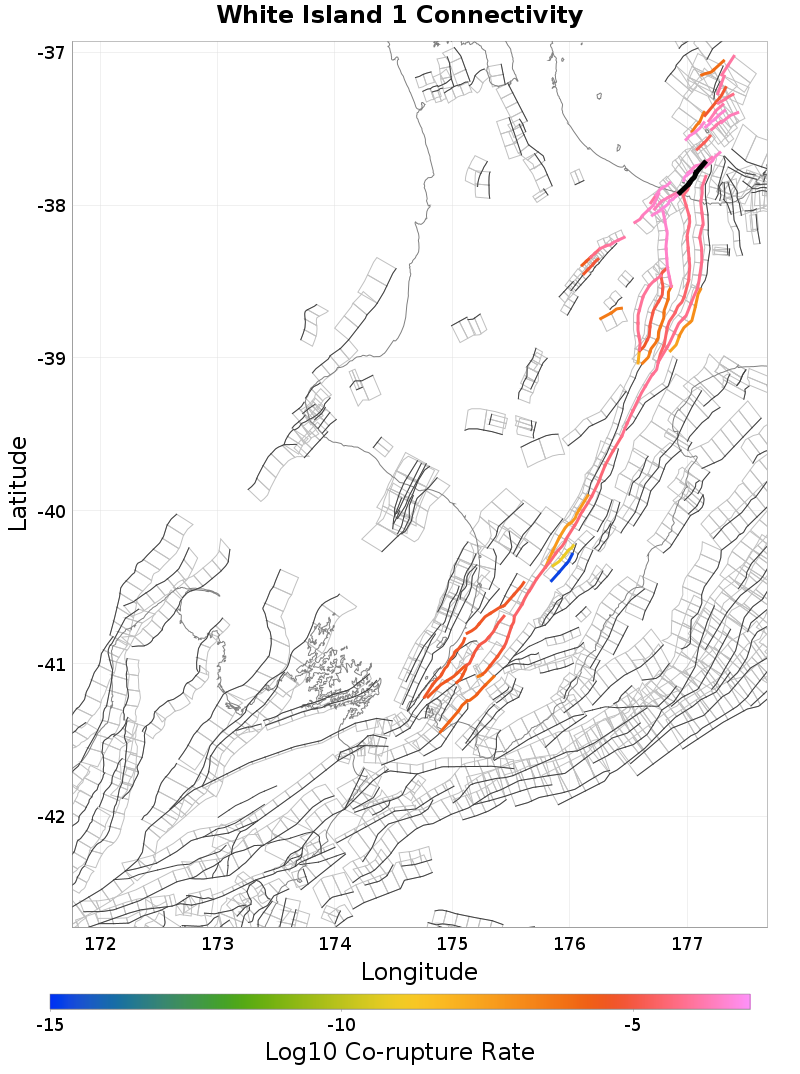

Connectivity

Nearby Sections

Fault Section	Fault Section
Edgecumbe Coastal, 0 km away	Whakatane: North, 3.25 km away
Ohiwa 1, 0.16 km away	Edgecumbe 1987, 4.56 km away
Matata, 0.22 km away	Waimanawa - Waikaremoana, 5.16 km away
Keepa, 0.61 km away	Waimana: North, 7.11 km away
Rangitaiki 2, 0.77 km away	Calypso 2, 8.92 km away
Whakaari 4, 1.47 km away	Waiotahi: North, 9.77 km away
White Island 2, 1.95 km away	Braemar, 11.34 km away
Rangitaiki 1, 2 km away	Ohae 1, 13.68 km away
Otakiri, 2.46 km away	Opotiki 3, 13.82 km away

Edgecumbe Coastal, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjAuMEtTSFo1
Connected?	true
Directly Connected?	true
Co-rupture Count	7,421
Co-rupture Rate	3.4201183E-4

Ohiwa 1, 0.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjAuMEtTSFo1
Connected?	true
Directly Connected?	true
Co-rupture Count	3,735
Co-rupture Rate	2.0185746E-4

Matata, 0.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjAuMEtTSFo1
Connected?	true
Directly Connected?	true
Co-rupture Count	6,876
Co-rupture Rate	3.814296E-4

Keepa, 0.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjAuMEtTSFo1
Connected?	true
Directly Connected?	false
Co-rupture Count	2,498
Co-rupture Rate	4.5995956E-5

Rangitaiki 2, 0.77 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjAuMEtTSFo1
Connected?	true
Directly Connected?	false
Co-rupture Count	3,479
Co-rupture Rate	3.0131603E-4

Whakaari 4, 1.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjAuMEtTSFo1
Connected?	true
Directly Connected?	true
Co-rupture Count	5,691
Co-rupture Rate	3.7277798E-4

White Island 2, 1.95 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjAuMEtTSFo1
Connected?	true
Directly Connected?	true
Co-rupture Count	5,160
Co-rupture Rate	3.0467554E-4

Rangitaiki 1, 2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjAuMEtTSFo1
Connected?	true
Directly Connected?	true
Co-rupture Count	6,018
Co-rupture Rate	4.6858084E-4

Otakiri, 2.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjAuMEtTSFo1
Connected?	true
Directly Connected?	true
Co-rupture Count	2,594
Co-rupture Rate	2.1921526E-4

Whakatane: North, 3.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjAuMEtTSFo1
Connected?	true
Directly Connected?	true
Co-rupture Count	5,704
Co-rupture Rate	4.7341116E-5

Edgecumbe 1987, 4.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjAuMEtTSFo1
Connected?	true
Directly Connected?	true
Co-rupture Count	8,644
Co-rupture Rate	4.5425777E-4

Waimanawa - Waikaremoana, 5.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjAuMEtTSFo1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waimana: North, 7.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjAuMEtTSFo1
Connected?	true
Directly Connected?	true
Co-rupture Count	7,822
Co-rupture Rate	8.016817E-5

Calypso 2, 8.92 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjAuMEtTSFo1
Connected?	true
Directly Connected?	false
Co-rupture Count	217
Co-rupture Rate	1.771076E-5

Waiotahi: North, 9.77 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjAuMEtTSFo1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Braemar, 11.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjAuMEtTSFo1
Connected?	true
Directly Connected?	false
Co-rupture Count	1,806
Co-rupture Rate	2.817244E-4

Ohae 1, 13.68 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjAuMEtTSFo1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Opotiki 3, 13.82 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjAuMEtTSFo1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
