Elliott Details

PropertyValue
Rupture Count18,284
Ruptures Above Sect Min Mag18,282
Ruptures w/ Nonzero Rates302
Magnitude Range[7.12, 8.62]
Length Range[24, 849] km
Total Rate6.434971E-4 /yr
Multi-Fault Rate6.4349687E-4 /yr (100.00%)
Directly-Connected Faults9
All Co-Rupturing Faults233

Table Of Contents

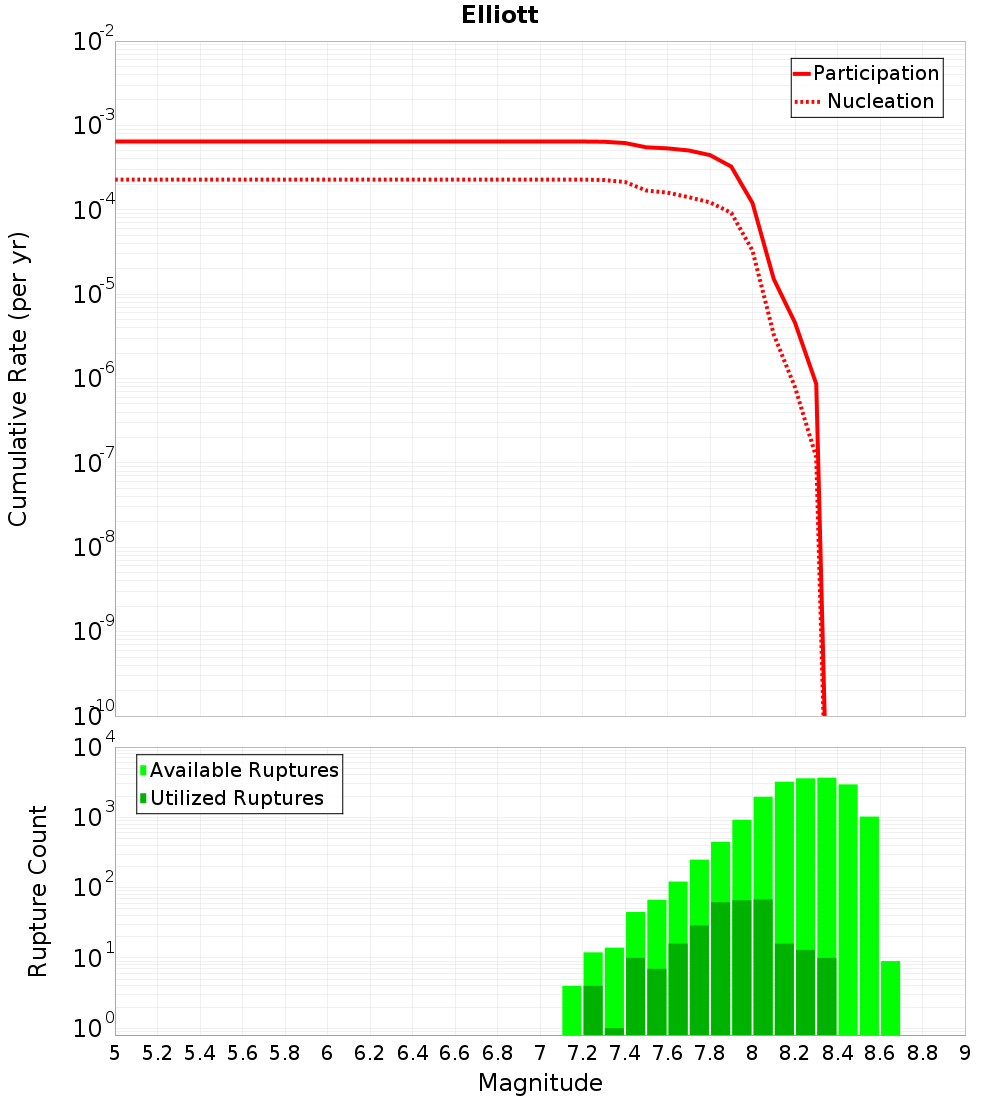

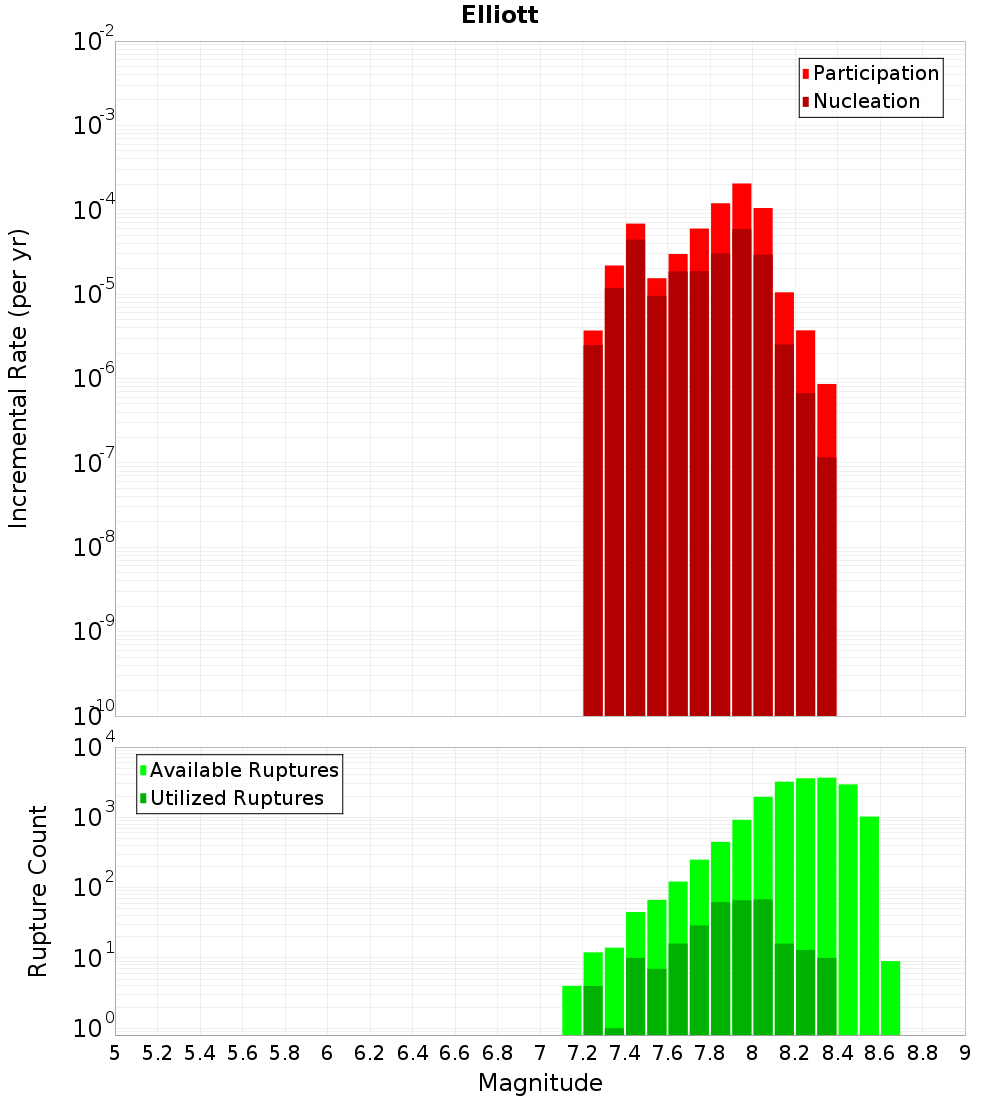

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

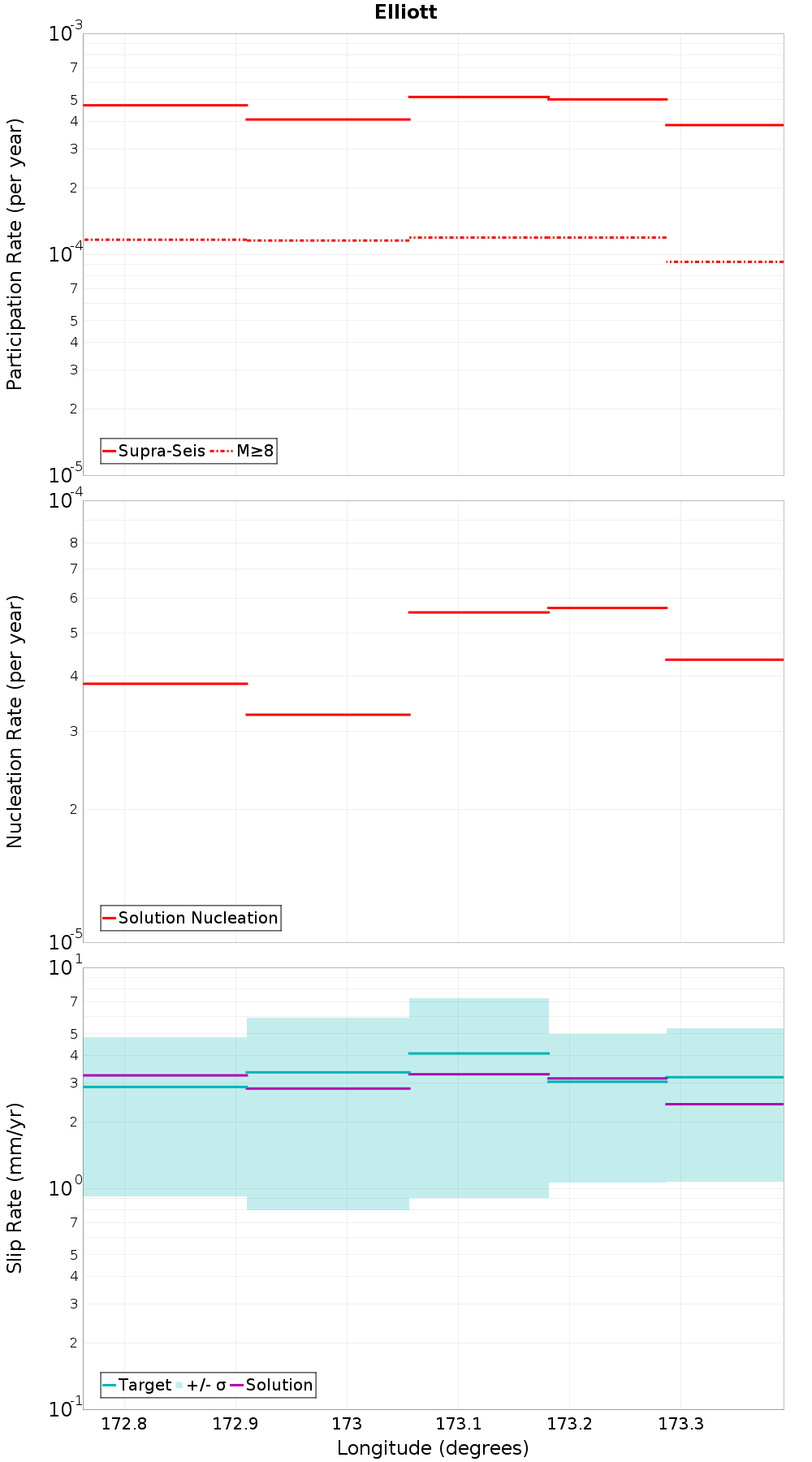

Along-Strike Values

(top)

Along-strike plot

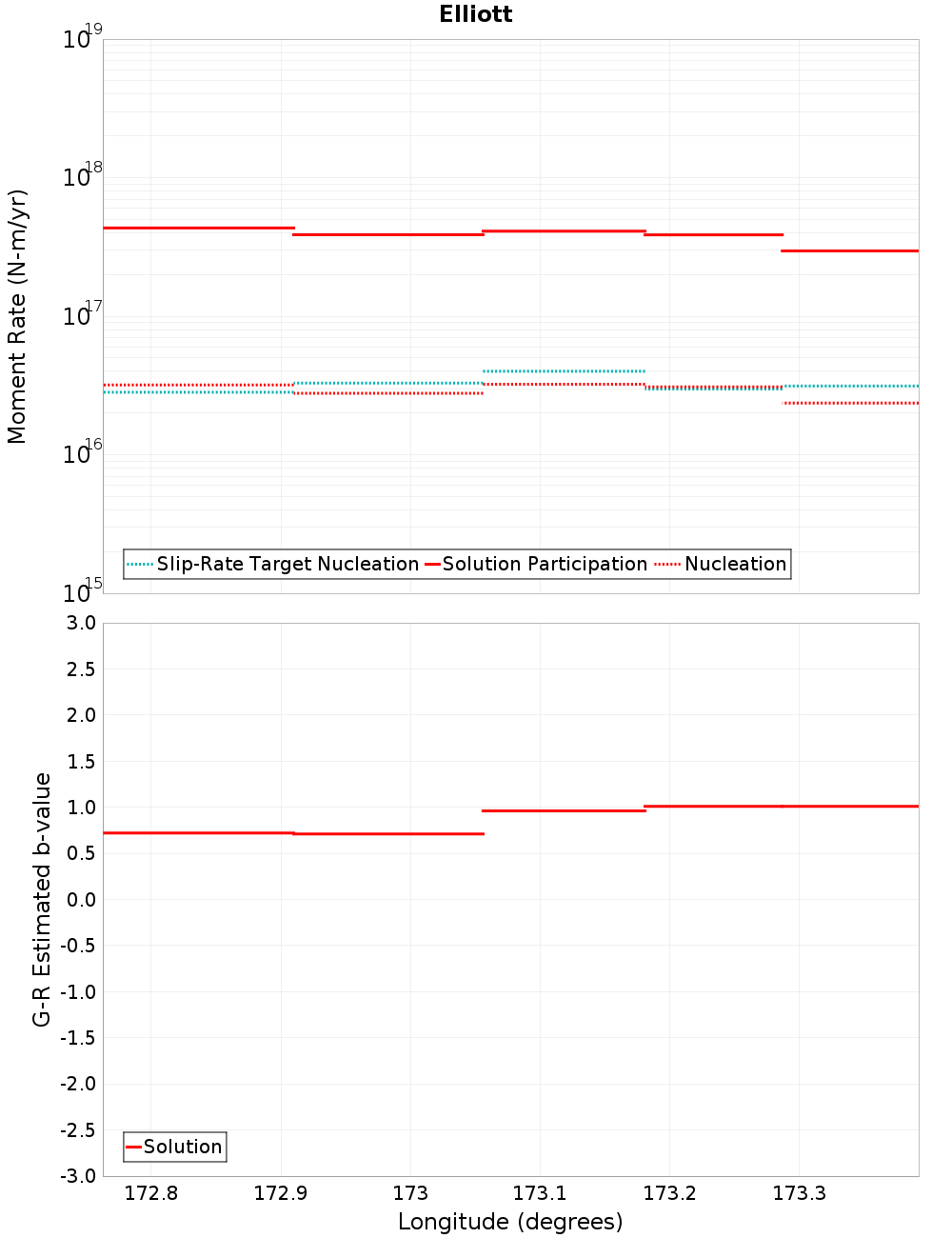

Moment-Rates and b-Values

(top)

Along-strike plot

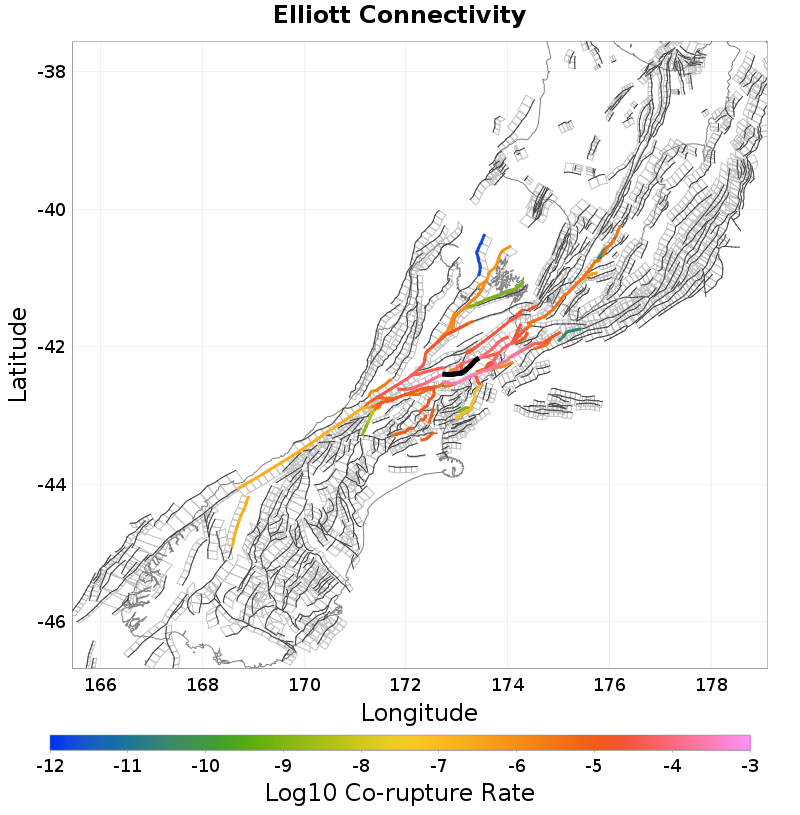

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Clarence: Central, 0 km awayAwatere: Southwest, 10.34 km away
Clarence: Northeast, 0.01 km awayLeader: North, 10.83 km away
Acheron, 0.06 km awayShingle Peak, 10.94 km away
Dillon, 0.15 km awayHope: Conway, 11.08 km away
Clarence: Southwest, 0.33 km awayHanmer, 12.46 km away
Fowlers, 0.4 km awayHope: Hanmer NW, 12.52 km away
Fidget, 3.22 km awayStoneJug, 14.24 km away
Barefell, 8.62 km awayKowhai, 14.44 km away
Awatere: Northeast 1, 9.09 km awayHope: Hamner SE, 14.69 km away
Jordan, 9.95 km away

Clarence: Central, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?true
Directly Connected?false
Co-rupture Count454
Co-rupture Rate1.0020895E-4

Clarence: Northeast, 0.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?true
Directly Connected?true
Co-rupture Count3,107
Co-rupture Rate1.7609244E-4

Acheron, 0.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?true
Directly Connected?true
Co-rupture Count885
Co-rupture Rate1.0831705E-4

Dillon, 0.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?true
Directly Connected?true
Co-rupture Count441
Co-rupture Rate2.6428628E-5

Clarence: Southwest, 0.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?true
Directly Connected?true
Co-rupture Count11,825
Co-rupture Rate3.8390016E-4

Fowlers, 0.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?true
Directly Connected?true
Co-rupture Count1,063
Co-rupture Rate5.1302875E-5

Fidget, 3.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?true
Directly Connected?true
Co-rupture Count11,412
Co-rupture Rate7.468352E-5

Barefell, 8.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Awatere: Northeast 1, 9.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?true
Directly Connected?true
Co-rupture Count32
Co-rupture Rate3.392742E-5

Jordan, 9.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?true
Directly Connected?false
Co-rupture Count53
Co-rupture Rate5.855045E-5

Awatere: Southwest, 10.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate9.390934E-6

Leader: North, 10.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Shingle Peak, 10.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hope: Conway, 11.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?true
Directly Connected?true
Co-rupture Count786
Co-rupture Rate3.4107597E-4

Hanmer, 12.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?true
Directly Connected?false
Co-rupture Count242
Co-rupture Rate2.455043E-4

Hope: Hanmer NW, 12.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?true
Directly Connected?false
Co-rupture Count419
Co-rupture Rate4.5783304E-6

StoneJug, 14.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?true
Directly Connected?true
Co-rupture Count265
Co-rupture Rate2.7224296E-5

Kowhai, 14.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?true
Directly Connected?false
Co-rupture Count50
Co-rupture Rate4.6673026E-6

Hope: Hamner SE, 14.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?true
Directly Connected?false
Co-rupture Count436
Co-rupture Rate4.5783304E-6
