Flaxmore - Waimea - Tahunanui Details

PropertyValue
Rupture Count13,669
Ruptures Above Sect Min Mag13,662
Ruptures w/ Nonzero Rates131
Magnitude Range[7.05, 8.69]
Length Range[23, 977] km
Total Rate3.1294068E-4 /yr
Multi-Fault Rate1.2839785E-4 /yr (41.03%)
Directly-Connected Faults8
All Co-Rupturing Faults98

Table Of Contents

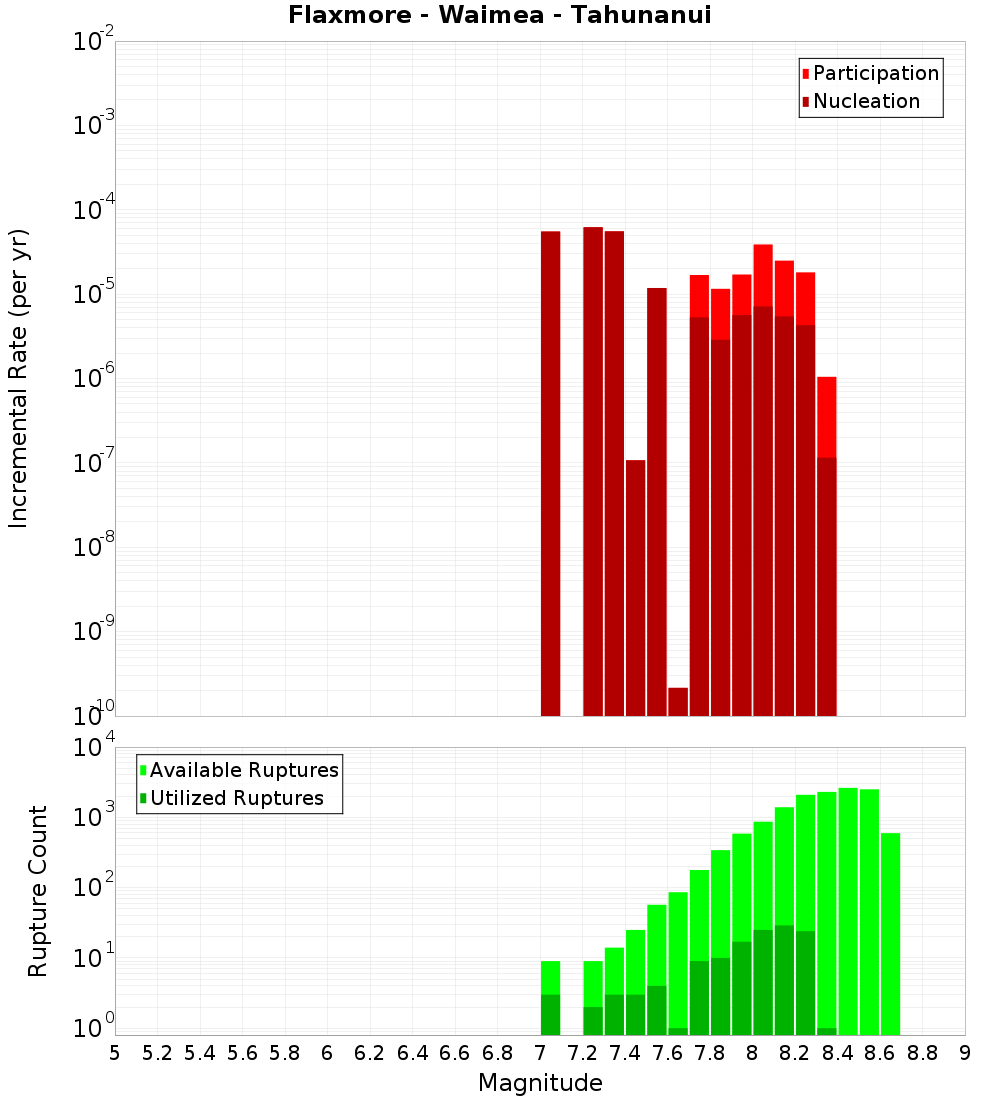

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Waimea Offshore, 0 km away
Wairau, 0.19 km away
Totara Saddle, 0.2 km away
Alpine: Springs Junction to Tophouse, 0.45 km away
Whangamoa, 2.28 km away
Tutaki, 2.51 km away
Kenepuru, 7.04 km away
Surville, 8.03 km away
Ruby Bay - Moutere, 9.4 km away
Queen Charlotte, 10.15 km away
Awatere: Southwest, 12.04 km away

Waimea Offshore, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?true
Directly Connected?true
Co-rupture Count6,028
Co-rupture Rate5.4385368E-5

Wairau, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?true
Directly Connected?true
Co-rupture Count159
Co-rupture Rate0.0

Totara Saddle, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?true
Directly Connected?true
Co-rupture Count116
Co-rupture Rate3.6156383E-5

Alpine: Springs Junction to Tophouse, 0.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?true
Directly Connected?true
Co-rupture Count7,634
Co-rupture Rate3.7352595E-5

Whangamoa, 2.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?true
Directly Connected?true
Co-rupture Count5,700
Co-rupture Rate3.1415057E-5

Tutaki, 2.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?true
Directly Connected?true
Co-rupture Count270
Co-rupture Rate0.0

Kenepuru, 7.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?true
Directly Connected?false
Co-rupture Count188
Co-rupture Rate3.8501872E-5

Surville, 8.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?true
Directly Connected?false
Co-rupture Count215
Co-rupture Rate7.181747E-6

Ruby Bay - Moutere, 9.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?true
Directly Connected?true
Co-rupture Count179
Co-rupture Rate1.9093615E-5

Queen Charlotte, 10.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?true
Directly Connected?false
Co-rupture Count44
Co-rupture Rate3.0917238E-9

Awatere: Southwest, 12.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?true
Directly Connected?true
Co-rupture Count5,557
Co-rupture Rate4.7554575E-5
