Hawkswood Details

PropertyValue
Rupture Count9,438
Ruptures Above Sect Min Mag9,435
Ruptures w/ Nonzero Rates144
Magnitude Range[6.91, 8.34]
Length Range[20, 530] km
Total Rate4.6479143E-4 /yr
Multi-Fault Rate7.133105E-5 /yr (15.35%)
Directly-Connected Faults5
All Co-Rupturing Faults77

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

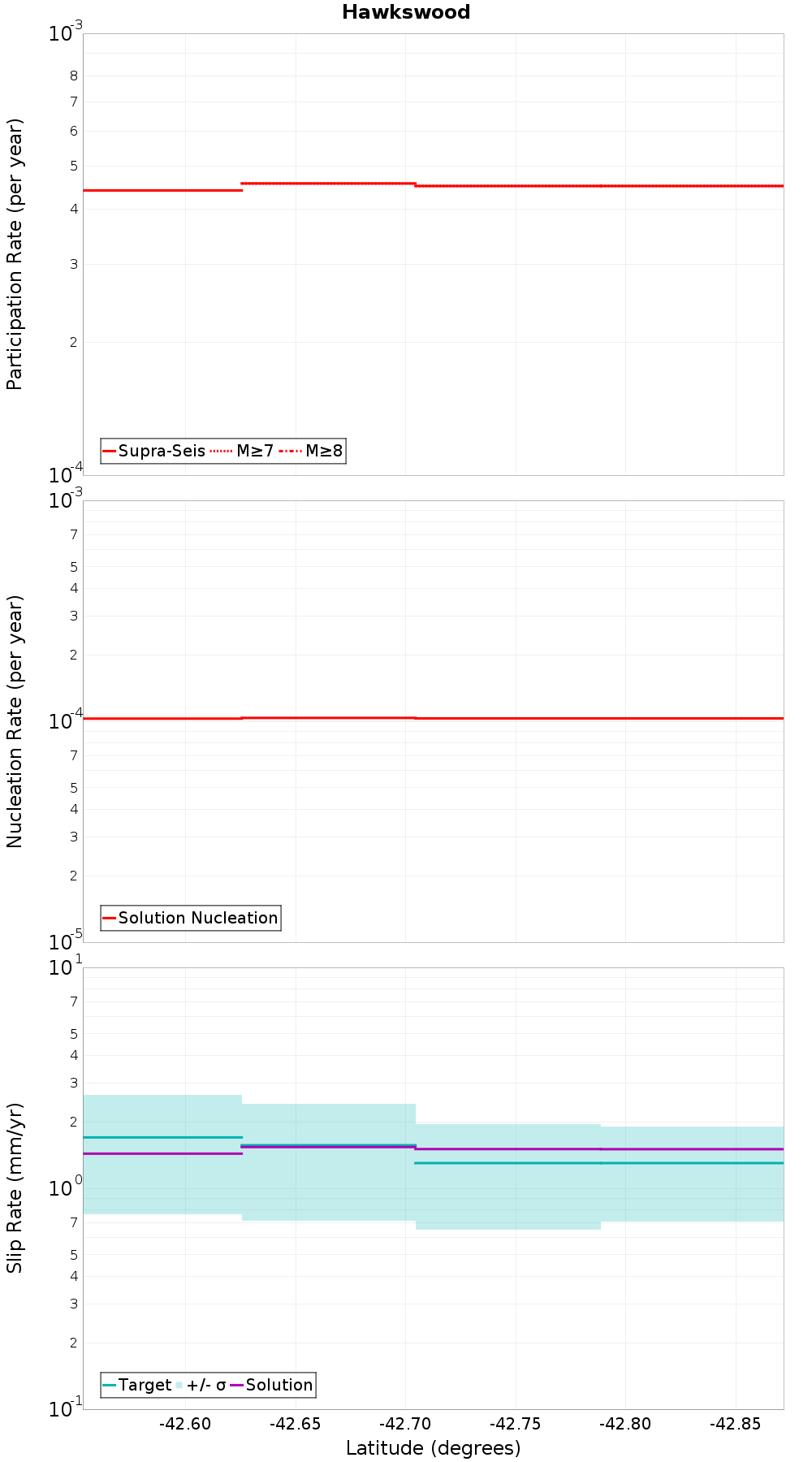

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Hundalee, 0.87 km away
StoneJug, 2.25 km away
OmihiLwrHuru, 3.06 km away
AmberBlyth, 3.12 km away
Conway Trough West, 4.07 km away
Kaiwara North, 9.21 km away
Leader: Central, 10.66 km away
Leader: South, 10.66 km away
Conway Trough East, 10.94 km away
The Humps, 11.31 km away
Point Gibson, 11.77 km away

Hundalee, 0.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?true
Directly Connected?true
Co-rupture Count5,014
Co-rupture Rate4.720149E-5

StoneJug, 2.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?true
Directly Connected?true
Co-rupture Count3,896
Co-rupture Rate1.5717911E-5

OmihiLwrHuru, 3.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?true
Directly Connected?true
Co-rupture Count4,282
Co-rupture Rate5.918288E-6

AmberBlyth, 3.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?true
Directly Connected?true
Co-rupture Count4,028
Co-rupture Rate5.1868683E-5

Conway Trough West, 4.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?true
Directly Connected?true
Co-rupture Count53
Co-rupture Rate2.0081301E-5

Kaiwara North, 9.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Leader: Central, 10.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?true
Directly Connected?false
Co-rupture Count705
Co-rupture Rate3.9391693E-6

Leader: South, 10.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Conway Trough East, 10.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

The Humps, 11.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?true
Directly Connected?false
Co-rupture Count554
Co-rupture Rate5.7761363E-6

Point Gibson, 11.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
