Puke Knoll Details

Property	Value
Rupture Count	18,436
Ruptures Above Sect Min Mag	18,434
Ruptures w/ Nonzero Rates	22
Magnitude Range	[7.12, 8.66]
Length Range	[24, 815] km
Total Rate	1.3608504E-5 /yr
Multi-Fault Rate	1.3608504E-5 /yr (100.00%)
Directly-Connected Faults	8
All Co-Rupturing Faults	69

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

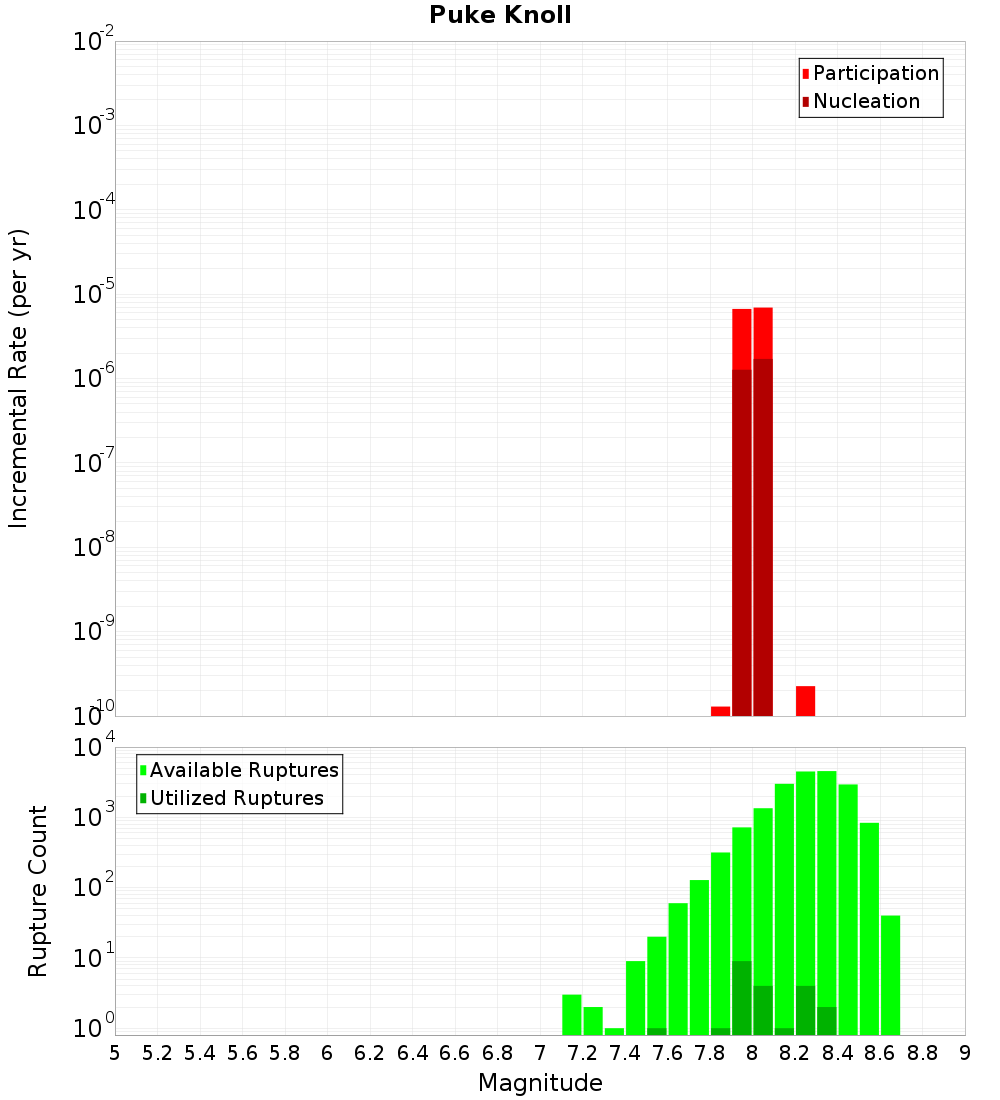

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

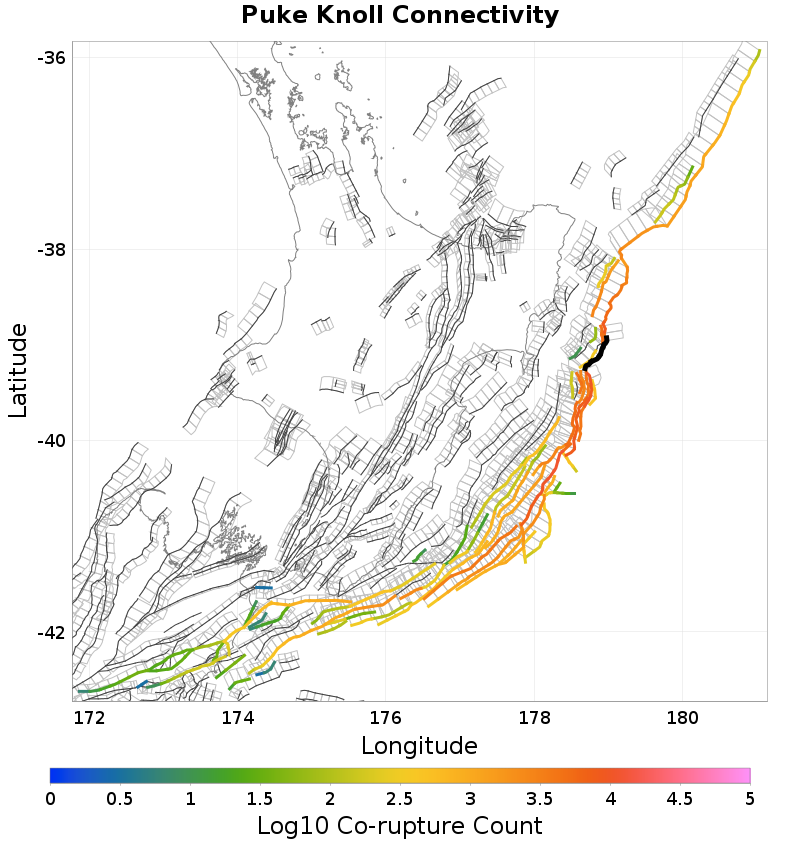

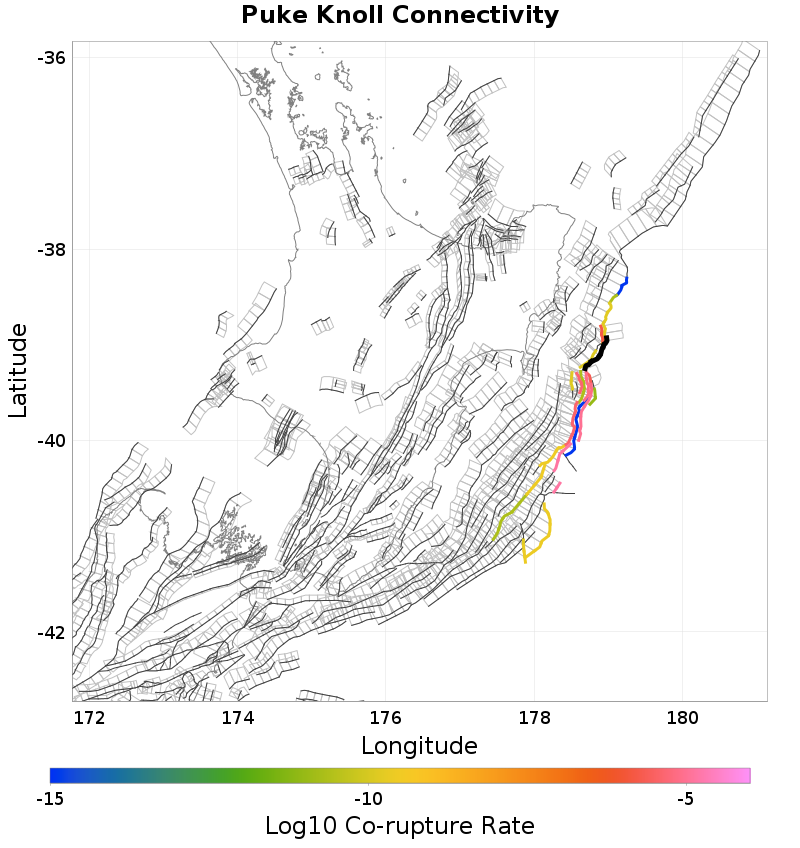

Connectivity

Nearby Sections

Fault Section
Whaiti Ridge, 0.09 km away
Papaku, 0.37 km away
Riwha, 1.03 km away
Puke Ridge, 1.13 km away
Paritu Ridge, 3.33 km away
Pakupaku Ridge, 5.08 km away
Te Kapu Bank, 5.14 km away
Te Kapu Bank East, 6.07 km away
Paritu West, 6.34 km away
Pakupaku Ridge East, 10.44 km away
Tuaheni Ridge, 11.14 km away
Ritchie Ridge, 14.28 km away

Whaiti Ridge, 0.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?	true
Directly Connected?	true
Co-rupture Count	3,841
Co-rupture Rate	7.2828157E-6

Papaku, 0.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?	true
Directly Connected?	true
Co-rupture Count	4,777
Co-rupture Rate	1.5206855E-6

Riwha, 1.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?	true
Directly Connected?	true
Co-rupture Count	362
Co-rupture Rate	1.2941333E-10

Puke Ridge, 1.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?	true
Directly Connected?	true
Co-rupture Count	8,408
Co-rupture Rate	1.5039943E-10

Paritu Ridge, 3.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?	true
Directly Connected?	true
Co-rupture Count	64
Co-rupture Rate	0.0

Pakupaku Ridge, 5.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?	true
Directly Connected?	true
Co-rupture Count	12,032
Co-rupture Rate	9.659399E-6

Te Kapu Bank, 5.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?	true
Directly Connected?	true
Co-rupture Count	4,410
Co-rupture Rate	4.2202405E-6

Te Kapu Bank East, 6.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?	true
Directly Connected?	false
Co-rupture Count	2,653
Co-rupture Rate	2.0984917E-11

Paritu West, 6.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?	true
Directly Connected?	true
Co-rupture Count	10
Co-rupture Rate	0.0

Pakupaku Ridge East, 10.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?	true
Directly Connected?	false
Co-rupture Count	559
Co-rupture Rate	9.632507E-12

Tuaheni Ridge, 11.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ritchie Ridge, 14.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?	true
Directly Connected?	false
Co-rupture Count	160
Co-rupture Rate	1.2941333E-10
