Raggedy - Blackstone Details

Property	Value
Rupture Count	5,791
Ruptures Above Sect Min Mag	5,790
Ruptures w/ Nonzero Rates	78
Magnitude Range	[7.11, 8.49]
Length Range	[22, 539] km
Total Rate	2.755872E-4 /yr
Multi-Fault Rate	1.7895042E-4 /yr (64.93%)
Directly-Connected Faults	8
All Co-Rupturing Faults	65

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

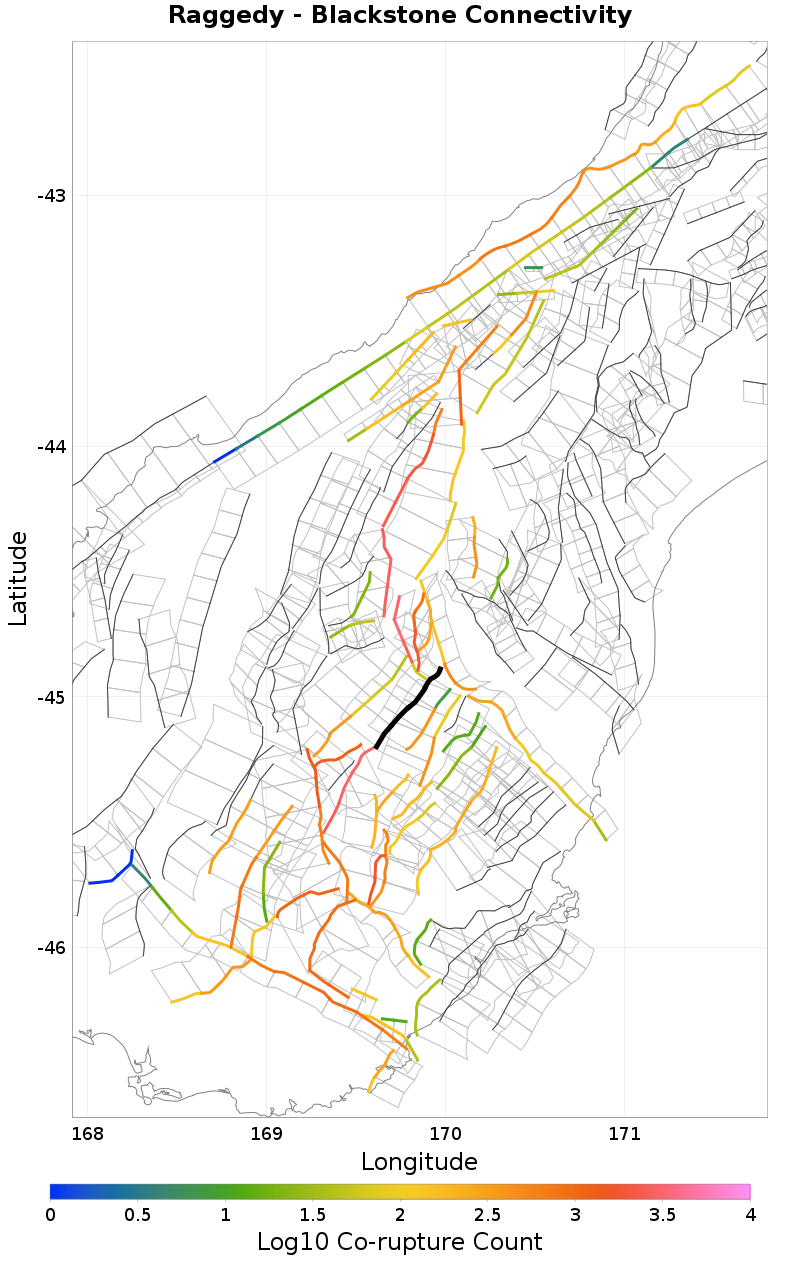

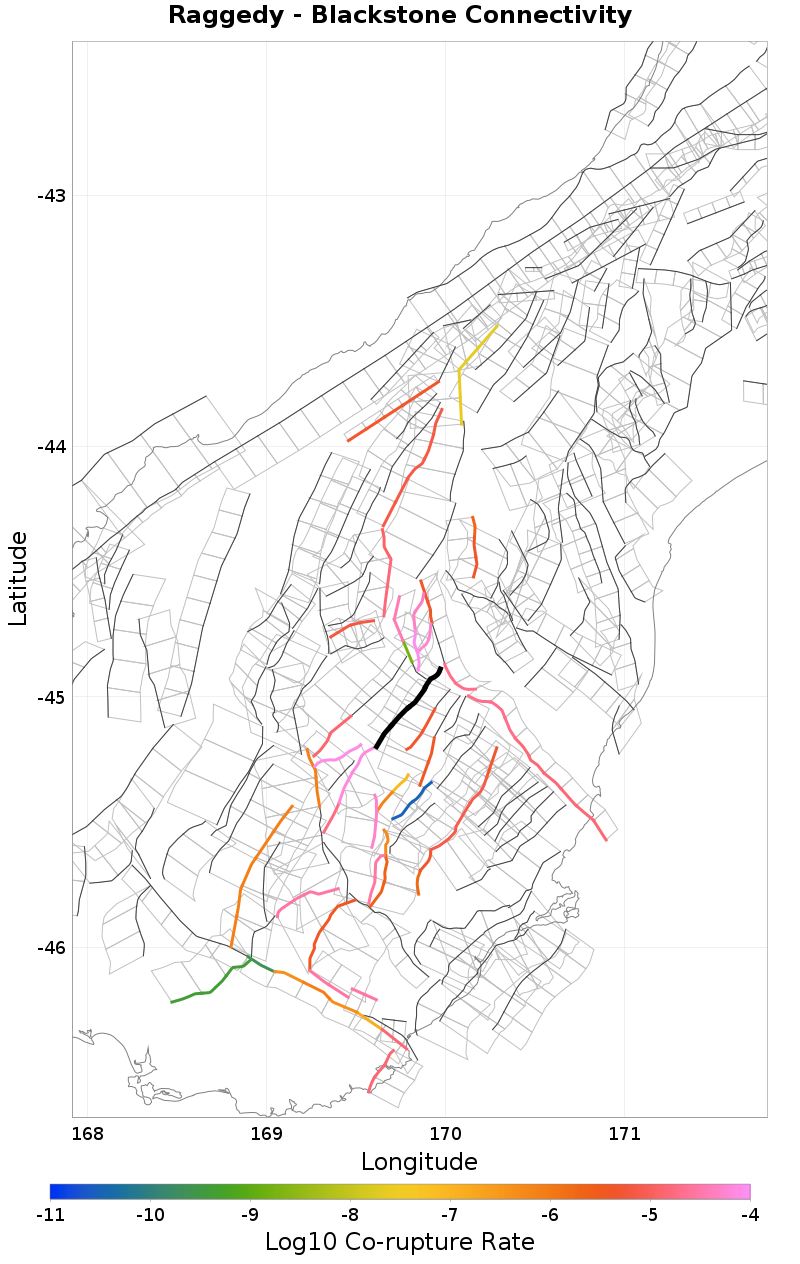

Connectivity

Nearby Sections

Fault Section
Blue Lake, 0.14 km away
Omarama Saddle, 0.27 km away
Little Valley, 1.46 km away
Hawkdun, 2.51 km away
Rocks Creek, 2.95 km away
Goodger, 4.78 km away
Galloway, 4.81 km away
Garibaldi, 6.01 km away
Dunstan, 9.93 km away
Gimmerburn, 10.17 km away
Galloway Shanty, 11.19 km away
Lindis River, 11.79 km away
Roaring Meg, 14.37 km away

Blue Lake, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?	true
Directly Connected?	true
Co-rupture Count	3,290
Co-rupture Rate	3.6440517E-5

Omarama Saddle, 0.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?	true
Directly Connected?	true
Co-rupture Count	1,818
Co-rupture Rate	8.356906E-5

Little Valley, 1.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?	true
Directly Connected?	true
Co-rupture Count	3,048
Co-rupture Rate	6.8580586E-5

Hawkdun, 2.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?	true
Directly Connected?	true
Co-rupture Count	661
Co-rupture Rate	2.4633833E-5

Rocks Creek, 2.95 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?	true
Directly Connected?	true
Co-rupture Count	306
Co-rupture Rate	6.111396E-5

Goodger, 4.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?	true
Directly Connected?	false
Co-rupture Count	48
Co-rupture Rate	6.735088E-6

Galloway, 4.81 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?	true
Directly Connected?	true
Co-rupture Count	1,184
Co-rupture Rate	7.589653E-5

Garibaldi, 6.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?	true
Directly Connected?	true
Co-rupture Count	393
Co-rupture Rate	4.696041E-6

Dunstan, 9.93 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?	true
Directly Connected?	true
Co-rupture Count	383
Co-rupture Rate	1.3526469E-5

Gimmerburn, 10.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?	true
Directly Connected?	false
Co-rupture Count	441
Co-rupture Rate	3.8127077E-6

Galloway Shanty, 11.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Lindis River, 11.79 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?	true
Directly Connected?	false
Co-rupture Count	21
Co-rupture Rate	0.0

Roaring Meg, 14.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
