Waipiata Details

Property	Value
Rupture Count	497
Ruptures Above Sect Min Mag	496
Ruptures w/ Nonzero Rates	33
Magnitude Range	[7.13, 8.35]
Length Range	[23, 361] km
Total Rate	1.1234382E-4 /yr
Multi-Fault Rate	1.1234382E-4 /yr (100.00%)
Directly-Connected Faults	7
All Co-Rupturing Faults	37

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

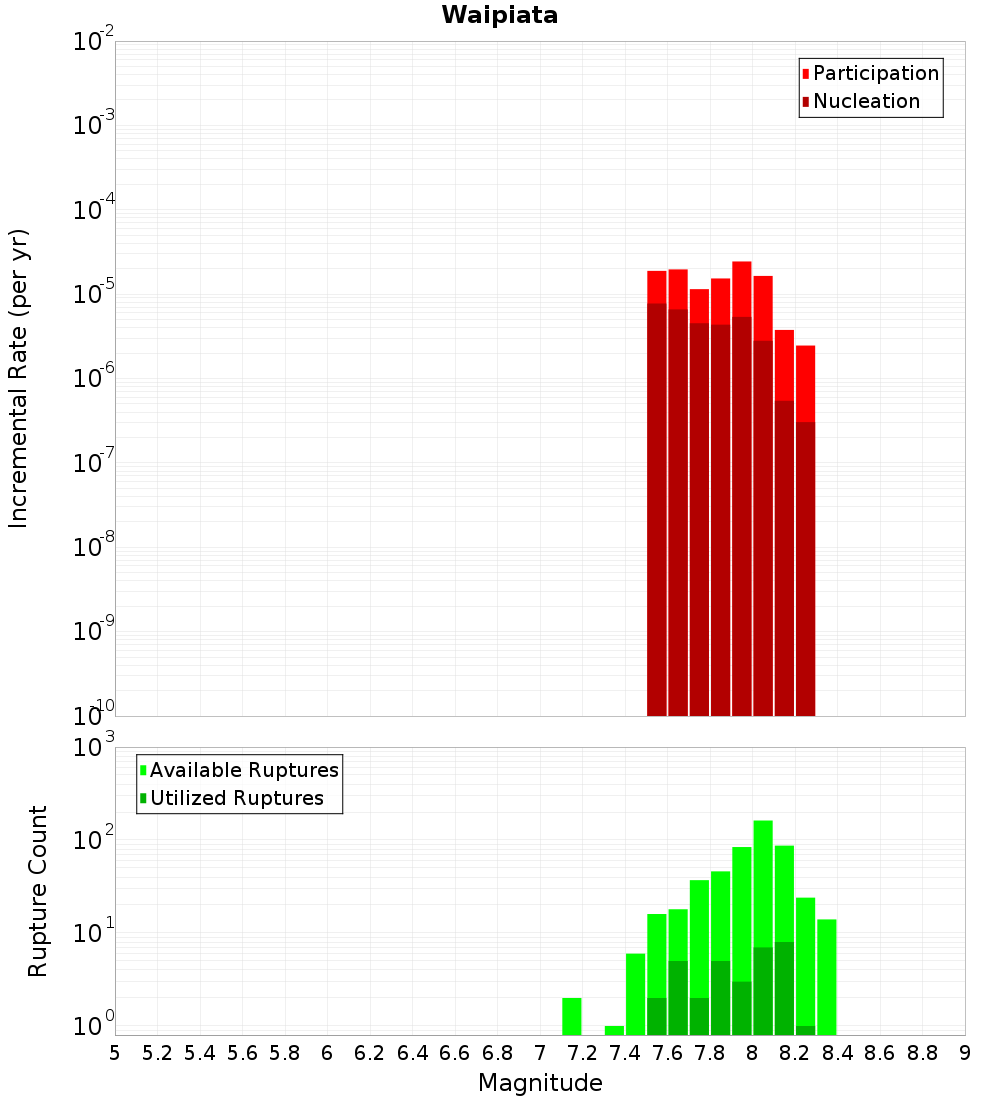

Magnitude-Frequency Distribution

Incremental	Cumulative

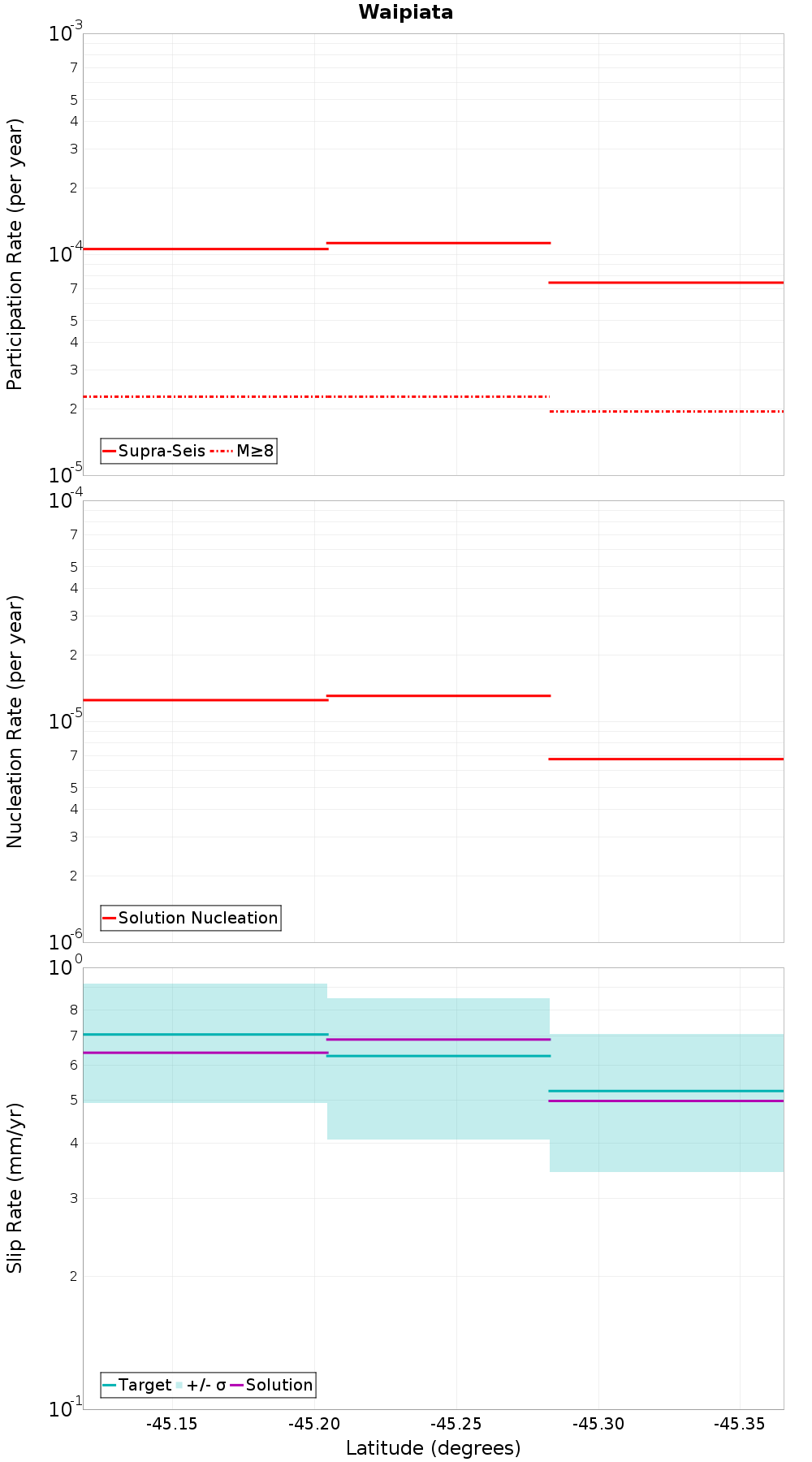

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Murphys Creek, 0.19 km away
Billys Ridge, 0.2 km away
Horse Flat, 0.28 km away
Hyde North, 0.31 km away
Dunback Hill, 0.35 km away
Ranfurly, 2.8 km away
Pylap, 3.22 km away
Flat Stream - Glenpark, 5.65 km away
Logan Burn, 6.26 km away
Gimmerburn, 7.59 km away
Waihemo, 7.71 km away
Nichols Rock, 8.37 km away
Cross Eden, 10.37 km away
Long Valley, 12.31 km away
Sliver Stream - Merton, 14.52 km away

Murphys Creek, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?	true
Directly Connected?	true
Co-rupture Count	29
Co-rupture Rate	3.0135718E-5

Billys Ridge, 0.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?	true
Directly Connected?	true
Co-rupture Count	41
Co-rupture Rate	0.0

Horse Flat, 0.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?	true
Directly Connected?	false
Co-rupture Count	4
Co-rupture Rate	1.9205524E-6

Hyde North, 0.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?	true
Directly Connected?	true
Co-rupture Count	122
Co-rupture Rate	7.007688E-5

Dunback Hill, 0.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?	true
Directly Connected?	true
Co-rupture Count	7
Co-rupture Rate	6.192316E-6

Ranfurly, 2.8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?	true
Directly Connected?	true
Co-rupture Count	58
Co-rupture Rate	6.8024824E-6

Pylap, 3.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?	true
Directly Connected?	true
Co-rupture Count	352
Co-rupture Rate	2.5142648E-5

Flat Stream - Glenpark, 5.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?	true
Directly Connected?	true
Co-rupture Count	29
Co-rupture Rate	6.1935134E-6

Logan Burn, 6.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?	true
Directly Connected?	false
Co-rupture Count	111
Co-rupture Rate	1.4210007E-5

Gimmerburn, 7.59 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?	true
Directly Connected?	false
Co-rupture Count	36
Co-rupture Rate	4.0171567E-6

Waihemo, 7.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Nichols Rock, 8.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?	true
Directly Connected?	false
Co-rupture Count	27
Co-rupture Rate	3.252664E-6

Cross Eden, 10.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	0.0

Long Valley, 12.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?	true
Directly Connected?	false
Co-rupture Count	32
Co-rupture Rate	4.0171567E-6

Sliver Stream - Merton, 14.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMDhOeXRK
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
