Blue Lake Details

PropertyValue
Rupture Count6,829
Ruptures Above Sect Min Mag6,827
Ruptures w/ Nonzero Rates35
Magnitude Range[6.96, 8.49]
Length Range[20, 539] km
Total Rate1.2118731E-4 /yr
Multi-Fault Rate1.2118731E-4 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults72

Table Of Contents

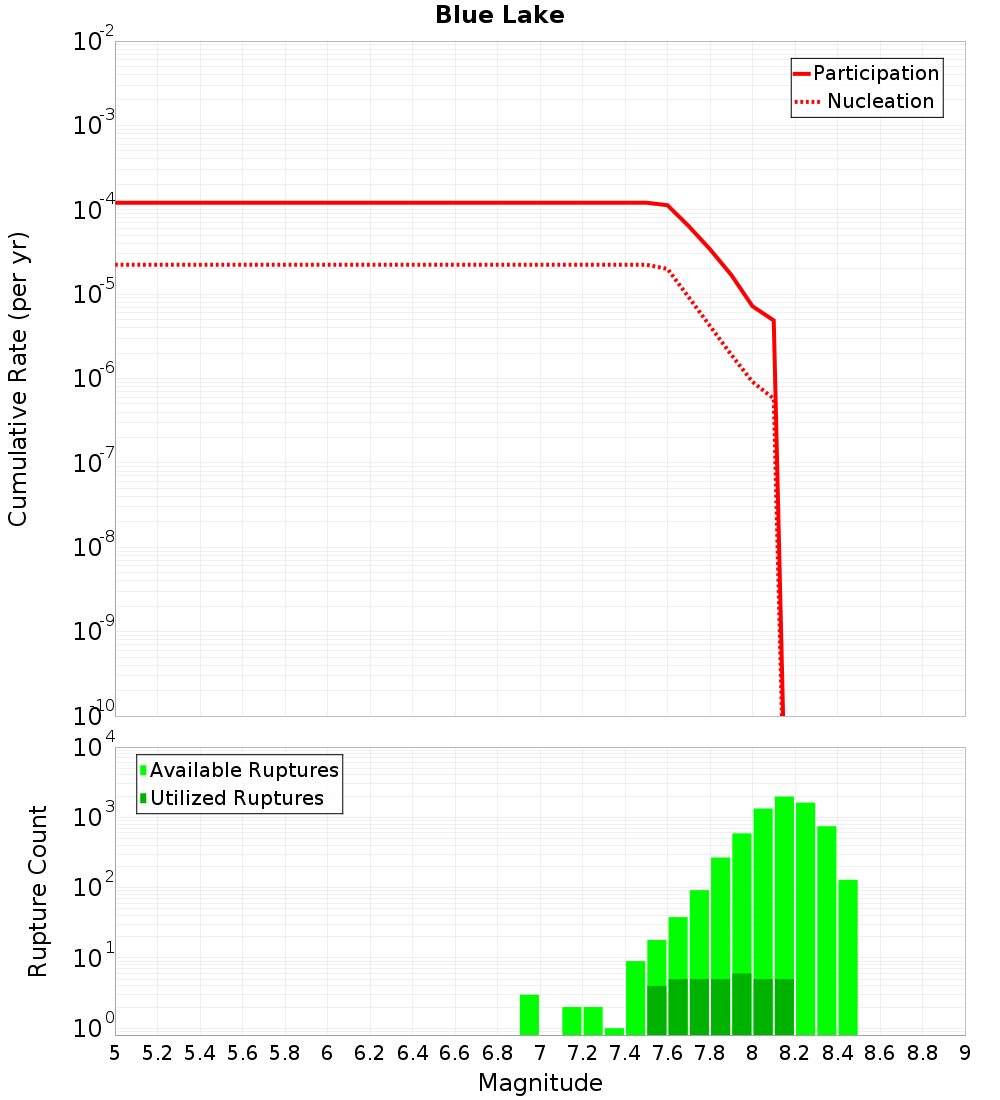

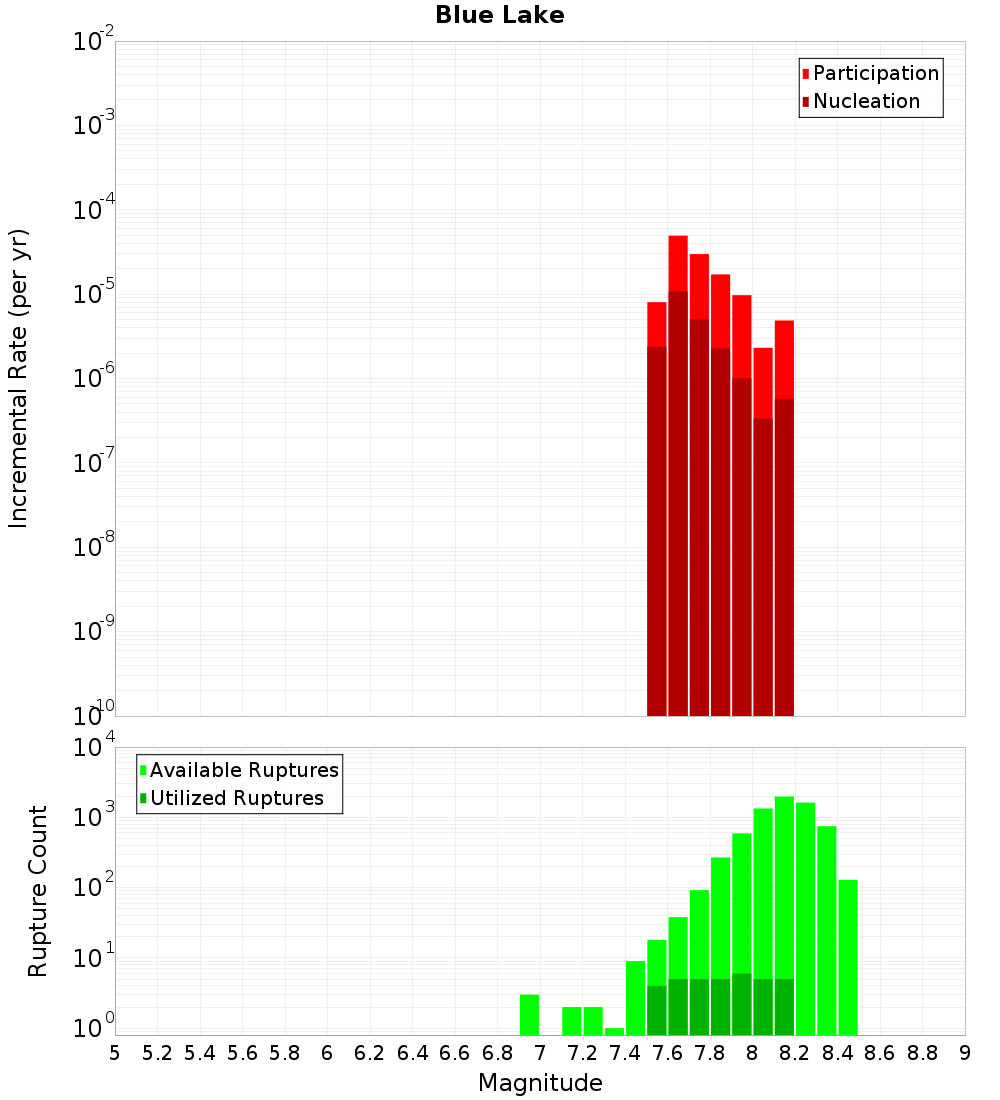

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

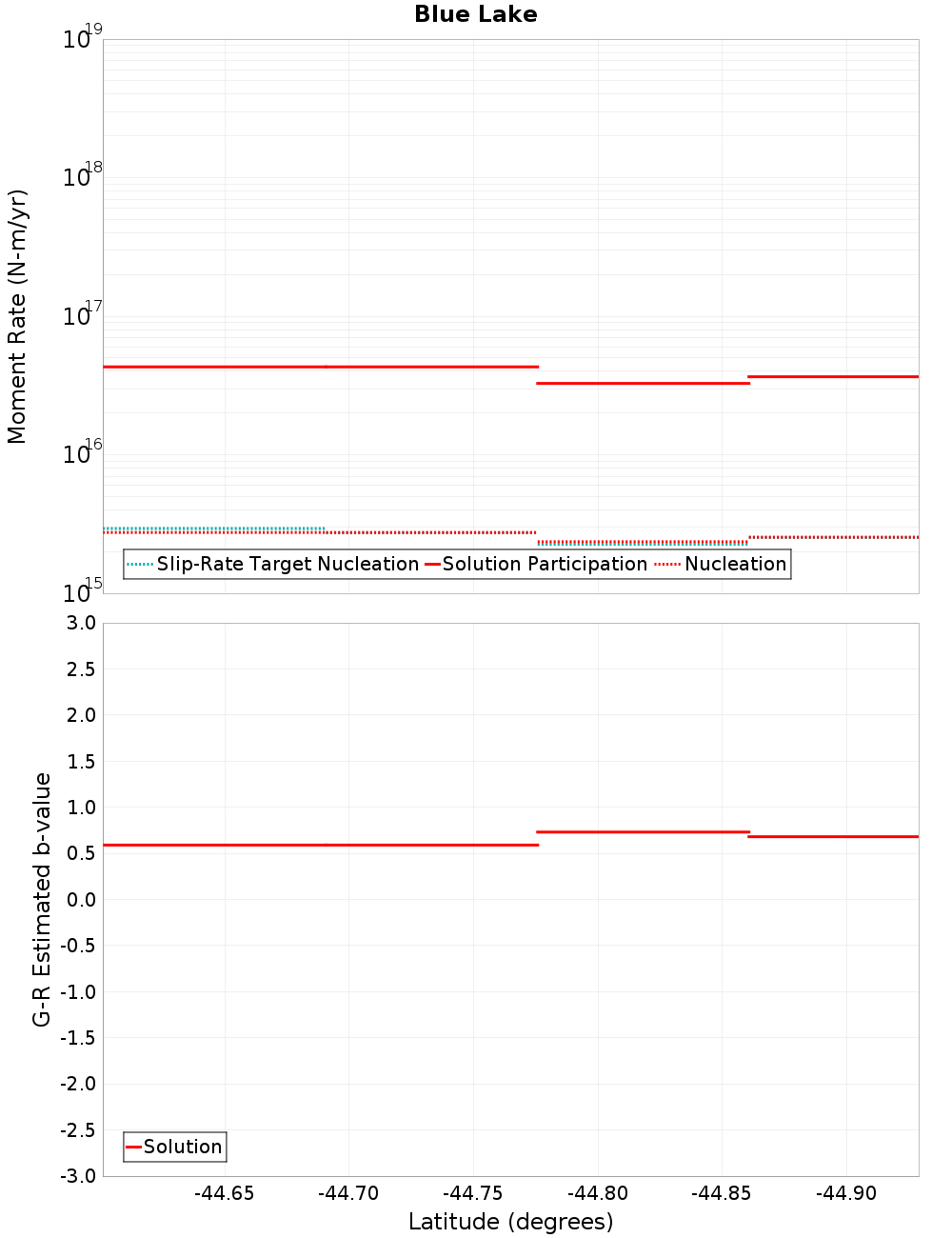

Moment-Rates and b-Values

(top)

Along-strike plot

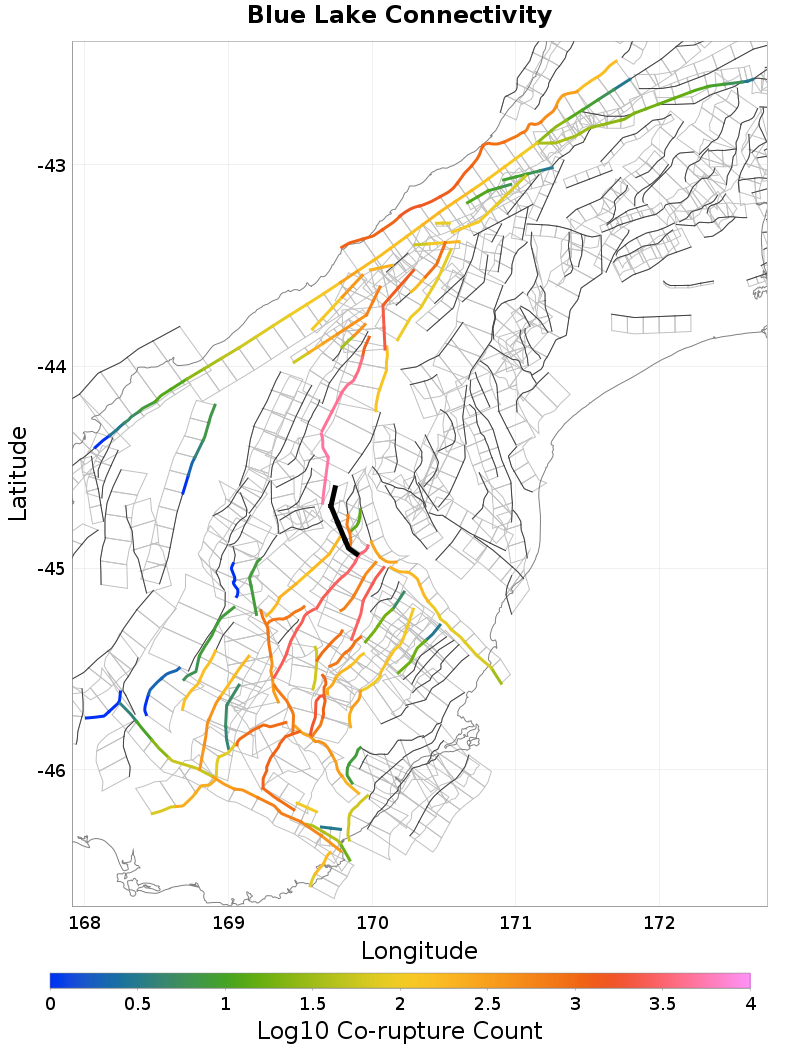

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Raggedy - Blackstone, 0.14 km away
Rocks Creek, 0.2 km away
Omarama Saddle, 1.09 km away
Garibaldi, 1.22 km away
Dunstan, 1.26 km away
Gimmerburn, 4.59 km away
Dromedary, 4.84 km away
Cluden, 7.31 km away
Lindis River, 8.84 km away
Goodger, 9.08 km away
Ostler South, 9.39 km away
Hawkdun, 9.49 km away
Fern Gully, 11.88 km away
Falstone, 14.6 km away

Raggedy - Blackstone, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?true
Directly Connected?true
Co-rupture Count3,290
Co-rupture Rate1.9763824E-5

Rocks Creek, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?true
Directly Connected?false
Co-rupture Count13
Co-rupture Rate2.4781979E-5

Omarama Saddle, 1.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?true
Directly Connected?true
Co-rupture Count640
Co-rupture Rate4.1117004E-5

Garibaldi, 1.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?true
Directly Connected?true
Co-rupture Count623
Co-rupture Rate4.881489E-5

Dunstan, 1.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?true
Directly Connected?true
Co-rupture Count283
Co-rupture Rate1.1299347E-5

Gimmerburn, 4.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?true
Directly Connected?true
Co-rupture Count2,921
Co-rupture Rate7.015403E-5

Dromedary, 4.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?true
Directly Connected?true
Co-rupture Count5,109
Co-rupture Rate3.1313255E-5

Cluden, 7.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Lindis River, 8.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Goodger, 9.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ostler South, 9.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hawkdun, 9.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?true
Directly Connected?false
Co-rupture Count275
Co-rupture Rate0.0

Fern Gully, 11.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Falstone, 14.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
