Dalgety Details

Property	Value
Rupture Count	3,600
Ruptures Above Sect Min Mag	3,599
Ruptures w/ Nonzero Rates	22
Magnitude Range	[7.01, 8.27]
Length Range	[22, 356] km
Total Rate	1.0890014E-4 /yr
Multi-Fault Rate	1.0890014E-4 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	43

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

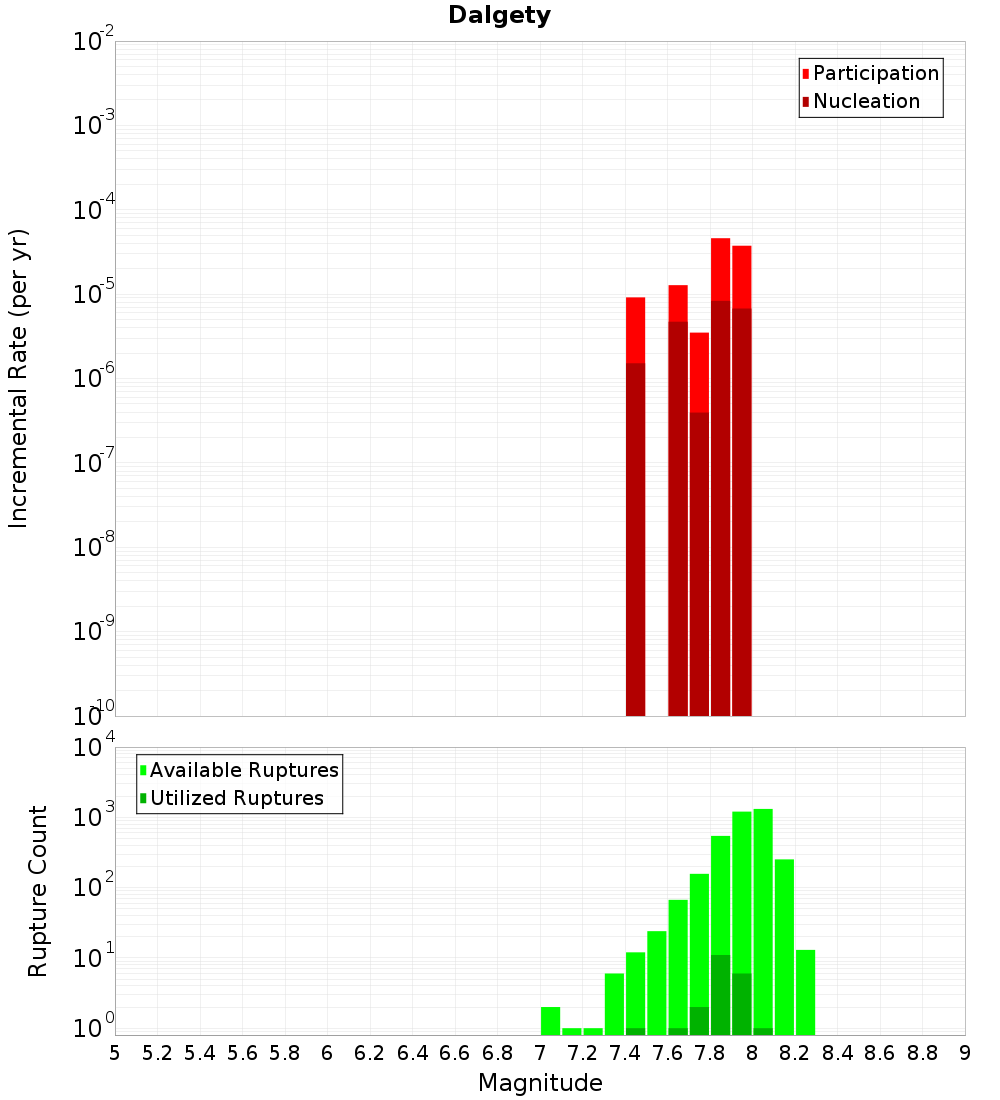

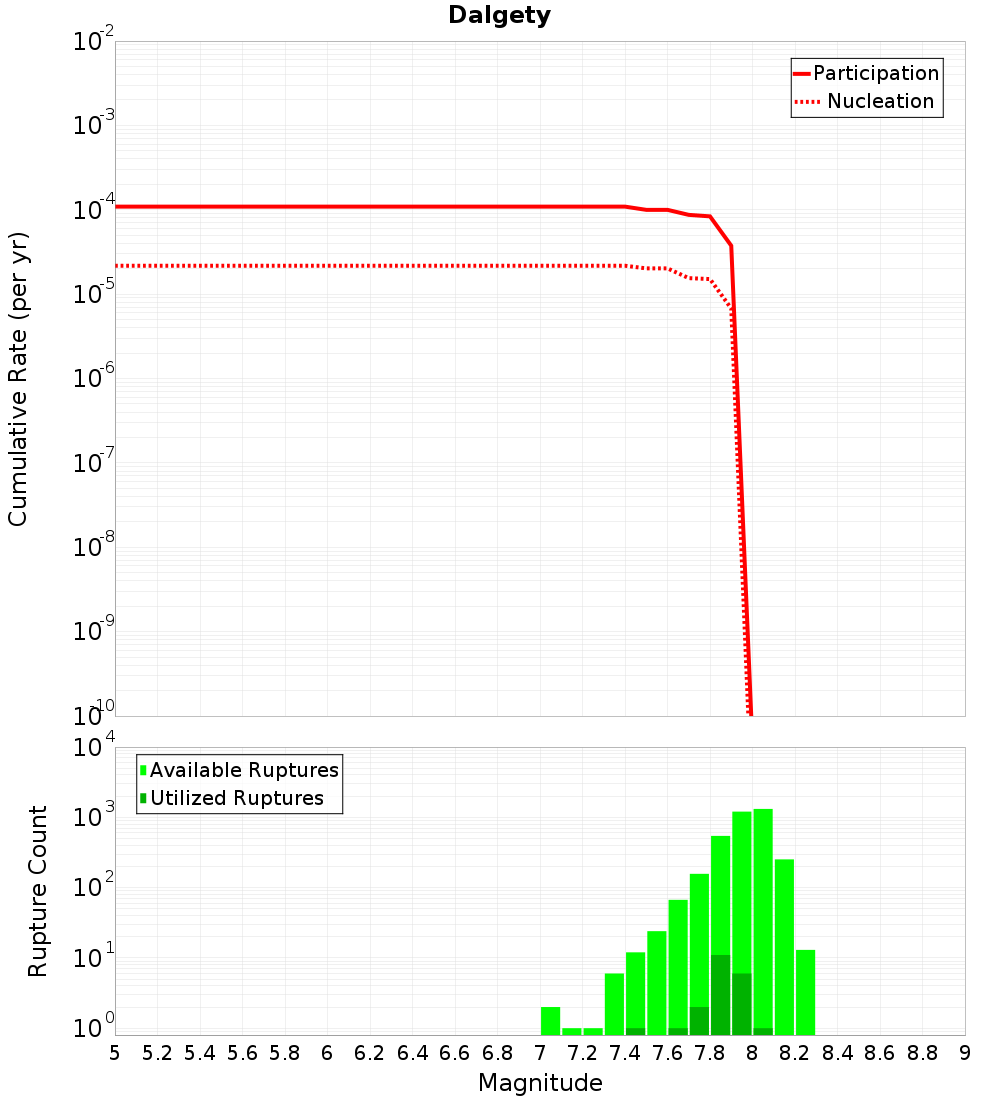

Magnitude-Frequency Distribution

Incremental	Cumulative

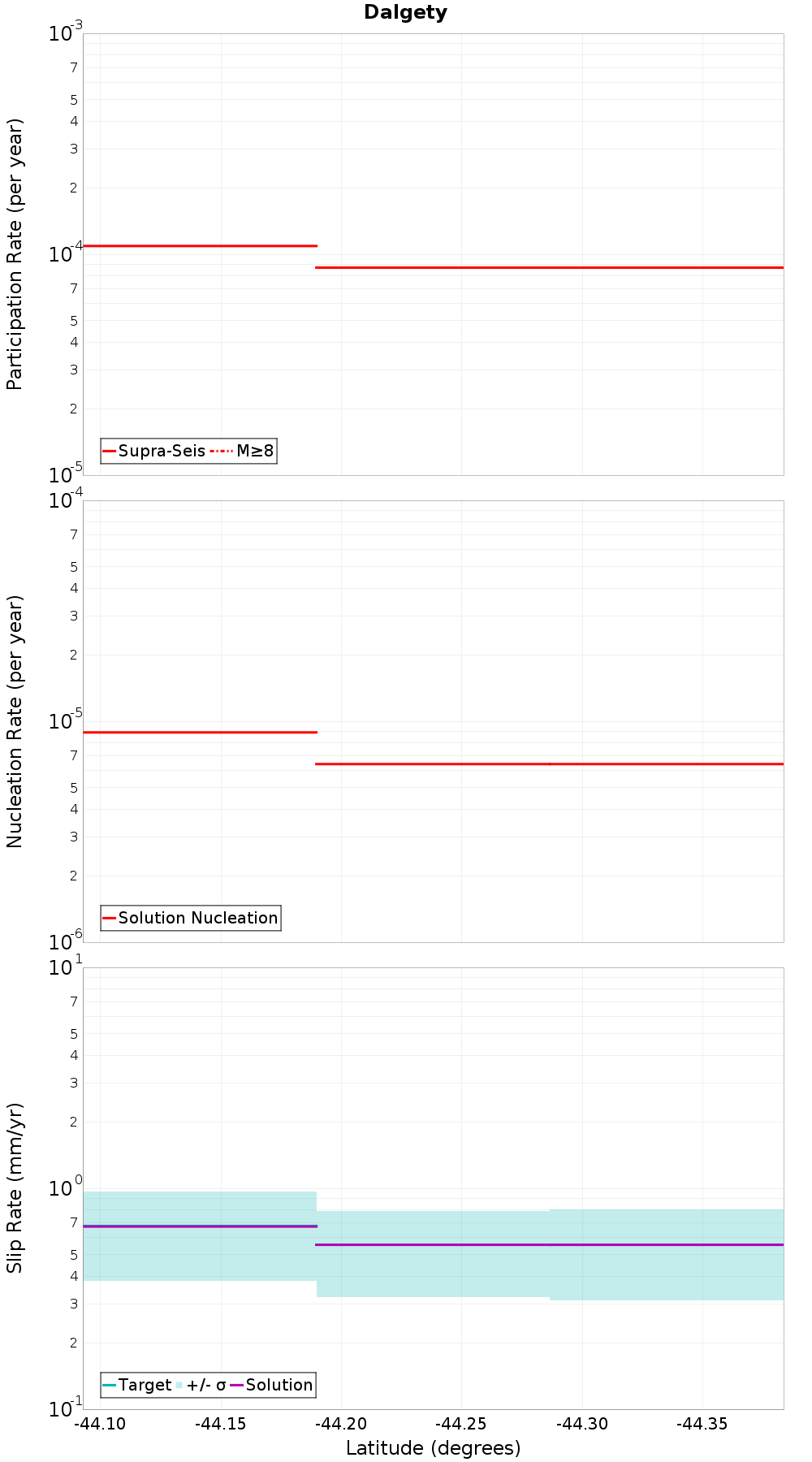

Along-Strike Values

Moment-Rates and b-Values

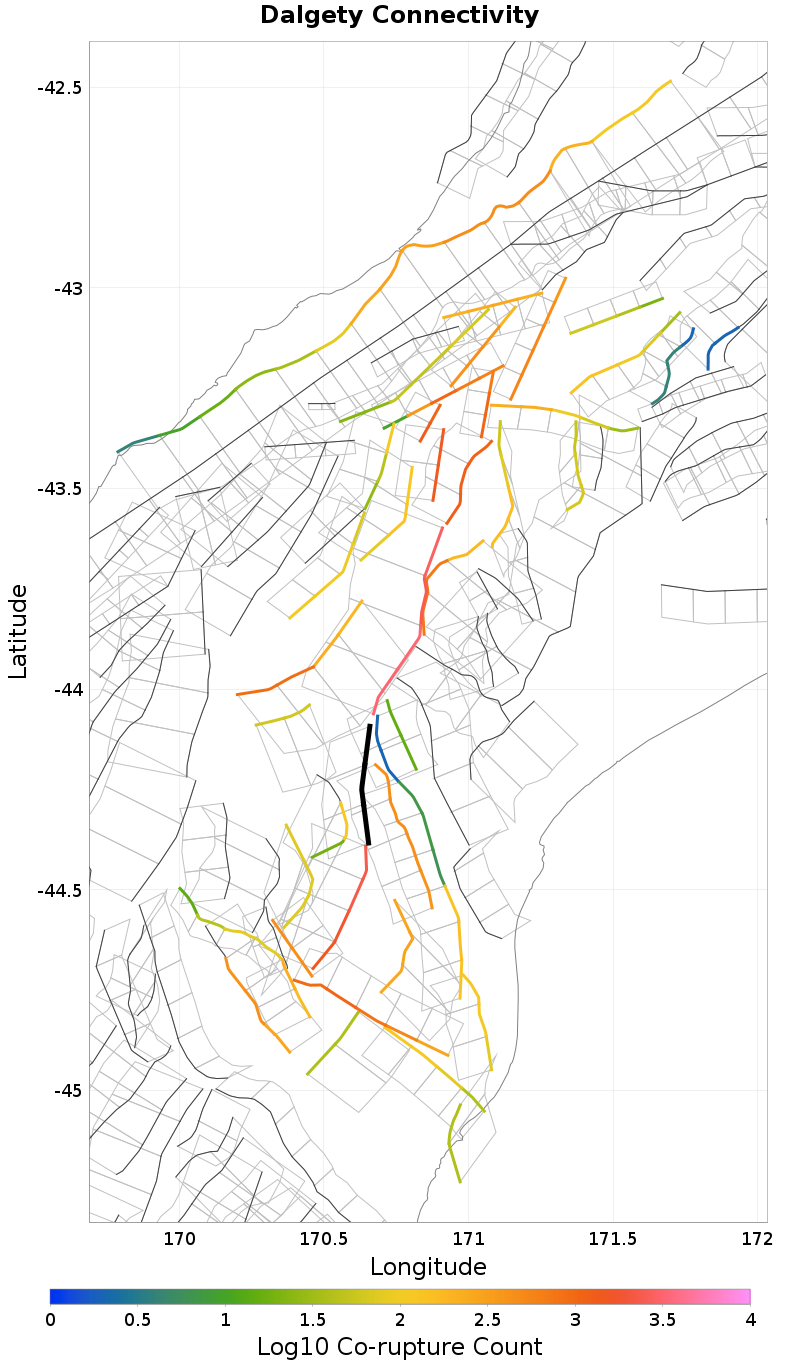

Connectivity

Nearby Sections

Fault Section
The Wolds, 0.3 km away
Irishman Creek, 0.52 km away
Kirkliston, 1.05 km away
Opawa, 1.94 km away
Chamberlain, 2.65 km away
Fox Peak, 3.59 km away
Grampian, 4.58 km away
Albury, 5.91 km away
Hunters, 8.73 km away
Dryburgh, 12.9 km away

The Wolds, 0.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?	true
Directly Connected?	true
Co-rupture Count	60
Co-rupture Rate	3.4738376E-5

Irishman Creek, 0.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?	true
Directly Connected?	true
Co-rupture Count	904
Co-rupture Rate	6.9542744E-5

Kirkliston, 1.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?	true
Directly Connected?	true
Co-rupture Count	2,303
Co-rupture Rate	8.693615E-5

Opawa, 1.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	5.985393E-11

Chamberlain, 2.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?	true
Directly Connected?	true
Co-rupture Count	454
Co-rupture Rate	0.0

Fox Peak, 3.59 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?	true
Directly Connected?	true
Co-rupture Count	3,786
Co-rupture Rate	2.596809E-5

Grampian, 4.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?	true
Directly Connected?	true
Co-rupture Count	117
Co-rupture Rate	0.0

Albury, 5.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?	true
Directly Connected?	false
Co-rupture Count	15
Co-rupture Rate	0.0

Hunters, 8.73 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?	true
Directly Connected?	false
Co-rupture Count	161
Co-rupture Rate	5.985393E-11

Dryburgh, 12.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?	true
Directly Connected?	false
Co-rupture Count	464
Co-rupture Rate	5.4022574E-5
