Hauroko: North Details

PropertyValue
Rupture Count957
Ruptures Above Sect Min Mag954
Ruptures w/ Nonzero Rates16
Magnitude Range[7.08, 8.68]
Length Range[23, 964] km
Total Rate3.762852E-4 /yr
Multi-Fault Rate2.3315218E-4 /yr (61.96%)
Directly-Connected Faults3
All Co-Rupturing Faults26

Table Of Contents

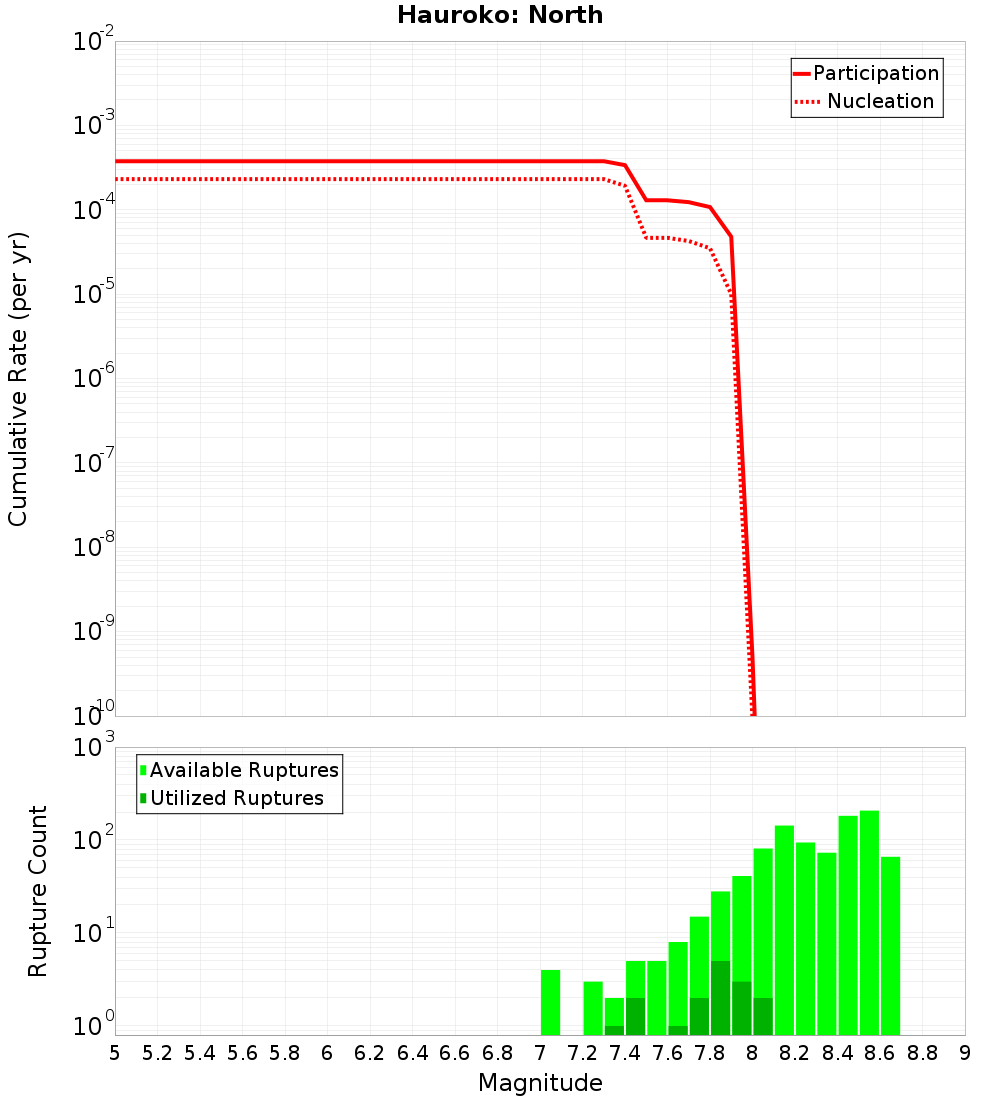

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

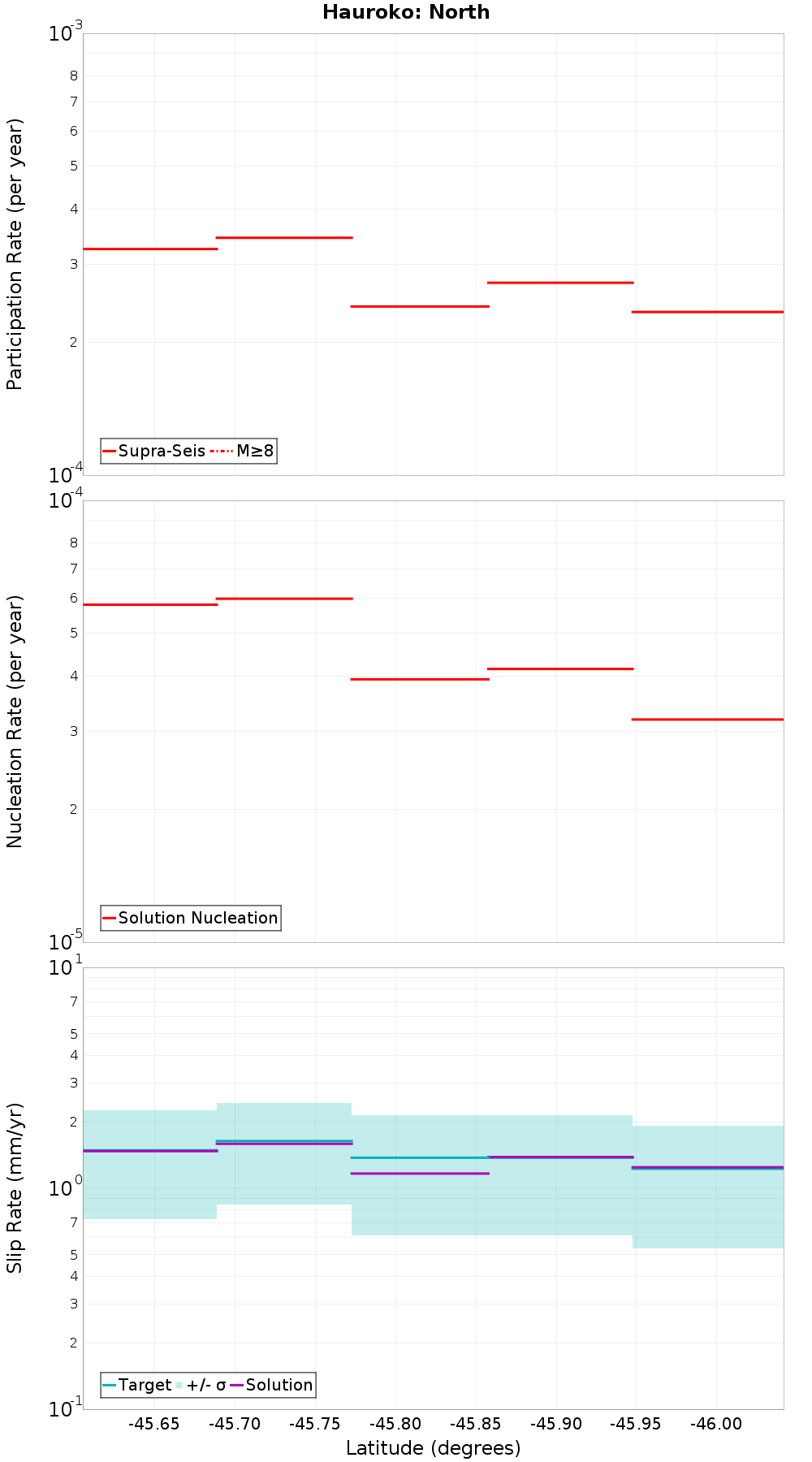

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Hauroko: South, 0.32 km away
Monowai, 1.01 km away
Hump Ridge, 3.59 km away
McKerchar, 5.68 km away
Tin Hut, 14.01 km away
Moonlight South, 14.39 km away

Hauroko: South, 0.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?true
Directly Connected?true
Co-rupture Count825
Co-rupture Rate1.2304944E-4

Monowai, 1.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?true
Directly Connected?true
Co-rupture Count107
Co-rupture Rate1.3542657E-4

Hump Ridge, 3.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?true
Directly Connected?false
Co-rupture Count154
Co-rupture Rate3.5177098E-5

McKerchar, 5.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?true
Directly Connected?true
Co-rupture Count905
Co-rupture Rate2.2577073E-5

Tin Hut, 14.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Moonlight South, 14.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?true
Directly Connected?false
Co-rupture Count885
Co-rupture Rate6.102832E-9
