Kidnappers Ridge Details

PropertyValue
Rupture Count149
Ruptures Above Sect Min Mag144
Ruptures w/ Nonzero Rates12
Magnitude Range[6.90, 7.76]
Length Range[19, 142] km
Total Rate1.314695E-4 /yr
Multi-Fault Rate1.314695E-4 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults9

Table Of Contents

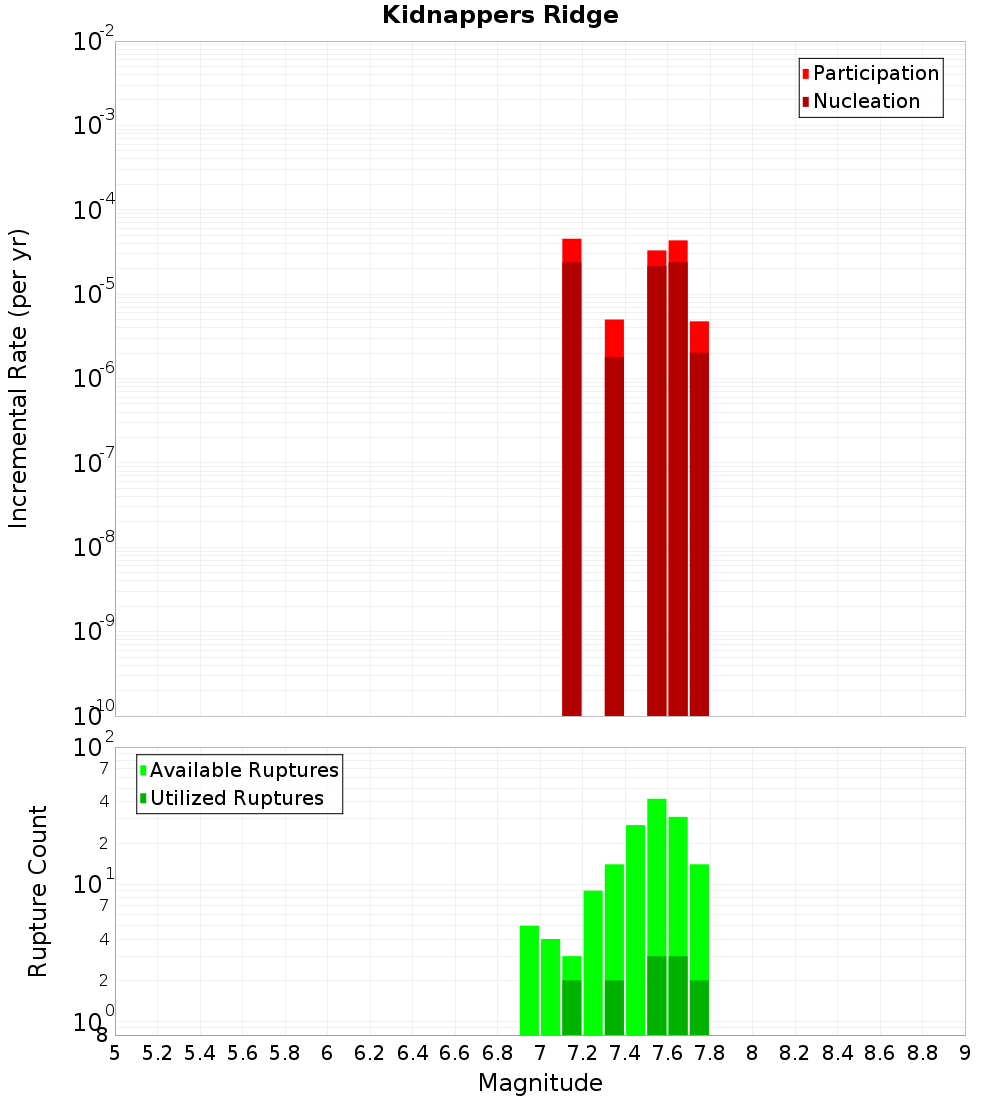

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

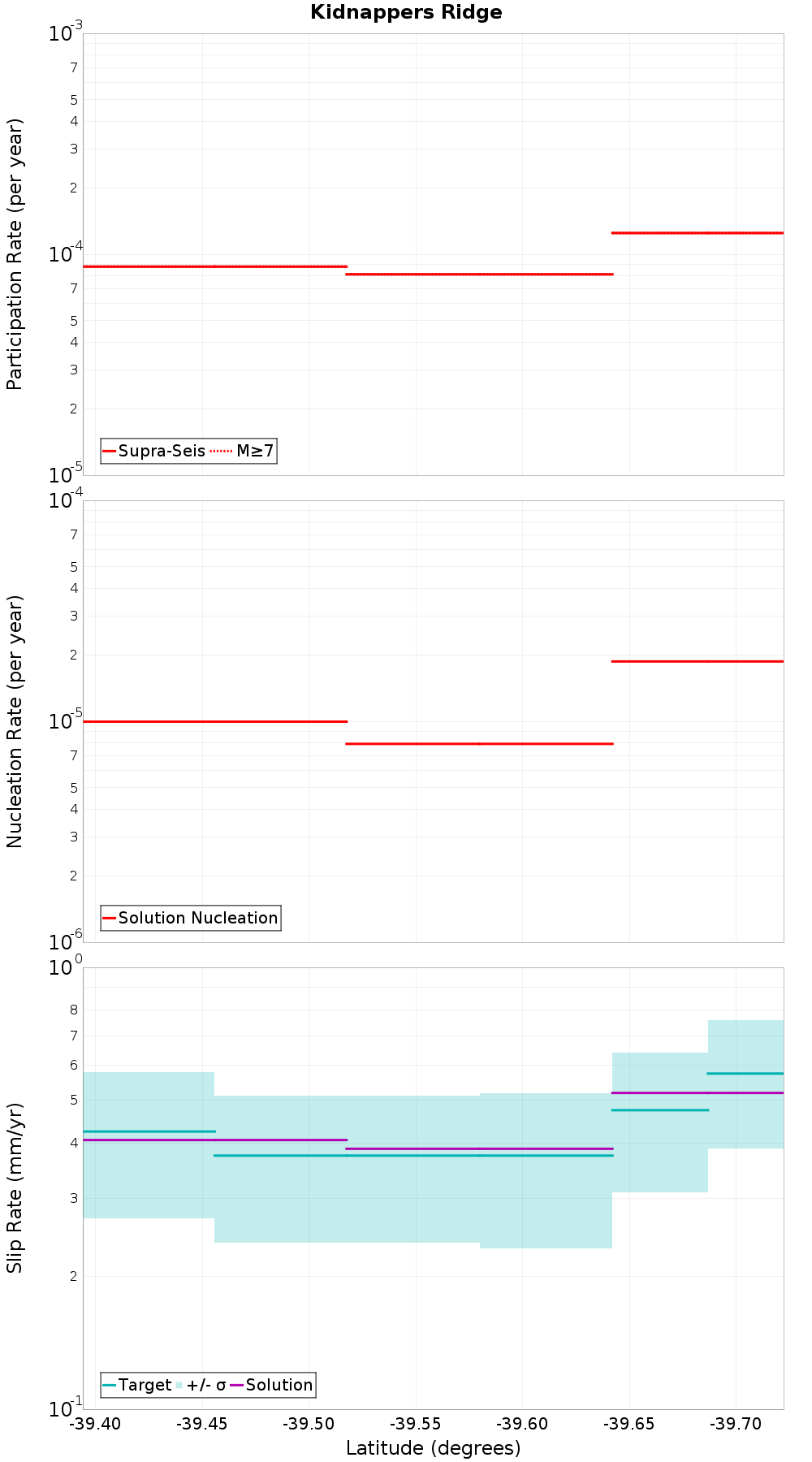

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

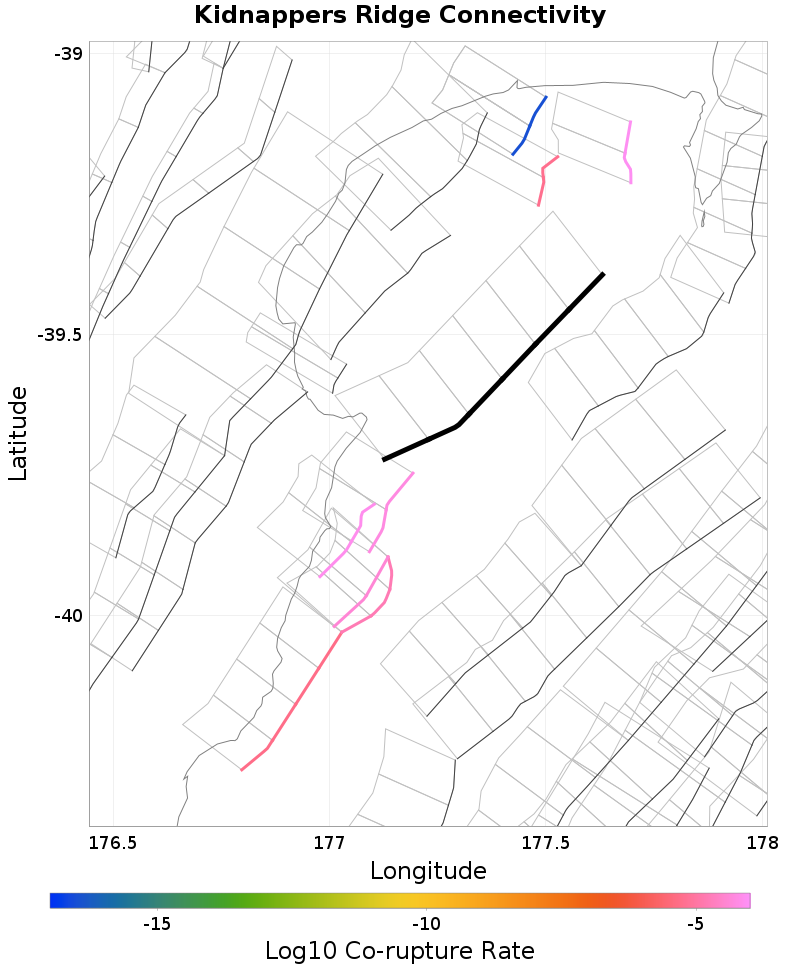

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Waimarama 3 & 4, 3.45 km away
Waimarama 1 & 2, 8.65 km away
Hawke Bay 8, 10.62 km away
Lachlan 1 & 2, 10.9 km away
Tukituki Thrust, 11.23 km away
Hawke Bay 7, 11.35 km away
Hawke Bay 5 & 11, 12.01 km away
Hawke Bay 2, 14.56 km away

Waimarama 3 & 4, 3.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?true
Directly Connected?true
Co-rupture Count80
Co-rupture Rate5.3145795E-5

Waimarama 1 & 2, 8.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?true
Directly Connected?true
Co-rupture Count32
Co-rupture Rate7.158163E-5

Hawke Bay 8, 10.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Lachlan 1 & 2, 10.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tukituki Thrust, 11.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hawke Bay 7, 11.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?true
Directly Connected?true
Co-rupture Count17
Co-rupture Rate8.2322695E-5

Hawke Bay 5 & 11, 12.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?true
Directly Connected?true
Co-rupture Count32
Co-rupture Rate5.5394494E-6

Hawke Bay 2, 14.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
