Leonard Mound Details

Property	Value
Rupture Count	3,050
Ruptures Above Sect Min Mag	3,048
Ruptures w/ Nonzero Rates	10
Magnitude Range	[6.86, 8.52]
Length Range	[16, 704] km
Total Rate	3.2622757E-4 /yr
Multi-Fault Rate	2.2178439E-4 /yr (67.98%)
Directly-Connected Faults	4
All Co-Rupturing Faults	65

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values

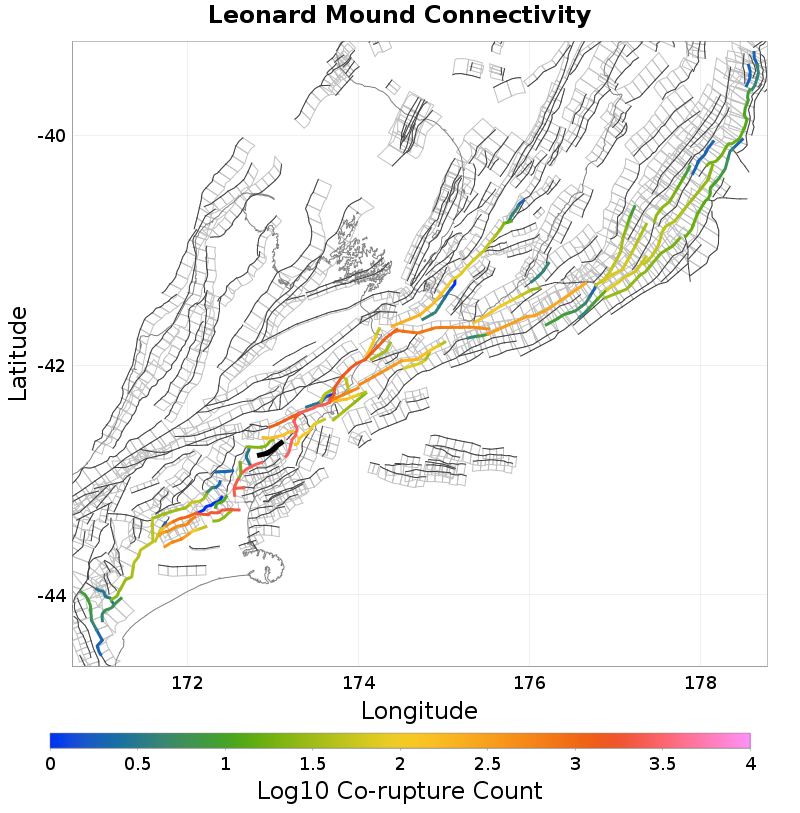

Connectivity
- Nearby Sections

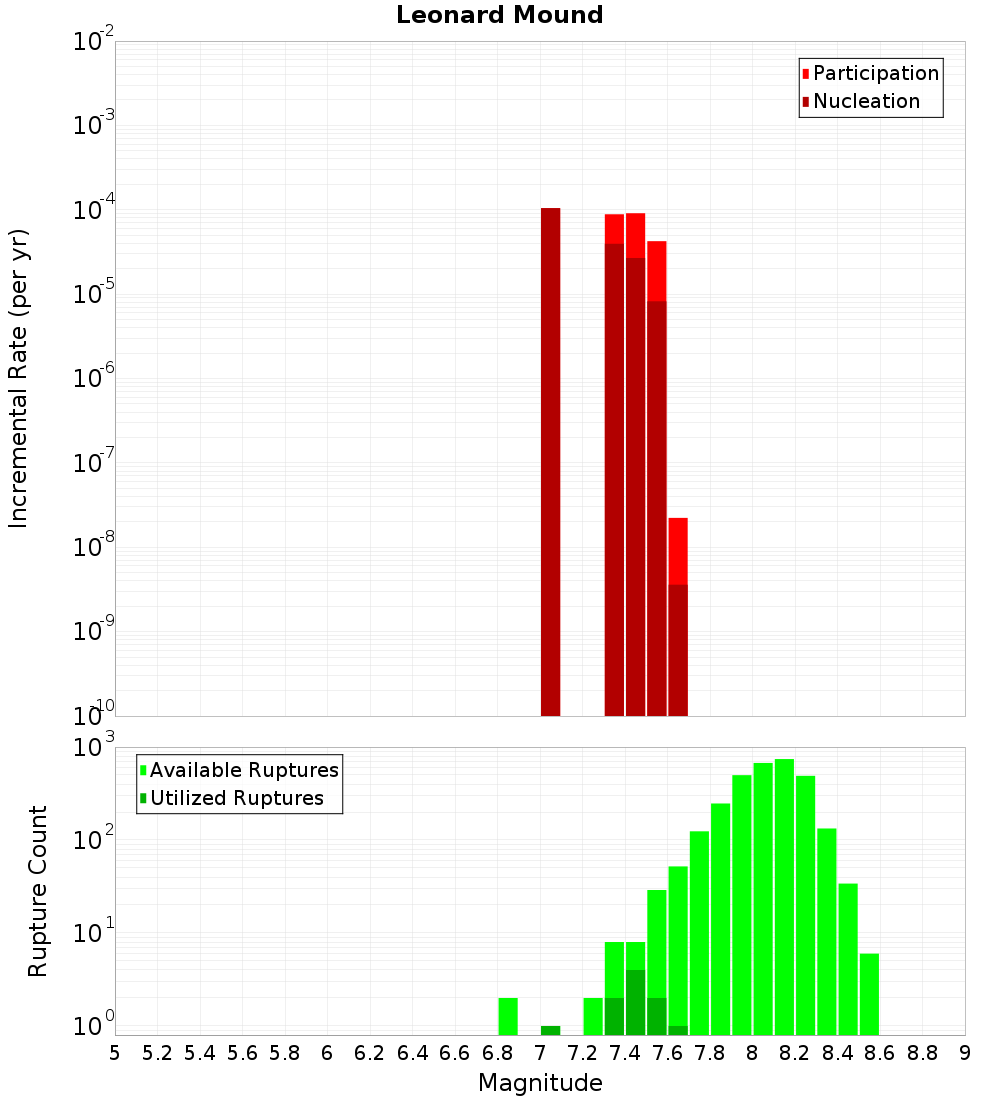

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Kaiwara North, 0.32 km away
Lowry, 1.98 km away
The Humps, 4.72 km away
Mt Culverden, 4.83 km away
Leader: South, 6.16 km away
Alexander, 8.1 km away
Hundalee, 9.87 km away
Balmoral, 11.2 km away
Kaiwara South, 12.53 km away
Doctors, 12.92 km away

Kaiwara North, 0.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?	true
Directly Connected?	true
Co-rupture Count	2,730
Co-rupture Rate	0.0

Lowry, 1.98 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?	true
Directly Connected?	true
Co-rupture Count	2,525
Co-rupture Rate	9.256128E-5

The Humps, 4.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?	true
Directly Connected?	true
Co-rupture Count	163
Co-rupture Rate	1.4199959E-5

Mt Culverden, 4.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?	true
Directly Connected?	true
Co-rupture Count	22
Co-rupture Rate	1.1502315E-4

Leader: South, 6.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Alexander, 8.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hundalee, 9.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?	true
Directly Connected?	false
Co-rupture Count	123
Co-rupture Rate	1.4199959E-5

Balmoral, 11.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?	true
Directly Connected?	false
Co-rupture Count	3
Co-rupture Rate	2.2292106E-8

Kaiwara South, 12.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Doctors, 12.92 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?	true
Directly Connected?	false
Co-rupture Count	2,335
Co-rupture Rate	1.1916999E-4
