Marlborough Slope 4 Details

Property	Value
Rupture Count	2,994
Ruptures Above Sect Min Mag	2,992
Ruptures w/ Nonzero Rates	14
Magnitude Range	[6.84, 8.49]
Length Range	[17, 619] km
Total Rate	7.791425E-5 /yr
Multi-Fault Rate	7.791425E-5 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	65

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

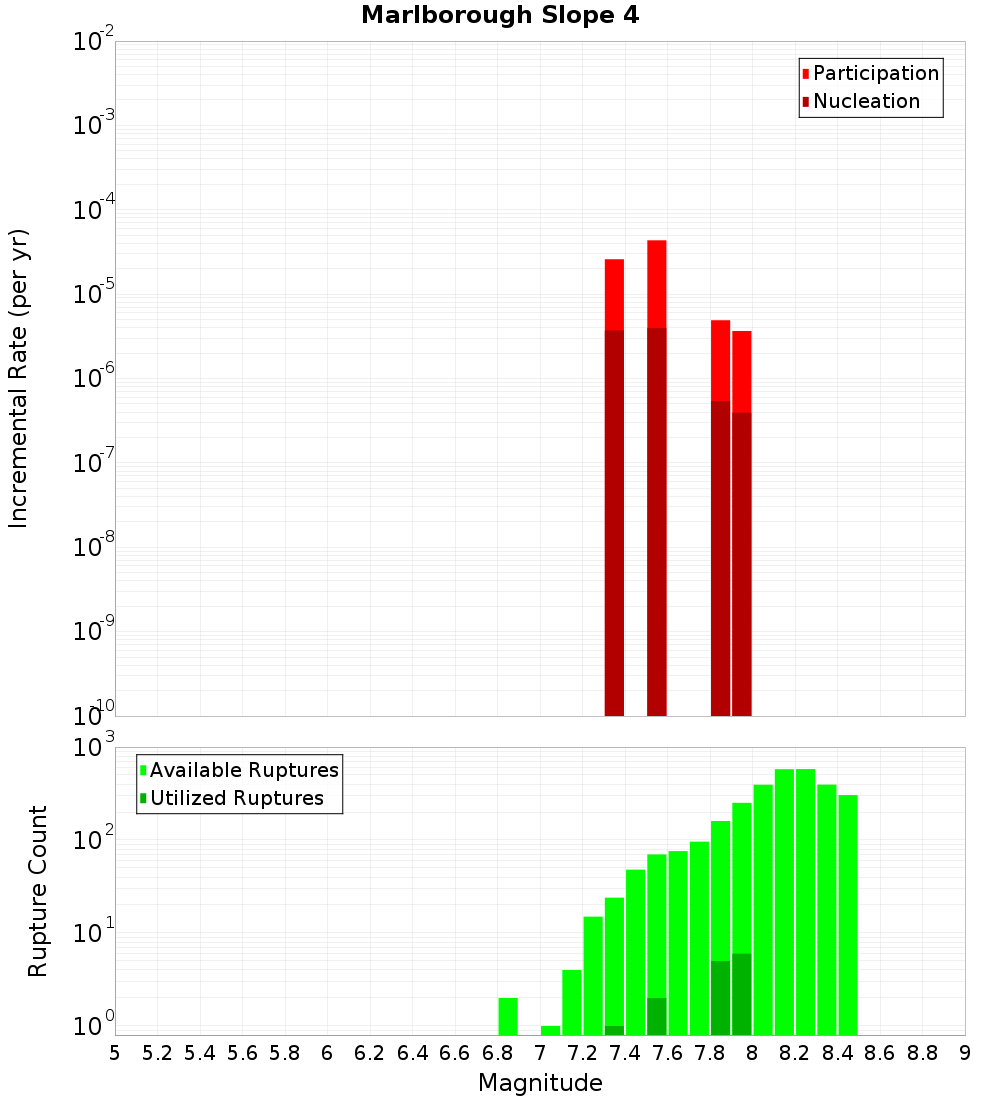

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Kekerengu Bank, 4.72 km away
Marlborough Slope 3, 6.08 km away
Marlborough Slope 2, 6.6 km away
Marlborough Slope 10, 7.31 km away
Upper Slope, 12.3 km away
Kaikoura - Mangamaunu, 13.21 km away

Kekerengu Bank, 4.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?	true
Directly Connected?	true
Co-rupture Count	2,843
Co-rupture Rate	8.563838E-6

Marlborough Slope 3, 6.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?	true
Directly Connected?	false
Co-rupture Count	4
Co-rupture Rate	0.0

Marlborough Slope 2, 6.6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?	true
Directly Connected?	true
Co-rupture Count	685
Co-rupture Rate	7.013865E-5

Marlborough Slope 10, 7.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?	true
Directly Connected?	true
Co-rupture Count	304
Co-rupture Rate	2.8336407E-9

Upper Slope, 12.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?	true
Directly Connected?	true
Co-rupture Count	129
Co-rupture Rate	6.935041E-5

Kaikoura - Mangamaunu, 13.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
