Maungati Details
| Property | Value |
|---|---|
| Rupture Count | 761 |
| Ruptures Above Sect Min Mag | 756 |
| Ruptures w/ Nonzero Rates | 31 |
| Magnitude Range | [6.77, 8.33] |
| Length Range | [16, 506] km |
| Total Rate | 8.985901E-5 /yr |
| Multi-Fault Rate | 8.985901E-5 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 70 |
Table Of Contents

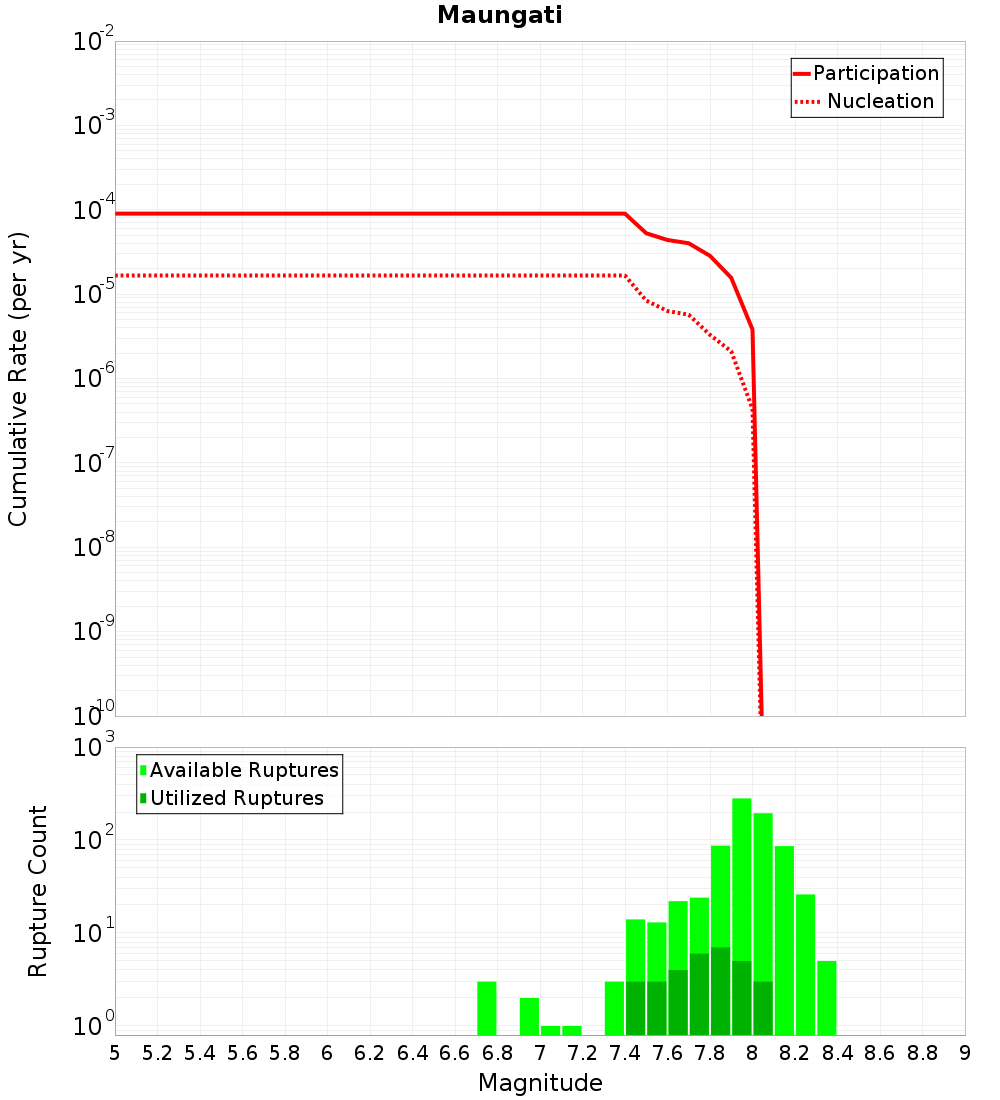

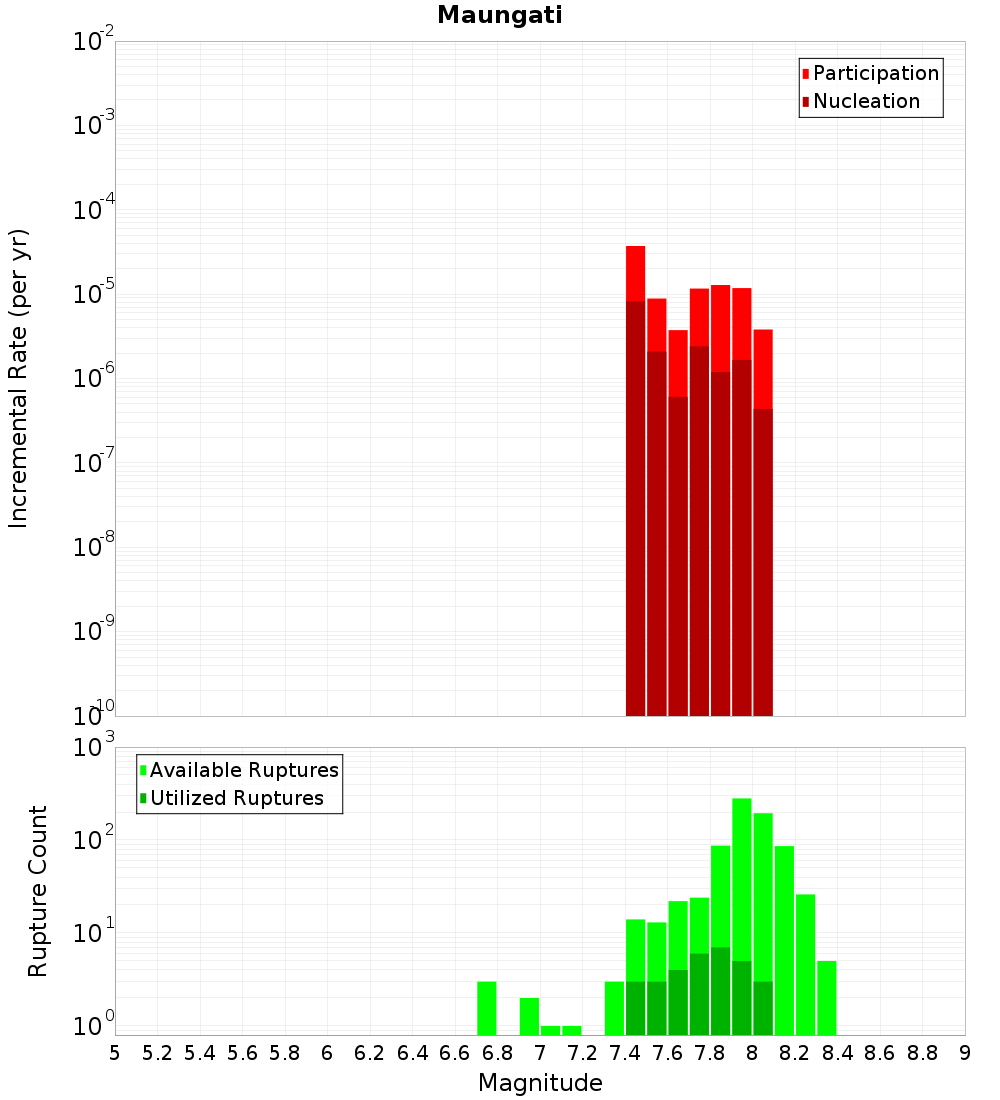

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

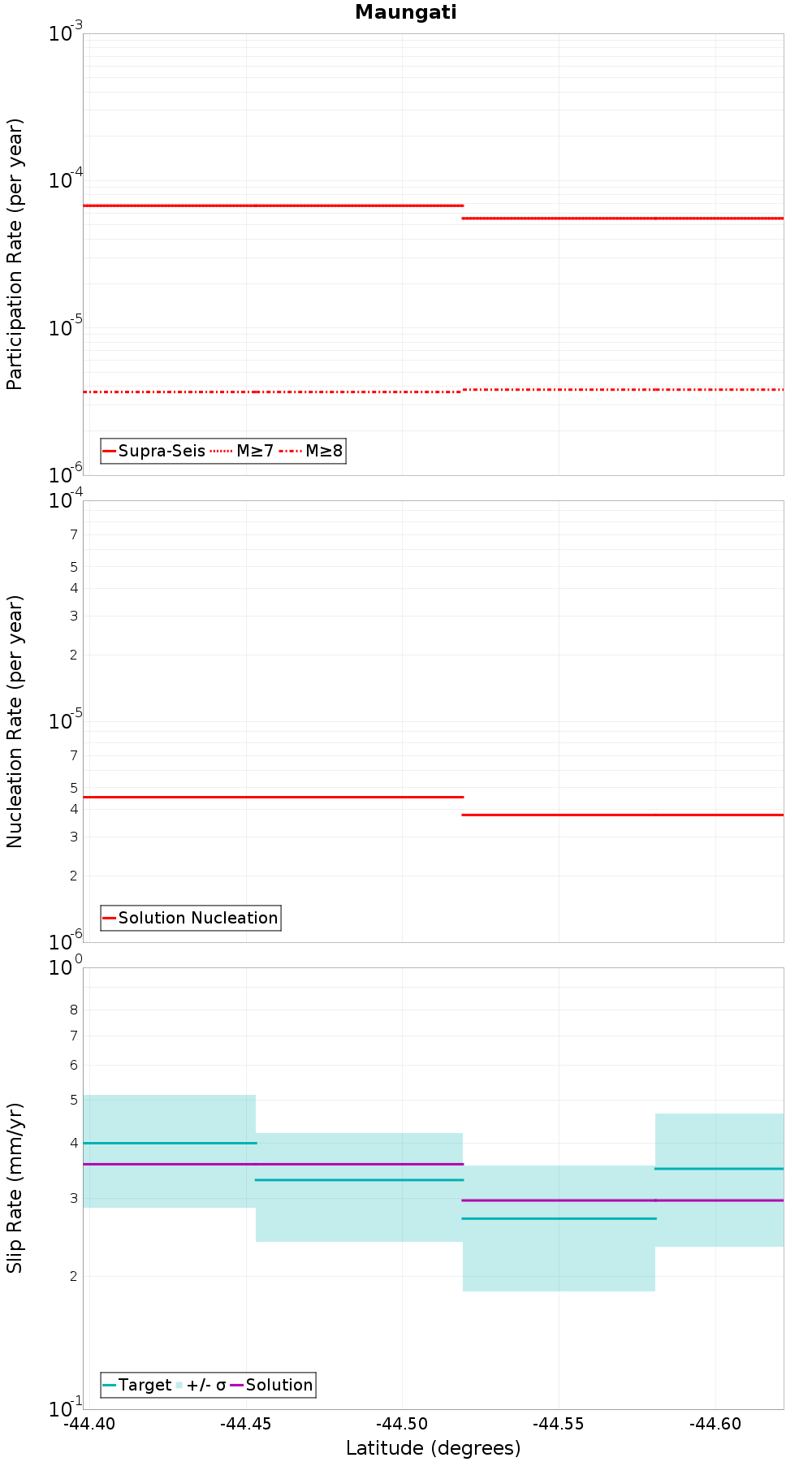

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Brothers, 0.21 km away |
| Hunters, 3.56 km away |
| Rapuwai, 4.77 km away |
| Chamberlain, 8.42 km away |
| Waimate, 13.4 km away |
Brothers, 0.21 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 520 |
| Co-rupture Rate | 3.2982993E-5 |
Hunters, 3.56 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 81 |
| Co-rupture Rate | 2.2363287E-5 |
Rapuwai, 4.77 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 180 |
| Co-rupture Rate | 3.4512726E-5 |
Chamberlain, 8.42 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Waimate, 13.4 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
