Rocks Creek Details

PropertyValue
Rupture Count567
Ruptures Above Sect Min Mag566
Ruptures w/ Nonzero Rates19
Magnitude Range[6.82, 8.31]
Length Range[13, 353] km
Total Rate1.5185139E-4 /yr
Multi-Fault Rate1.5185139E-4 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults62

Table Of Contents

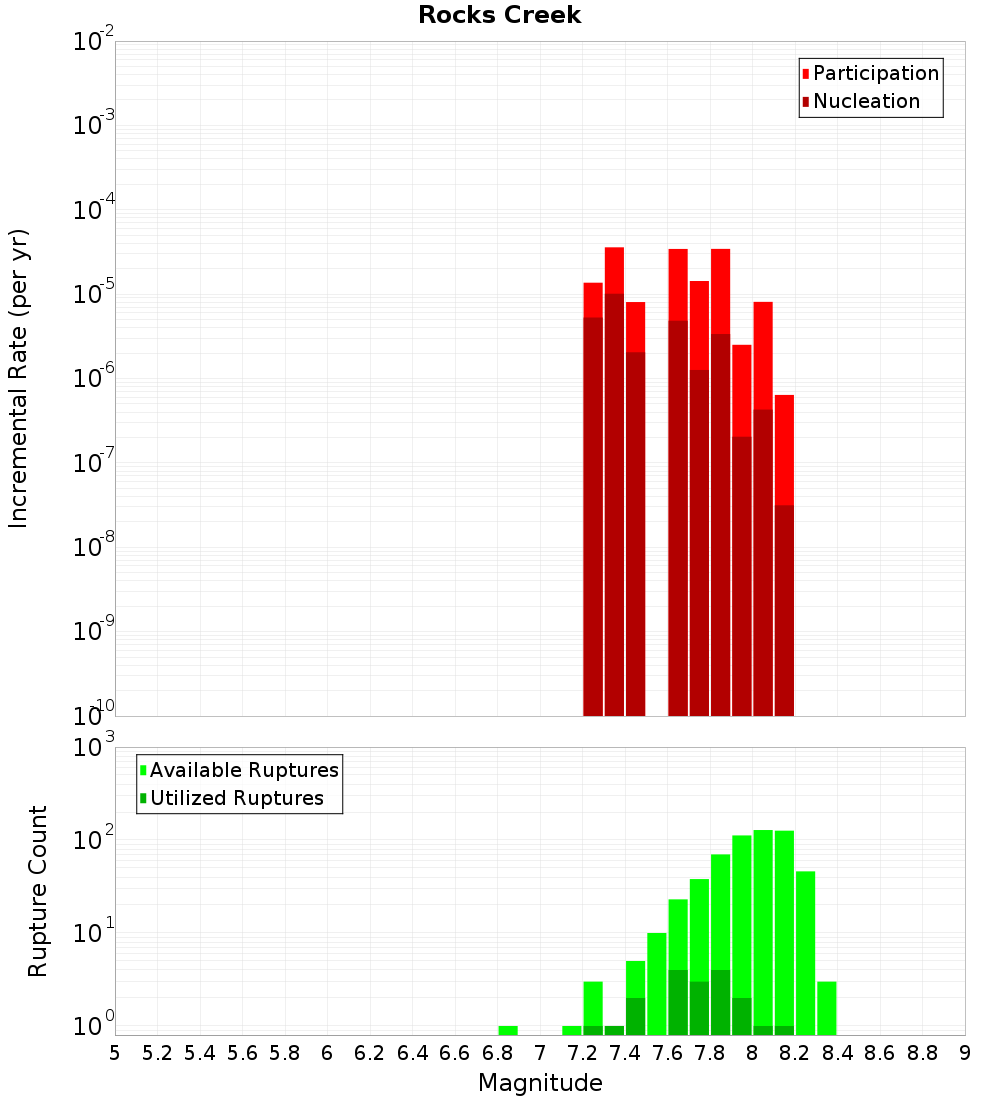

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

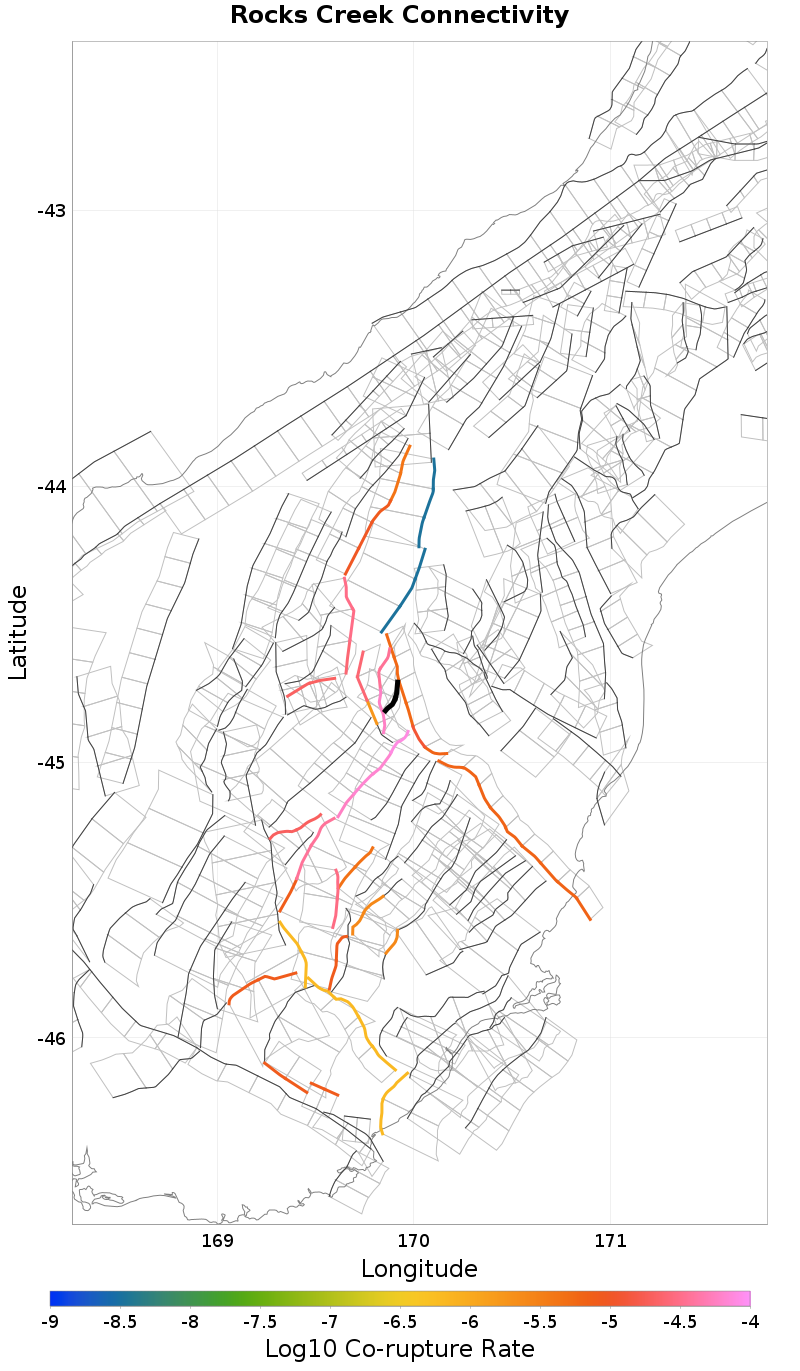

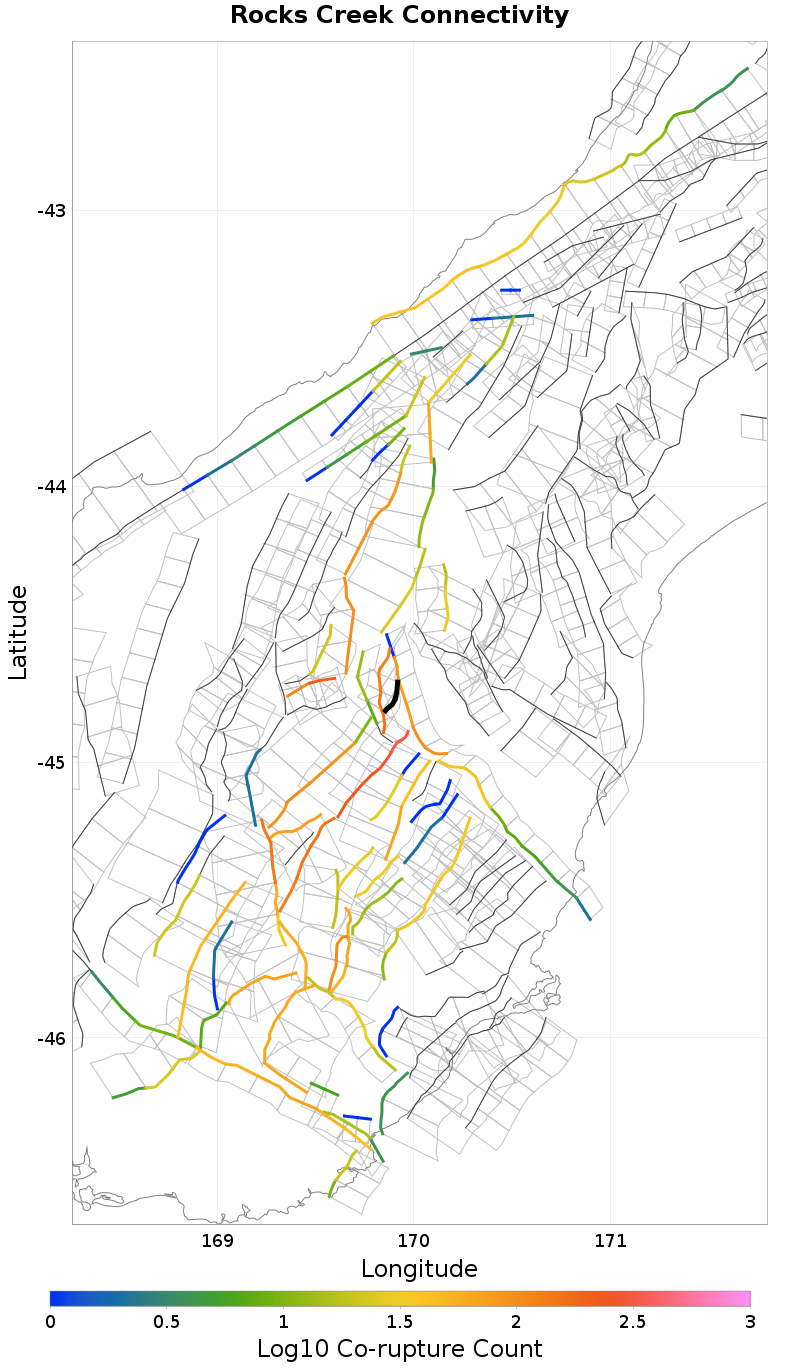

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Omarama Saddle, 0.16 km away
Blue Lake, 0.2 km away
Hawkdun, 0.8 km away
Raggedy - Blackstone, 2.95 km away
Goodger, 5.62 km away
Dunstan, 6.11 km away
Lindis River, 7.68 km away
Garibaldi, 12.4 km away
Cluden, 12.62 km away

Omarama Saddle, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?true
Directly Connected?true
Co-rupture Count158
Co-rupture Rate5.894618E-5

Blue Lake, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?true
Directly Connected?false
Co-rupture Count13
Co-rupture Rate2.4781979E-5

Hawkdun, 0.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?true
Directly Connected?false
Co-rupture Count111
Co-rupture Rate1.2265403E-5

Raggedy - Blackstone, 2.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?true
Directly Connected?true
Co-rupture Count306
Co-rupture Rate7.924042E-5

Goodger, 5.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?true
Directly Connected?true
Co-rupture Count220
Co-rupture Rate2.0341737E-5

Dunstan, 6.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?true
Directly Connected?false
Co-rupture Count114
Co-rupture Rate0.0

Lindis River, 7.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?true
Directly Connected?false
Co-rupture Count21
Co-rupture Rate0.0

Garibaldi, 12.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?true
Directly Connected?false
Co-rupture Count27
Co-rupture Rate0.0

Cluden, 12.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
