Tuatoru 2 Details

PropertyValue
Rupture Count2,719
Ruptures Above Sect Min Mag2,719
Ruptures w/ Nonzero Rates150
Magnitude Range[6.97, 8.49]
Length Range[14, 676] km
Total Rate2.1035834E-4 /yr
Multi-Fault Rate2.1035834E-4 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults71

Table Of Contents

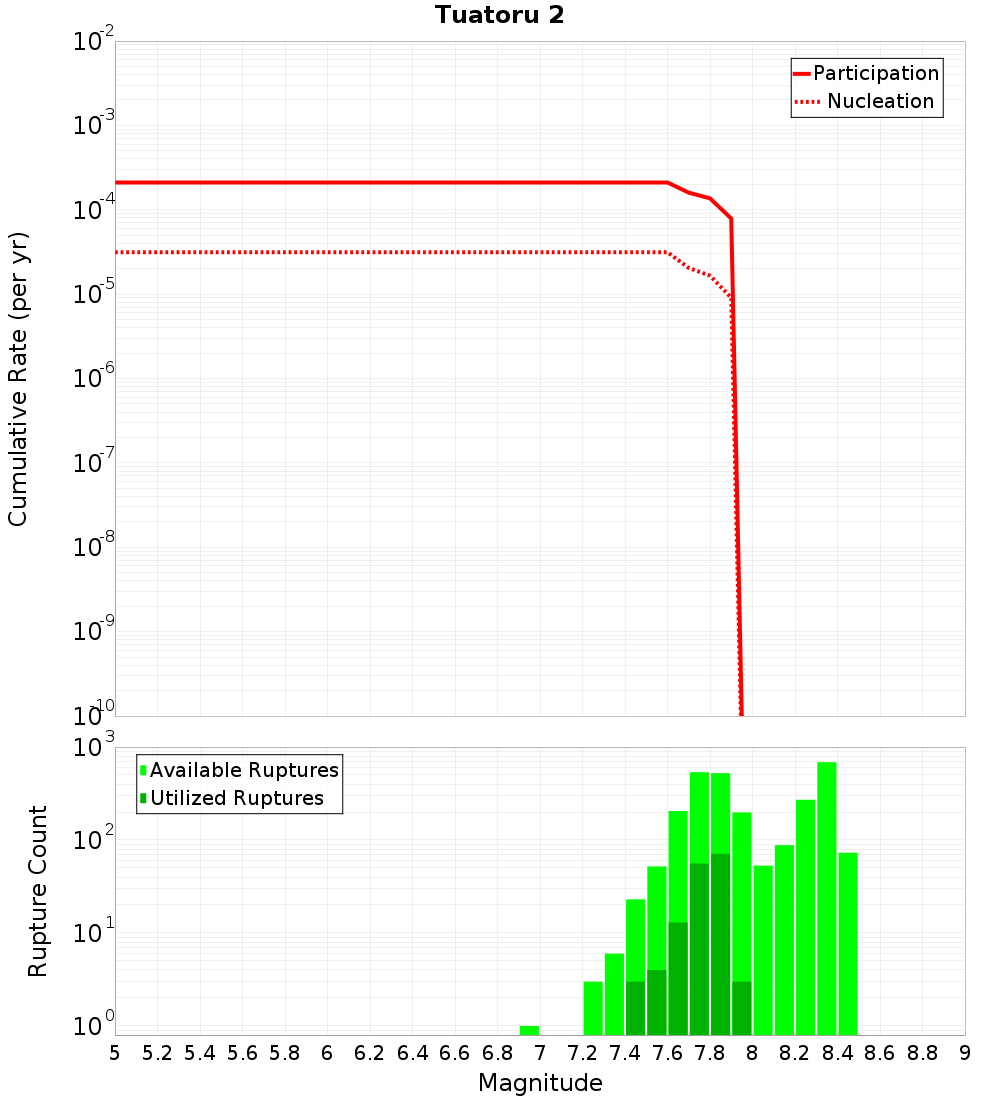

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

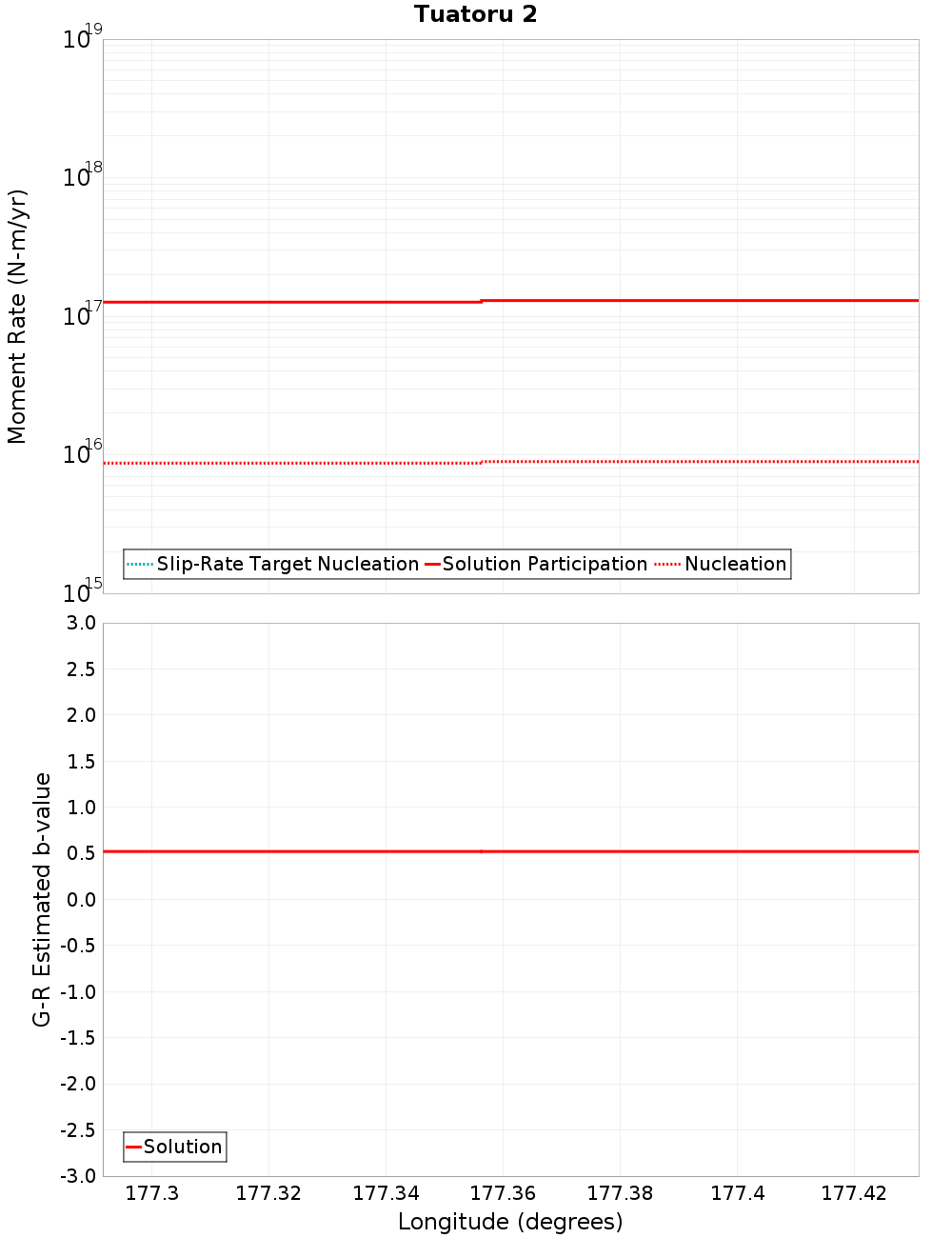

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Otara West 3, 0.1 km away
Te Arawa 3, 0.11 km away
Te Arawa 2, 0.12 km away
Otara East 1, 0.2 km away
Te Arawa 1, 0.34 km away
Tuatoru 1, 0.43 km away
Otara East 2, 8.63 km away
Volkner 4, 10.03 km away
Whakaari 4, 11.04 km away
Tuakana 6, 11.59 km away
Tuakana 7, 12.24 km away
Otara West 1, 12.38 km away
Volkner 3, 12.56 km away
Calypso 2, 12.9 km away

Otara West 3, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Te Arawa 3, 0.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?true
Directly Connected?false
Co-rupture Count39
Co-rupture Rate9.825177E-9

Te Arawa 2, 0.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?true
Directly Connected?true
Co-rupture Count765
Co-rupture Rate6.5243505E-5

Otara East 1, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?true
Directly Connected?true
Co-rupture Count1,021
Co-rupture Rate1.4180112E-4

Te Arawa 1, 0.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?true
Directly Connected?true
Co-rupture Count2,044
Co-rupture Rate1.4890615E-4

Tuatoru 1, 0.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?true
Directly Connected?false
Co-rupture Count193
Co-rupture Rate2.1541657E-5

Otara East 2, 8.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?true
Directly Connected?false
Co-rupture Count394
Co-rupture Rate1.2577172E-4

Volkner 4, 10.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Whakaari 4, 11.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?true
Directly Connected?false
Co-rupture Count1,160
Co-rupture Rate4.3316726E-5

Tuakana 6, 11.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tuakana 7, 12.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otara West 1, 12.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Volkner 3, 12.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

Calypso 2, 12.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMFhCM0x0
Connected?true
Directly Connected?false
Co-rupture Count25
Co-rupture Rate7.558394E-6
