Awanui Details

Property	Value
Rupture Count	760
Ruptures Above Sect Min Mag	758
Ruptures w/ Nonzero Rates	50
Magnitude Range	[7.19, 8.20]
Length Range	[26, 354] km
Total Rate	2.707766E-4 /yr
Multi-Fault Rate	1.11534995E-4 /yr (41.19%)
Directly-Connected Faults	6
All Co-Rupturing Faults	33

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

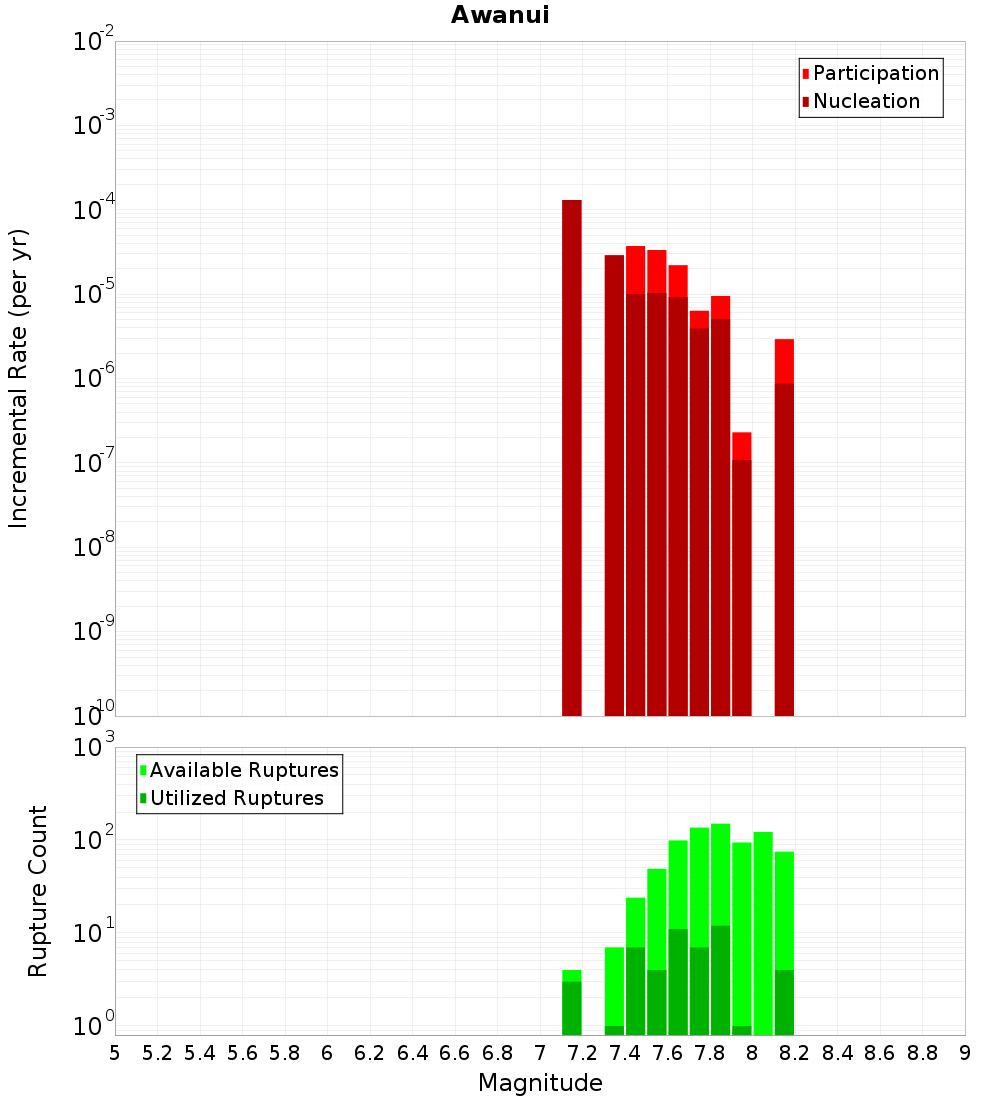

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

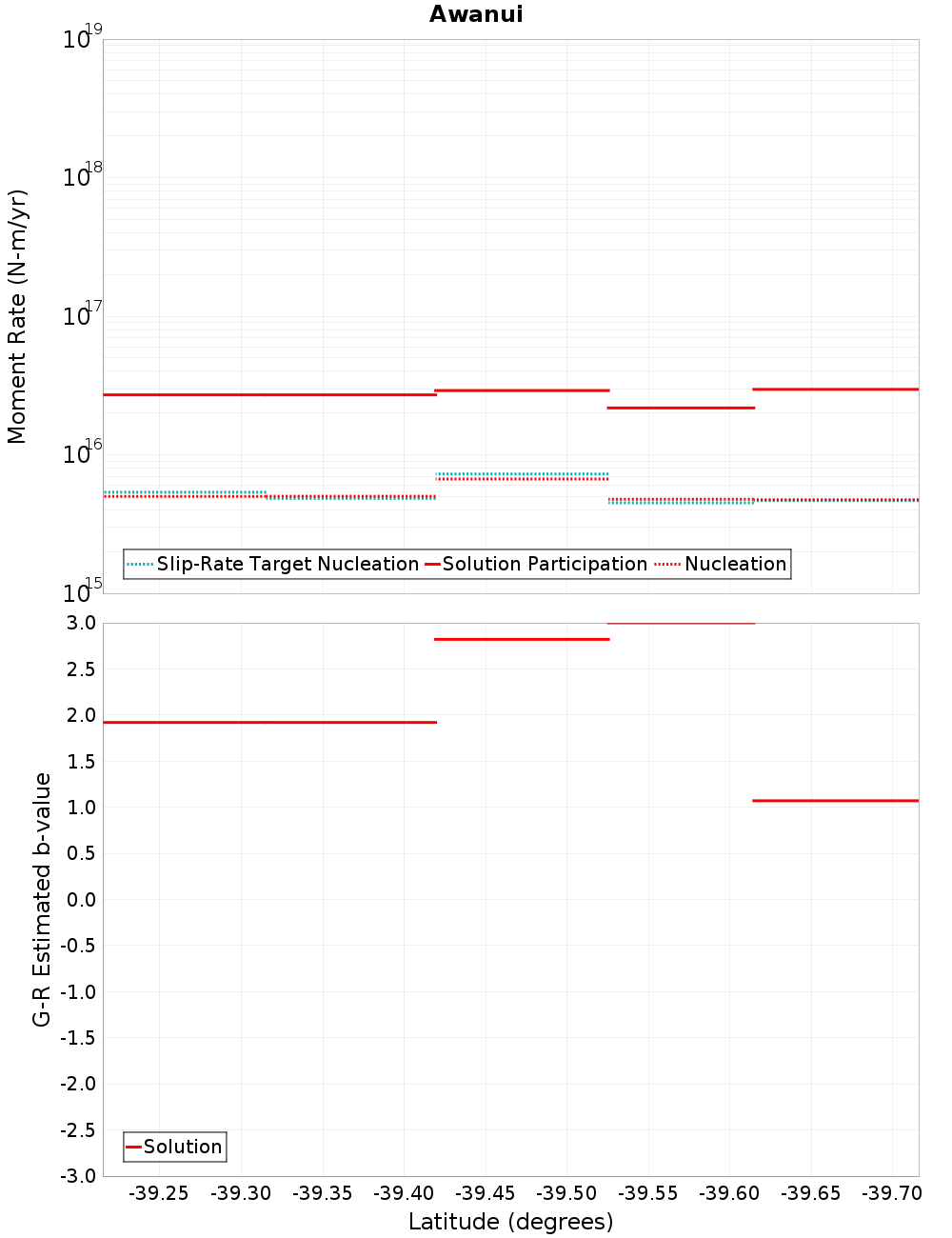

Moment-Rates and b-Values

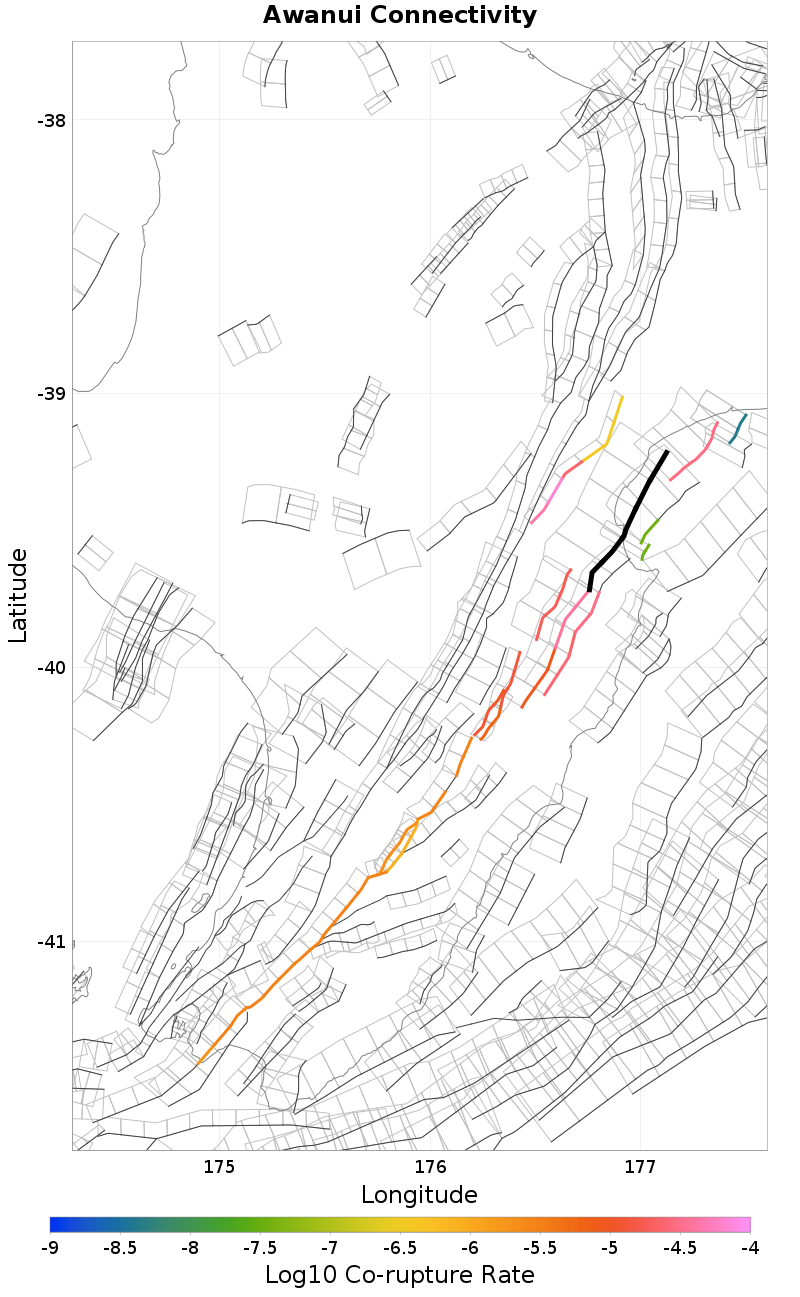

Connectivity

Nearby Sections

Fault Section
Waipukurau - Poukawa, 0 km away
Te Heka, 0.14 km away
Patoka - Rangiora, 3.5 km away
Tukituki Thrust, 3.57 km away
Hawke Bay 1, 4.66 km away
Hawke Bay 2, 5.26 km away
Hawke Bay 8, 6.81 km away
Mohaka: North, 11.21 km away
Mohaka: South, 12.72 km away

Waipukurau - Poukawa, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?	true
Directly Connected?	true
Co-rupture Count	347
Co-rupture Rate	3.8083555E-5

Te Heka, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?	true
Directly Connected?	true
Co-rupture Count	213
Co-rupture Rate	1.754353E-5

Patoka - Rangiora, 3.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?	true
Directly Connected?	true
Co-rupture Count	213
Co-rupture Rate	6.808598E-5

Tukituki Thrust, 3.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?	true
Directly Connected?	true
Co-rupture Count	116
Co-rupture Rate	3.259756E-5

Hawke Bay 1, 4.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?	true
Directly Connected?	true
Co-rupture Count	141
Co-rupture Rate	2.897943E-5

Hawke Bay 2, 5.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?	true
Directly Connected?	true
Co-rupture Count	85
Co-rupture Rate	3.4964778E-8

Hawke Bay 8, 6.81 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?	true
Directly Connected?	false
Co-rupture Count	15
Co-rupture Rate	3.4964778E-8

Mohaka: North, 11.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?	true
Directly Connected?	false
Co-rupture Count	17
Co-rupture Rate	0.0

Mohaka: South, 12.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?	true
Directly Connected?	false
Co-rupture Count	129
Co-rupture Rate	0.0
