Edgecumbe Coastal Details

Property	Value
Rupture Count	9,845
Ruptures Above Sect Min Mag	9,842
Ruptures w/ Nonzero Rates	280
Magnitude Range	[6.54, 8.47]
Length Range	[7, 675] km
Total Rate	5.471873E-4 /yr
Multi-Fault Rate	5.471873E-4 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	85

Table Of Contents

Magnitude-Frequency Distribution

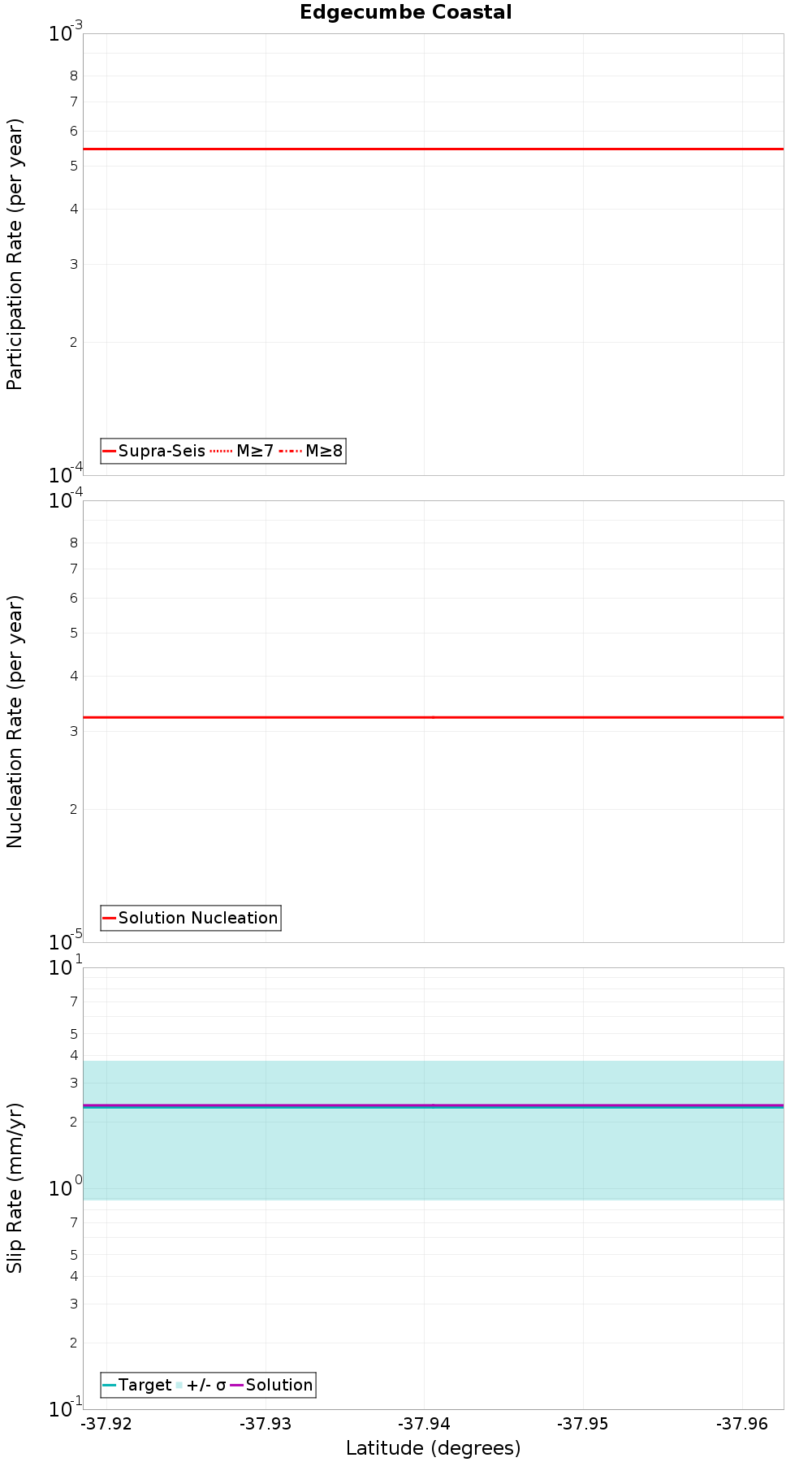

Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

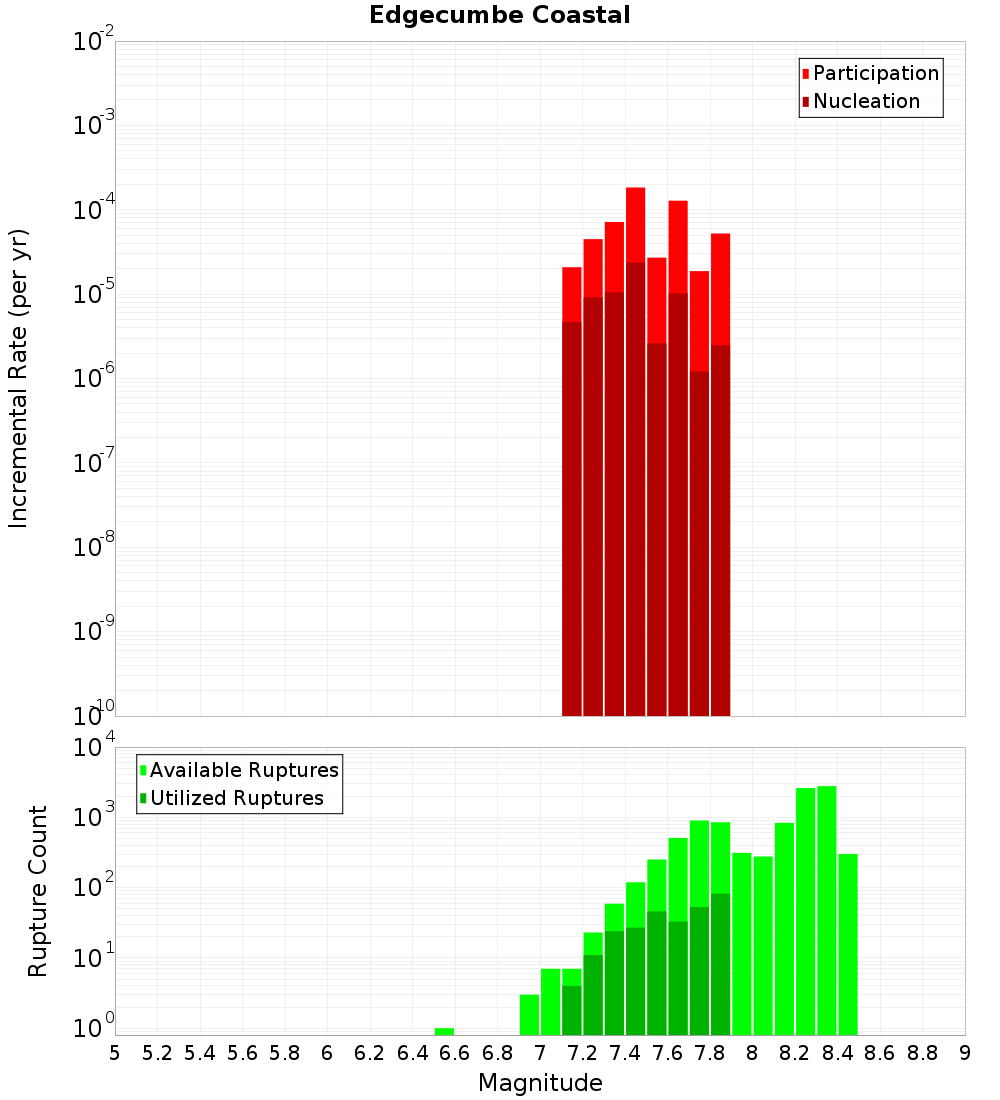

Magnitude-Frequency Distribution

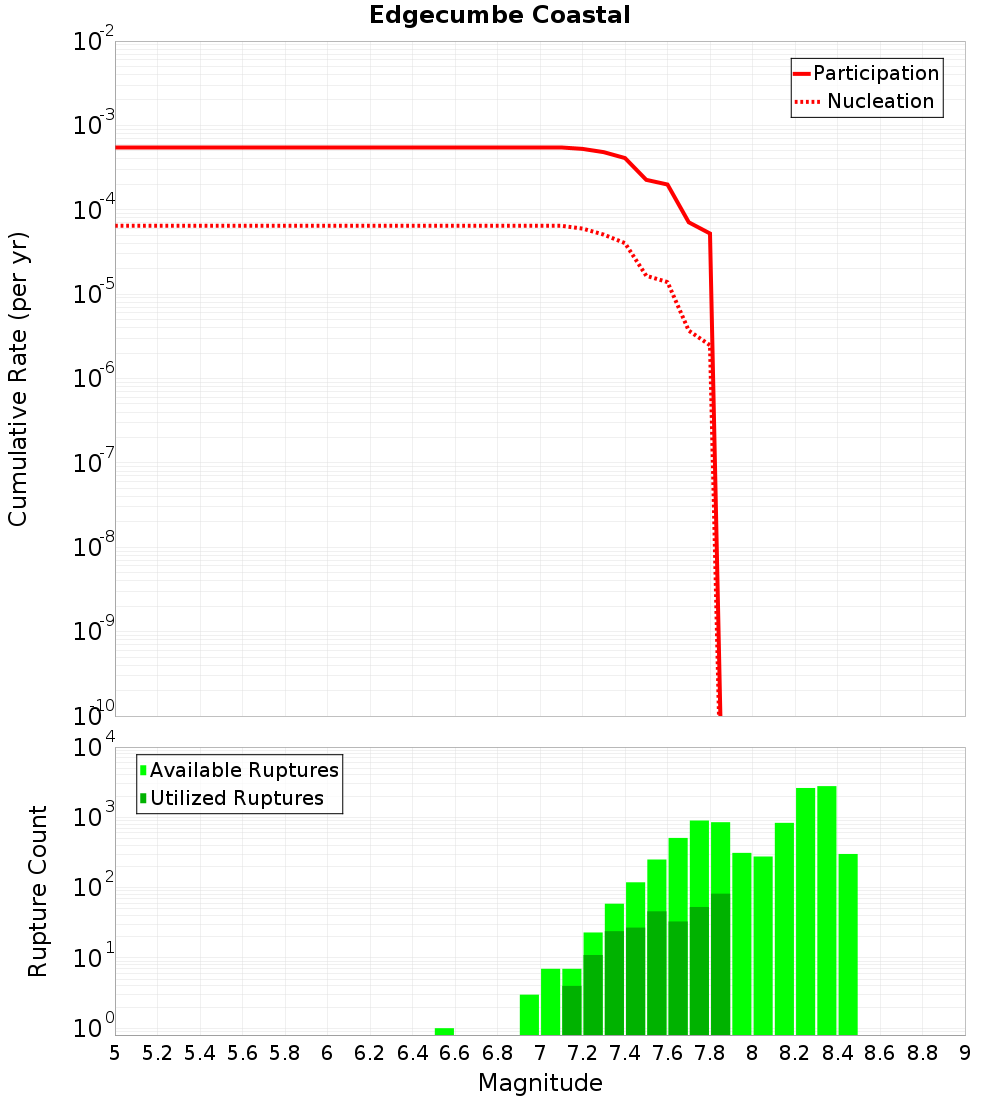

Incremental	Cumulative

Along-Strike Values

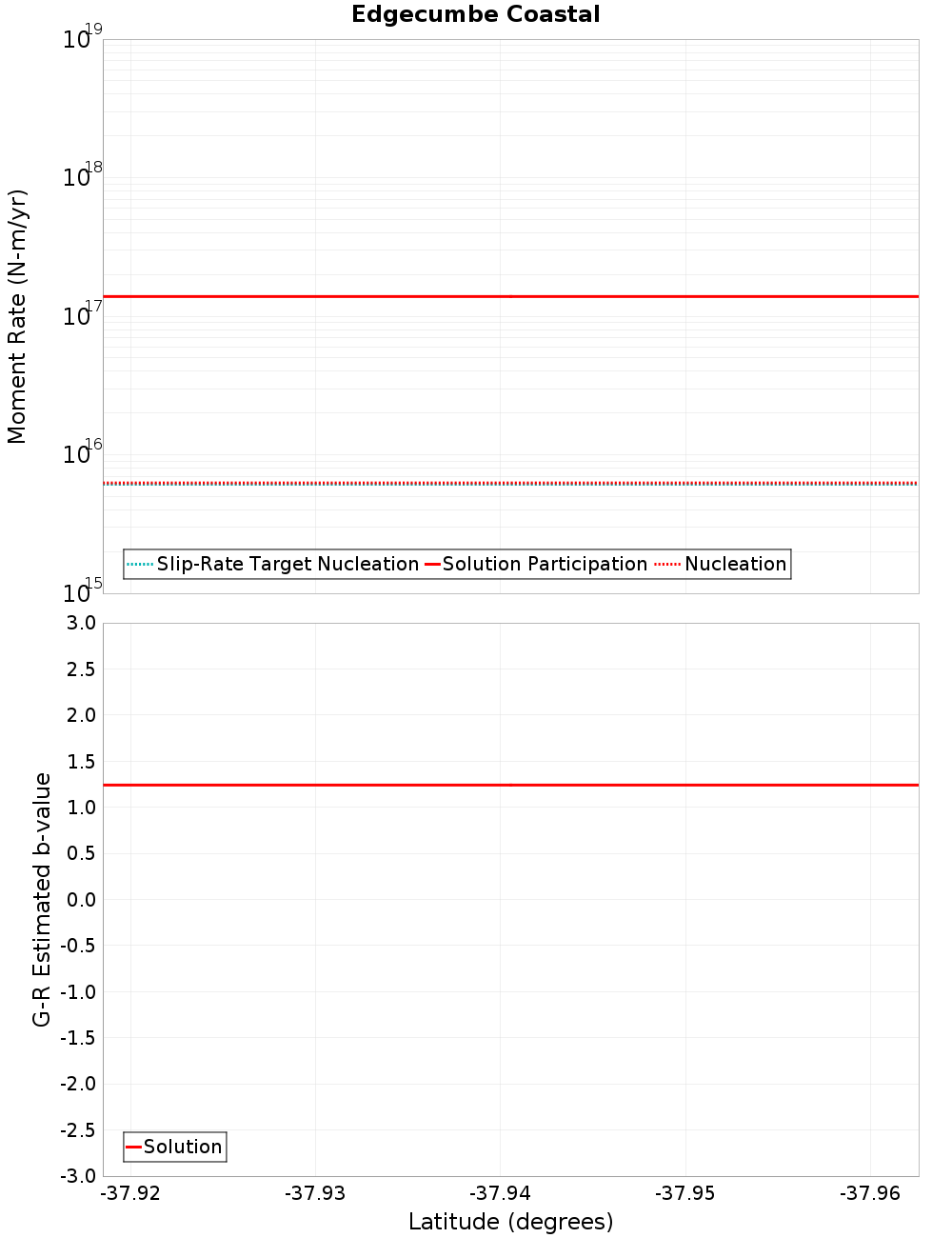

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
White Island 1, 0 km away
Edgecumbe 1987, 0 km away
Otakiri, 0.1 km away
Matata, 0.14 km away
Keepa, 3.06 km away
Whakatane: North, 3.25 km away
Braemar, 4.71 km away
Rangitaiki 1, 8.81 km away
Waiohau: North, 11.47 km away
Rangitaiki 2, 14.83 km away

White Island 1, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?	true
Directly Connected?	true
Co-rupture Count	8,346
Co-rupture Rate	4.1059346E-4

Edgecumbe 1987, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?	true
Directly Connected?	true
Co-rupture Count	8,274
Co-rupture Rate	2.4451048E-4

Otakiri, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?	true
Directly Connected?	true
Co-rupture Count	1,454
Co-rupture Rate	1.3994805E-4

Matata, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?	true
Directly Connected?	true
Co-rupture Count	972
Co-rupture Rate	7.550426E-5

Keepa, 3.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?	true
Directly Connected?	false
Co-rupture Count	507
Co-rupture Rate	1.5205803E-6

Whakatane: North, 3.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?	true
Directly Connected?	true
Co-rupture Count	1,538
Co-rupture Rate	3.6133355E-5

Braemar, 4.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?	true
Directly Connected?	true
Co-rupture Count	578
Co-rupture Rate	2.1476975E-4

Rangitaiki 1, 8.81 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?	true
Directly Connected?	false
Co-rupture Count	2,594
Co-rupture Rate	1.4600766E-4

Waiohau: North, 11.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?	true
Directly Connected?	false
Co-rupture Count	7,462
Co-rupture Rate	2.1542938E-4

Rangitaiki 2, 14.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?	true
Directly Connected?	false
Co-rupture Count	1,719
Co-rupture Rate	9.82461E-5
