Lees Valley Details

PropertyValue
Rupture Count18,110
Ruptures Above Sect Min Mag18,107
Ruptures w/ Nonzero Rates335
Magnitude Range[6.94, 8.42]
Length Range[20, 617] km
Total Rate4.3322588E-4 /yr
Multi-Fault Rate4.3322588E-4 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults90

Table Of Contents

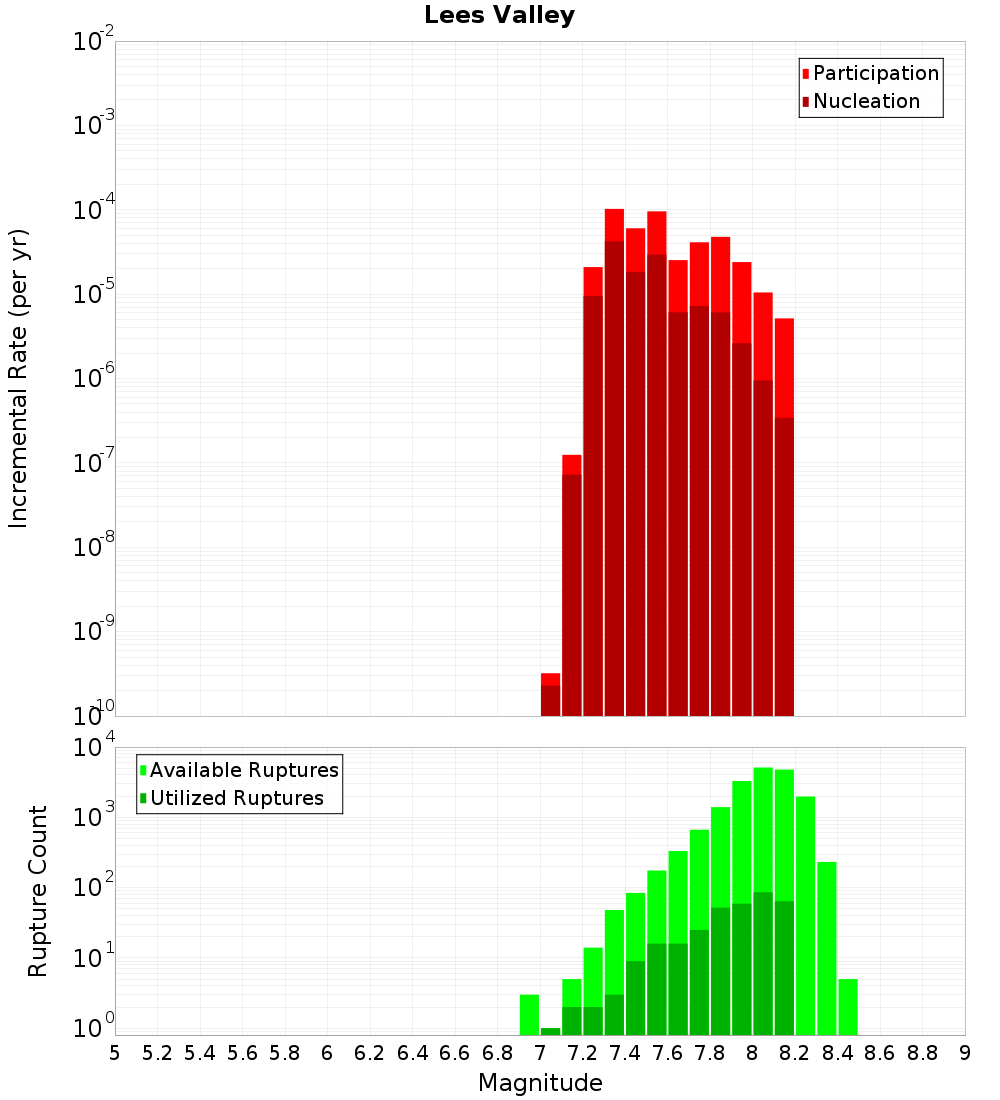

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

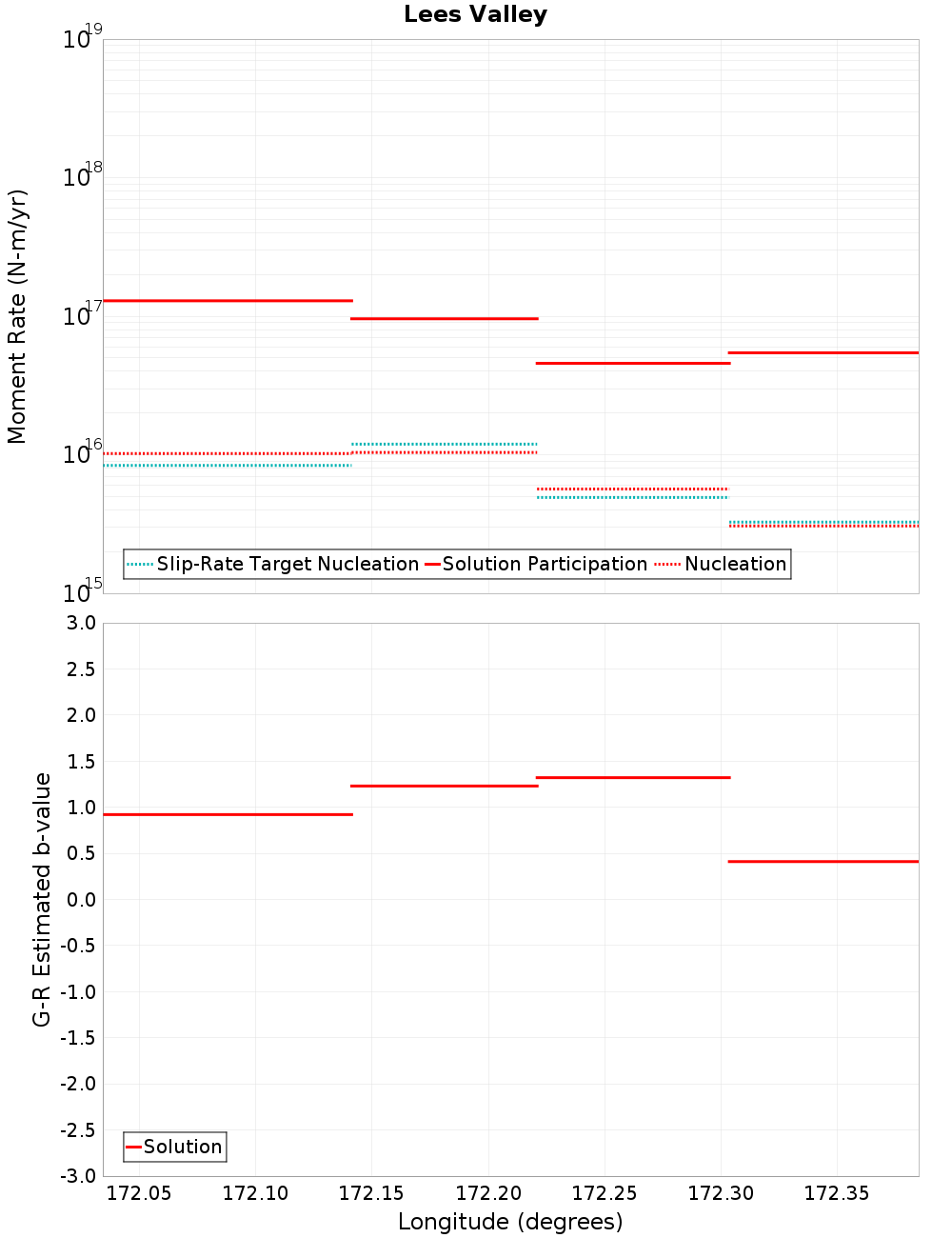

Moment-Rates and b-Values

(top)

Along-strike plot

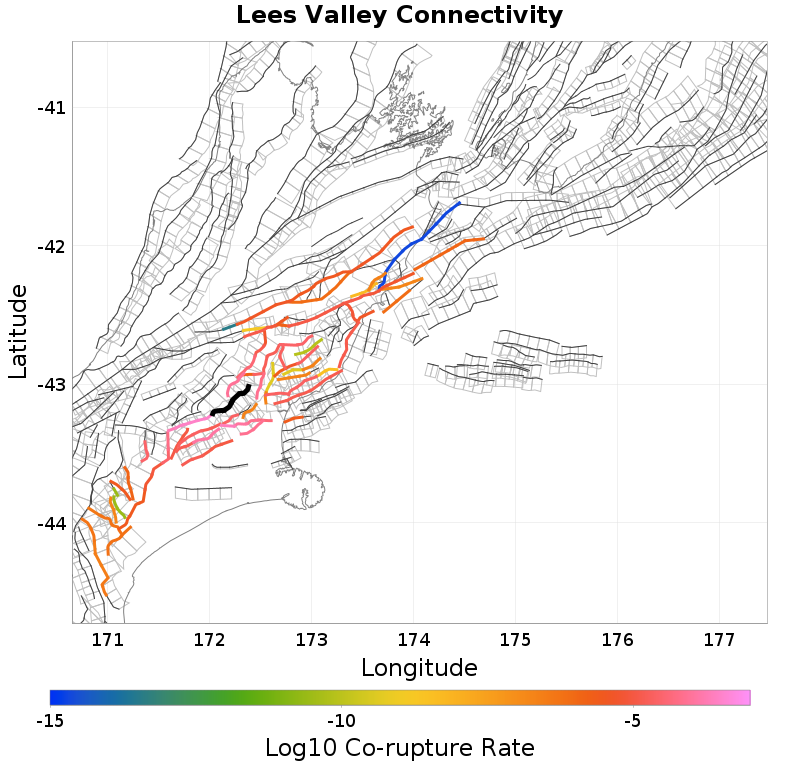

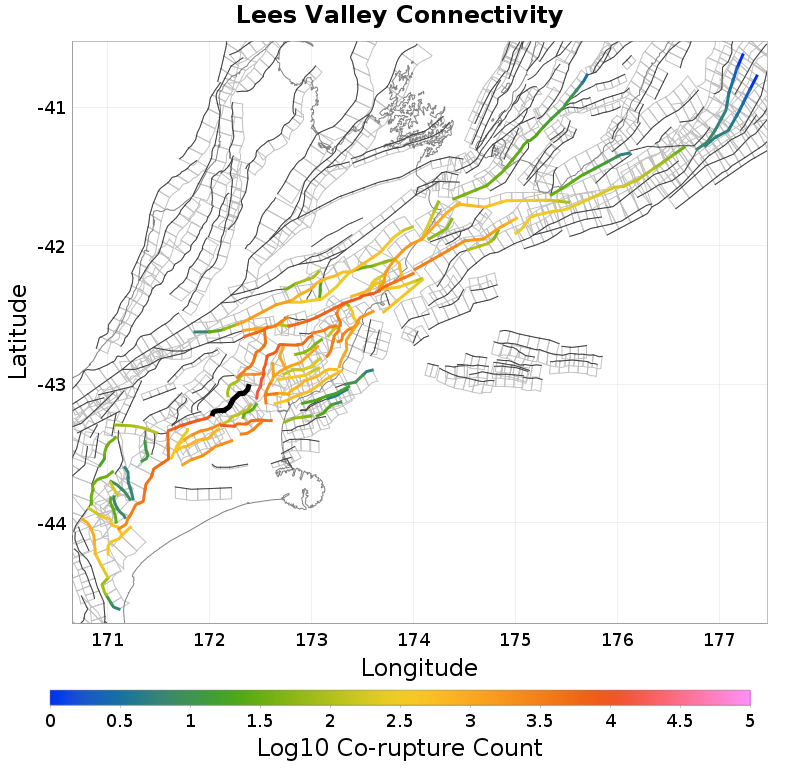

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Knowles Top, 0.13 km awayVirginia, 9.1 km away
Mt Arden, 0.19 km awayTorlesse, 9.41 km away
Springbank, 0.24 km awayBoby Stream, 10.27 km away
Starvation - Ashley, 0.3 km awayEsk North, 11.43 km away
Pancake, 0.32 km awayMt Lawry, 11.49 km away
Porters Pass, 0.91 km awayHigh Peak - Sheffield, 11.61 km away
Esk South, 4.37 km awayDoctors, 13.52 km away
Hororata, 5.51 km awaySailor, 14.17 km away
Kowai - View Hill, 8.8 km away

Knowles Top, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?true
Directly Connected?true
Co-rupture Count133
Co-rupture Rate2.303691E-5

Mt Arden, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?true
Directly Connected?true
Co-rupture Count13,309
Co-rupture Rate7.307959E-5

Springbank, 0.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?true
Directly Connected?true
Co-rupture Count3,007
Co-rupture Rate7.196043E-5

Starvation - Ashley, 0.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?true
Directly Connected?true
Co-rupture Count8,065
Co-rupture Rate2.142623E-4

Pancake, 0.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?true
Directly Connected?true
Co-rupture Count89
Co-rupture Rate8.6308755E-5

Porters Pass, 0.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?true
Directly Connected?true
Co-rupture Count9,037
Co-rupture Rate2.9566974E-4

Esk South, 4.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hororata, 5.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?true
Directly Connected?true
Co-rupture Count3,076
Co-rupture Rate2.2194887E-5

Kowai - View Hill, 8.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?true
Directly Connected?false
Co-rupture Count2,325
Co-rupture Rate2.2654505E-5

Virginia, 9.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?true
Directly Connected?false
Co-rupture Count2,301
Co-rupture Rate2.192528E-5

Torlesse, 9.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Boby Stream, 10.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?true
Directly Connected?false
Co-rupture Count3,755
Co-rupture Rate2.223102E-5

Esk North, 11.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?true
Directly Connected?false
Co-rupture Count4,344
Co-rupture Rate3.5779107E-5

Mt Lawry, 11.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?true
Directly Connected?false
Co-rupture Count27
Co-rupture Rate2.1728815E-7

High Peak - Sheffield, 11.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?true
Directly Connected?false
Co-rupture Count1,097
Co-rupture Rate1.1523934E-4

Doctors, 13.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?true
Directly Connected?false
Co-rupture Count2,814
Co-rupture Rate2.1280454E-7

Sailor, 14.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
