Omakere Ridge Details

Property	Value
Rupture Count	7,422
Ruptures Above Sect Min Mag	7,415
Ruptures w/ Nonzero Rates	44
Magnitude Range	[6.94, 8.38]
Length Range	[20, 599] km
Total Rate	2.4114379E-5 /yr
Multi-Fault Rate	2.4112174E-5 /yr (99.99%)
Directly-Connected Faults	5
All Co-Rupturing Faults	55

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

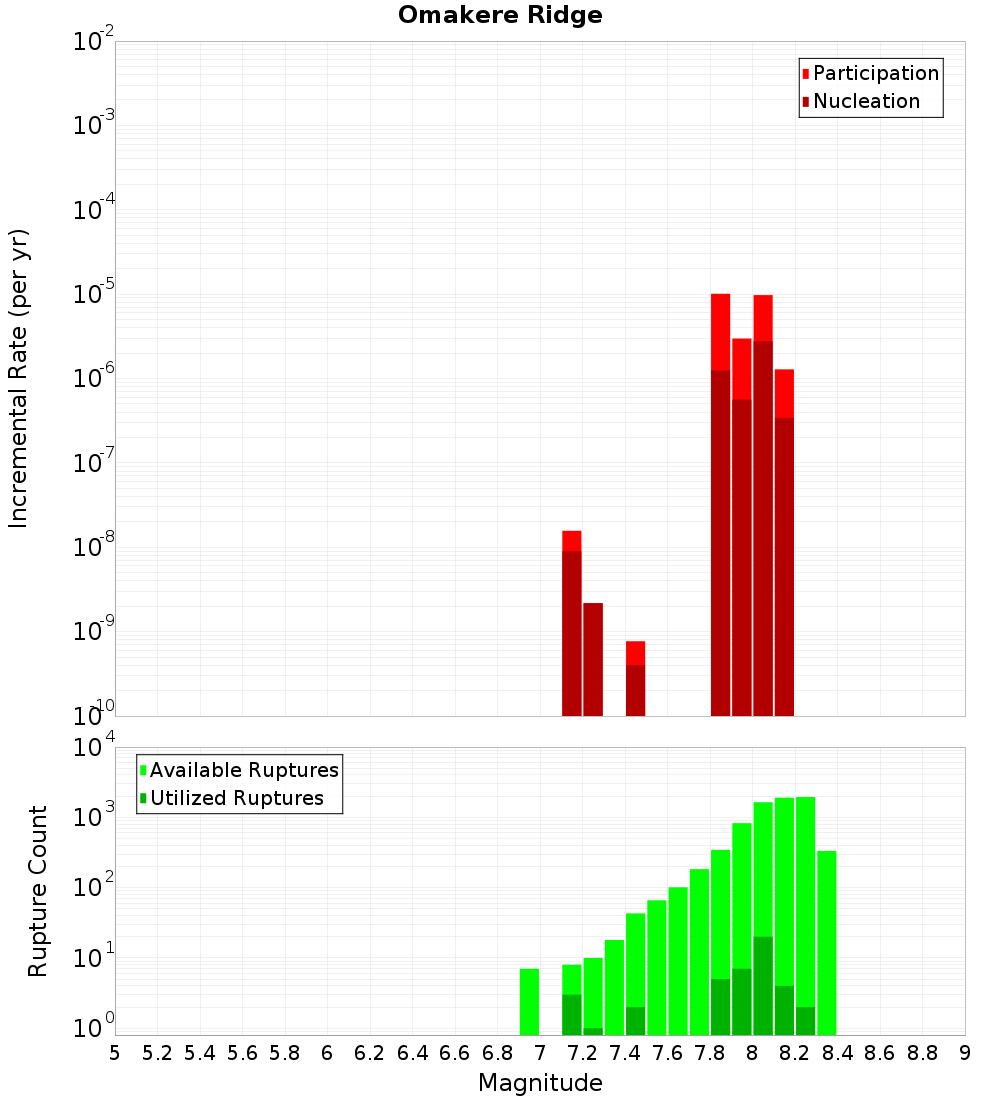

Magnitude-Frequency Distribution

Incremental	Cumulative

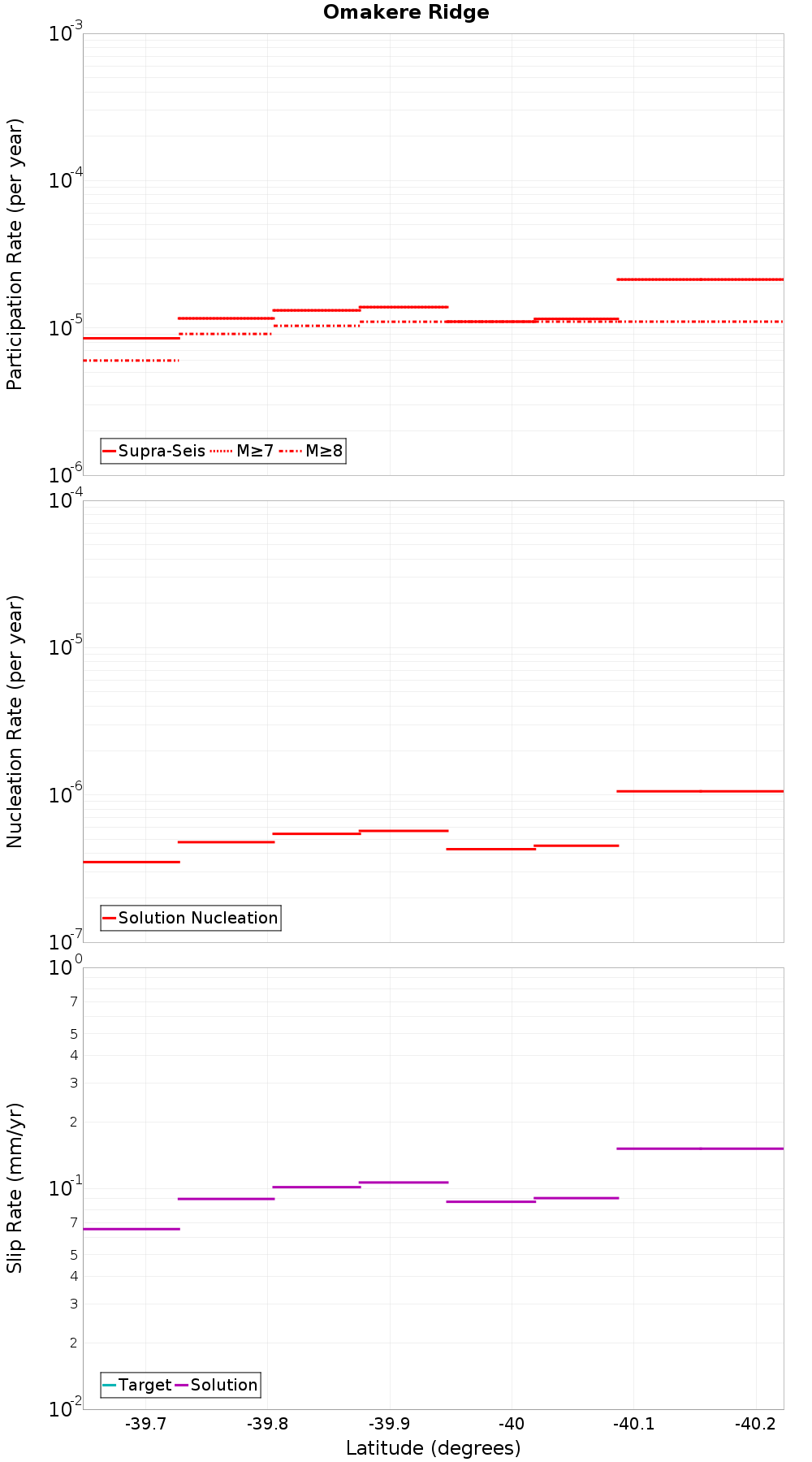

Along-Strike Values

Moment-Rates and b-Values

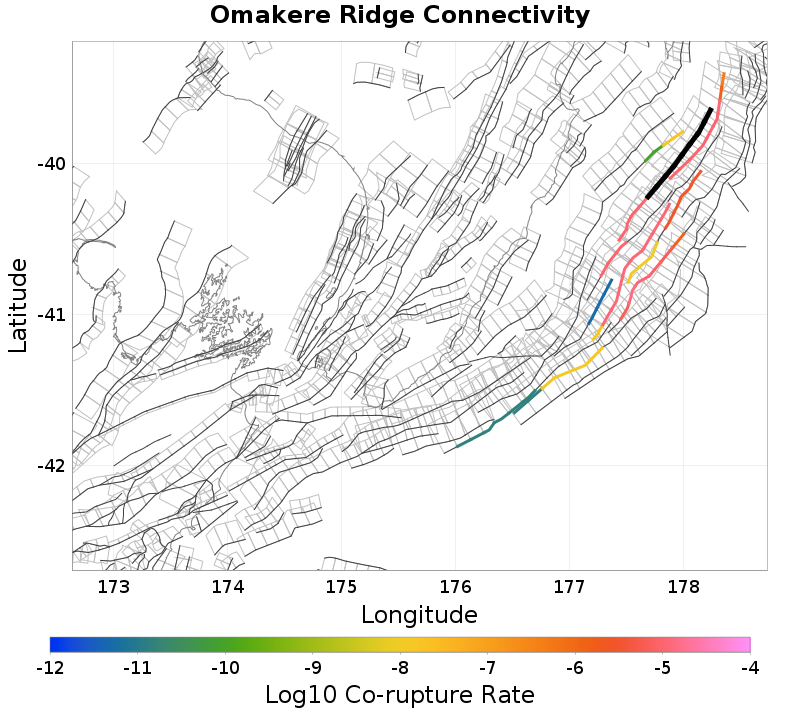

Connectivity

Nearby Sections

Fault Section
Omakere South, 0 km away
Ritchie West 1, 2.42 km away
Porangahau Ridge, 5.34 km away
Motu o Kura East, 6.14 km away
Porangahau Northeast, 6.84 km away
PorWest2 - PaoanuiRSouth, 6.92 km away
Paoanui Ridge North, 7.92 km away
Rock Garden - Ritchie East, 13.08 km away

Omakere South, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?	true
Directly Connected?	true
Co-rupture Count	5,912
Co-rupture Rate	9.793745E-6

Ritchie West 1, 2.42 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?	true
Directly Connected?	true
Co-rupture Count	3,009
Co-rupture Rate	1.1146885E-5

Porangahau Ridge, 5.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?	true
Directly Connected?	true
Co-rupture Count	1,433
Co-rupture Rate	1.1504295E-5

Motu o Kura East, 6.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?	true
Directly Connected?	true
Co-rupture Count	439
Co-rupture Rate	1.573803E-8

Porangahau Northeast, 6.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?	true
Directly Connected?	true
Co-rupture Count	544
Co-rupture Rate	2.8200786E-6

PorWest2 - PaoanuiRSouth, 6.92 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?	true
Directly Connected?	false
Co-rupture Count	5,295
Co-rupture Rate	9.782074E-6

Paoanui Ridge North, 7.92 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Rock Garden - Ritchie East, 13.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
