Puke Ridge Details

PropertyValue
Rupture Count20,179
Ruptures Above Sect Min Mag20,173
Ruptures w/ Nonzero Rates21
Magnitude Range[7.15, 8.66]
Length Range[25, 855] km
Total Rate3.3943231E-6 /yr
Multi-Fault Rate3.3736162E-6 /yr (99.39%)
Directly-Connected Faults8
All Co-Rupturing Faults57

Table Of Contents

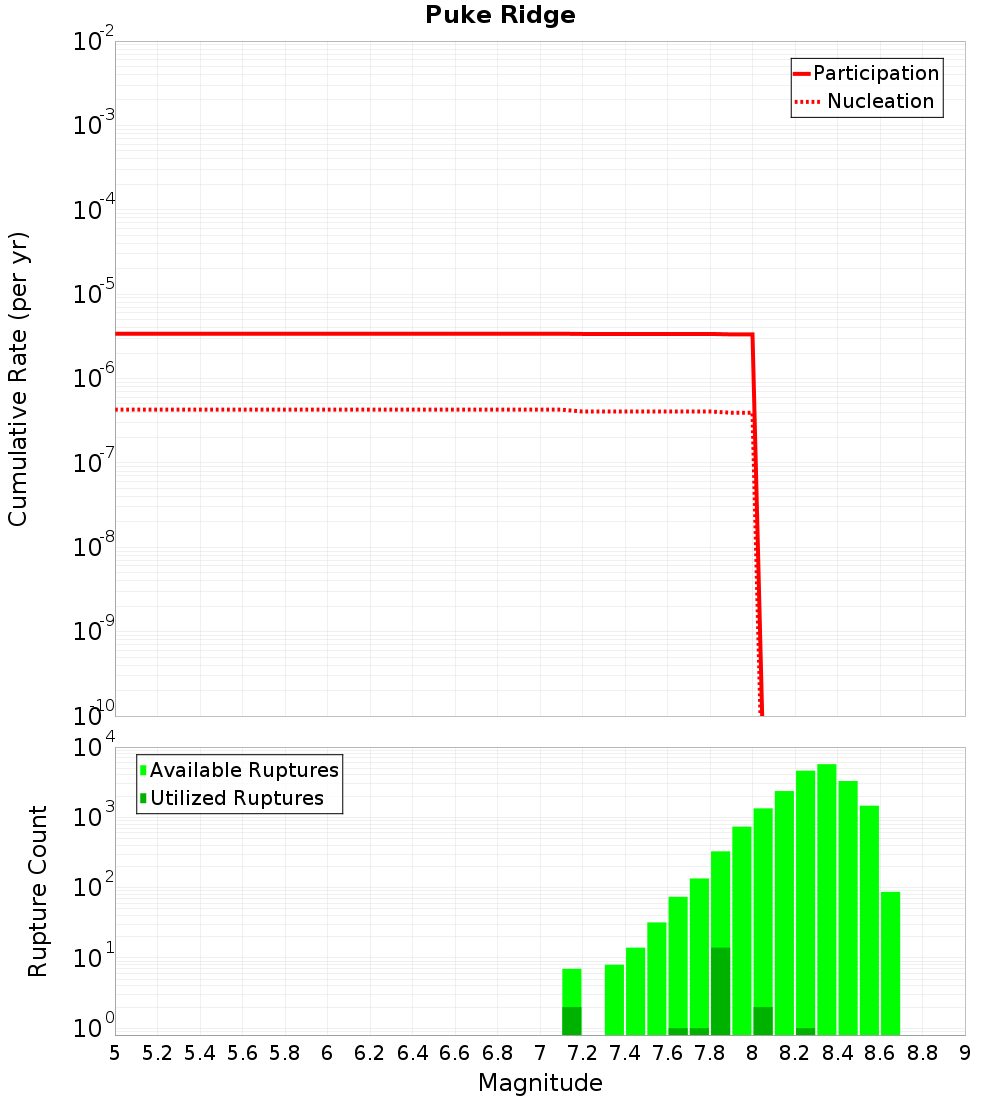

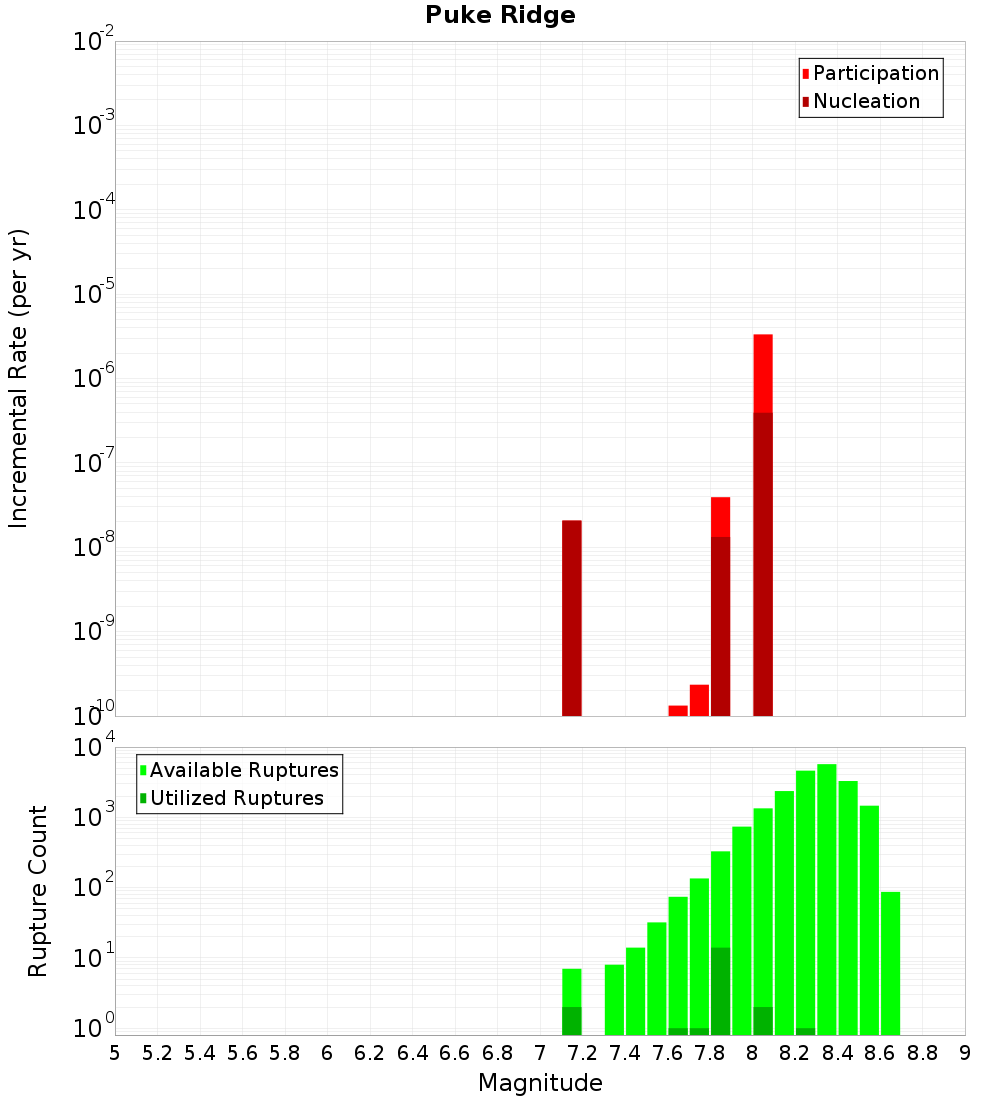

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Riwha, 0 km away
Ruatoria, 0 km away
Papaku, 0.12 km away
Paritu Ridge, 0.73 km away
Puke Knoll, 1.13 km away
Ruatoria South 1, 3.68 km away
Tuaheni Ridge, 5.23 km away
Ruatoria South 2, 6.99 km away
Ruatoria South 3, 13.37 km away

Riwha, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?true
Directly Connected?true
Co-rupture Count11,357
Co-rupture Rate2.7527696E-8

Ruatoria, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?true
Directly Connected?true
Co-rupture Count6,309
Co-rupture Rate3.3383992E-6

Papaku, 0.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?true
Directly Connected?true
Co-rupture Count4,847
Co-rupture Rate3.036719E-8

Paritu Ridge, 0.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?true
Directly Connected?true
Co-rupture Count81
Co-rupture Rate0.0

Puke Knoll, 1.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?true
Directly Connected?true
Co-rupture Count8,408
Co-rupture Rate3.4746826E-8

Ruatoria South 1, 3.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?true
Directly Connected?true
Co-rupture Count4,873
Co-rupture Rate3.3340505E-6

Tuaheni Ridge, 5.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?true
Directly Connected?true
Co-rupture Count141
Co-rupture Rate4.754834E-9

Ruatoria South 2, 6.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?true
Directly Connected?true
Co-rupture Count396
Co-rupture Rate3.1550162E-9

Ruatoria South 3, 13.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
