Pukerua - Shepherds Gully: 2 Details

PropertyValue
Rupture Count835
Ruptures Above Sect Min Mag833
Ruptures w/ Nonzero Rates63
Magnitude Range[6.53, 8.63]
Length Range[7, 942] km
Total Rate1.9659188E-4 /yr
Multi-Fault Rate1.9659188E-4 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults71

Table Of Contents

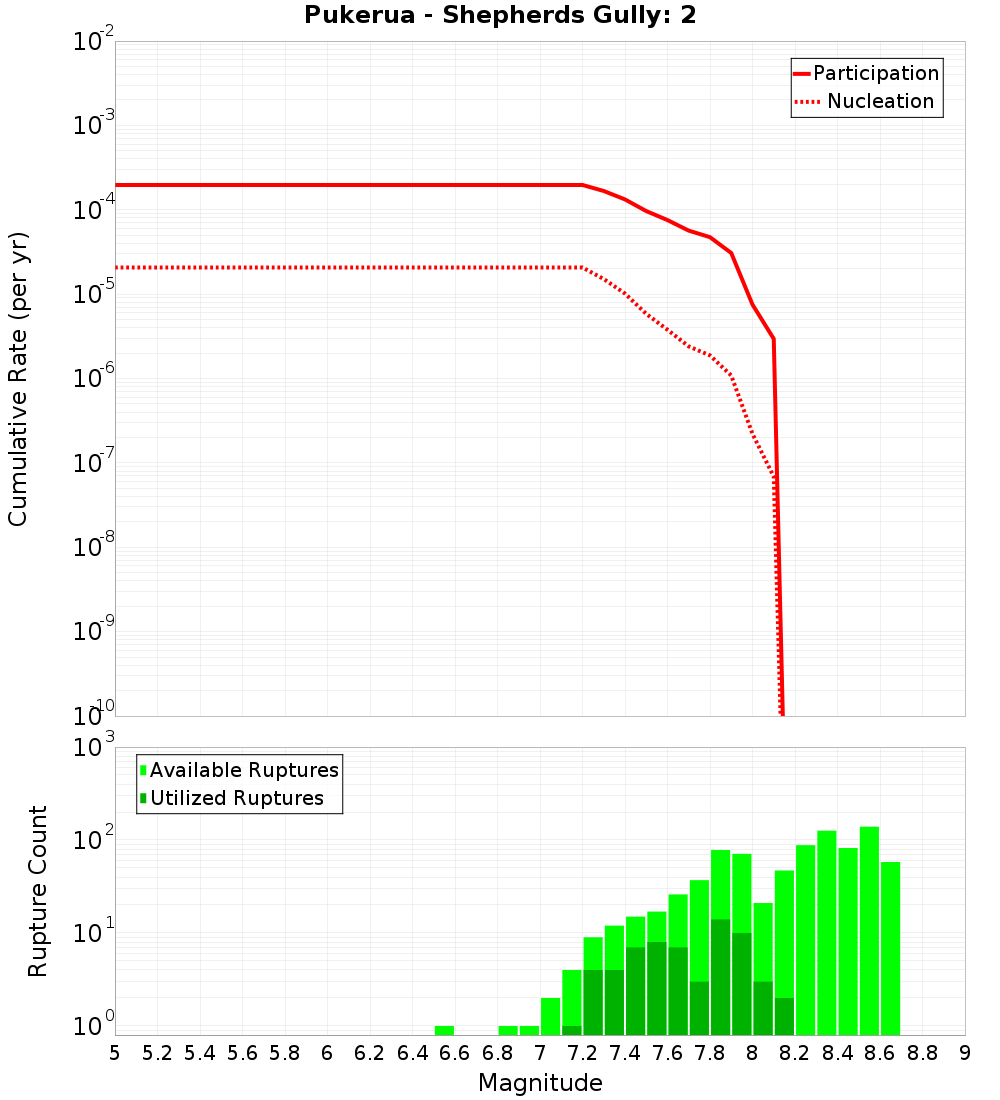

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

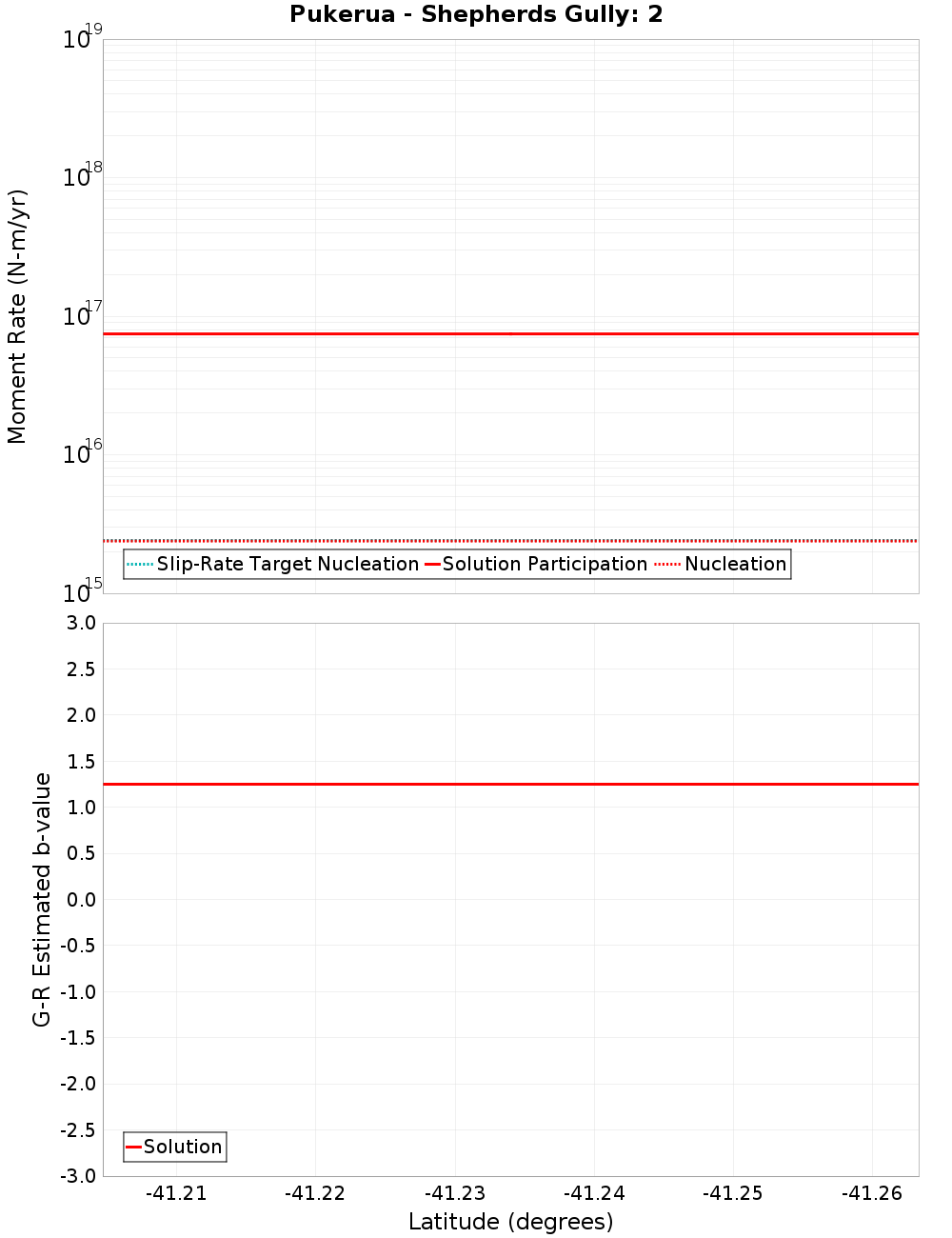

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Pukerua - Shepherds Gully: 3, 0 km away
Pukerua - Shepherds Gully: 1, 0 km away
Shepherds Gully - Mana, 2.37 km away
Ohariu, 2.91 km away
Moonshine, 6.63 km away
Wellington Hutt Valley: 3, 7.12 km away
Wellington Hutt Valley: 2, 7.21 km away
Okupe 1, 7.34 km away
Otaheke South, 8.06 km away
Wellington Hutt Valley: 4, 8.22 km away
Whitemans Valley, 9.43 km away
Aotea - Evans Bay, 9.64 km away
Ohariu South 2, 10.73 km away
Wellington Hutt Valley: 1, 12.61 km away
Fisherman 1, 13.34 km away

Pukerua - Shepherds Gully: 3, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?true
Directly Connected?true
Co-rupture Count553
Co-rupture Rate1.5678737E-4

Pukerua - Shepherds Gully: 1, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?true
Directly Connected?true
Co-rupture Count756
Co-rupture Rate1.8435056E-4

Shepherds Gully - Mana, 2.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohariu, 2.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?true
Directly Connected?true
Co-rupture Count64
Co-rupture Rate1.2241066E-5

Moonshine, 6.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate0.0

Wellington Hutt Valley: 3, 7.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington Hutt Valley: 2, 7.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?true
Directly Connected?false
Co-rupture Count16
Co-rupture Rate0.0

Okupe 1, 7.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?true
Directly Connected?false
Co-rupture Count215
Co-rupture Rate6.0889186E-5

Otaheke South, 8.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?true
Directly Connected?false
Co-rupture Count22
Co-rupture Rate3.792564E-9

Wellington Hutt Valley: 4, 8.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Whitemans Valley, 9.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Aotea - Evans Bay, 9.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohariu South 2, 10.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?true
Directly Connected?false
Co-rupture Count616
Co-rupture Rate1.4739261E-4

Wellington Hutt Valley: 1, 12.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?true
Directly Connected?false
Co-rupture Count16
Co-rupture Rate1.2241066E-5

Fisherman 1, 13.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?true
Directly Connected?false
Co-rupture Count44
Co-rupture Rate1.7792257E-5
