Te Anau Details
| Property | Value |
|---|---|
| Rupture Count | 5,333 |
| Ruptures Above Sect Min Mag | 5,329 |
| Ruptures w/ Nonzero Rates | 16 |
| Magnitude Range | [7.11, 8.62] |
| Length Range | [24, 925] km |
| Total Rate | 1.7267842E-4 /yr |
| Multi-Fault Rate | 4.723981E-5 /yr (27.36%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 119 |
Table Of Contents

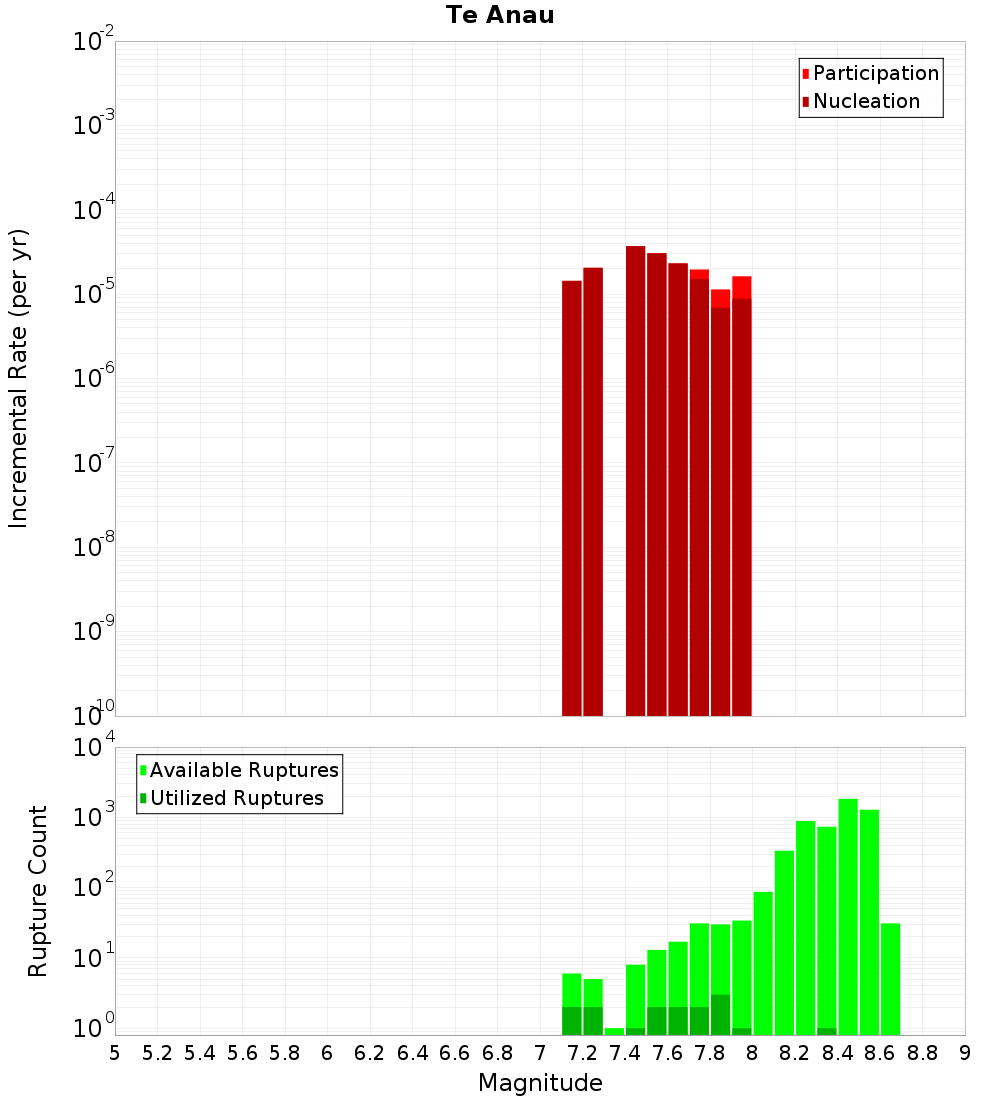

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

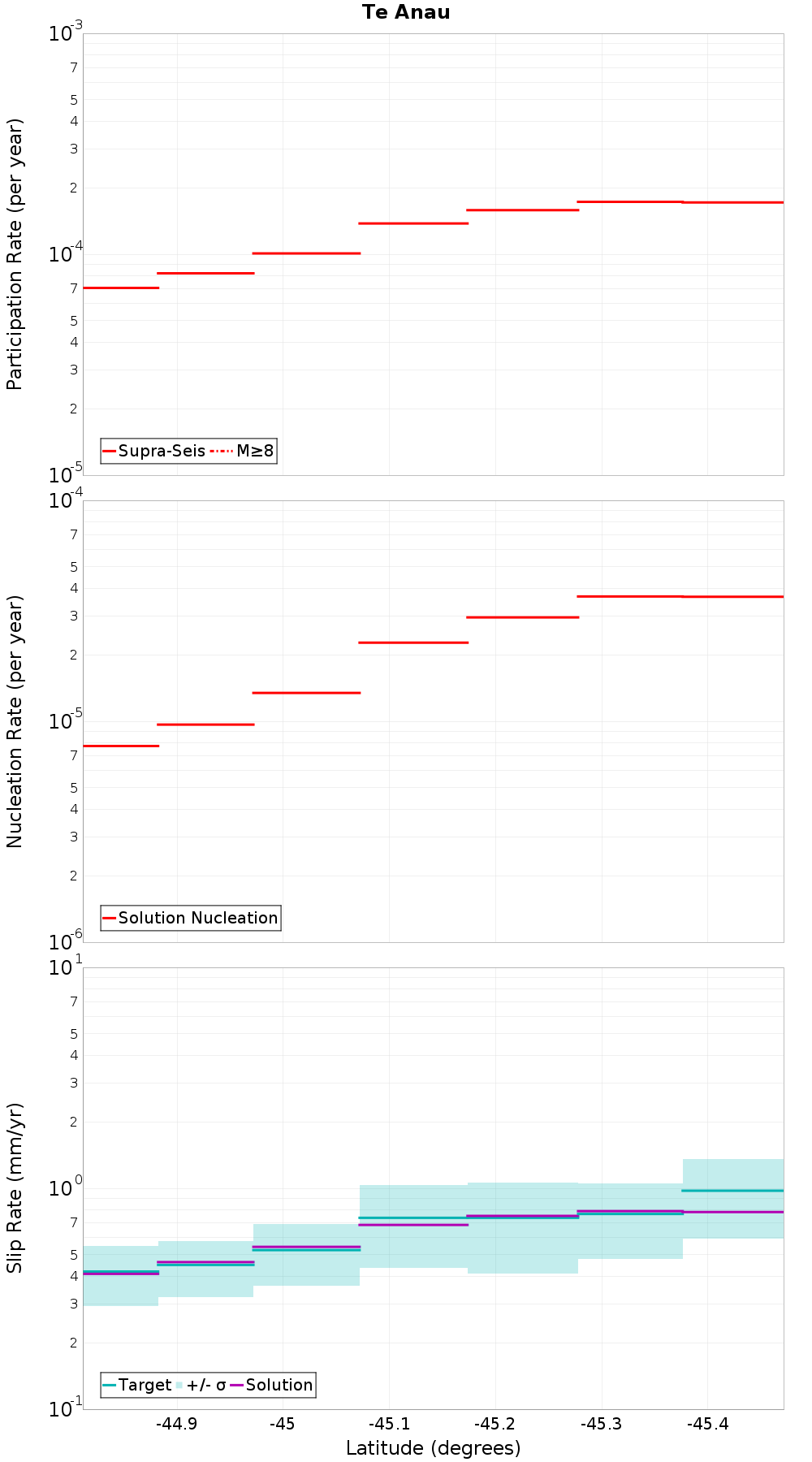

Along-Strike Values

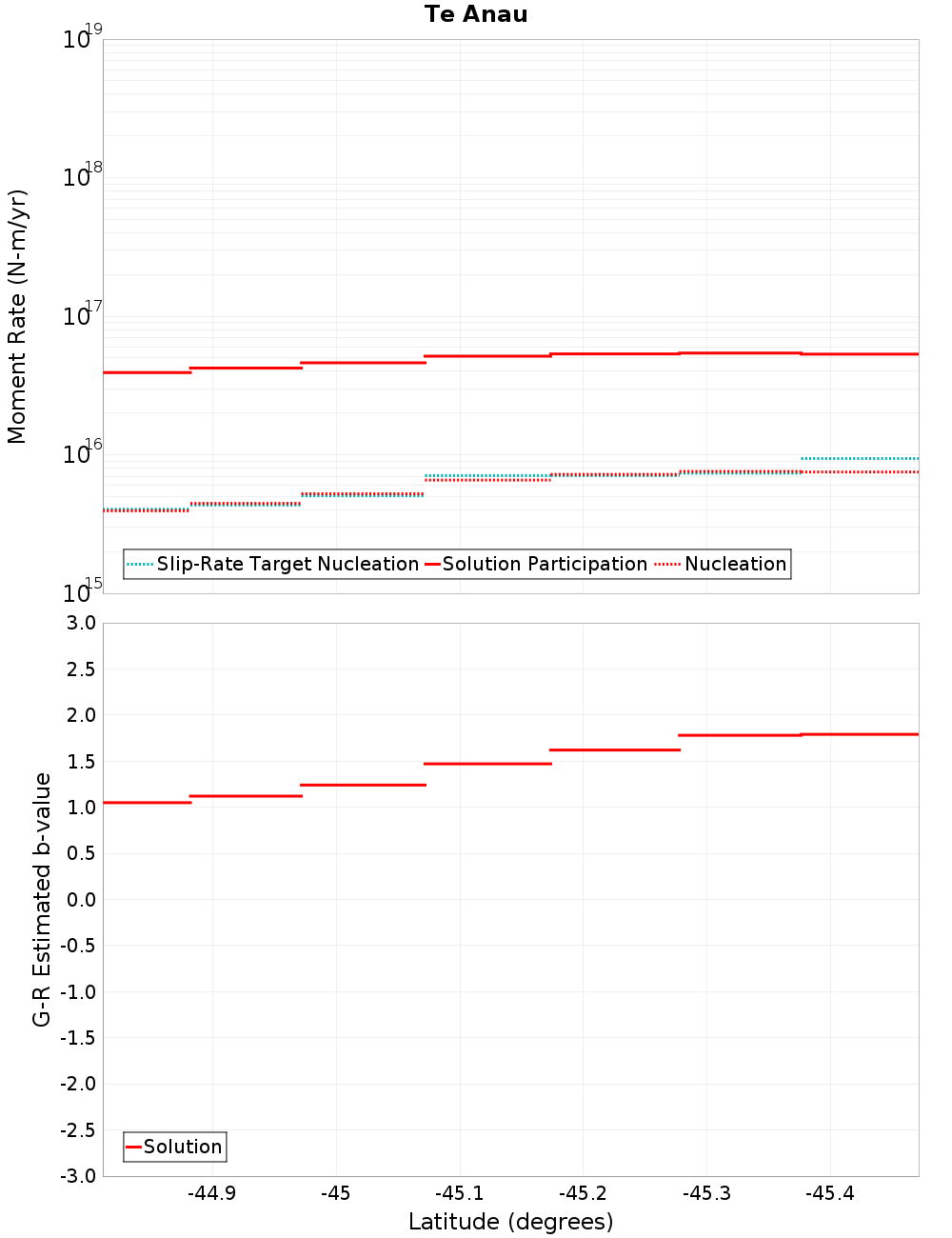

Moment-Rates and b-Values

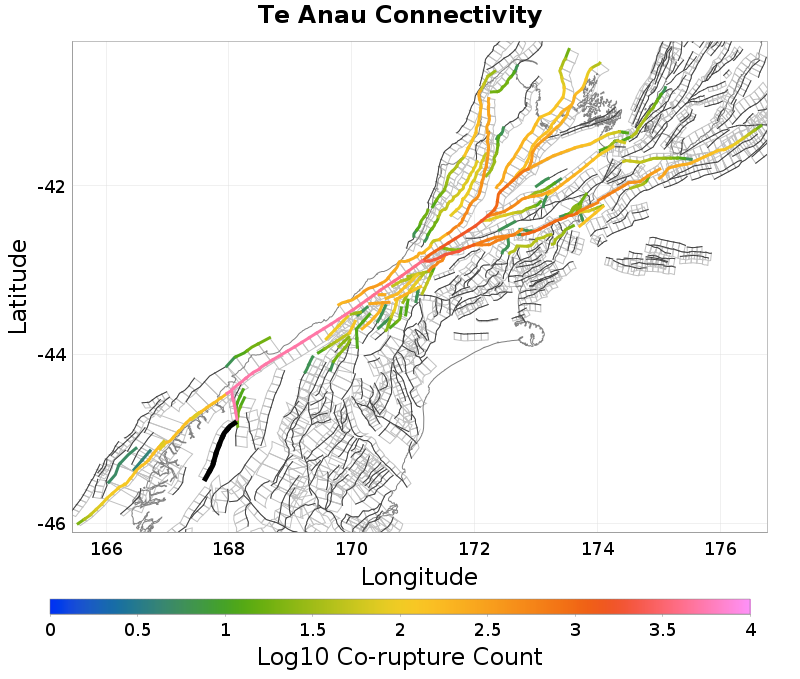

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Livingstone, 3.81 km away |
| Darran, 4.44 km away |
Livingstone, 3.81 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 18 |
| Co-rupture Rate | 2.4250361E-5 |
Darran, 4.44 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 5,294 |
| Co-rupture Rate | 2.2989447E-5 |
