Wakarara Details

Property	Value
Rupture Count	2,215
Ruptures Above Sect Min Mag	2,215
Ruptures w/ Nonzero Rates	76
Magnitude Range	[7.17, 8.54]
Length Range	[26, 731] km
Total Rate	7.467977E-5 /yr
Multi-Fault Rate	7.4679636E-5 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	80

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

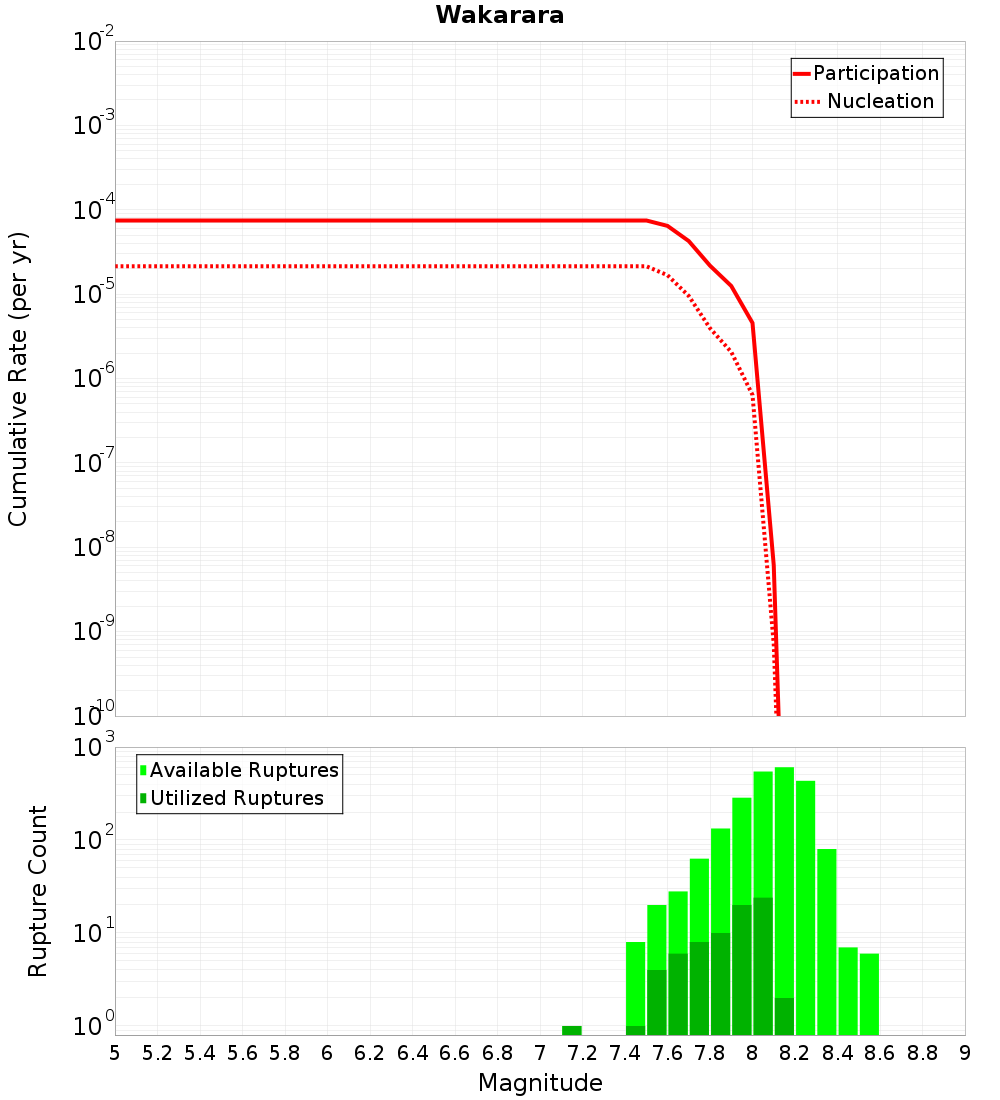

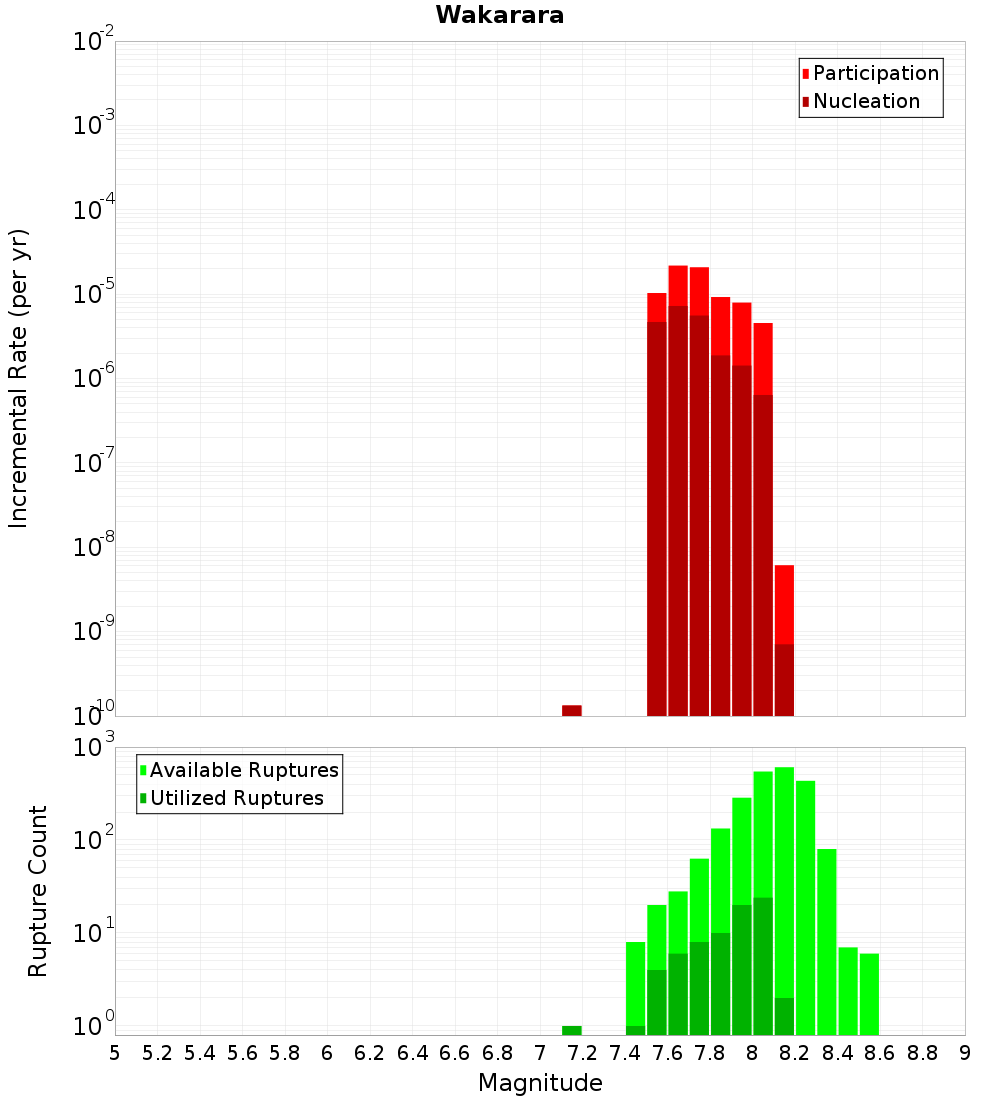

Magnitude-Frequency Distribution

Incremental	Cumulative

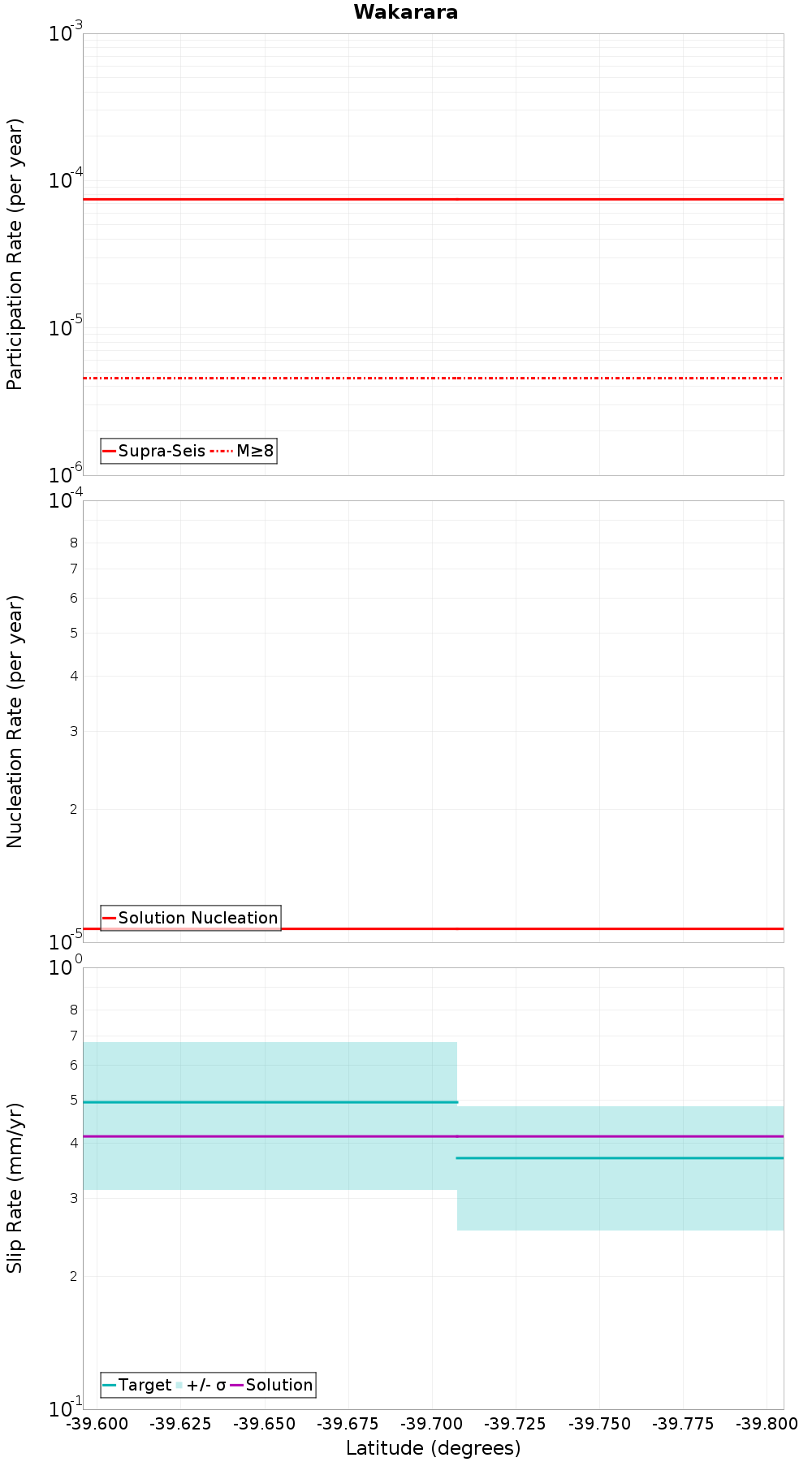

Along-Strike Values

Moment-Rates and b-Values

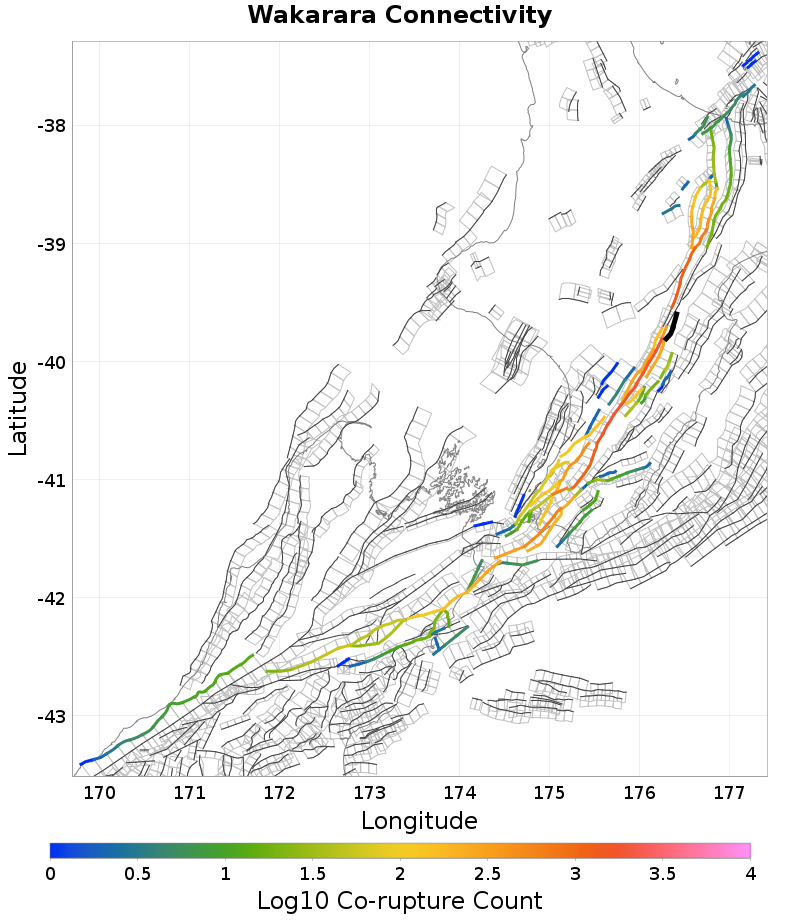

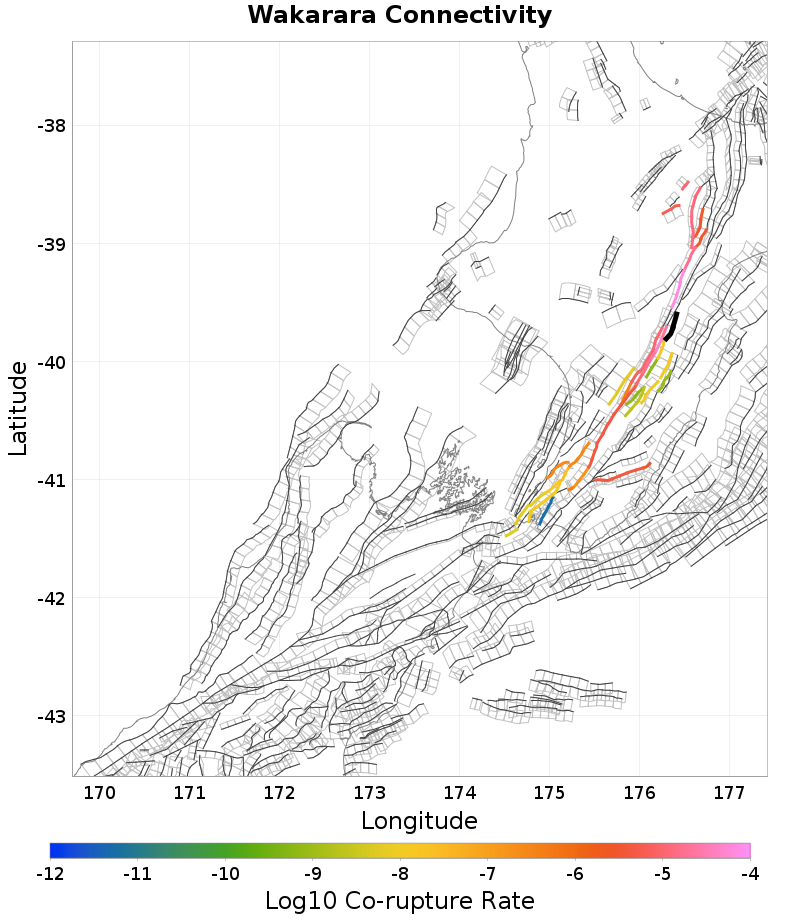

Connectivity

Nearby Sections

Fault Section
Rangefront, 0 km away
Mohaka: South, 0.06 km away
Ruahine: Central, 0.11 km away
Ruahine: North, 3.77 km away
Mohaka: North, 9.58 km away
Ruataniwha, 13.46 km away
Ruahine: South, 14.38 km away
Te Heka, 14.91 km away
Patoka - Rangiora, 14.99 km away

Rangefront, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?	true
Directly Connected?	true
Co-rupture Count	267
Co-rupture Rate	1.0379571E-8

Mohaka: South, 0.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?	true
Directly Connected?	true
Co-rupture Count	1,925
Co-rupture Rate	4.7314297E-5

Ruahine: Central, 0.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?	true
Directly Connected?	true
Co-rupture Count	145
Co-rupture Rate	9.65875E-6

Ruahine: North, 3.77 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?	true
Directly Connected?	true
Co-rupture Count	1,310
Co-rupture Rate	7.005595E-5

Mohaka: North, 9.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ruataniwha, 13.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?	true
Directly Connected?	false
Co-rupture Count	38
Co-rupture Rate	9.754184E-9

Ruahine: South, 14.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?	true
Directly Connected?	false
Co-rupture Count	302
Co-rupture Rate	9.27394E-6

Te Heka, 14.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Patoka - Rangiora, 14.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
