Wanaka Details

Property	Value
Rupture Count	28,313
Ruptures Above Sect Min Mag	28,310
Ruptures w/ Nonzero Rates	248
Magnitude Range	[7.07, 8.66]
Length Range	[22, 856] km
Total Rate	6.5171545E-5 /yr
Multi-Fault Rate	6.516793E-5 /yr (99.99%)
Directly-Connected Faults	7
All Co-Rupturing Faults	141

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

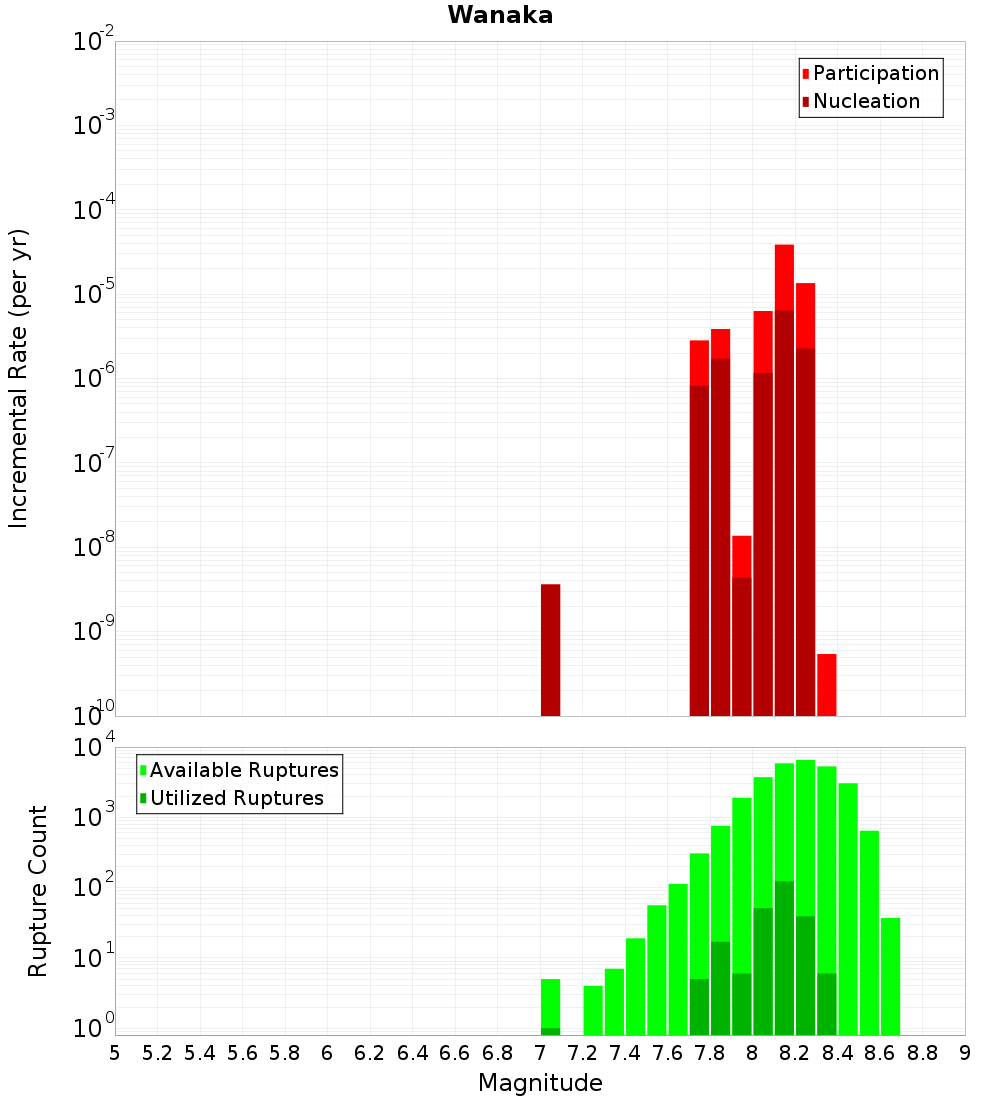

Magnitude-Frequency Distribution

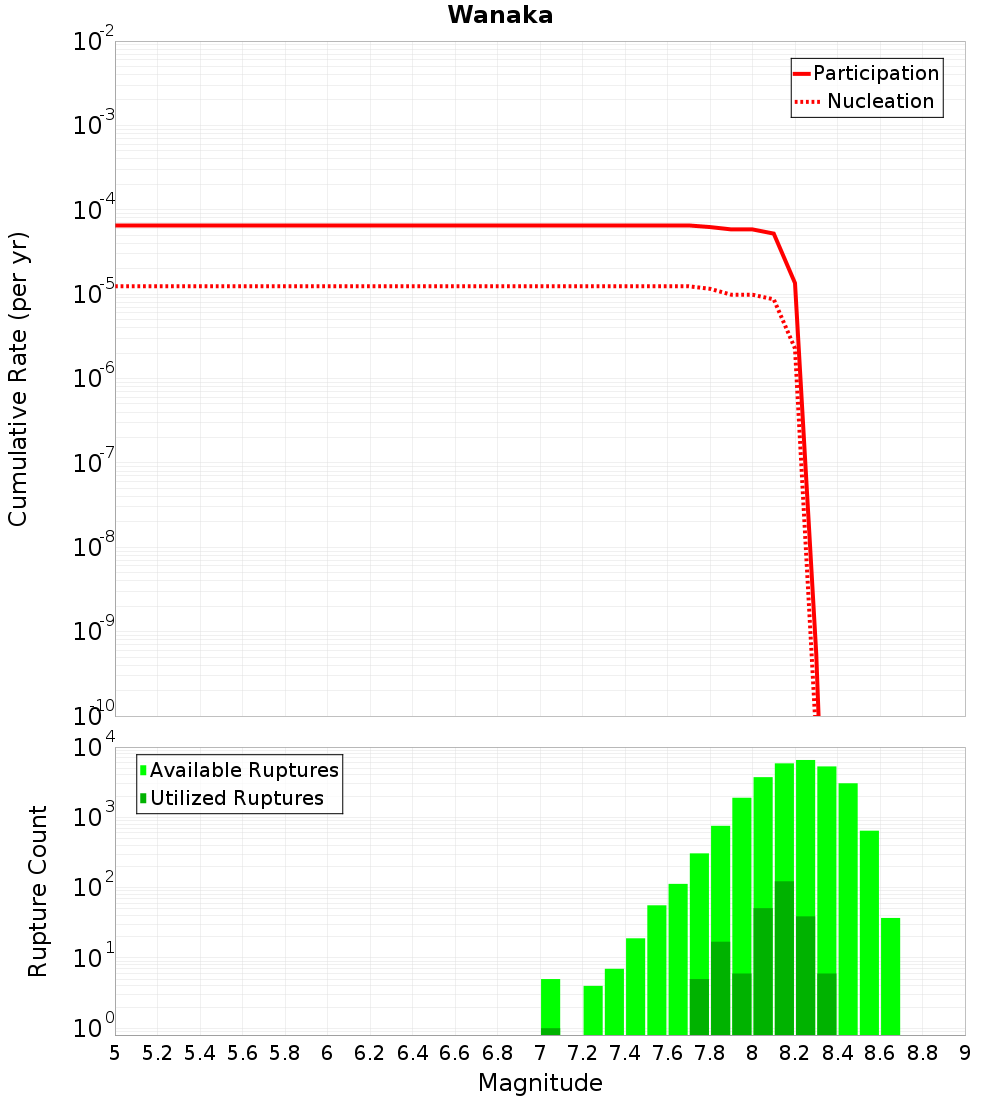

Incremental	Cumulative

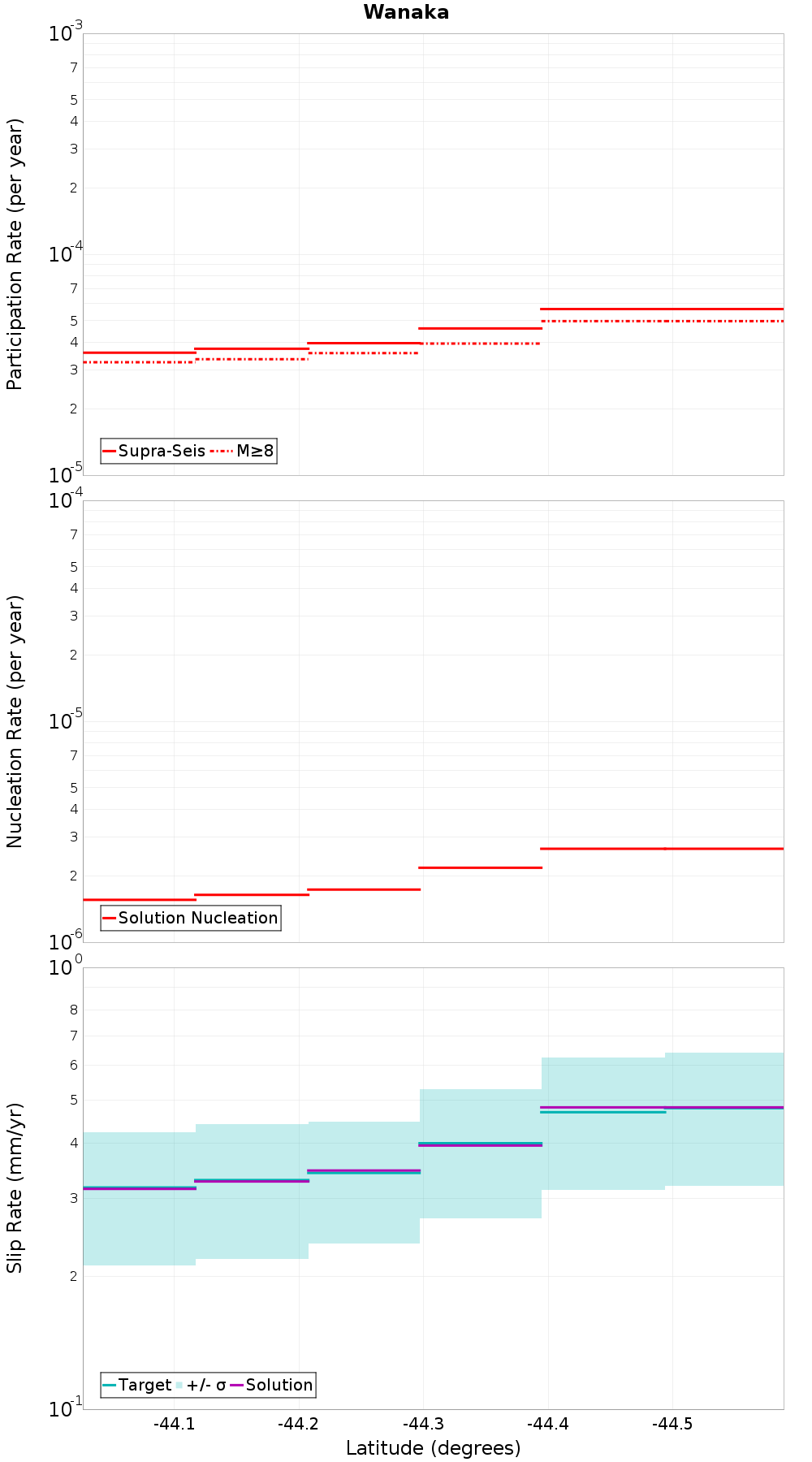

Along-Strike Values

Moment-Rates and b-Values

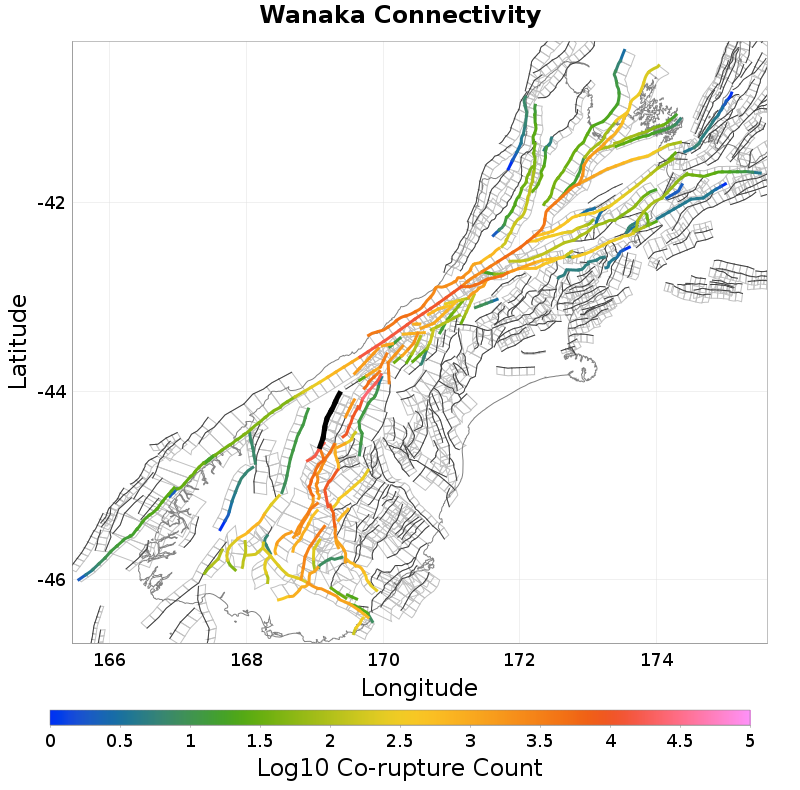

Connectivity

Nearby Sections

Fault Section
Dingle, 0.04 km away
Hunter Valley, 0.26 km away
Cardrona - Hawea, 0.32 km away
Timaru Creek, 0.48 km away
Motatapu, 1.15 km away
Hopkins, 1.91 km away
NW Cardrona North, 3.63 km away
Landsborough 2, 8.15 km away
Barrier Range, 8.67 km away
Dromedary, 11.93 km away
Cluden, 12.27 km away
Grandview, 12.49 km away

Dingle, 0.04 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?	true
Directly Connected?	true
Co-rupture Count	10,063
Co-rupture Rate	1.7950639E-5

Hunter Valley, 0.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?	true
Directly Connected?	true
Co-rupture Count	1,733
Co-rupture Rate	2.0073696E-6

Cardrona - Hawea, 0.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?	true
Directly Connected?	true
Co-rupture Count	4,603
Co-rupture Rate	5.9468057E-6

Timaru Creek, 0.48 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?	true
Directly Connected?	true
Co-rupture Count	1,101
Co-rupture Rate	8.69367E-6

Motatapu, 1.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?	true
Directly Connected?	true
Co-rupture Count	16,028
Co-rupture Rate	1.9016188E-5

Hopkins, 1.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?	true
Directly Connected?	true
Co-rupture Count	24,002
Co-rupture Rate	4.174764E-5

NW Cardrona North, 3.63 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?	true
Directly Connected?	true
Co-rupture Count	5,287
Co-rupture Rate	3.889029E-5

Landsborough 2, 8.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?	true
Directly Connected?	false
Co-rupture Count	1,133
Co-rupture Rate	1.3821422E-10

Barrier Range, 8.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?	true
Directly Connected?	false
Co-rupture Count	12
Co-rupture Rate	0.0

Dromedary, 11.93 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?	true
Directly Connected?	false
Co-rupture Count	12
Co-rupture Rate	9.6165756E-11

Cluden, 12.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Grandview, 12.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjcuMHVZbjk4
Connected?	true
Directly Connected?	false
Co-rupture Count	829
Co-rupture Rate	1.7806384E-6
