Campbell Hills Details
| Property | Value |
|---|---|
| Rupture Count | 1,520 |
| Ruptures Above Sect Min Mag | 1,518 |
| Ruptures w/ Nonzero Rates | 25 |
| Magnitude Range | [6.82, 8.07] |
| Length Range | [20, 356] km |
| Total Rate | 1.4629269E-4 /yr |
| Multi-Fault Rate | 1.4629269E-4 /yr (100.00%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 37 |
Table Of Contents

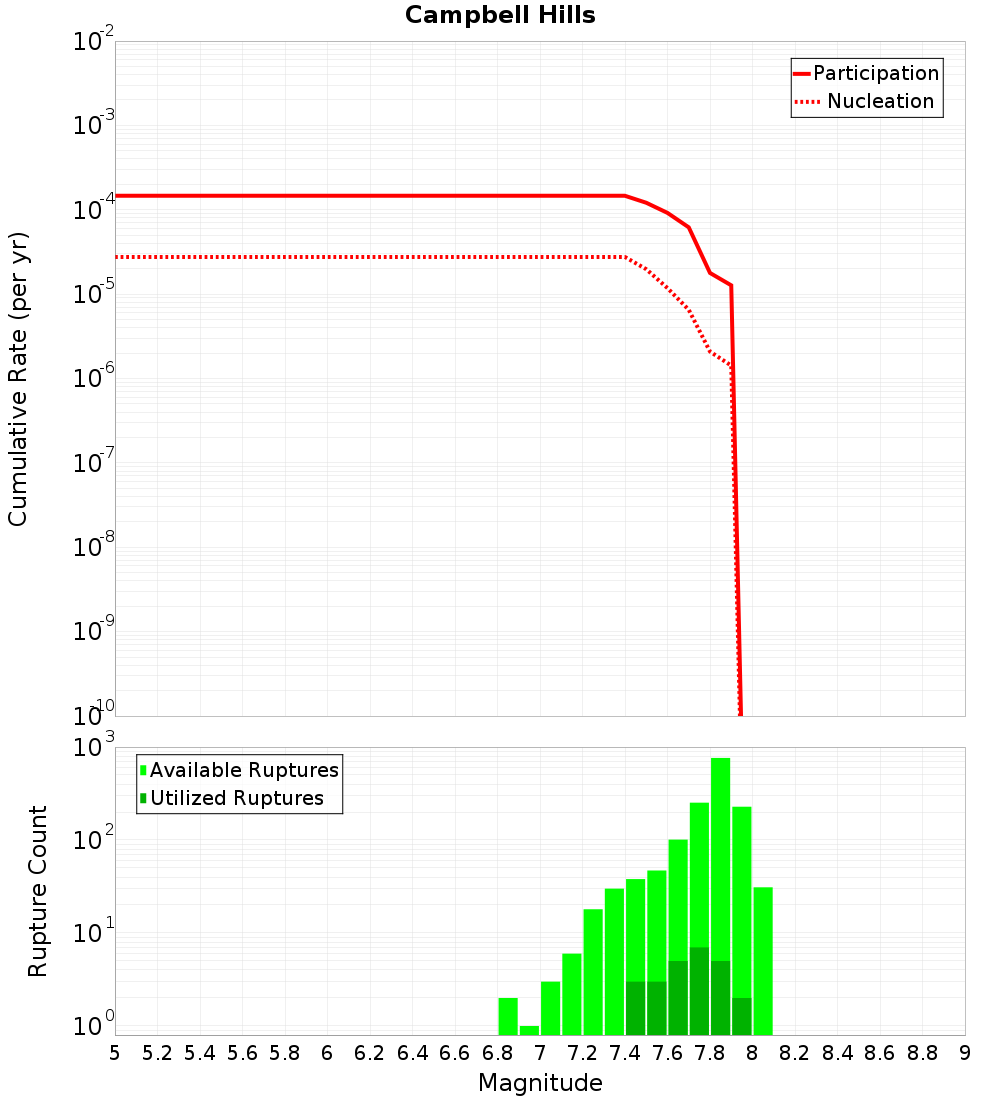

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

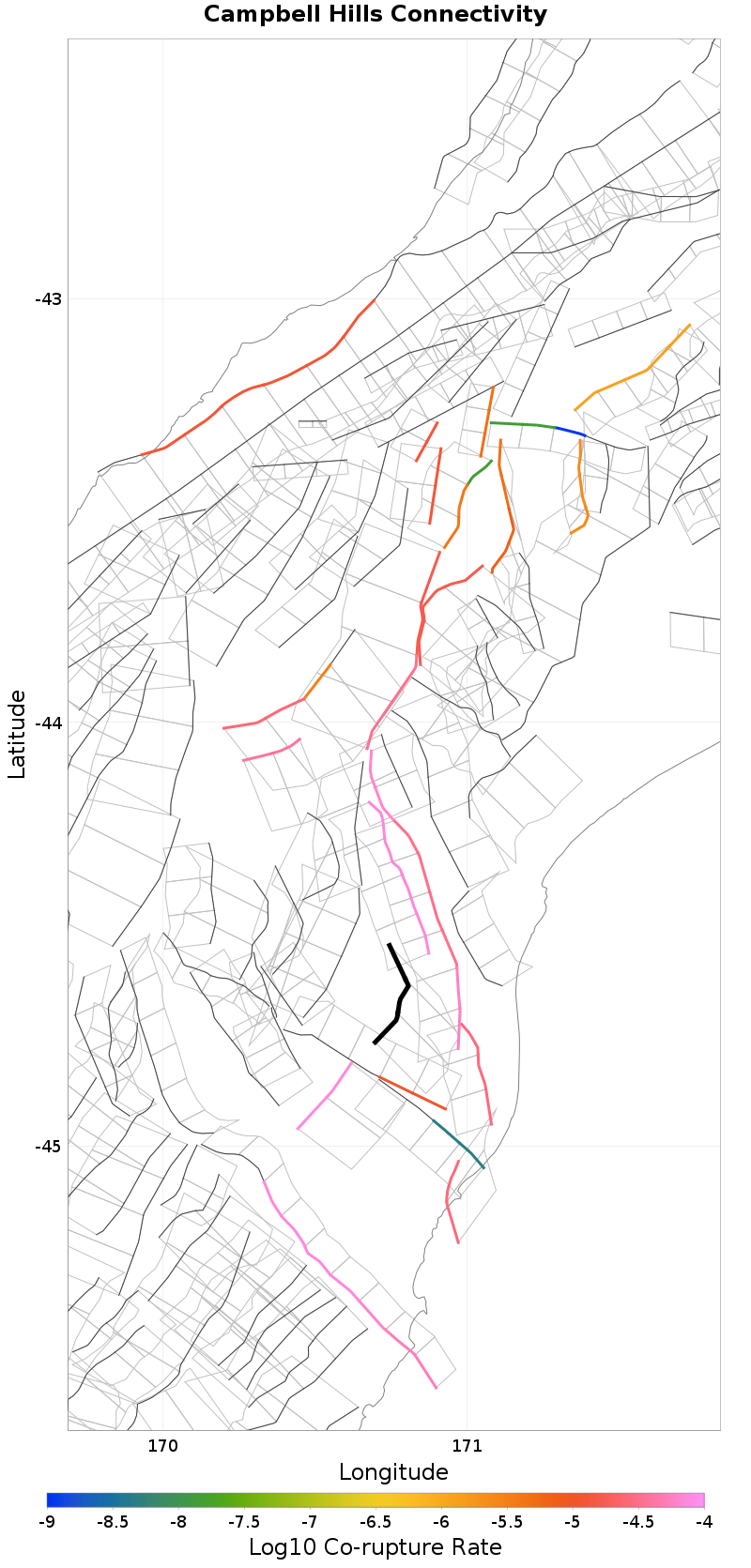

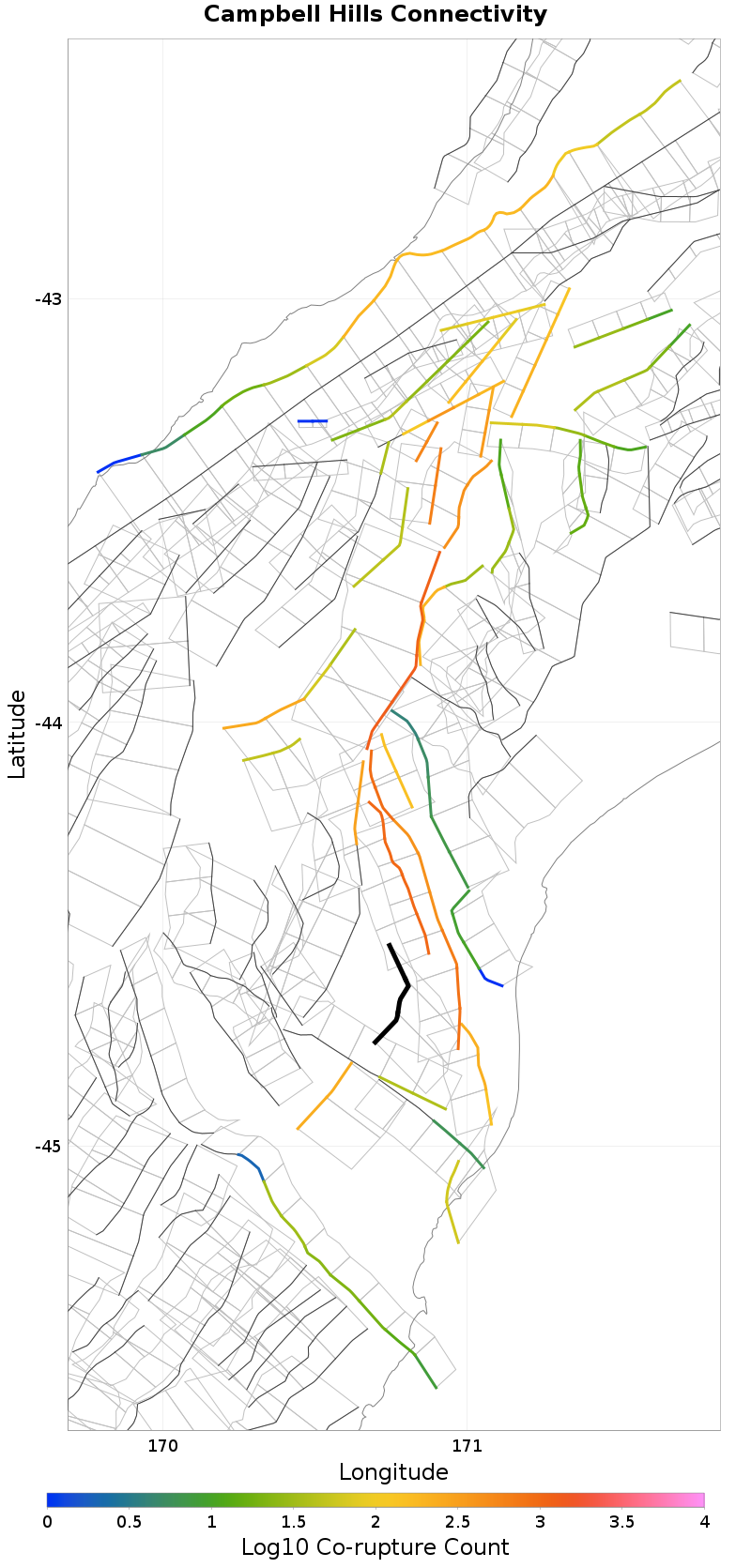

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Hunters, 0.1 km away |
| Stonewall, 0.11 km away |
| Waimate, 0.29 km away |
| Chamberlain, 1.74 km away |
| Black Hill, 5.76 km away |
| Waitaki, 8.2 km away |
| Kirkliston, 10.34 km away |
Hunters, 0.1 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 856 |
| Co-rupture Rate | 5.5856355E-5 |
Stonewall, 0.11 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 39 |
| Co-rupture Rate | 1.1140875E-5 |
Waimate, 0.29 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 220 |
| Co-rupture Rate | 2.7408993E-5 |
Chamberlain, 1.74 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,027 |
| Co-rupture Rate | 7.207476E-5 |
Black Hill, 5.76 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 233 |
| Co-rupture Rate | 7.53912E-5 |
Waitaki, 8.2 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 6 |
| Co-rupture Rate | 4.483108E-9 |
Kirkliston, 10.34 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
