Cape Foulwind 1 Details

PropertyValue
Rupture Count12,420
Ruptures Above Sect Min Mag12,407
Ruptures w/ Nonzero Rates87
Magnitude Range[6.70, 8.42]
Length Range[20, 905] km
Total Rate0.0016551911 /yr
Multi-Fault Rate0.0016551911 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults57

Table Of Contents

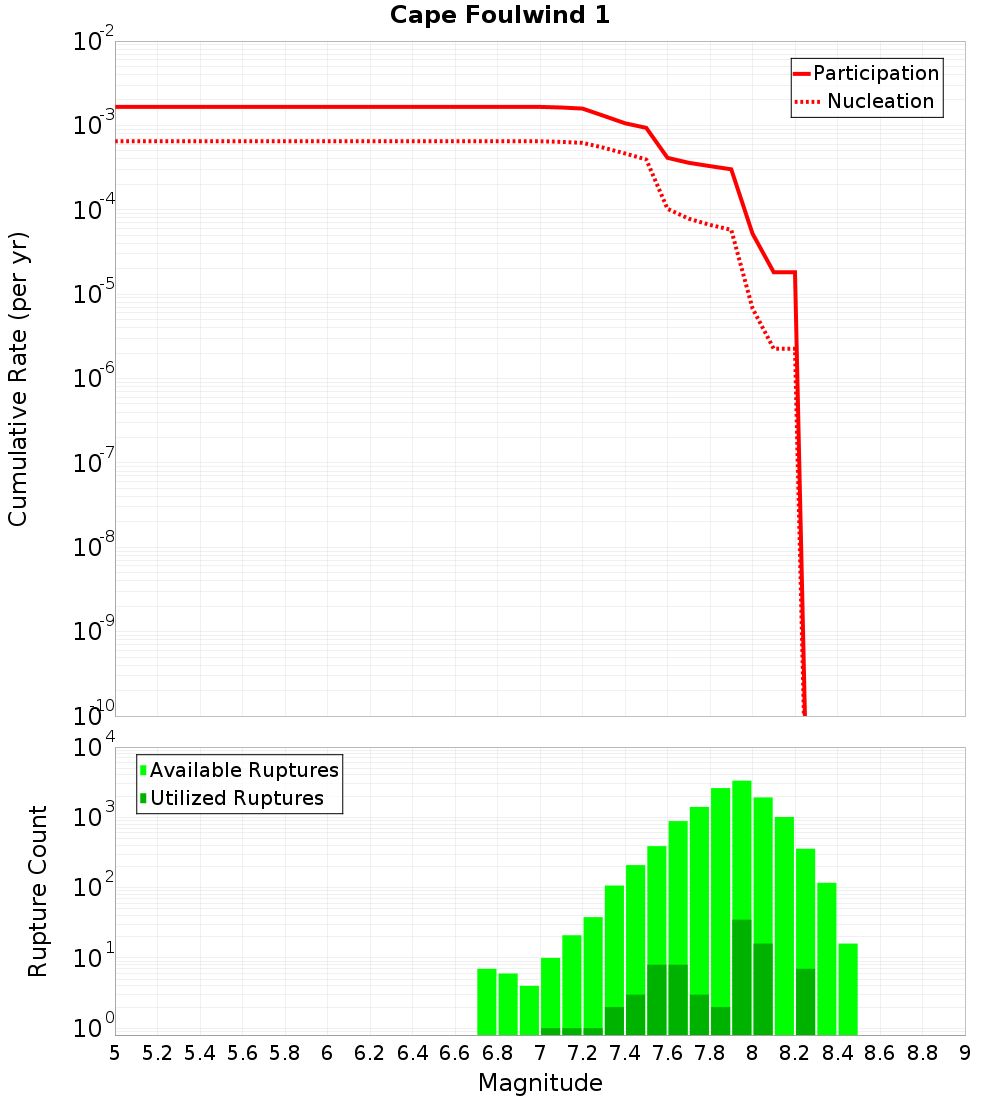

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

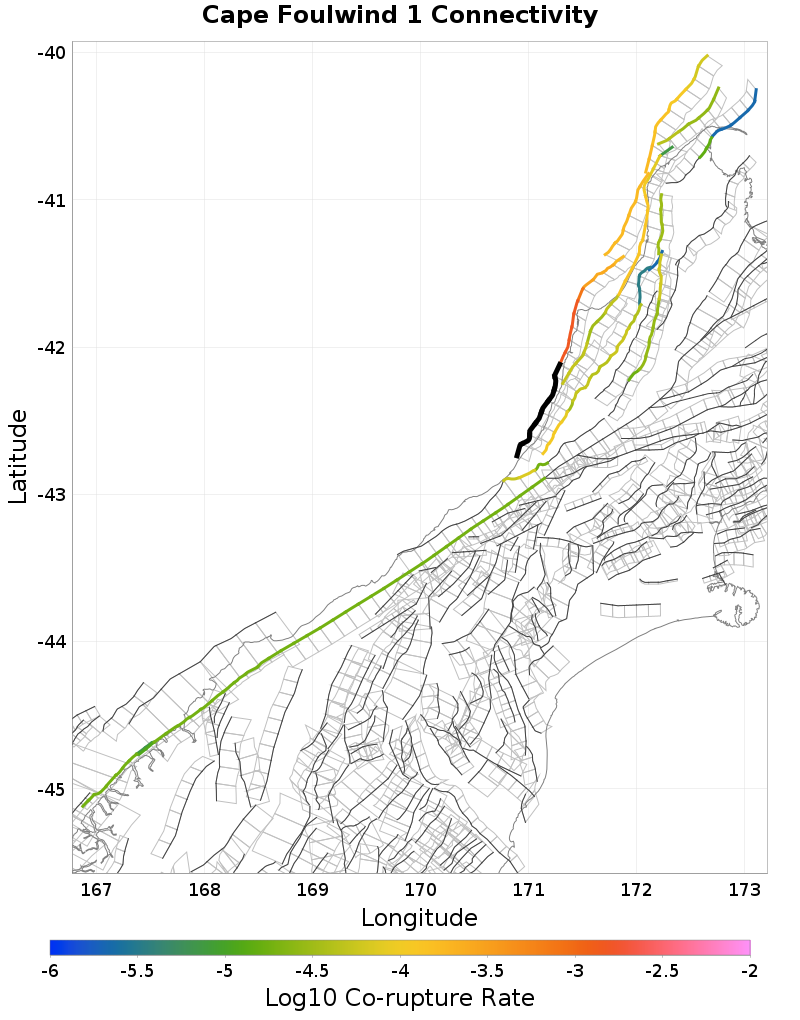

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Cape Foulwind 2, 0 km away
Maimai: Brunner Anticline, 0.41 km away
Maimai: South, 0.42 km away
Paparoa West, 4.61 km away
Maimai, 5.12 km away
Kelly, 11.54 km away
Hohonu South, 14.46 km away

Cape Foulwind 2, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?true
Directly Connected?true
Co-rupture Count2,694
Co-rupture Rate0.0014933606

Maimai: Brunner Anticline, 0.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?true
Directly Connected?true
Co-rupture Count578
Co-rupture Rate1.07556654E-4

Maimai: South, 0.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?true
Directly Connected?true
Co-rupture Count7,311
Co-rupture Rate5.136921E-5

Paparoa West, 4.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?true
Directly Connected?true
Co-rupture Count3,855
Co-rupture Rate5.6342145E-5

Maimai, 5.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?true
Directly Connected?true
Co-rupture Count5,955
Co-rupture Rate4.2772048E-5

Kelly, 11.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?true
Directly Connected?false
Co-rupture Count240
Co-rupture Rate0.0

Hohonu South, 14.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?true
Directly Connected?true
Co-rupture Count8,489
Co-rupture Rate7.012773E-5
