Caswell High 67 Details

Property	Value
Rupture Count	315
Ruptures Above Sect Min Mag	297
Ruptures w/ Nonzero Rates	11
Magnitude Range	[6.51, 7.97]
Length Range	[16, 246] km
Total Rate	3.7159675E-4 /yr
Multi-Fault Rate	3.7159675E-4 /yr (100.00%)
Directly-Connected Faults	2
All Co-Rupturing Faults	13

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

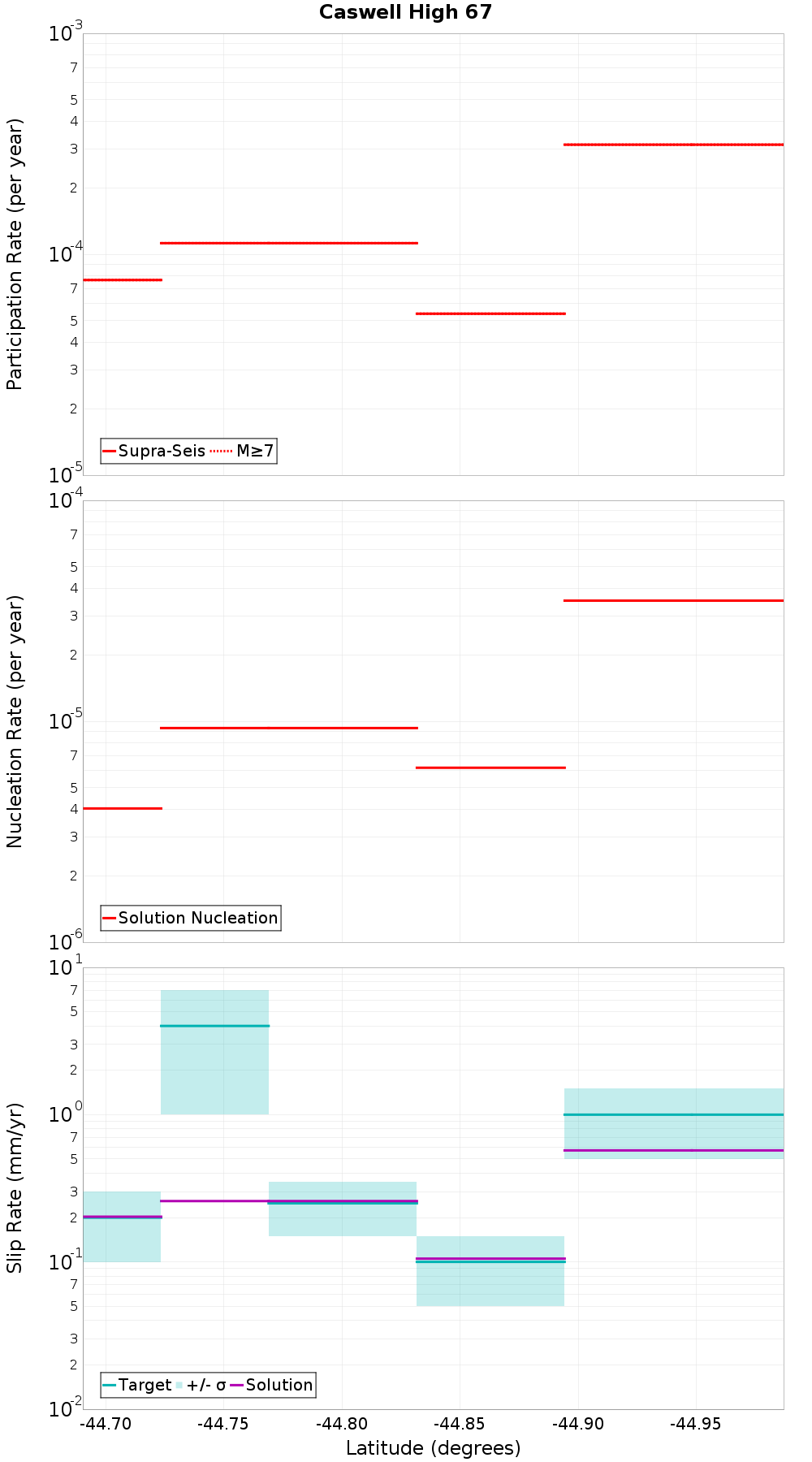

Along-Strike Values

Moment-Rates and b-Values

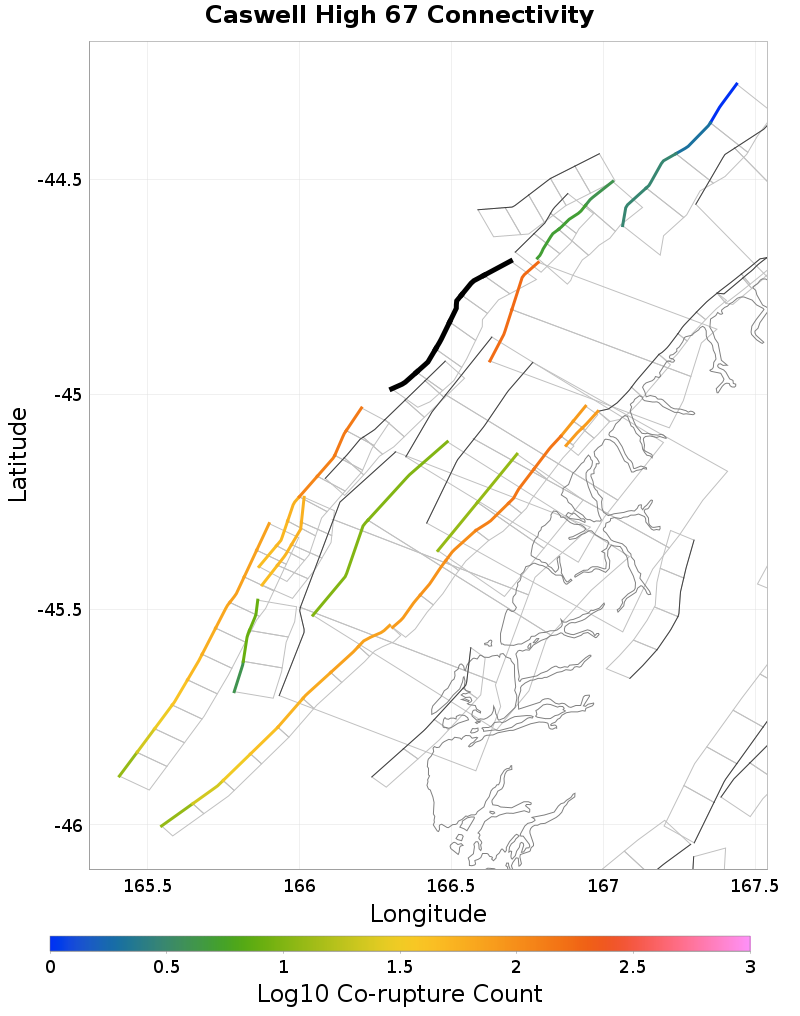

Connectivity

Nearby Sections

Fault Section
Caswell High 5, 1.46 km away
Caswell High 9, 2.27 km away
Central Wedge 1 & 2 & 3, 4.39 km away
Caswell High 10, 6.05 km away
Central Wedge 4 - South Wedge 411, 7.72 km away
Caswell High 4, 8.14 km away
Caswell High 8, 11.05 km away

Caswell High 5, 1.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Caswell High 9, 2.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Central Wedge 1 & 2 & 3, 4.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?	true
Directly Connected?	true
Co-rupture Count	174
Co-rupture Rate	7.645994E-5

Caswell High 10, 6.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?	true
Directly Connected?	false
Co-rupture Count	5
Co-rupture Rate	5.8429905E-5

Central Wedge 4 - South Wedge 411, 7.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Caswell High 4, 8.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?	true
Directly Connected?	true
Co-rupture Count	138
Co-rupture Rate	3.0395604E-4

Caswell High 8, 11.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
