Huxley Details

PropertyValue
Rupture Count15,789
Ruptures Above Sect Min Mag15,786
Ruptures w/ Nonzero Rates16
Magnitude Range[6.76, 8.31]
Length Range[18, 663] km
Total Rate1.9254223E-4 /yr
Multi-Fault Rate1.9254223E-4 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults147

Table Of Contents

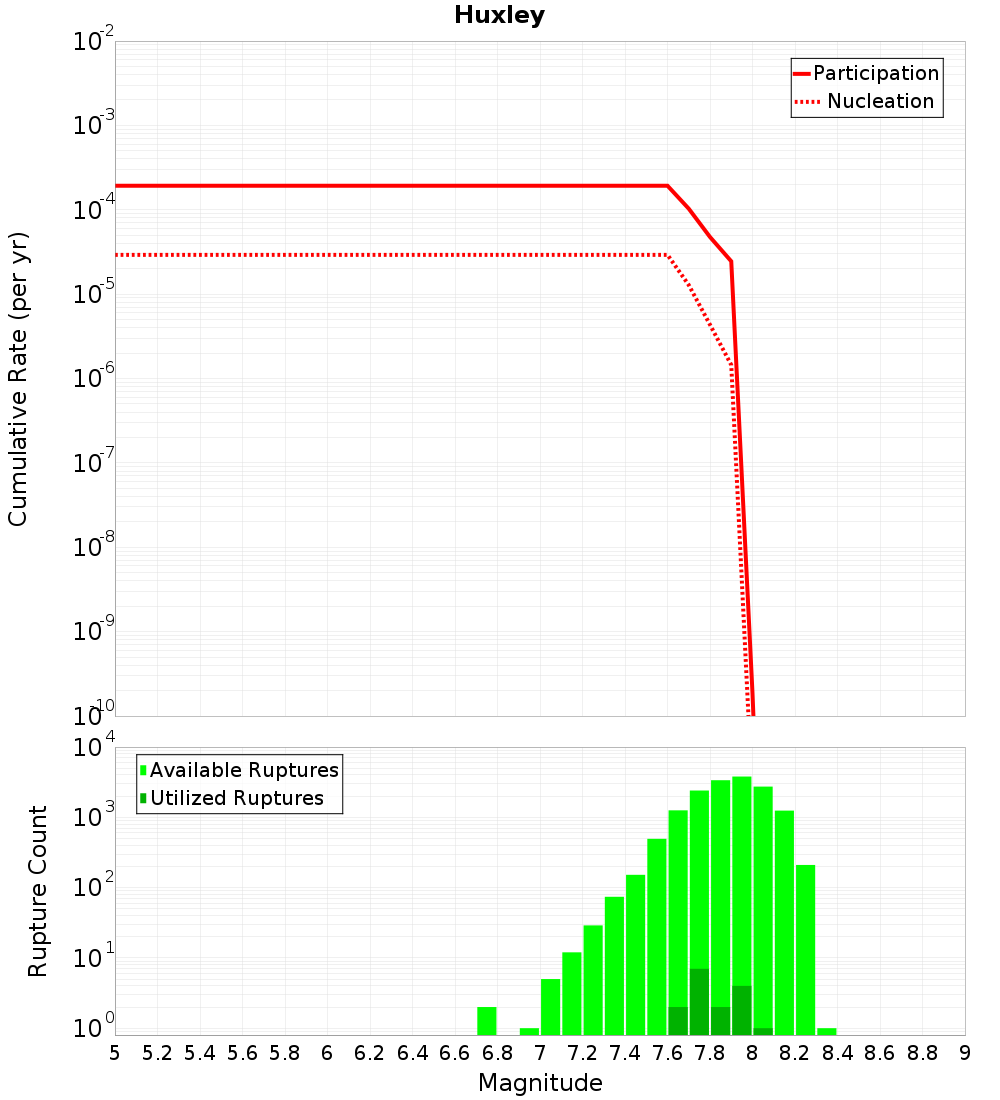

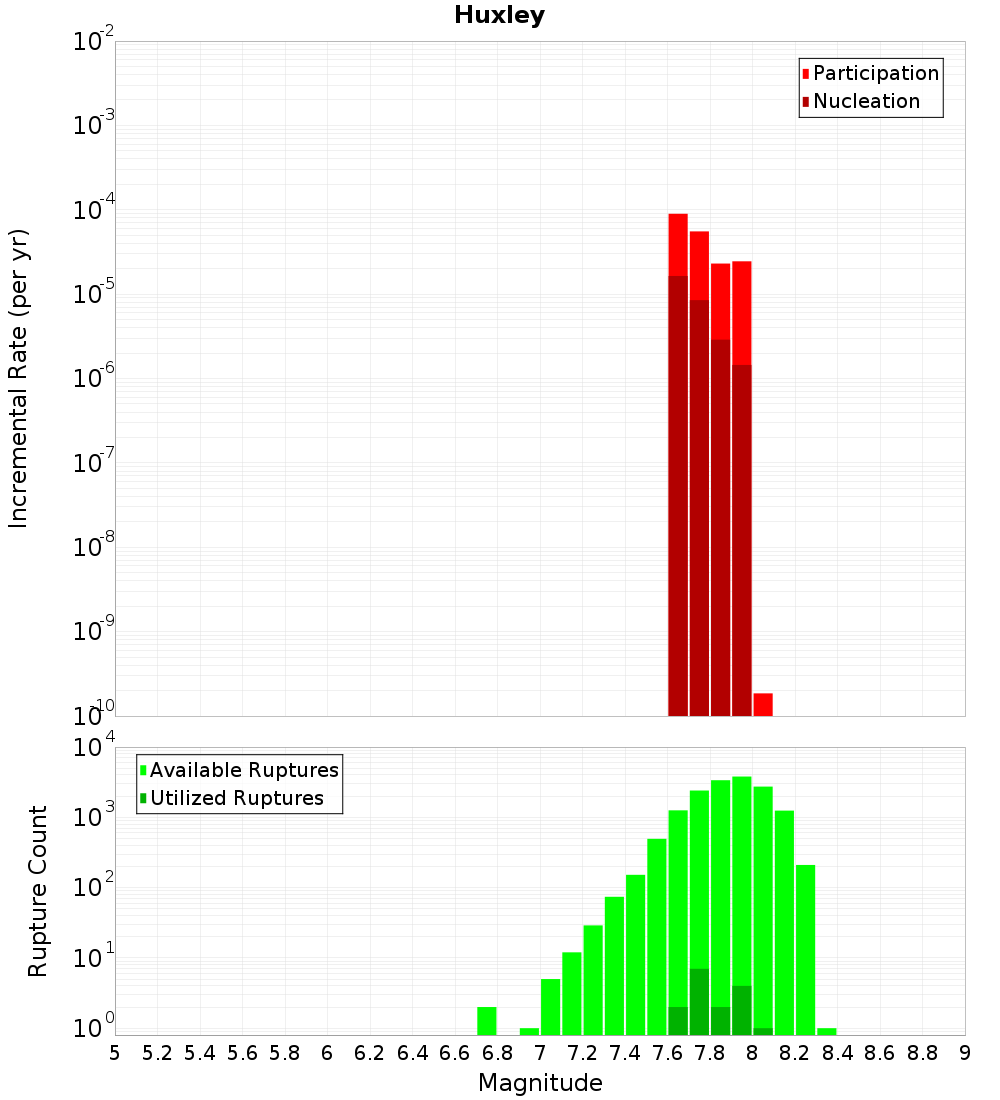

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

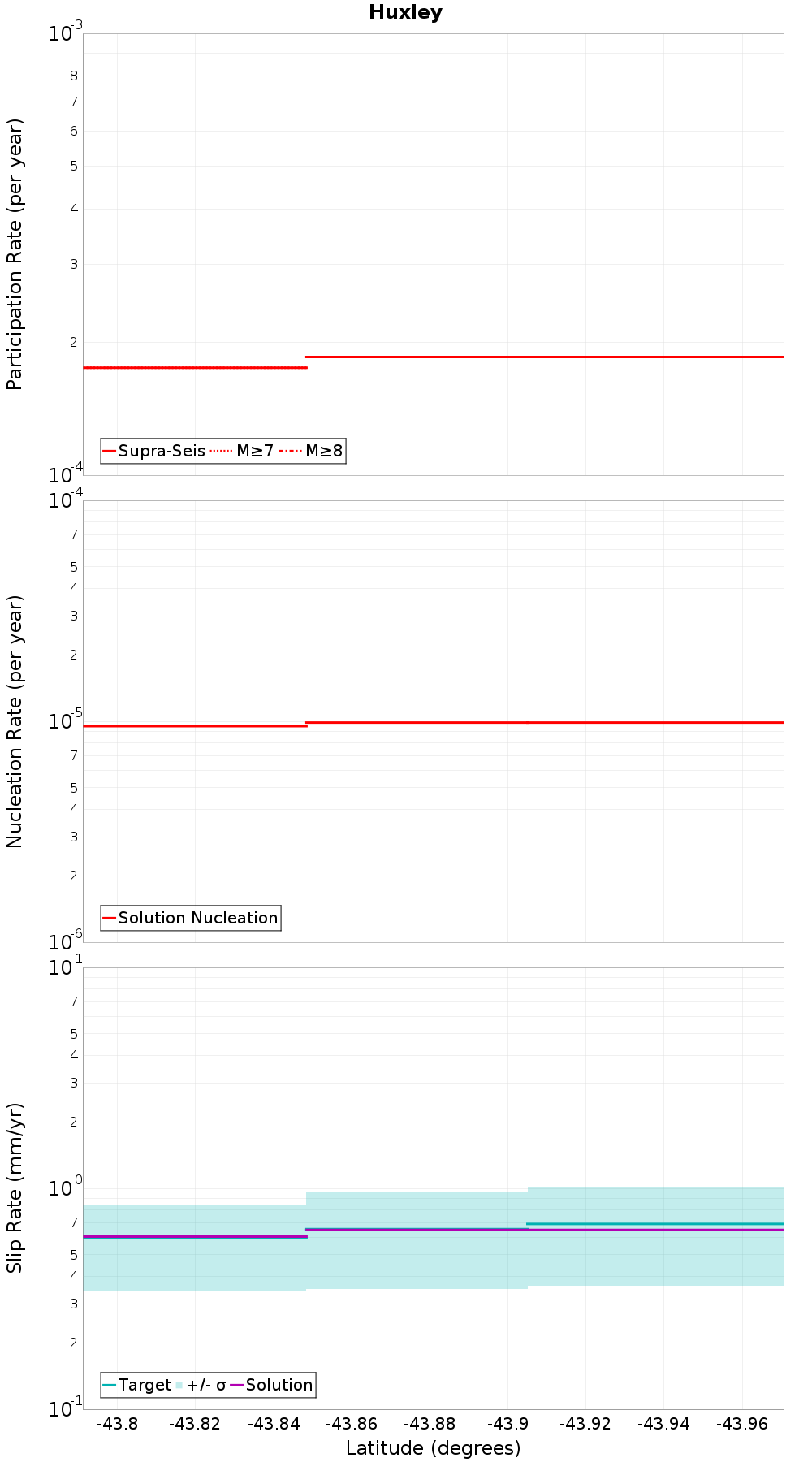

Along-Strike Values

(top)

Along-strike plot

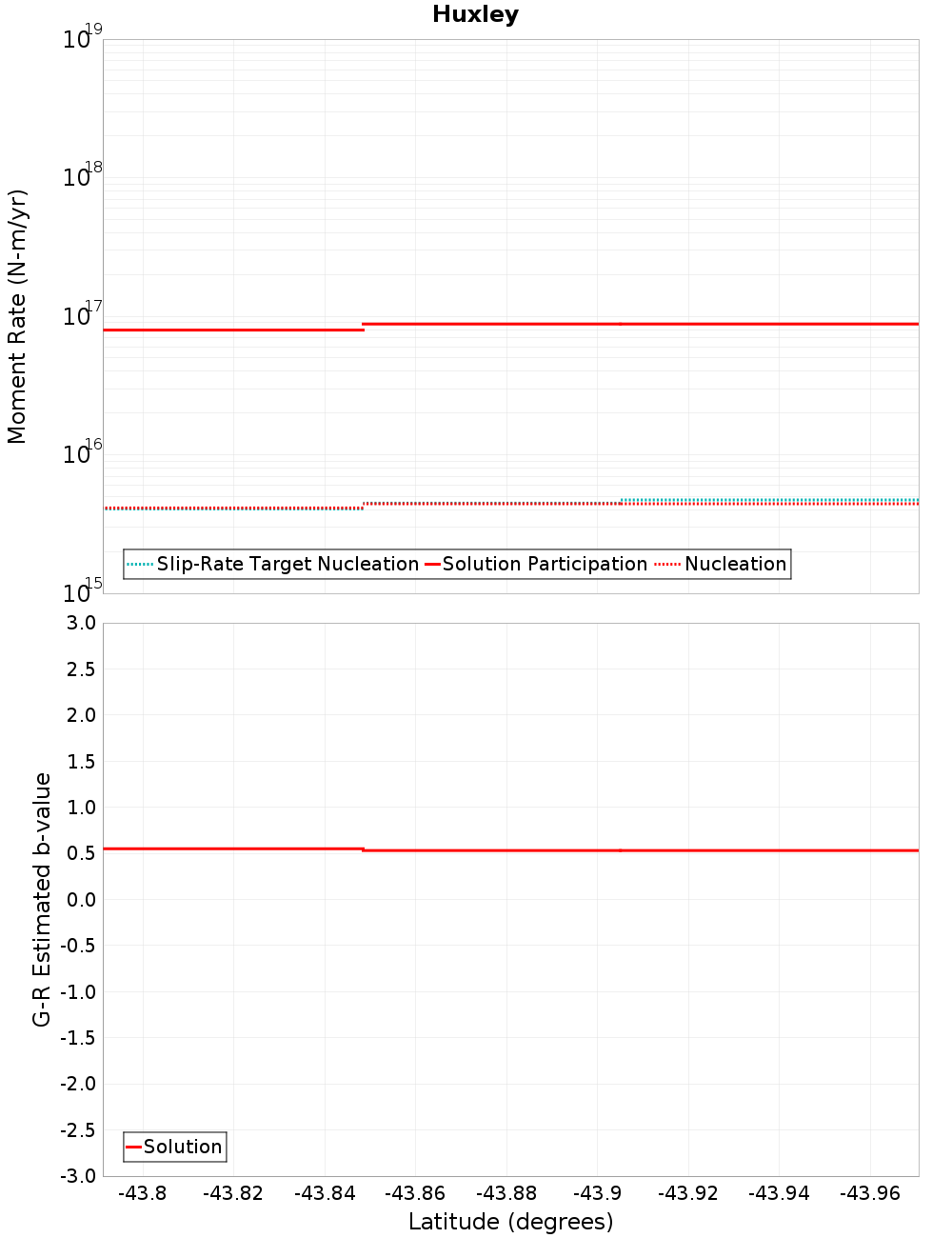

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Great Groove, 0.17 km away
Landsborough 2, 0.41 km away
Alpine: Jacksons to Kaniere, 1.78 km away
Hopkins, 3.39 km away
Karangarua, 4.17 km away
McKerrow - Douglas Duplex, 5.04 km away
Barrier Range, 5.79 km away
Ostler North, 10.15 km away
Black Blob - Haast Ridge, 14.73 km away
Liebig North, 14.98 km away

Great Groove, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?true
Directly Connected?false
Co-rupture Count446
Co-rupture Rate0.0

Landsborough 2, 0.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?true
Directly Connected?true
Co-rupture Count3,154
Co-rupture Rate6.6448393E-9

Alpine: Jacksons to Kaniere, 1.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?true
Directly Connected?true
Co-rupture Count5,113
Co-rupture Rate1.749881E-4

Hopkins, 3.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?true
Directly Connected?true
Co-rupture Count9,570
Co-rupture Rate1.8514702E-4

Karangarua, 4.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?true
Directly Connected?true
Co-rupture Count2,502
Co-rupture Rate1.7554117E-5

McKerrow - Douglas Duplex, 5.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?true
Directly Connected?true
Co-rupture Count6,676
Co-rupture Rate0.0

Barrier Range, 5.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?true
Directly Connected?true
Co-rupture Count4,239
Co-rupture Rate7.3885662E-6

Ostler North, 10.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

Black Blob - Haast Ridge, 14.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?true
Directly Connected?false
Co-rupture Count798
Co-rupture Rate0.0

Liebig North, 14.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?true
Directly Connected?false
Co-rupture Count146
Co-rupture Rate0.0
