Kohaihai Details

PropertyValue
Rupture Count20,726
Ruptures Above Sect Min Mag20,723
Ruptures w/ Nonzero Rates65
Magnitude Range[6.86, 8.47]
Length Range[23, 1,039] km
Total Rate4.052904E-4 /yr
Multi-Fault Rate4.052904E-4 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults86

Table Of Contents

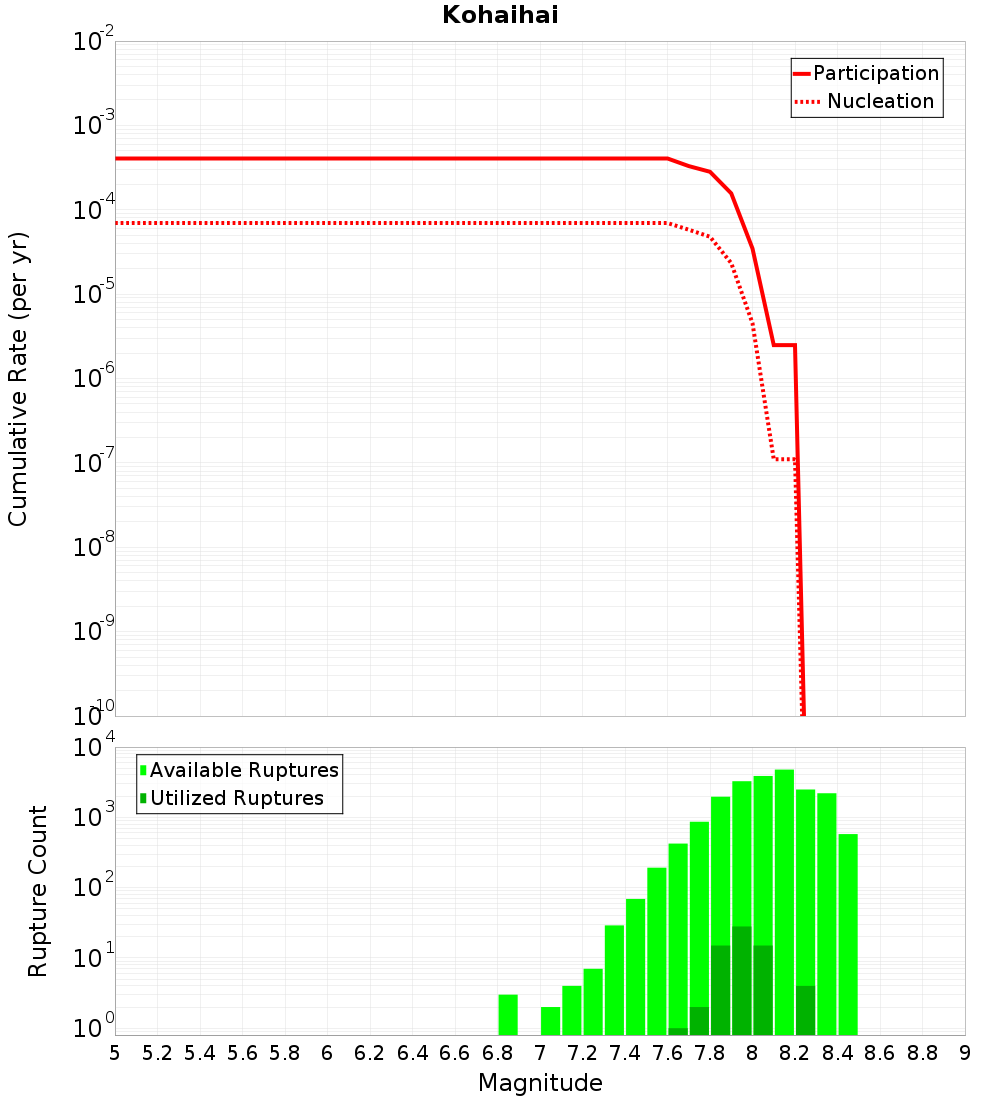

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

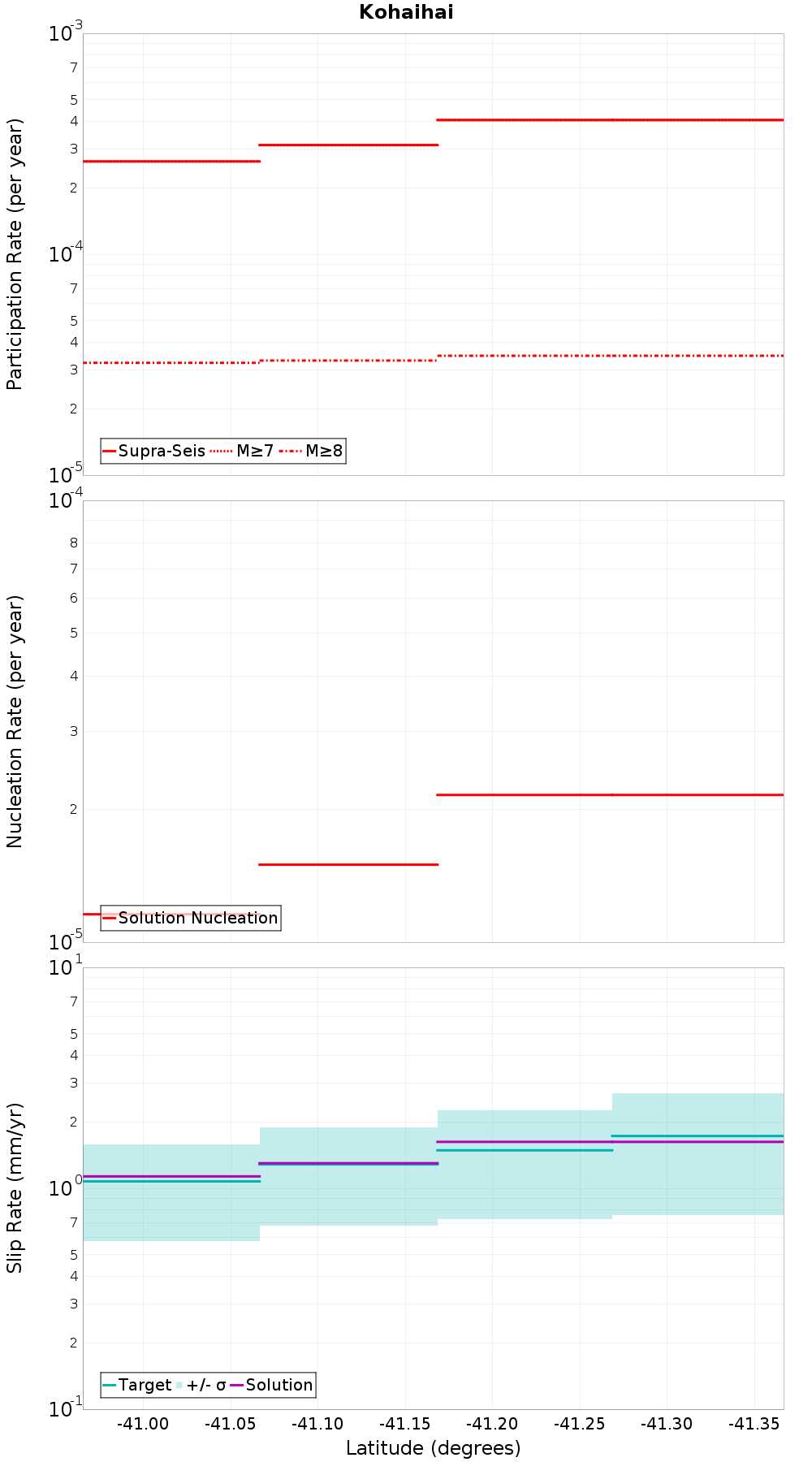

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

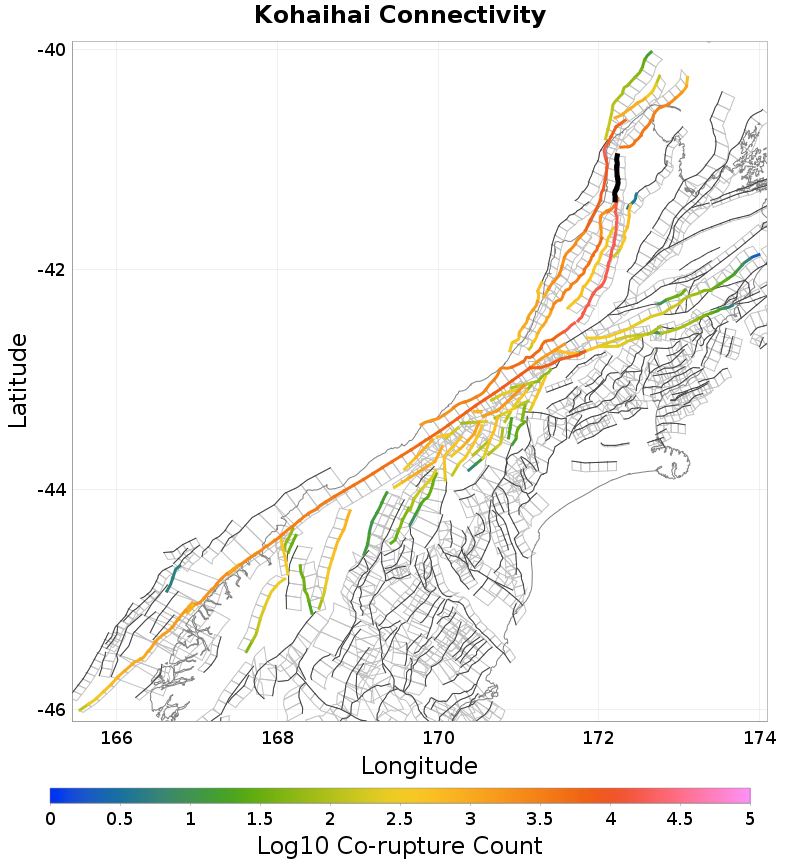

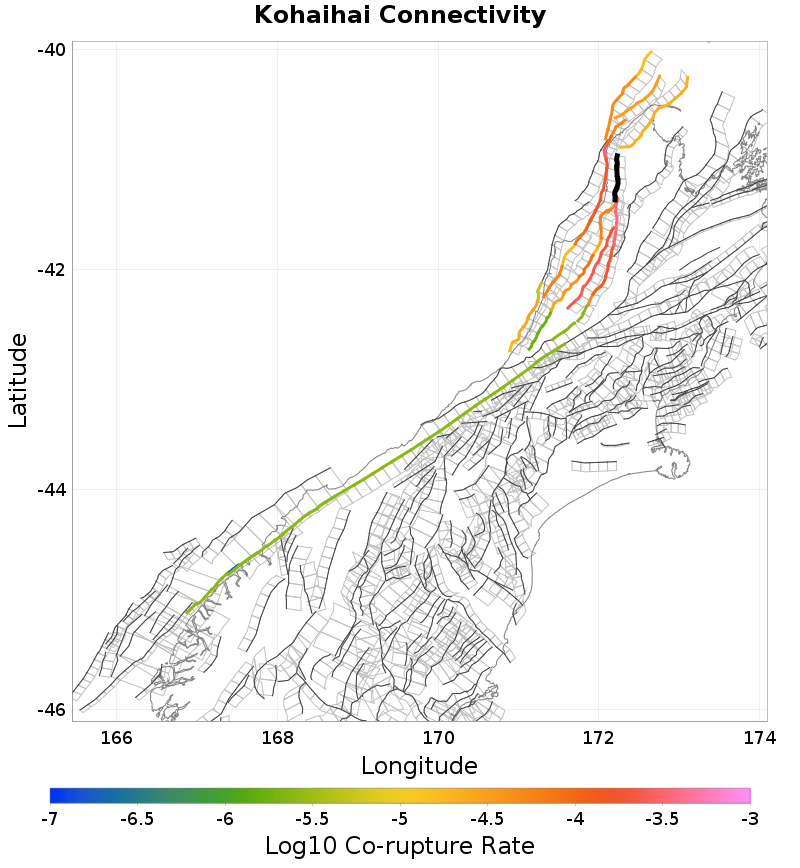

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Matiri West, 1.42 km away
Kohaihai South, 1.69 km away
White Creek, 2.19 km away
Kongahau, 5.4 km away
Wakamarama, 9.36 km away
Cape Foulwind 4, 11.7 km away
Kahurangi, 11.99 km away
Glasgow, 12.23 km away
Karamea South, 14.47 km away

Matiri West, 1.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?true
Directly Connected?true
Co-rupture Count640
Co-rupture Rate0.0

Kohaihai South, 1.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?true
Directly Connected?true
Co-rupture Count3,423
Co-rupture Rate5.8117203E-5

White Creek, 2.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?true
Directly Connected?true
Co-rupture Count17,737
Co-rupture Rate3.4718736E-4

Kongahau, 5.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?true
Directly Connected?true
Co-rupture Count17,791
Co-rupture Rate2.748268E-4

Wakamarama, 9.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?true
Directly Connected?false
Co-rupture Count4,083
Co-rupture Rate2.0455698E-5

Cape Foulwind 4, 11.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kahurangi, 11.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?true
Directly Connected?false
Co-rupture Count147
Co-rupture Rate5.0131202E-5

Glasgow, 12.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?true
Directly Connected?false
Co-rupture Count2,020
Co-rupture Rate5.9397487E-5

Karamea South, 14.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate0.0
