Lindis River Details

PropertyValue
Rupture Count4,717
Ruptures Above Sect Min Mag4,715
Ruptures w/ Nonzero Rates11
Magnitude Range[6.84, 8.40]
Length Range[22, 752] km
Total Rate1.2896769E-4 /yr
Multi-Fault Rate1.2896769E-4 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults100

Table Of Contents

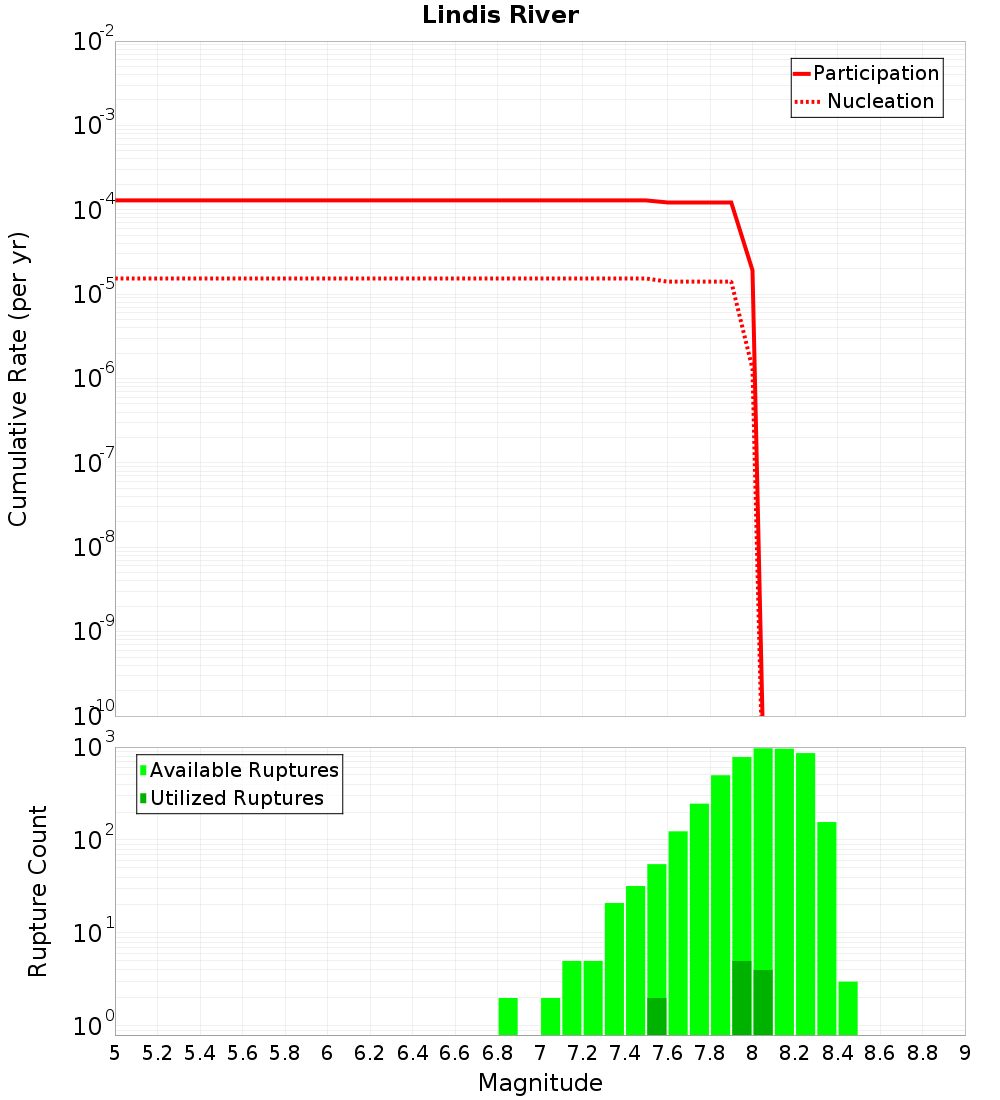

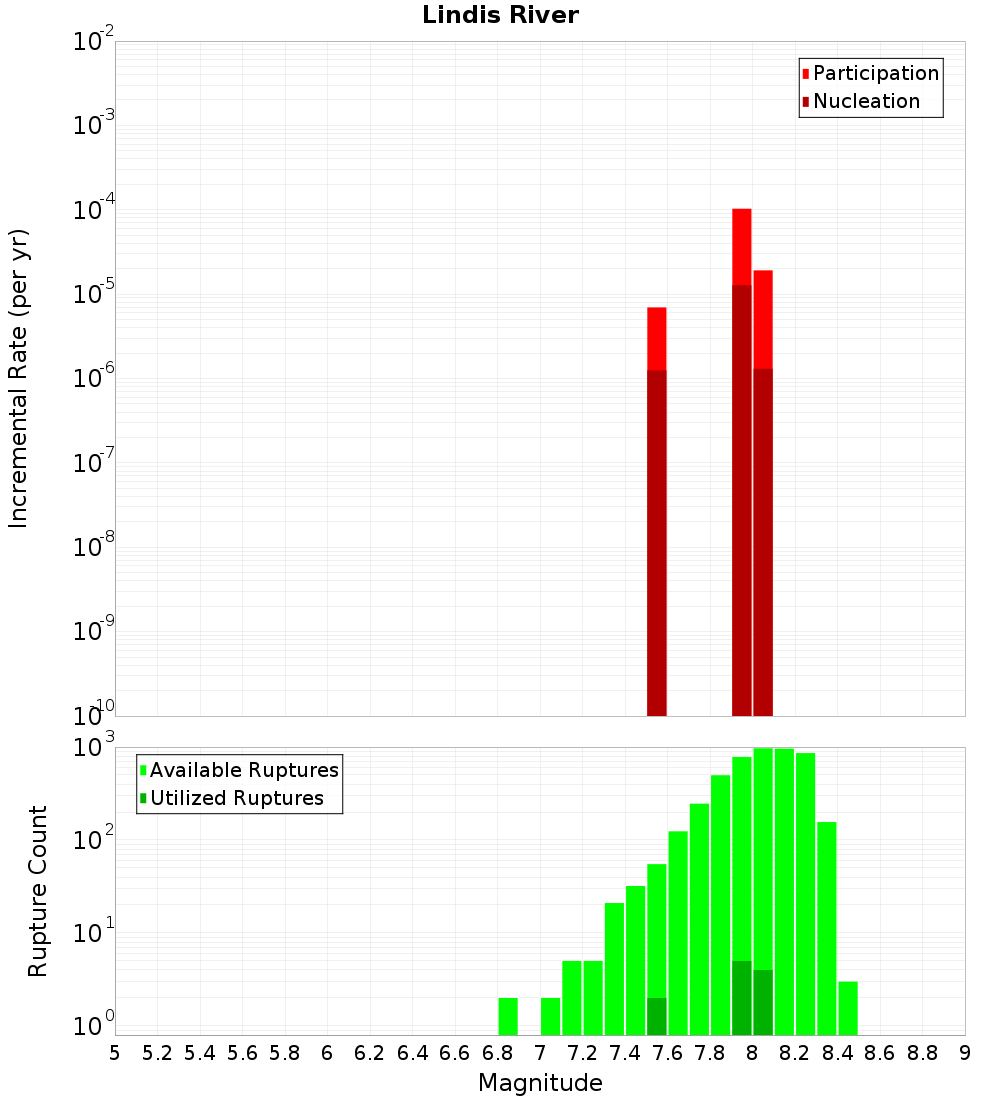

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

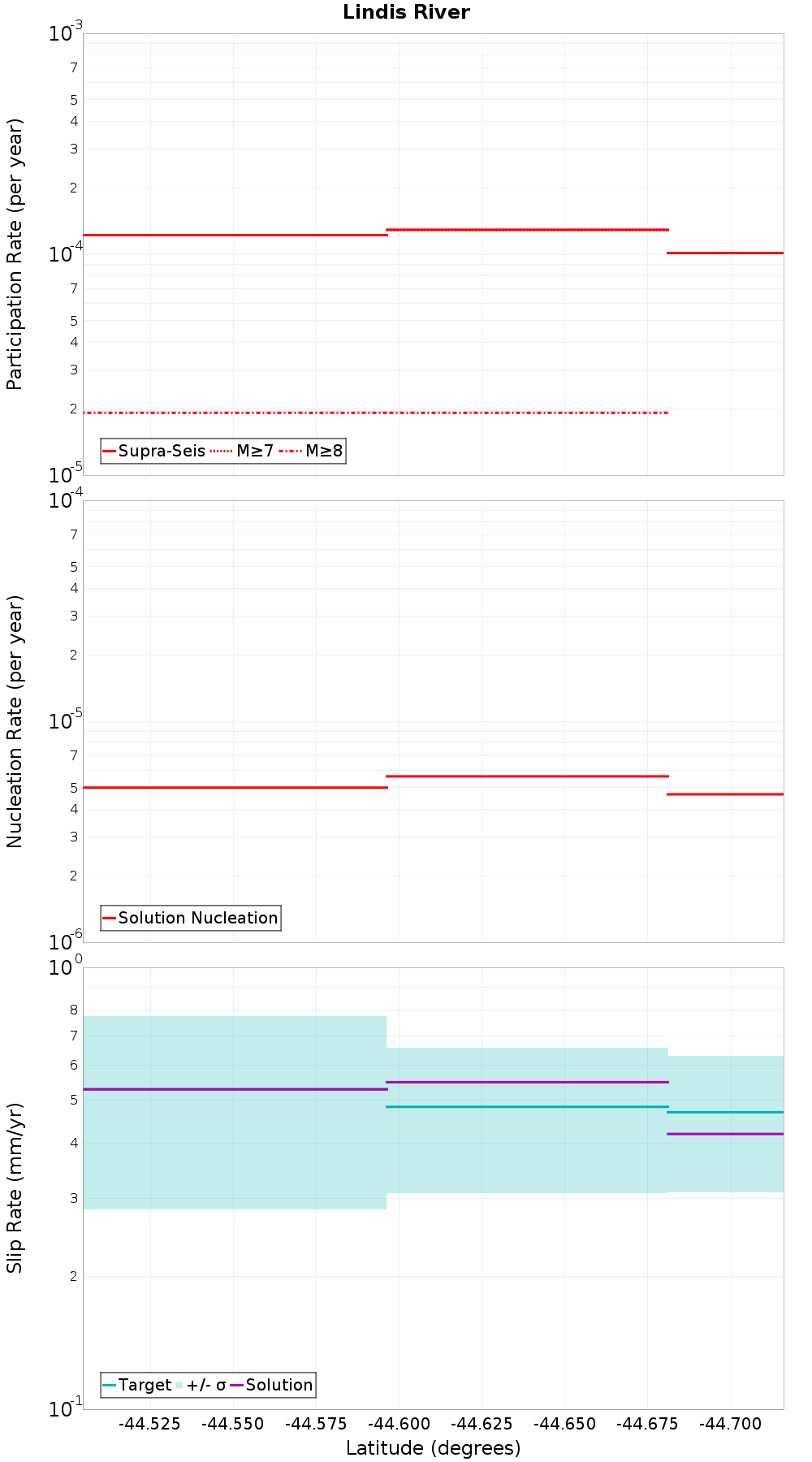

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

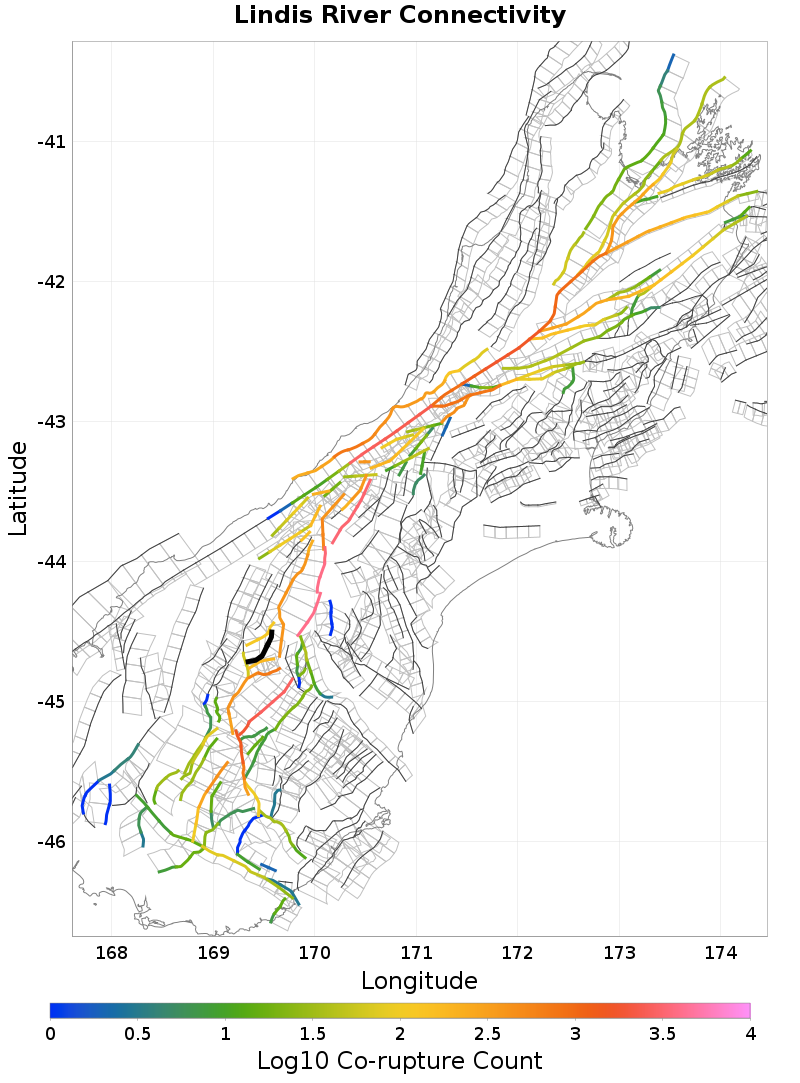

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Cluden, 0.04 km away
Grandview, 0.11 km away
Dromedary, 0.21 km away
Dunstan, 0.35 km away
Goodger, 2.4 km away
Timaru Creek, 2.49 km away
Rocks Creek, 7.68 km away
Ostler South, 7.96 km away
Blue Lake, 8.84 km away
Dingle, 10.56 km away
Raggedy - Blackstone, 11.79 km away
Cardrona - Hawea, 12.02 km away
Pisa, 12.27 km away
Paddys Ridge, 13.41 km away

Cluden, 0.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?true
Directly Connected?true
Co-rupture Count739
Co-rupture Rate2.7448656E-5

Grandview, 0.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?true
Directly Connected?true
Co-rupture Count60
Co-rupture Rate0.0

Dromedary, 0.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?true
Directly Connected?true
Co-rupture Count403
Co-rupture Rate0.0

Dunstan, 0.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?true
Directly Connected?true
Co-rupture Count2,792
Co-rupture Rate6.957165E-6

Goodger, 2.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?true
Directly Connected?true
Co-rupture Count184
Co-rupture Rate0.0

Timaru Creek, 2.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?true
Directly Connected?true
Co-rupture Count114
Co-rupture Rate7.160559E-6

Rocks Creek, 7.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?true
Directly Connected?false
Co-rupture Count21
Co-rupture Rate0.0

Ostler South, 7.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?true
Directly Connected?true
Co-rupture Count3,986
Co-rupture Rate1.2201052E-4

Blue Lake, 8.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dingle, 10.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Raggedy - Blackstone, 11.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?true
Directly Connected?false
Co-rupture Count21
Co-rupture Rate0.0

Cardrona - Hawea, 12.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pisa, 12.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?true
Directly Connected?false
Co-rupture Count434
Co-rupture Rate2.4004461E-5

Paddys Ridge, 13.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
