Maleme Details

PropertyValue
Rupture Count190
Ruptures Above Sect Min Mag152
Ruptures w/ Nonzero Rates58
Magnitude Range[6.08, 7.58]
Length Range[9, 152] km
Total Rate5.774322E-4 /yr
Multi-Fault Rate5.774322E-4 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults20

Table Of Contents

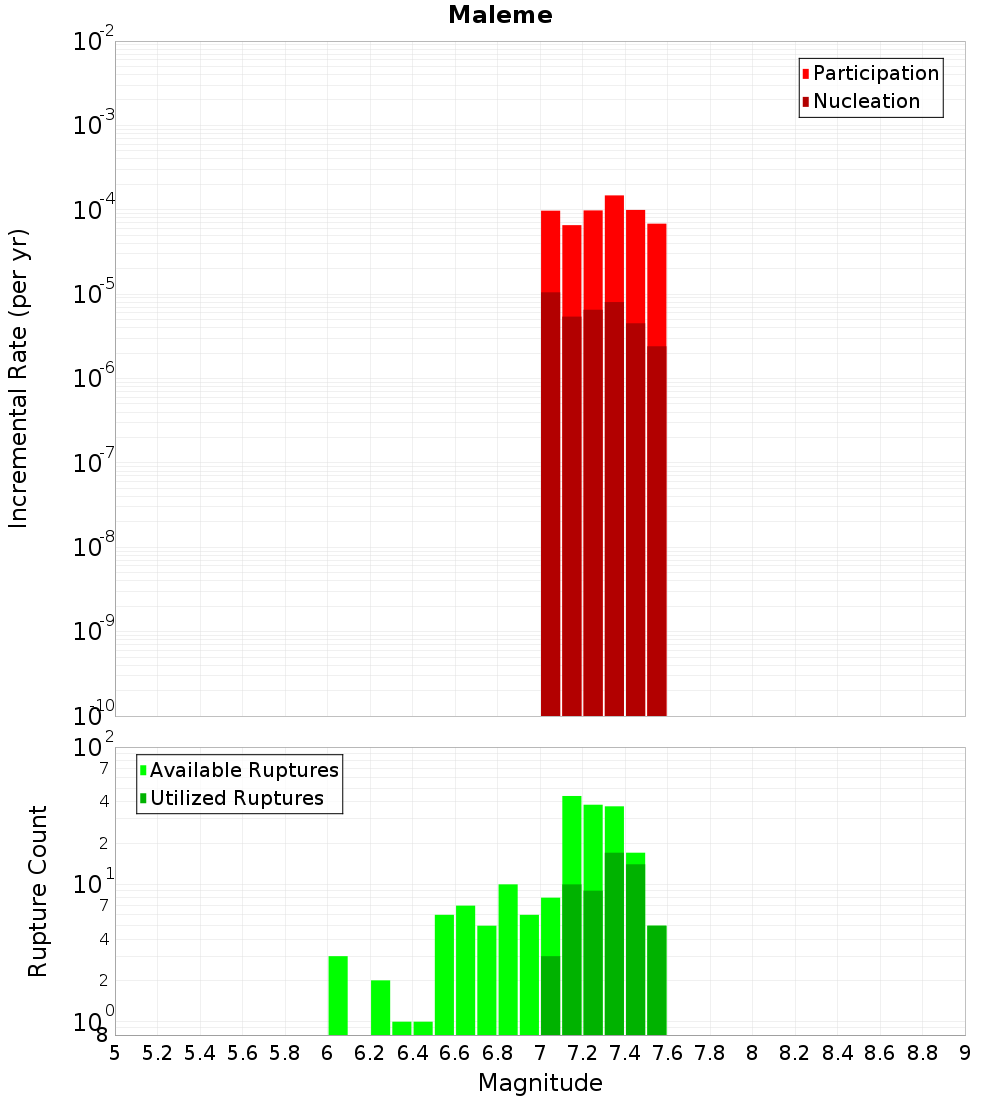

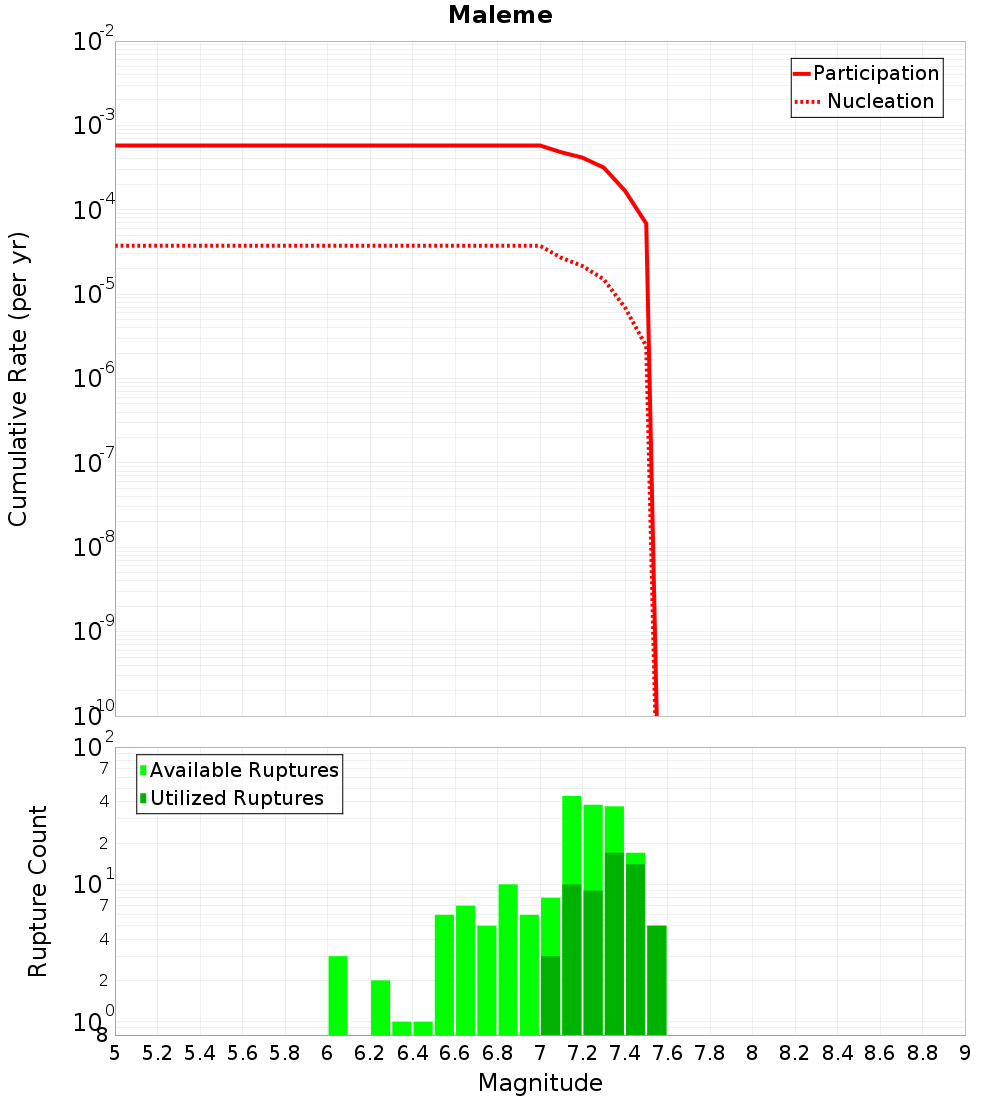

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

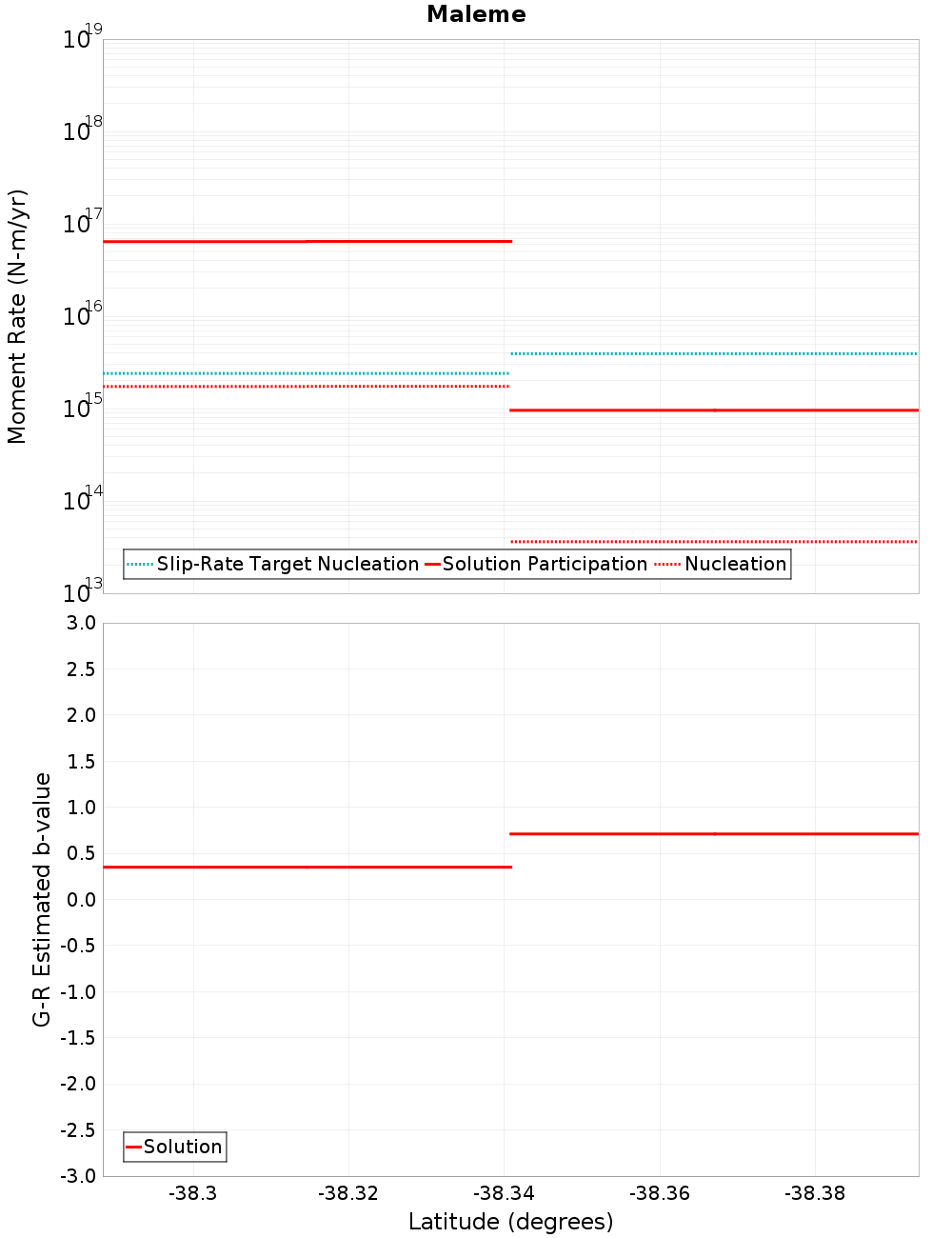

Moment-Rates and b-Values

(top)

Along-strike plot

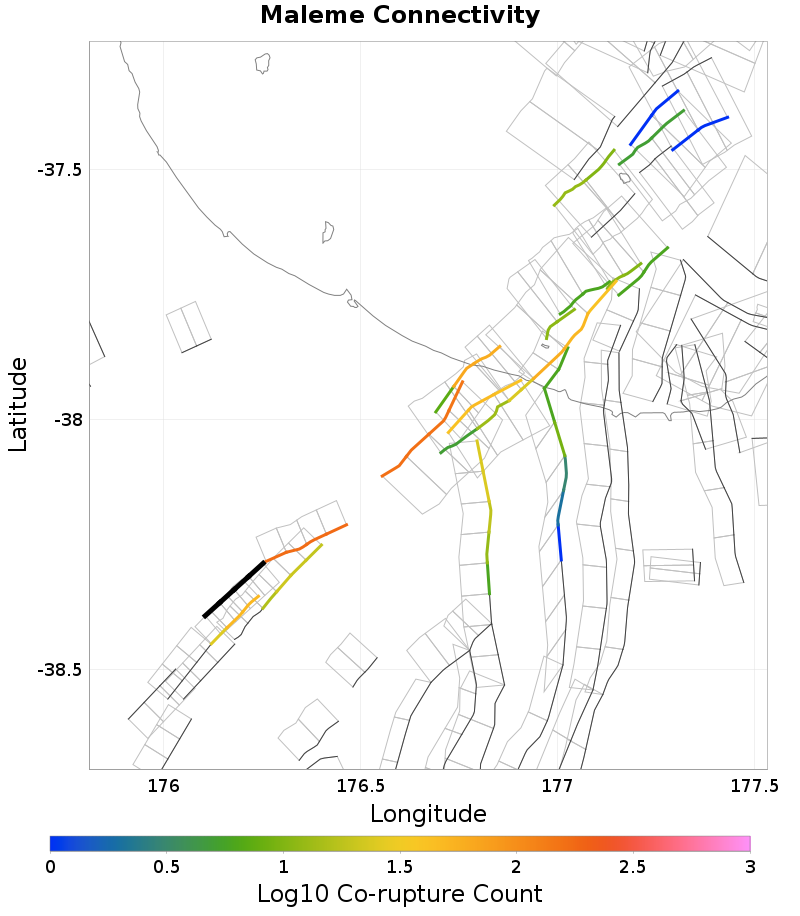

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Puketerata North, 0.15 km away
Paeroa, 0.39 km away
Orakeikorako, 0.41 km away
EarthquakeFlat - Tumunui, 0.79 km away
Puketerata, 3.56 km away
Whangamata West, 12.98 km away

Puketerata North, 0.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?true
Directly Connected?true
Co-rupture Count49
Co-rupture Rate1.6844751E-6

Paeroa, 0.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?true
Directly Connected?true
Co-rupture Count21
Co-rupture Rate1.3337275E-5

Orakeikorako, 0.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

EarthquakeFlat - Tumunui, 0.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?true
Directly Connected?true
Co-rupture Count180
Co-rupture Rate5.774322E-4

Puketerata, 3.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Whangamata West, 12.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
