North Canterbury Shelf 4 Details

PropertyValue
Rupture Count193
Ruptures Above Sect Min Mag178
Ruptures w/ Nonzero Rates11
Magnitude Range[6.51, 7.82]
Length Range[15, 235] km
Total Rate3.0117165E-4 /yr
Multi-Fault Rate3.0117165E-4 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults20

Table Of Contents

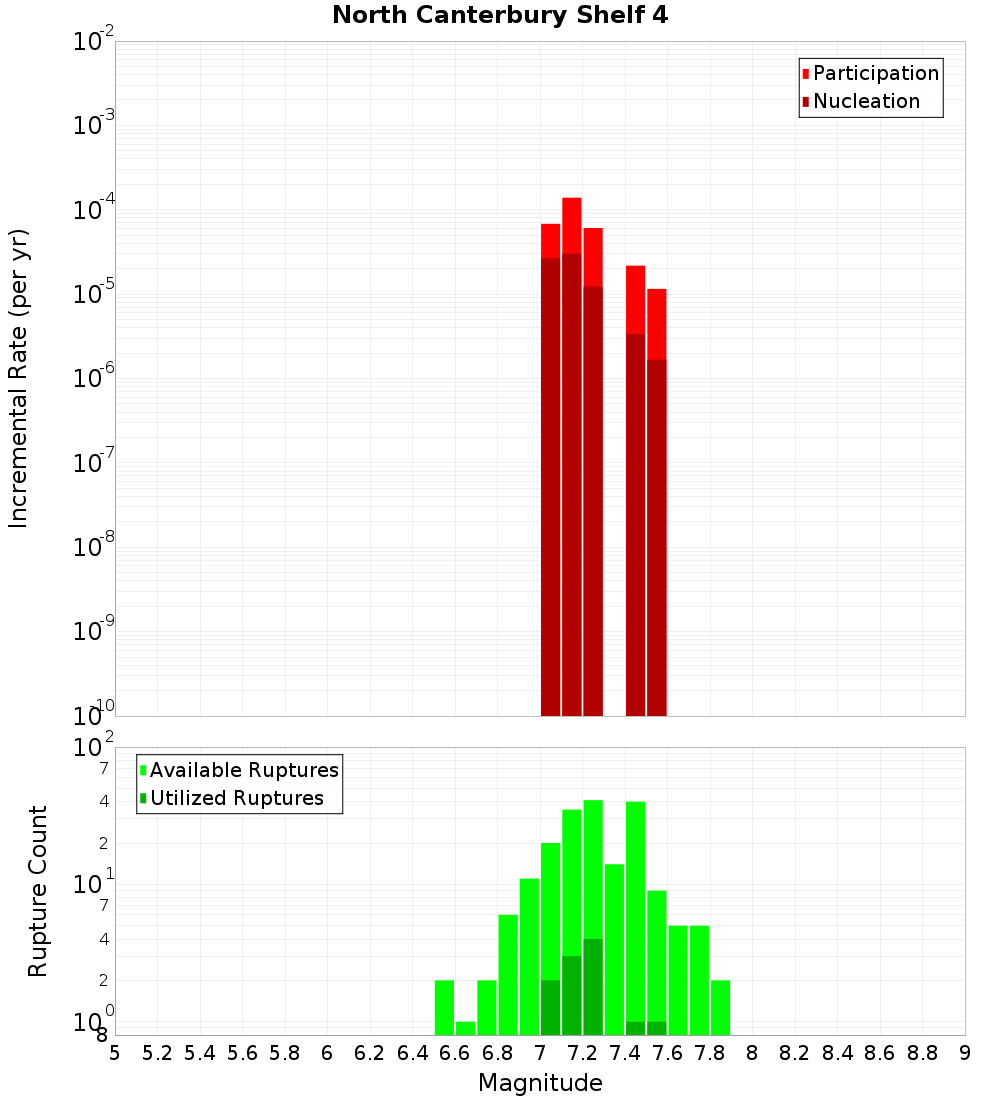

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

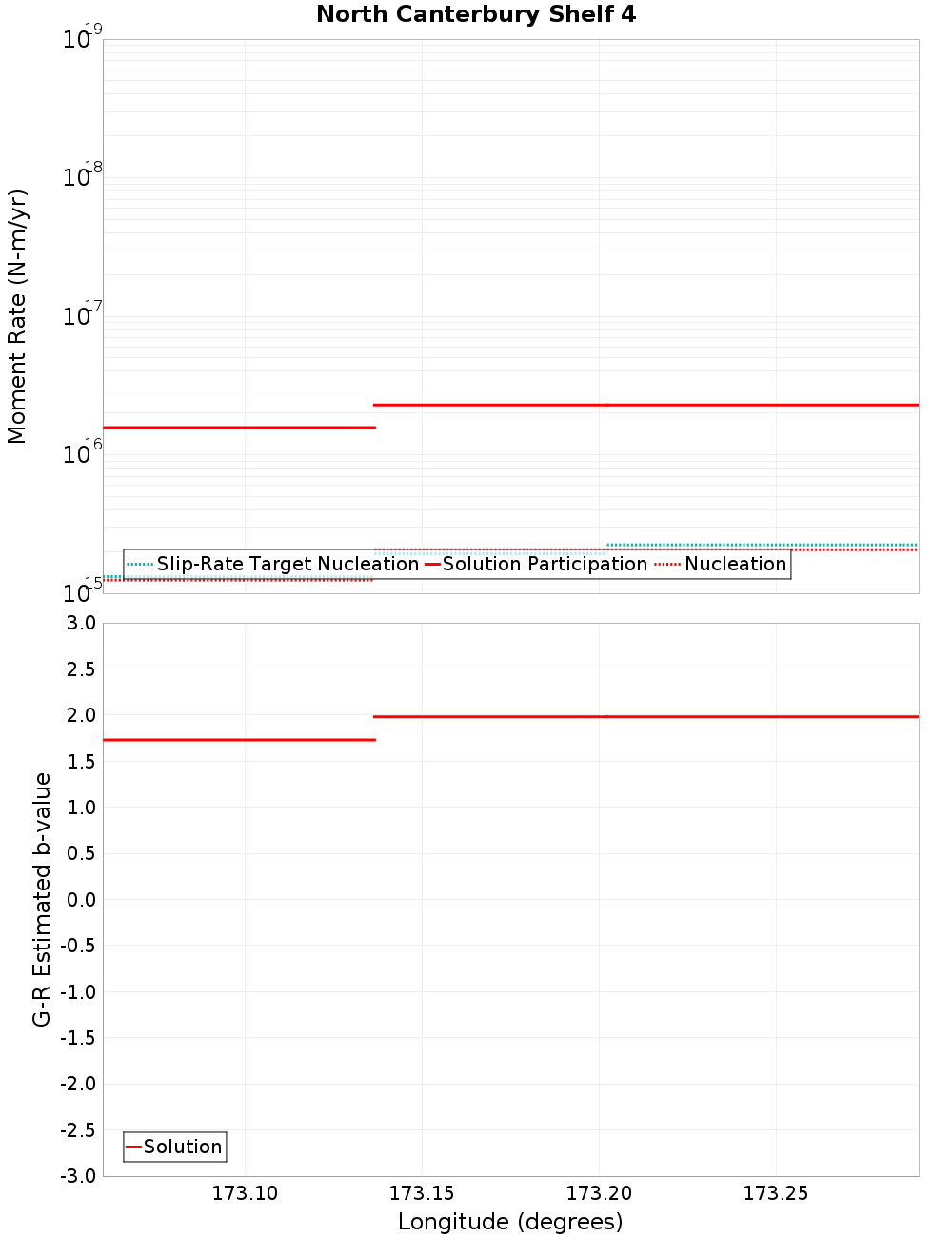

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Pegasus Bay, 1.54 km away
Leithfield - NCVI - NCVII, 4.53 km away
Waikuku, 5.12 km away
North Canterbury Shelf 11, 5.86 km away
Motunau, 6 km away
North Canterbury Shelf 2, 7.11 km away
Point Gibson, 10.06 km away
AmberBlyth, 12.25 km away

Pegasus Bay, 1.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?true
Directly Connected?true
Co-rupture Count88
Co-rupture Rate1.9973614E-4

Leithfield - NCVI - NCVII, 4.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?true
Directly Connected?true
Co-rupture Count23
Co-rupture Rate1.832056E-5

Waikuku, 5.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?true
Directly Connected?true
Co-rupture Count106
Co-rupture Rate1.0141525E-4

North Canterbury Shelf 11, 5.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?true
Directly Connected?true
Co-rupture Count51
Co-rupture Rate4.248551E-5

Motunau, 6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

North Canterbury Shelf 2, 7.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Point Gibson, 10.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?true
Directly Connected?false
Co-rupture Count38
Co-rupture Rate0.0

AmberBlyth, 12.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
