Ostler South Details

PropertyValue
Rupture Count11,593
Ruptures Above Sect Min Mag11,592
Ruptures w/ Nonzero Rates45
Magnitude Range[7.03, 8.40]
Length Range[25, 752] km
Total Rate4.3604148E-4 /yr
Multi-Fault Rate4.3604148E-4 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults135

Table Of Contents

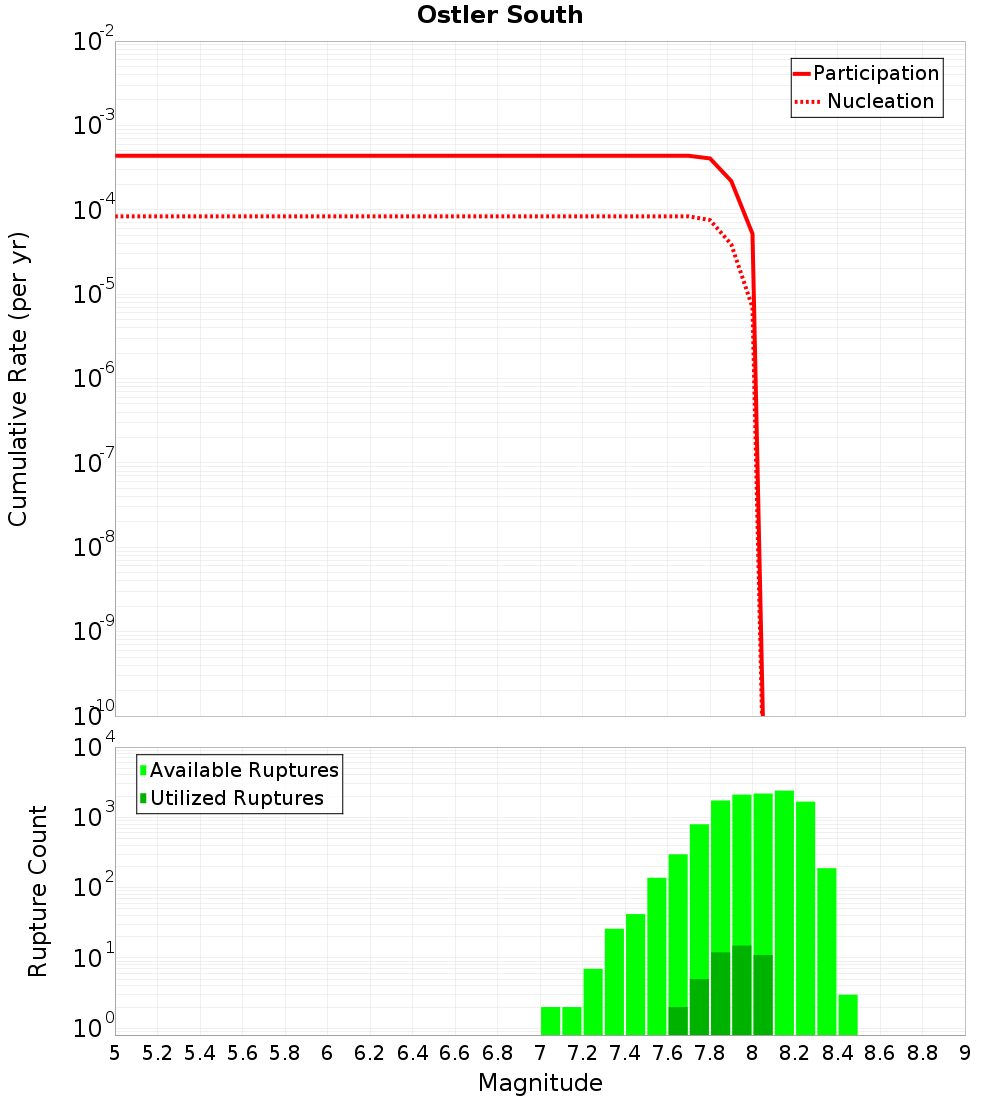

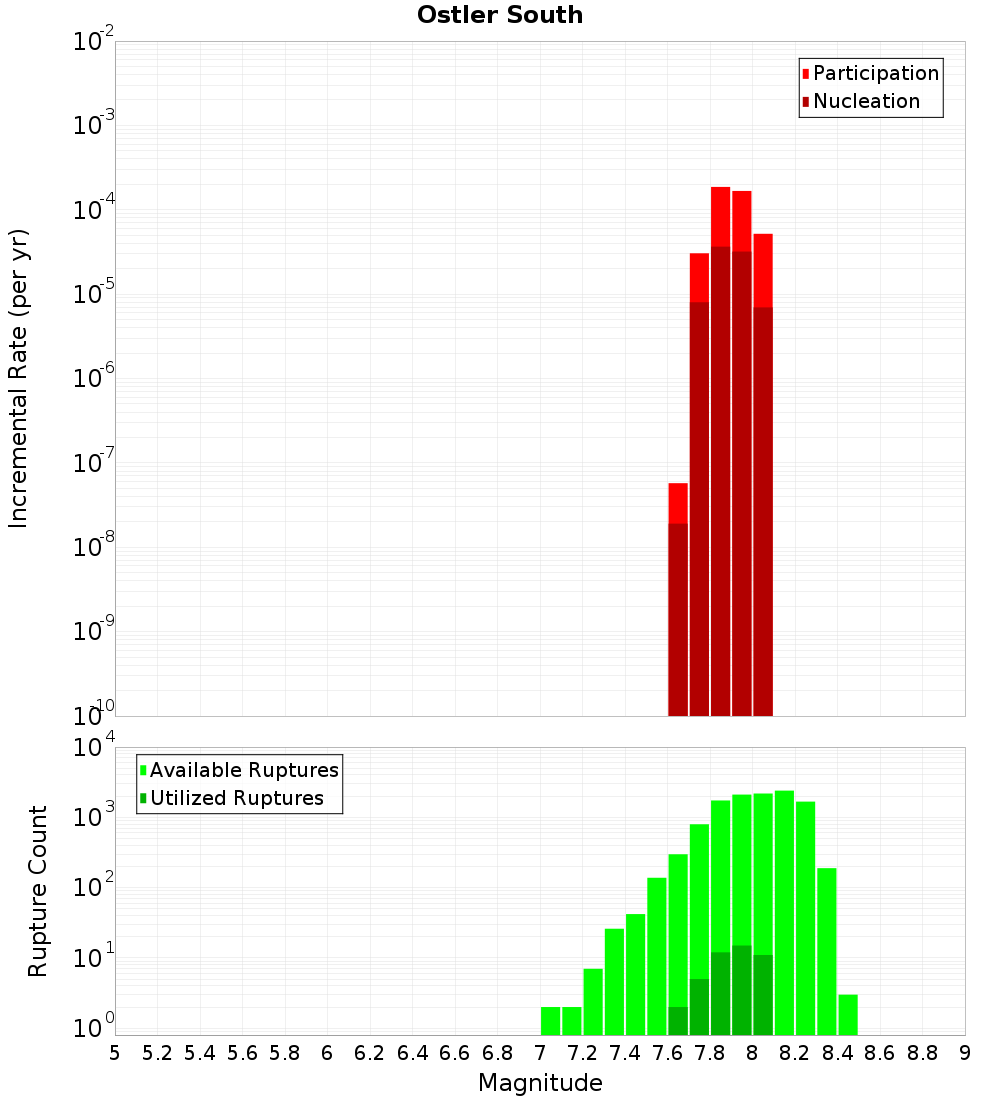

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

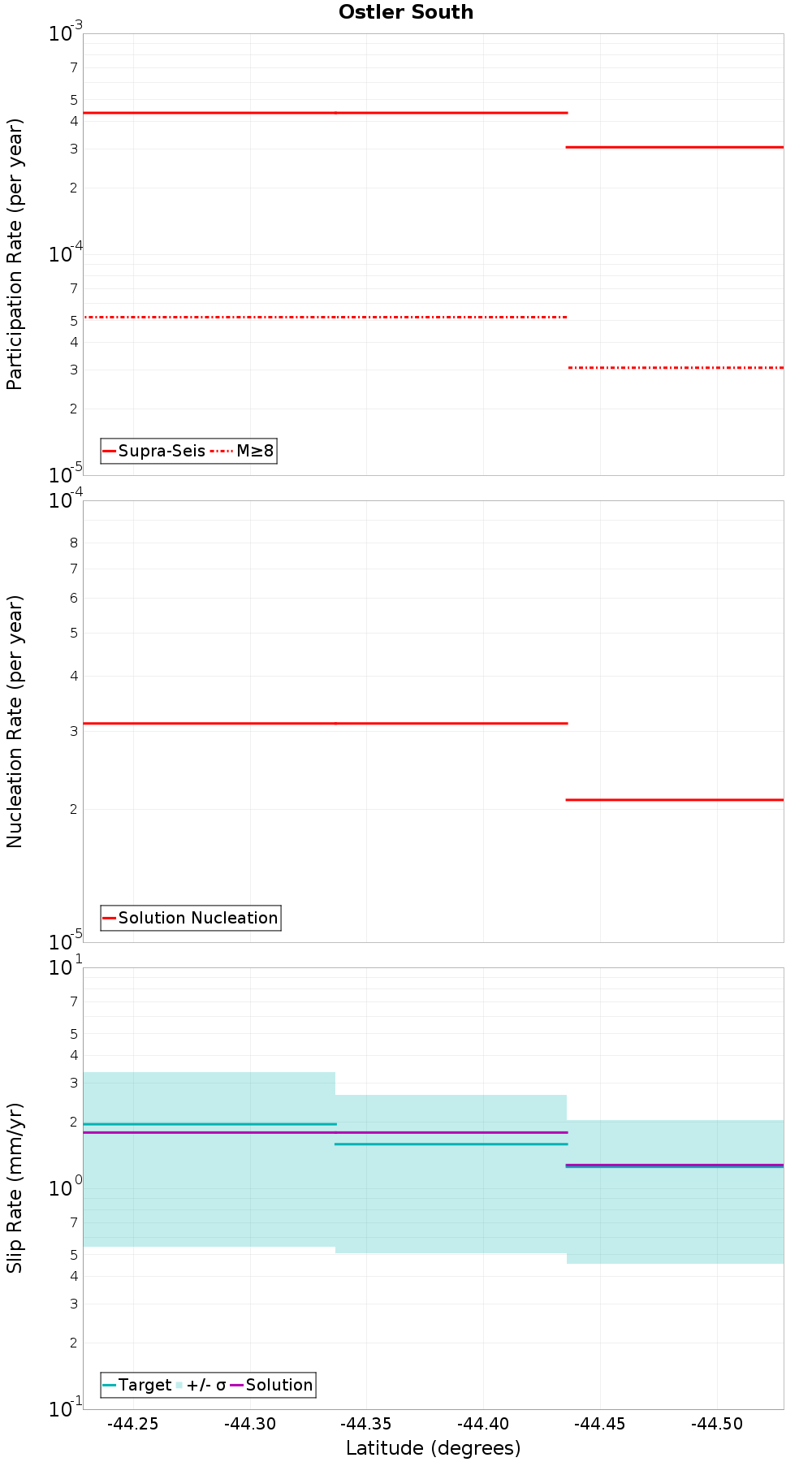

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

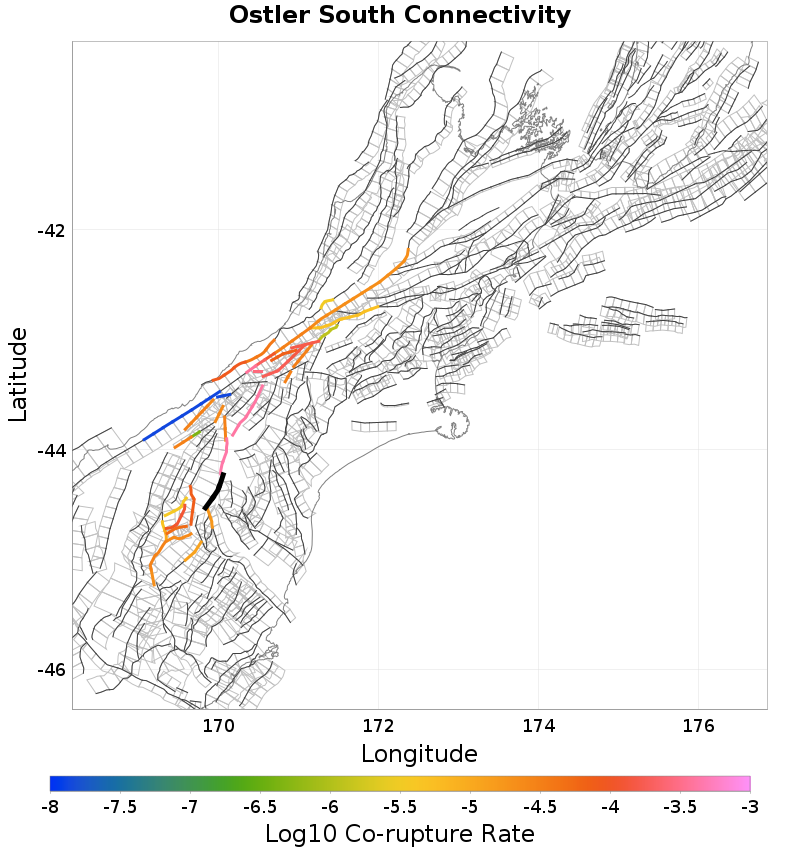

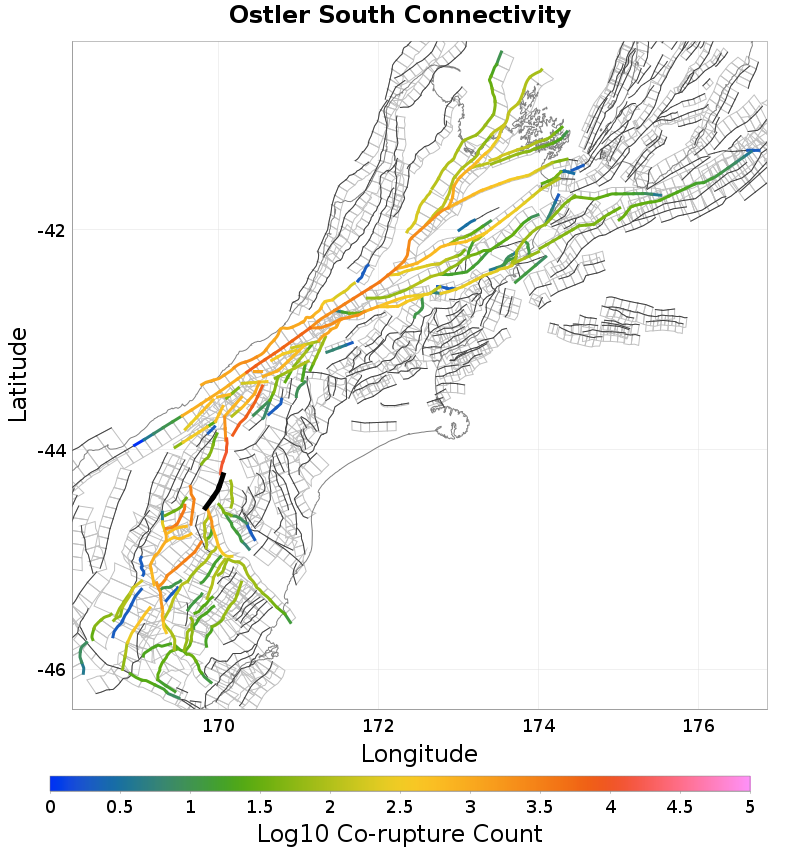

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Ostler North, 1.9 km away
Hawkdun, 2.35 km away
Dromedary, 4.67 km away
Omarama Saddle, 7.29 km away
Lindis River, 7.96 km away
Falstone, 8.06 km away
Fern Gully, 8.7 km away
Blue Lake, 9.39 km away
Timaru Creek, 9.73 km away
Barrier Range, 12.2 km away

Ostler North, 1.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?true
Directly Connected?true
Co-rupture Count11,133
Co-rupture Rate4.3604148E-4

Hawkdun, 2.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?true
Directly Connected?true
Co-rupture Count1,885
Co-rupture Rate1.6902552E-5

Dromedary, 4.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?true
Directly Connected?true
Co-rupture Count2,949
Co-rupture Rate7.5754266E-5

Omarama Saddle, 7.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?true
Directly Connected?false
Co-rupture Count107
Co-rupture Rate0.0

Lindis River, 7.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?true
Directly Connected?true
Co-rupture Count3,986
Co-rupture Rate1.2201052E-4

Falstone, 8.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?true
Directly Connected?false
Co-rupture Count74
Co-rupture Rate0.0

Fern Gully, 8.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?true
Directly Connected?false
Co-rupture Count43
Co-rupture Rate0.0

Blue Lake, 9.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Timaru Creek, 9.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?true
Directly Connected?false
Co-rupture Count36
Co-rupture Rate3.6475885E-6

Barrier Range, 12.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?true
Directly Connected?false
Co-rupture Count49
Co-rupture Rate0.0
