Potts River Details

PropertyValue
Rupture Count5,871
Ruptures Above Sect Min Mag5,866
Ruptures w/ Nonzero Rates35
Magnitude Range[6.70, 8.20]
Length Range[18, 580] km
Total Rate1.6322662E-4 /yr
Multi-Fault Rate1.6322662E-4 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults148

Table Of Contents

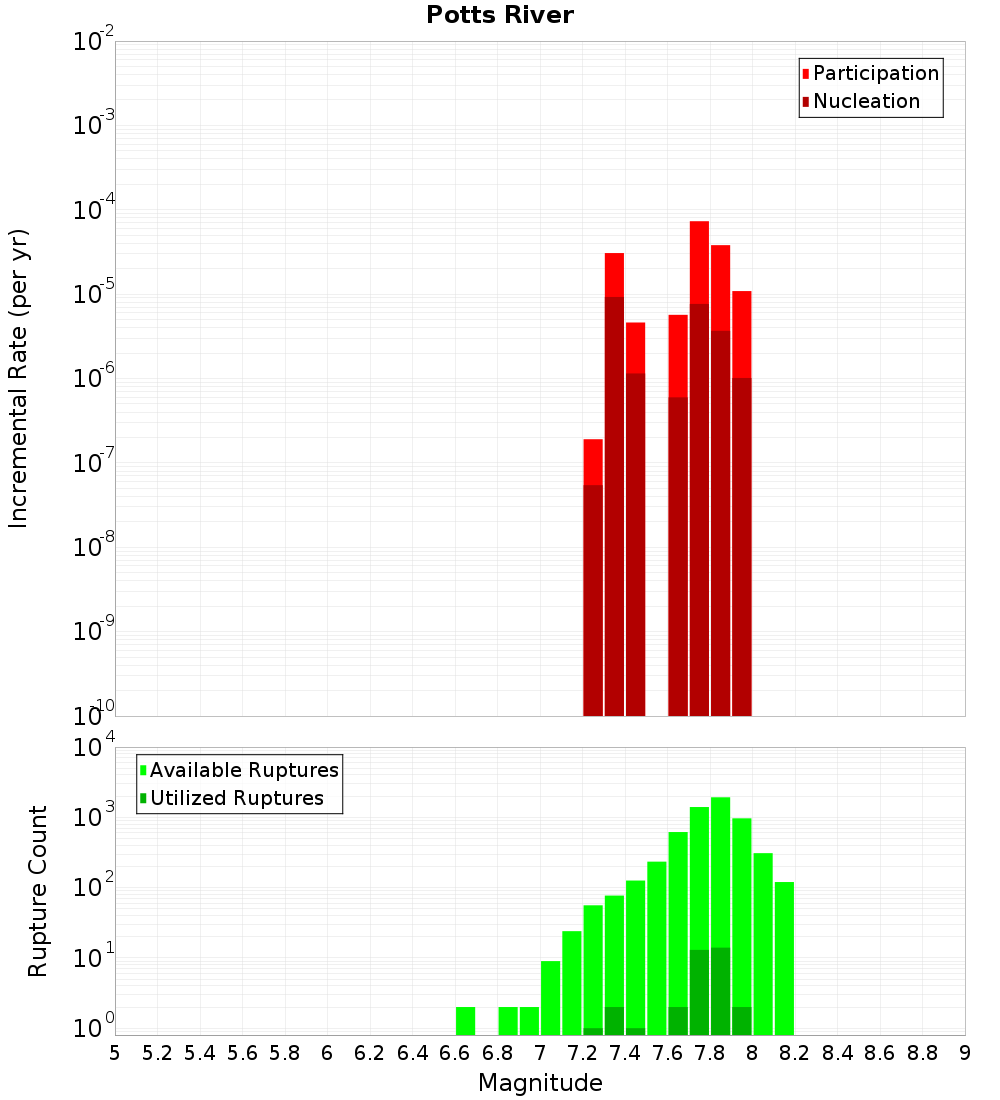

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

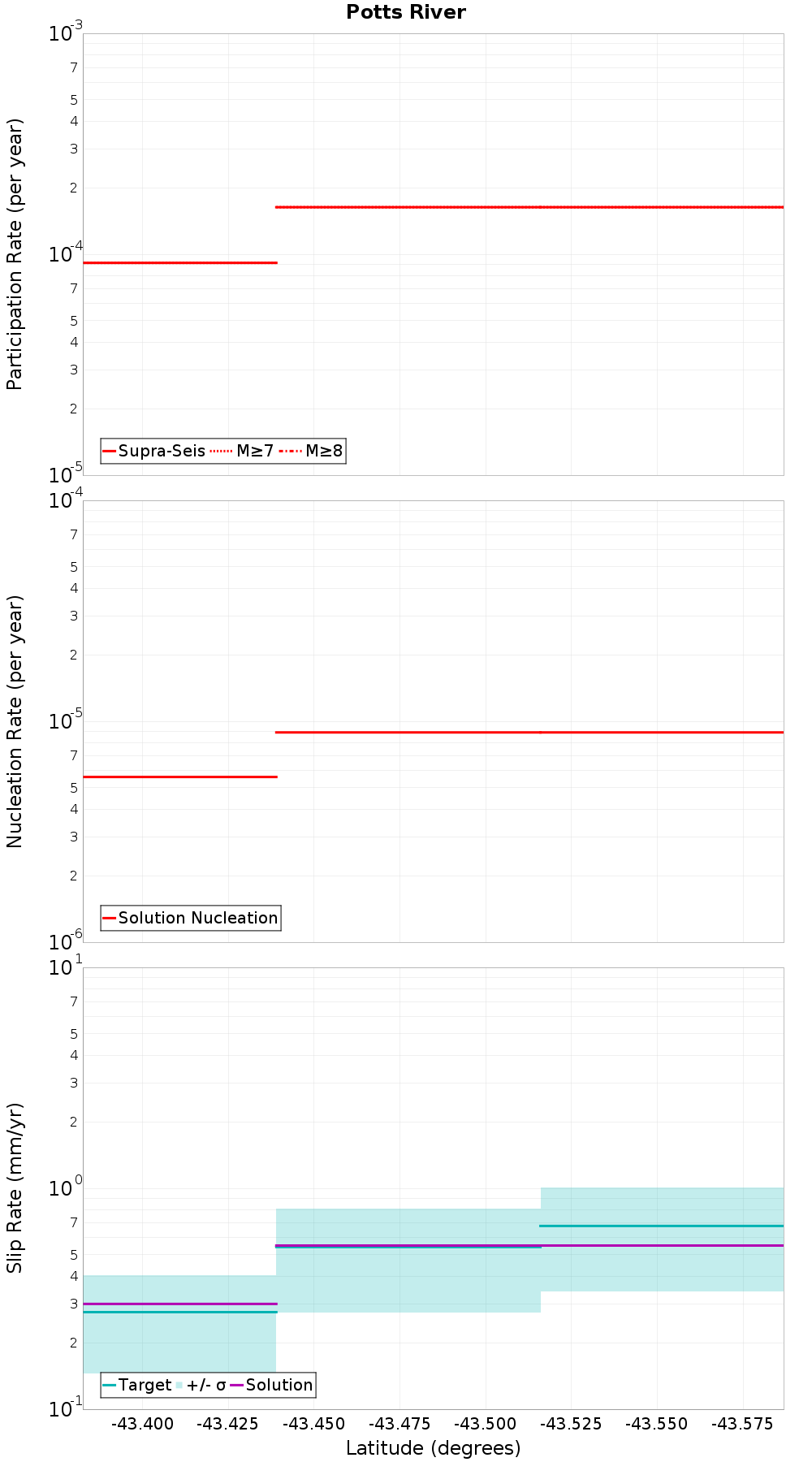

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

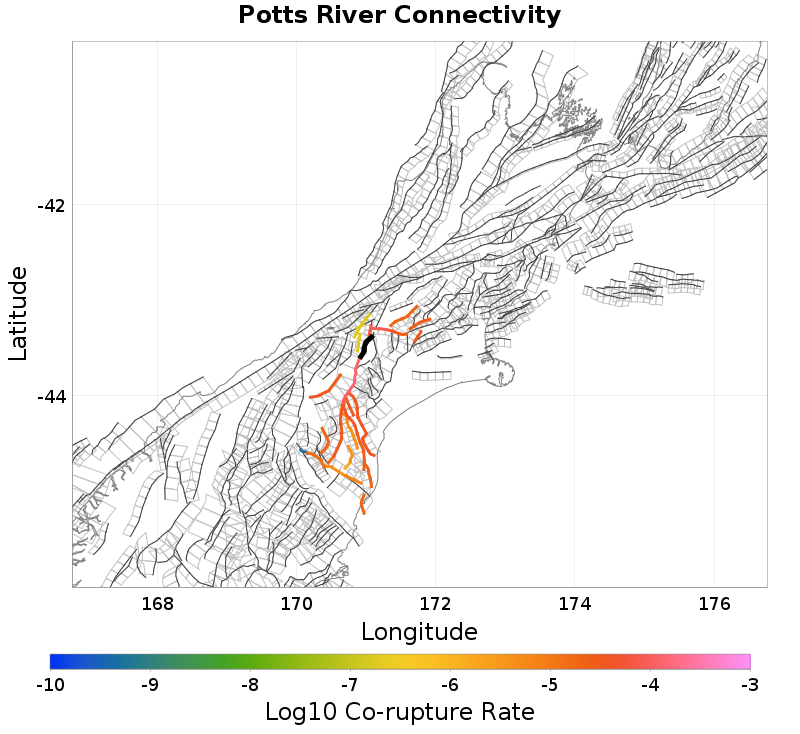

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Jagged, 0.23 km away
Fox Peak, 1.8 km away
Lake Heron, 2.13 km away
Potts Range, 5.05 km away
Double Hill, 5.66 km away
Ben McLeod, 9.75 km away
Two Thumb Stream, 10.32 km away
Jollie Range, 11.55 km away
Mistake - Rolleston, 12.68 km away

Jagged, 0.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?true
Directly Connected?true
Co-rupture Count5,212
Co-rupture Rate6.1507955E-5

Fox Peak, 1.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?true
Directly Connected?true
Co-rupture Count4,285
Co-rupture Rate1.3310961E-4

Lake Heron, 2.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Potts Range, 5.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?true
Directly Connected?true
Co-rupture Count59
Co-rupture Rate1.9066991E-7

Double Hill, 5.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?true
Directly Connected?true
Co-rupture Count896
Co-rupture Rate9.14343E-5

Ben McLeod, 9.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?true
Directly Connected?false
Co-rupture Count745
Co-rupture Rate0.0

Two Thumb Stream, 10.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Jollie Range, 11.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?true
Directly Connected?false
Co-rupture Count30
Co-rupture Rate1.9066991E-7

Mistake - Rolleston, 12.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?true
Directly Connected?false
Co-rupture Count3,392
Co-rupture Rate0.0
