Ruatoria South 3 Details

Property	Value
Rupture Count	157
Ruptures Above Sect Min Mag	152
Ruptures w/ Nonzero Rates	7
Magnitude Range	[6.75, 7.63]
Length Range	[21, 189] km
Total Rate	8.6031307E-4 /yr
Multi-Fault Rate	8.6031307E-4 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	16

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

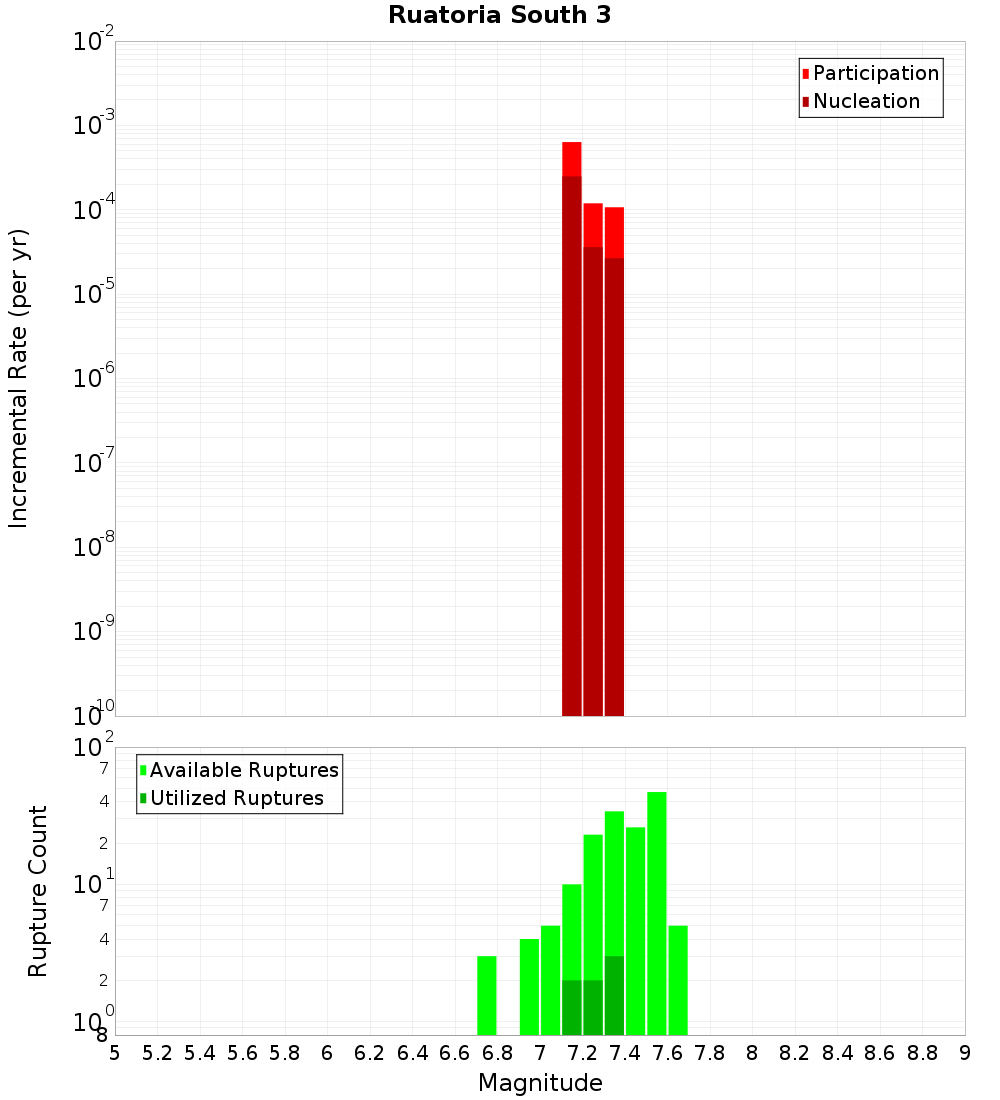

Magnitude-Frequency Distribution

Incremental	Cumulative

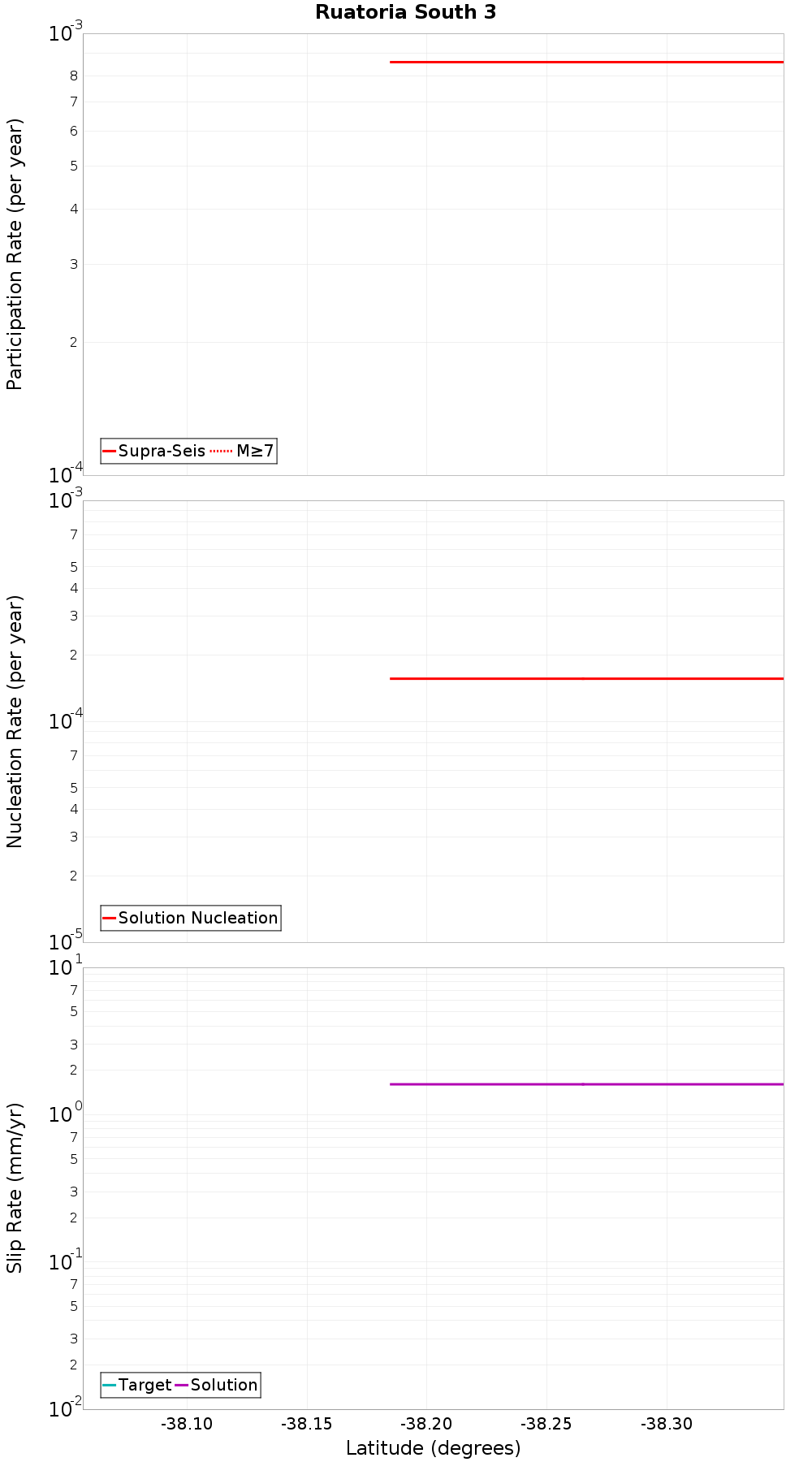

Along-Strike Values

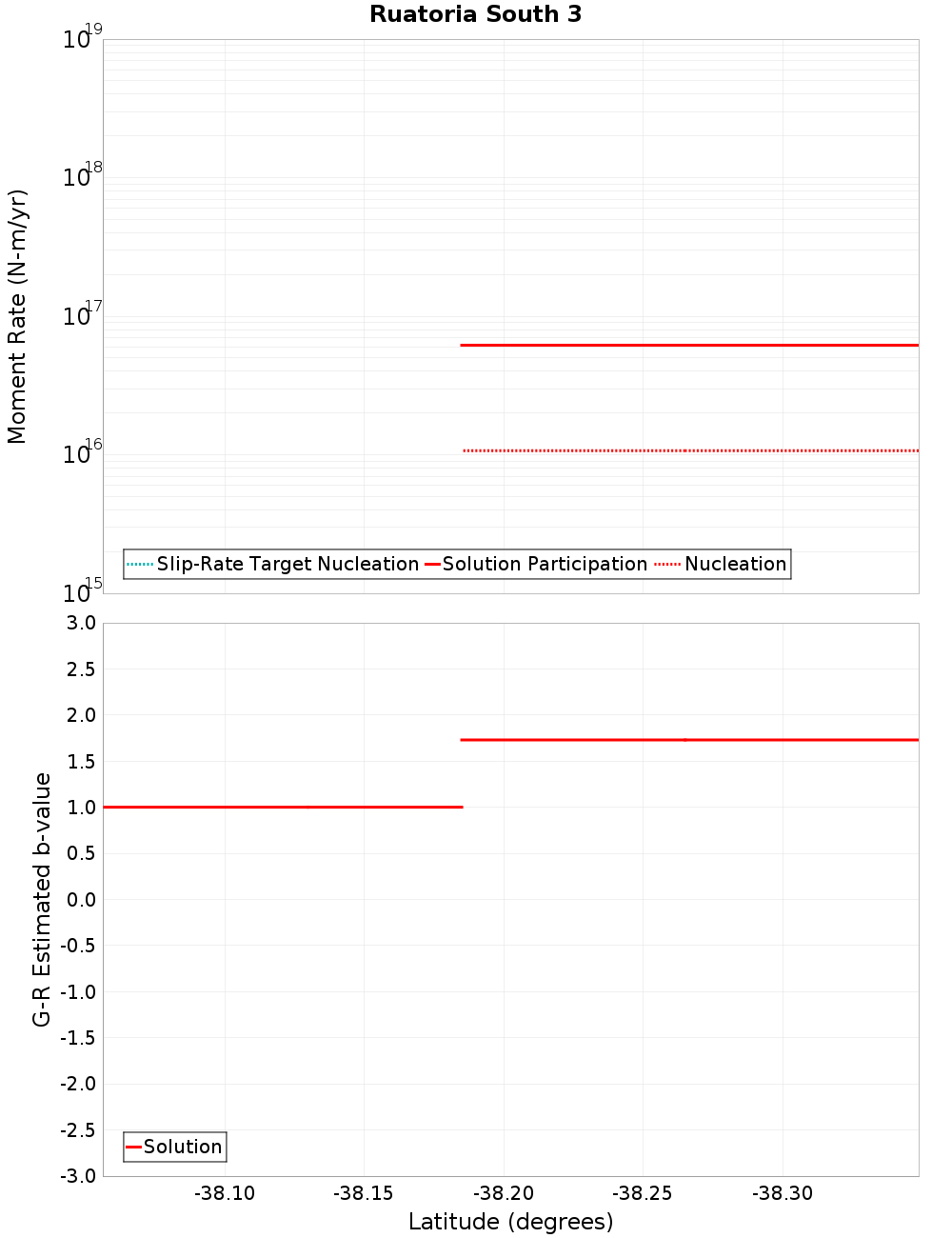

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Ruatoria South 4, 3.72 km away
Ruatoria South 2, 4.93 km away
Ariel Bank 2, 7.96 km away
Ruatoria South 1, 9.68 km away
Houtunui, 11.24 km away
Puke Ridge, 13.37 km away
Ruatoria, 13.67 km away

Ruatoria South 4, 3.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?	true
Directly Connected?	true
Co-rupture Count	13
Co-rupture Rate	0.0

Ruatoria South 2, 4.93 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?	true
Directly Connected?	true
Co-rupture Count	22
Co-rupture Rate	0.0

Ariel Bank 2, 7.96 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?	true
Directly Connected?	true
Co-rupture Count	123
Co-rupture Rate	1.8152305E-4

Ruatoria South 1, 9.68 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?	true
Directly Connected?	false
Co-rupture Count	18
Co-rupture Rate	0.0

Houtunui, 11.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?	true
Directly Connected?	true
Co-rupture Count	14
Co-rupture Rate	8.191008E-4

Puke Ridge, 13.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ruatoria, 13.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
