Ruby Bay - Moutere Details
| Property | Value |
|---|---|
| Rupture Count | 11,492 |
| Ruptures Above Sect Min Mag | 11,488 |
| Ruptures w/ Nonzero Rates | 46 |
| Magnitude Range | [6.92, 8.50] |
| Length Range | [24, 982] km |
| Total Rate | 3.0105372E-4 /yr |
| Multi-Fault Rate | 3.0101923E-4 /yr (99.99%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 84 |
Table Of Contents

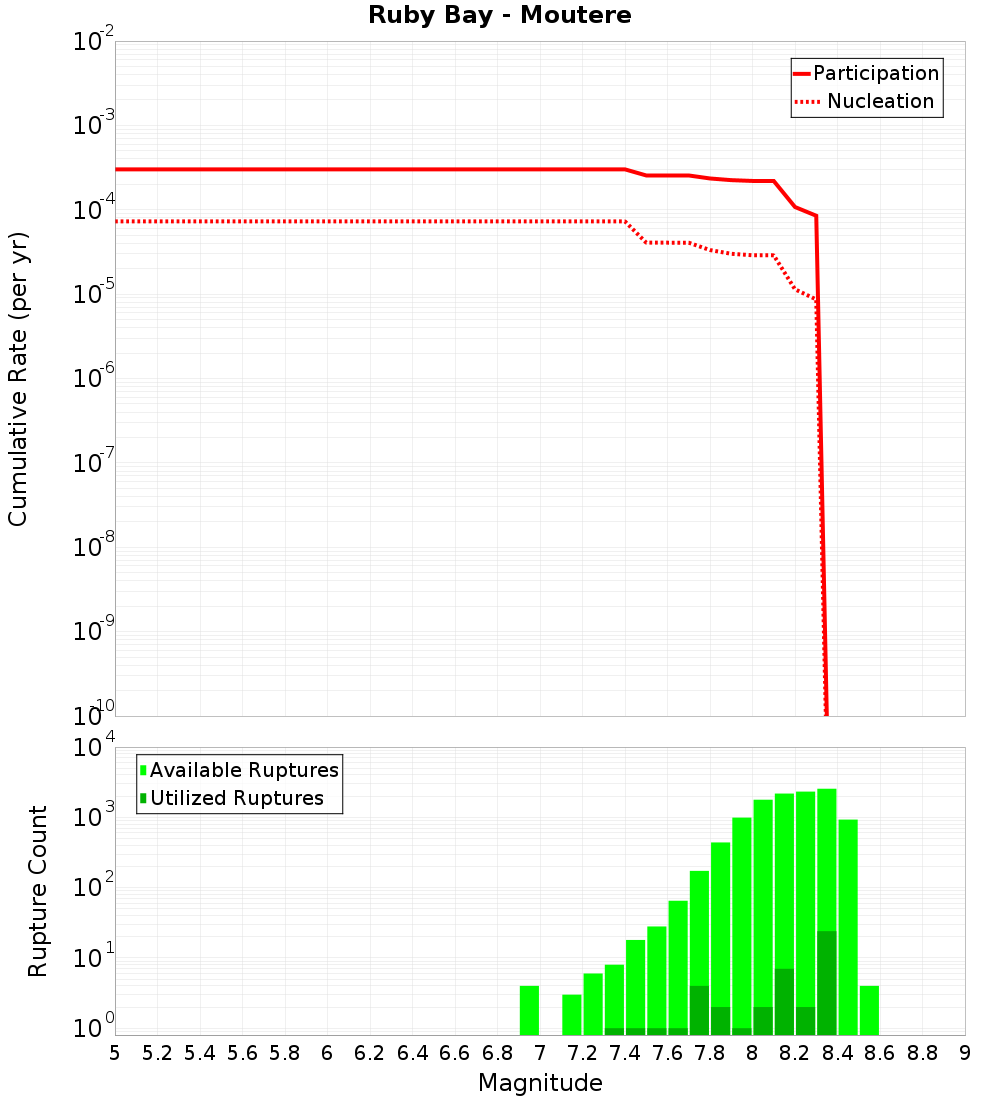

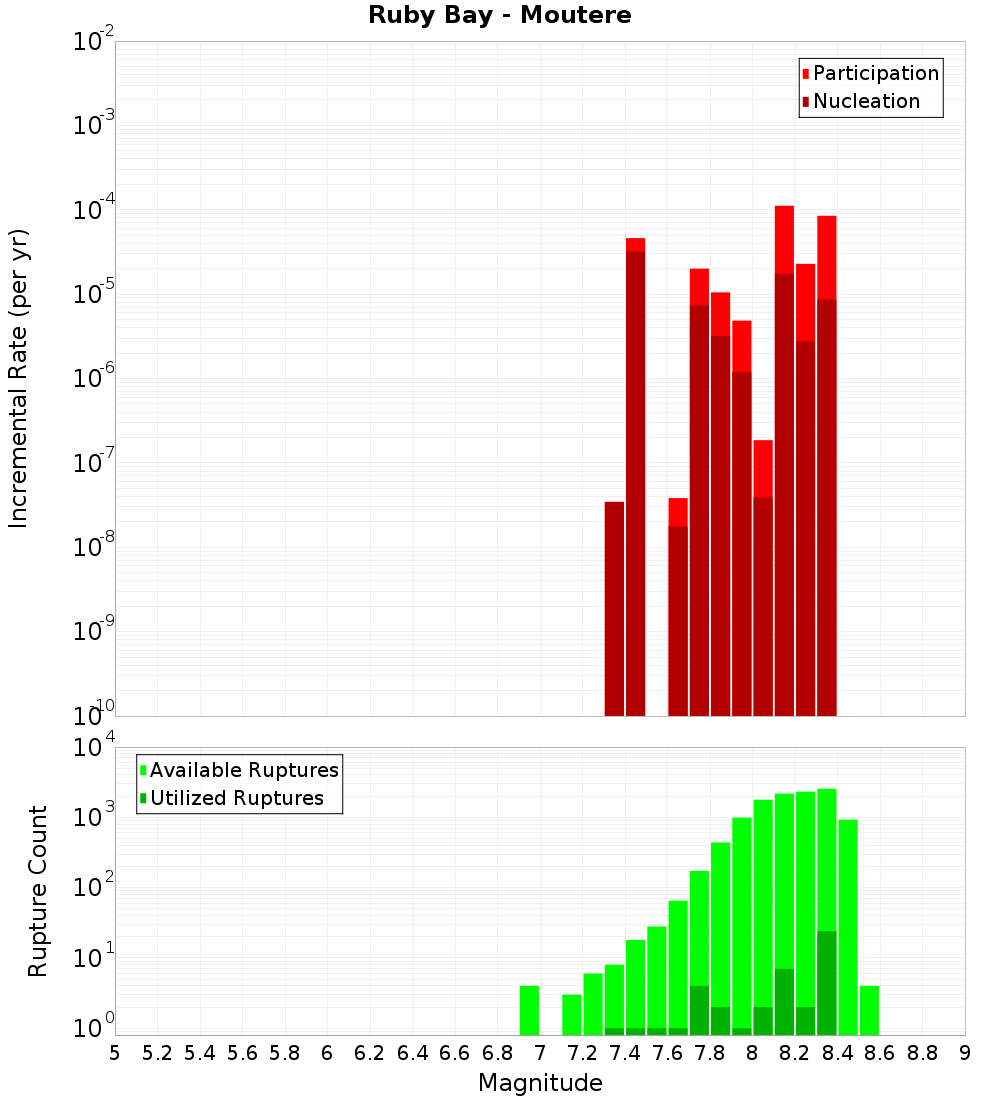

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

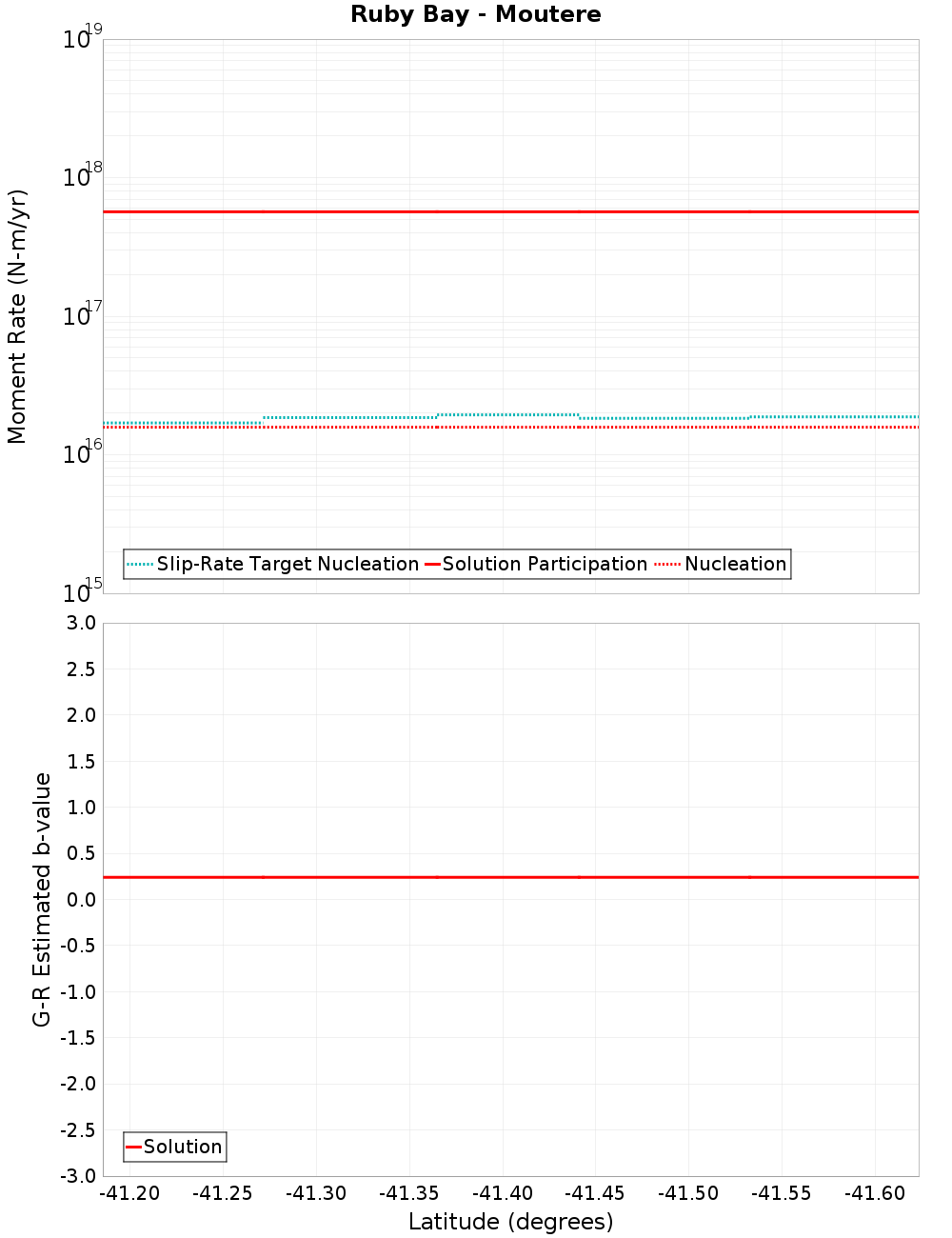

Moment-Rates and b-Values

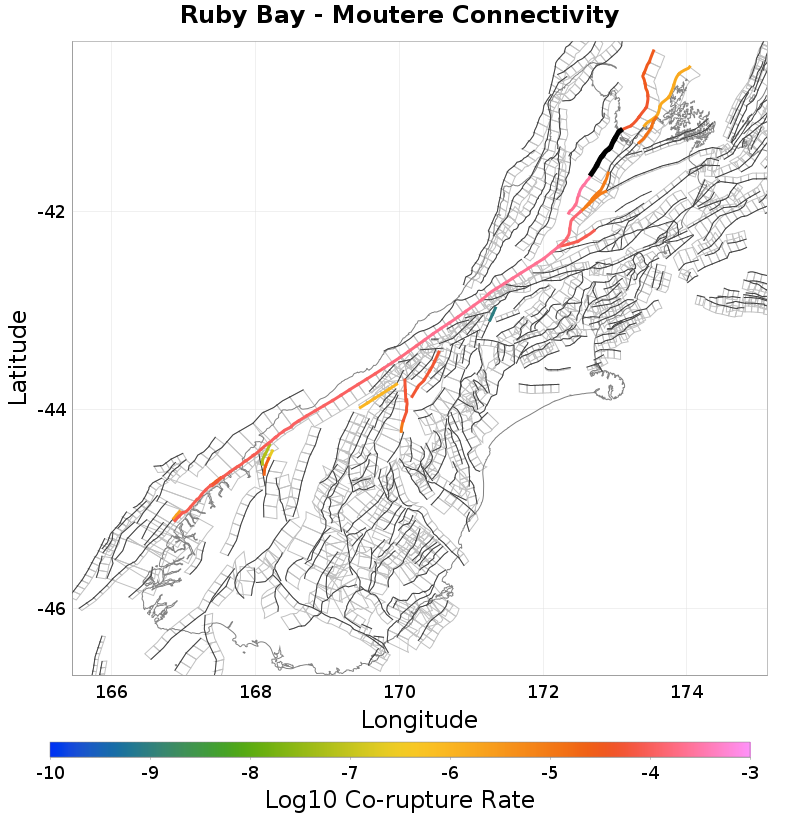

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Surville, 0.05 km away |
| Tutaki, 3.45 km away |
| Flaxmore - Waimea - Tahunanui, 9.4 km away |
| Totara Saddle, 9.52 km away |
| Wairau, 14.97 km away |
Surville, 0.05 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 7,549 |
| Co-rupture Rate | 4.6418667E-5 |
Tutaki, 3.45 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 11,243 |
| Co-rupture Rate | 2.755716E-4 |
Flaxmore - Waimea - Tahunanui, 9.4 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 179 |
| Co-rupture Rate | 9.211398E-6 |
Totara Saddle, 9.52 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Wairau, 14.97 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
