Te Anau Details
| Property | Value |
|---|---|
| Rupture Count | 5,333 |
| Ruptures Above Sect Min Mag | 5,327 |
| Ruptures w/ Nonzero Rates | 7 |
| Magnitude Range | [6.91, 8.42] |
| Length Range | [24, 925] km |
| Total Rate | 6.9144764E-4 /yr |
| Multi-Fault Rate | 2.7142093E-4 /yr (39.25%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 119 |
Table Of Contents

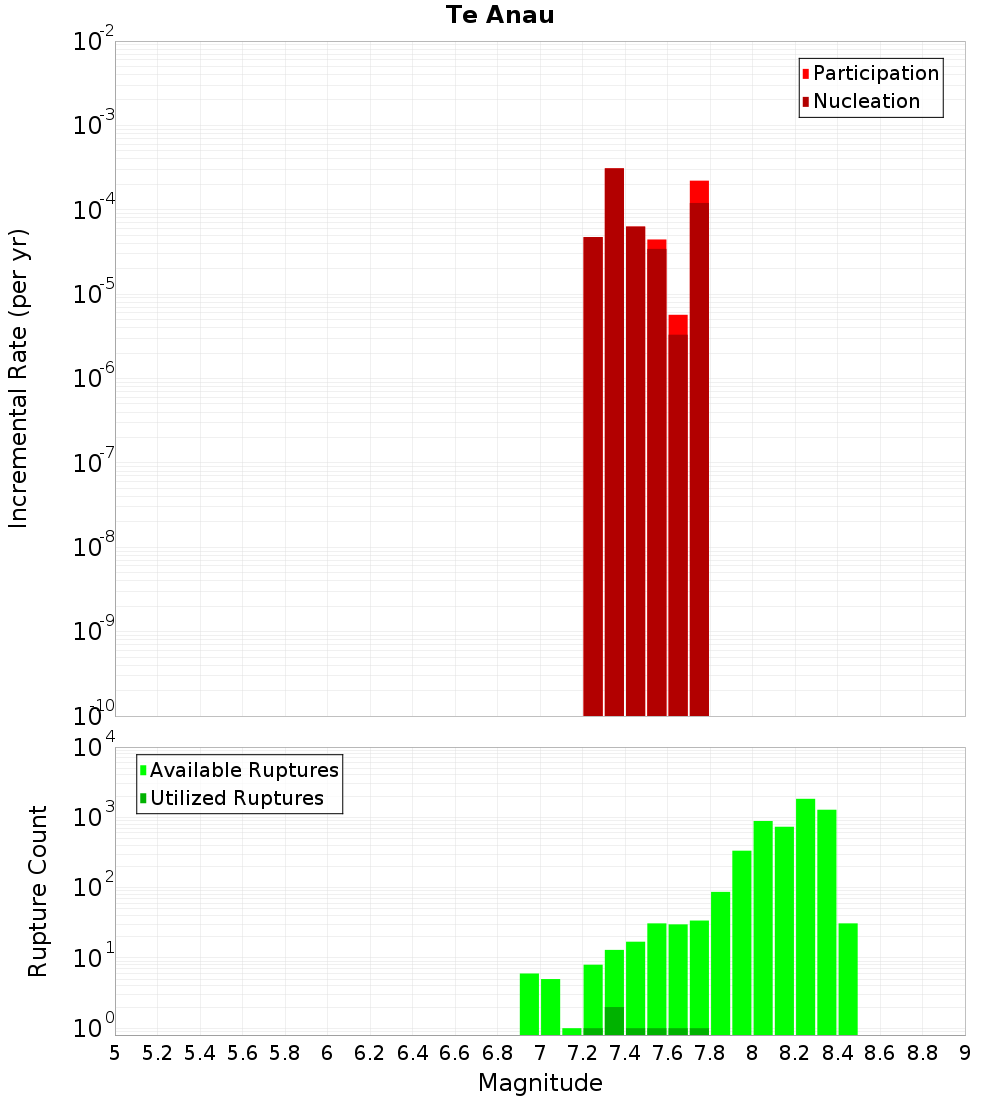

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

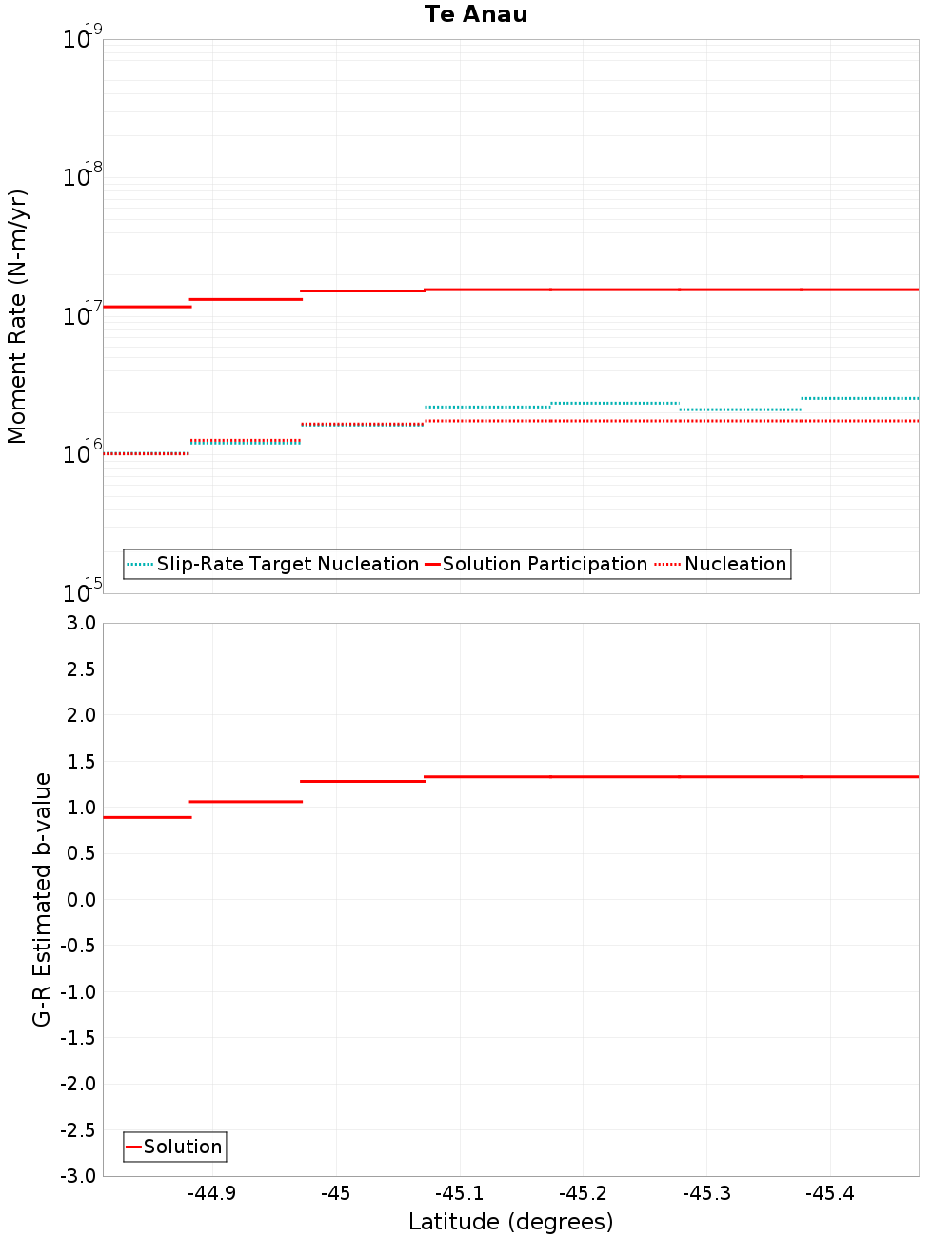

Moment-Rates and b-Values

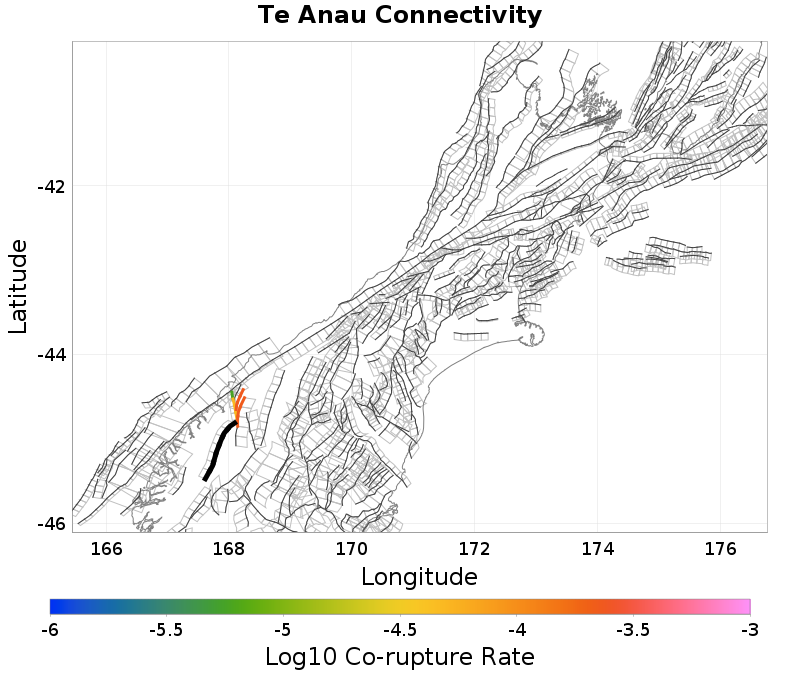

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Livingstone, 3.81 km away |
| Darran, 4.44 km away |
Livingstone, 3.81 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 18 |
| Co-rupture Rate | 2.2127428E-4 |
Darran, 4.44 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 5,294 |
| Co-rupture Rate | 5.0146646E-5 |
