West Wakatipu Details
| Property | Value |
|---|---|
| Rupture Count | 1,479 |
| Ruptures Above Sect Min Mag | 1,477 |
| Ruptures w/ Nonzero Rates | 19 |
| Magnitude Range | [6.95, 8.38] |
| Length Range | [25, 820] km |
| Total Rate | 4.0874274E-5 /yr |
| Multi-Fault Rate | 4.0874274E-5 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 103 |
Table Of Contents

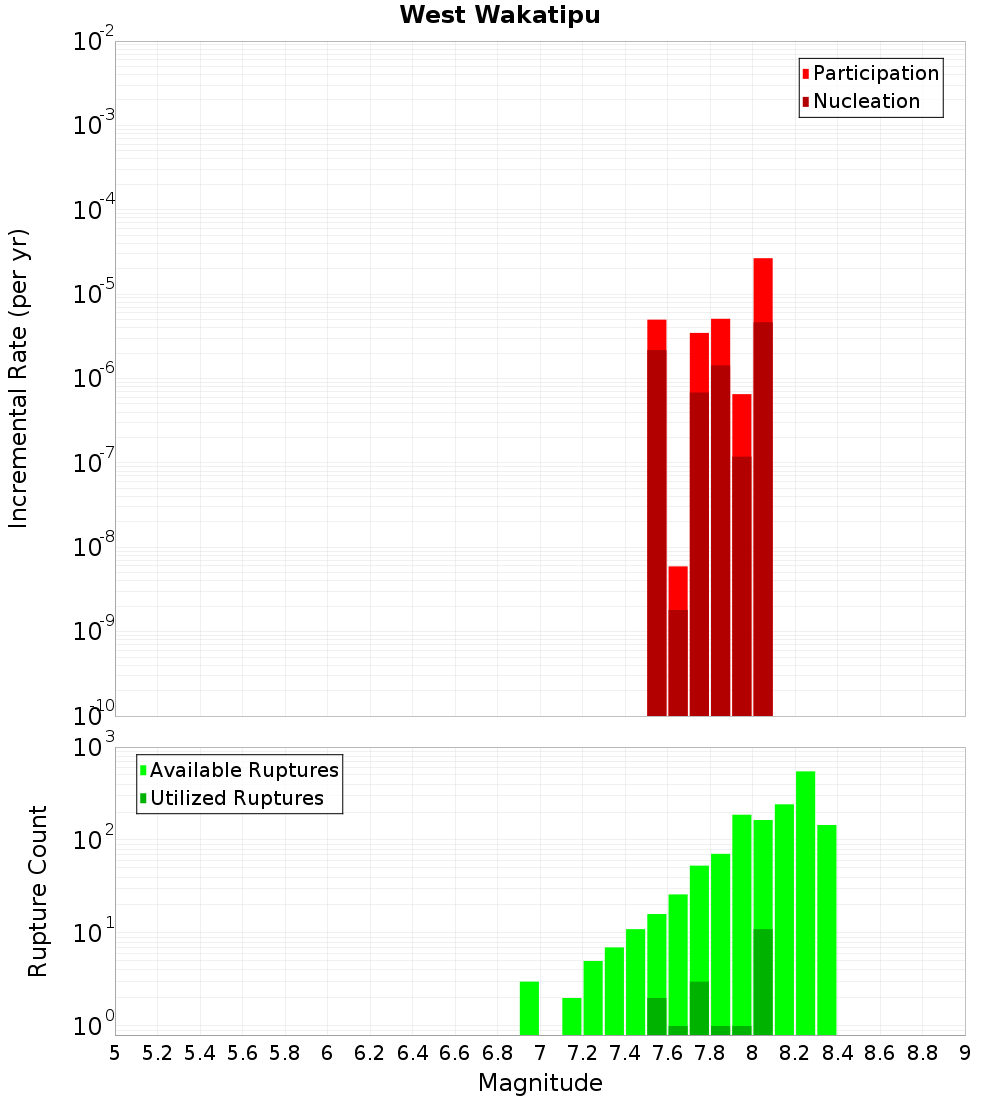

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

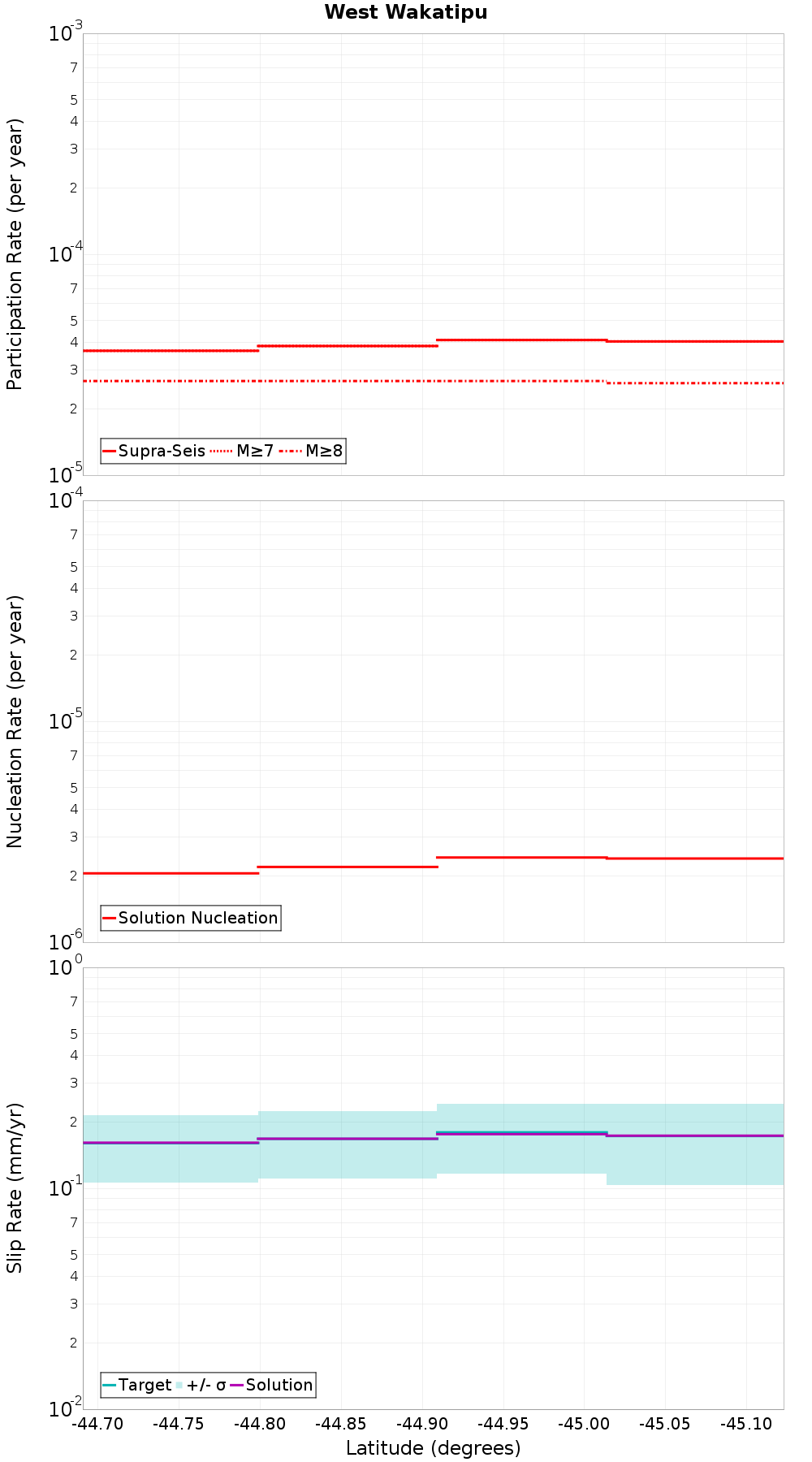

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Moonlight North, 0.14 km away |
| Moonlight South, 1.86 km away |
| Livingstone, 6.89 km away |
| Nevis, 7.56 km away |
| Darran, 12.9 km away |
| Hollyford, 13.88 km away |
Moonlight North, 0.14 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,276 |
| Co-rupture Rate | 2.7308557E-5 |
Moonlight South, 1.86 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 224 |
| Co-rupture Rate | 1.4421426E-5 |
Livingstone, 6.89 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 6 |
| Co-rupture Rate | 0.0 |
Nevis, 7.56 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 10 |
| Co-rupture Rate | 4.9894193E-6 |
Darran, 12.9 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Hollyford, 13.88 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjguMFh0dmM0 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 3 |
| Co-rupture Rate | 0.0 |
