Big Ben Details

PropertyValue
Rupture Count1,672
Ruptures Above Sect Min Mag1,646
Ruptures w/ Nonzero Rates26
Magnitude Range[6.42, 8.18]
Length Range[13, 597] km
Total Rate2.549696E-4 /yr
Multi-Fault Rate2.549696E-4 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults75

Table Of Contents

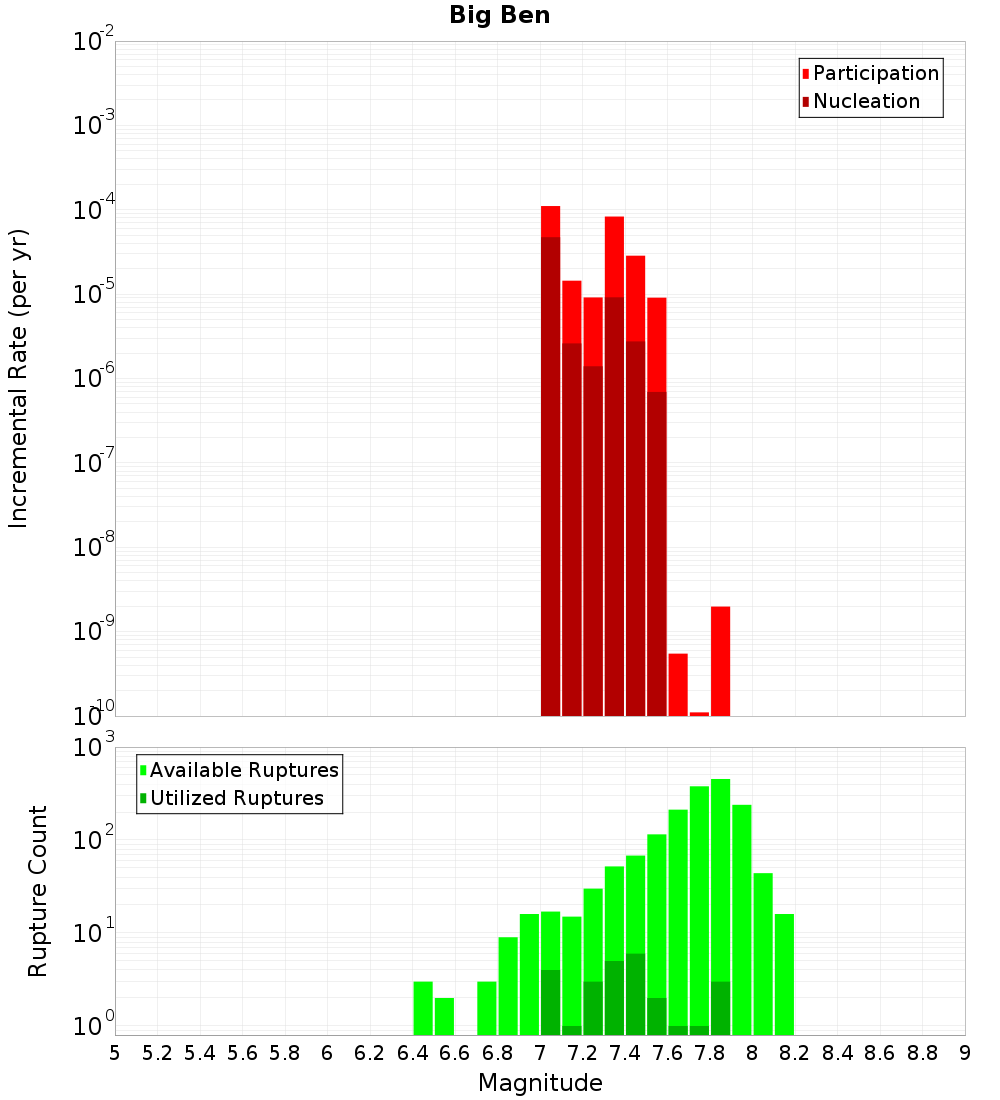

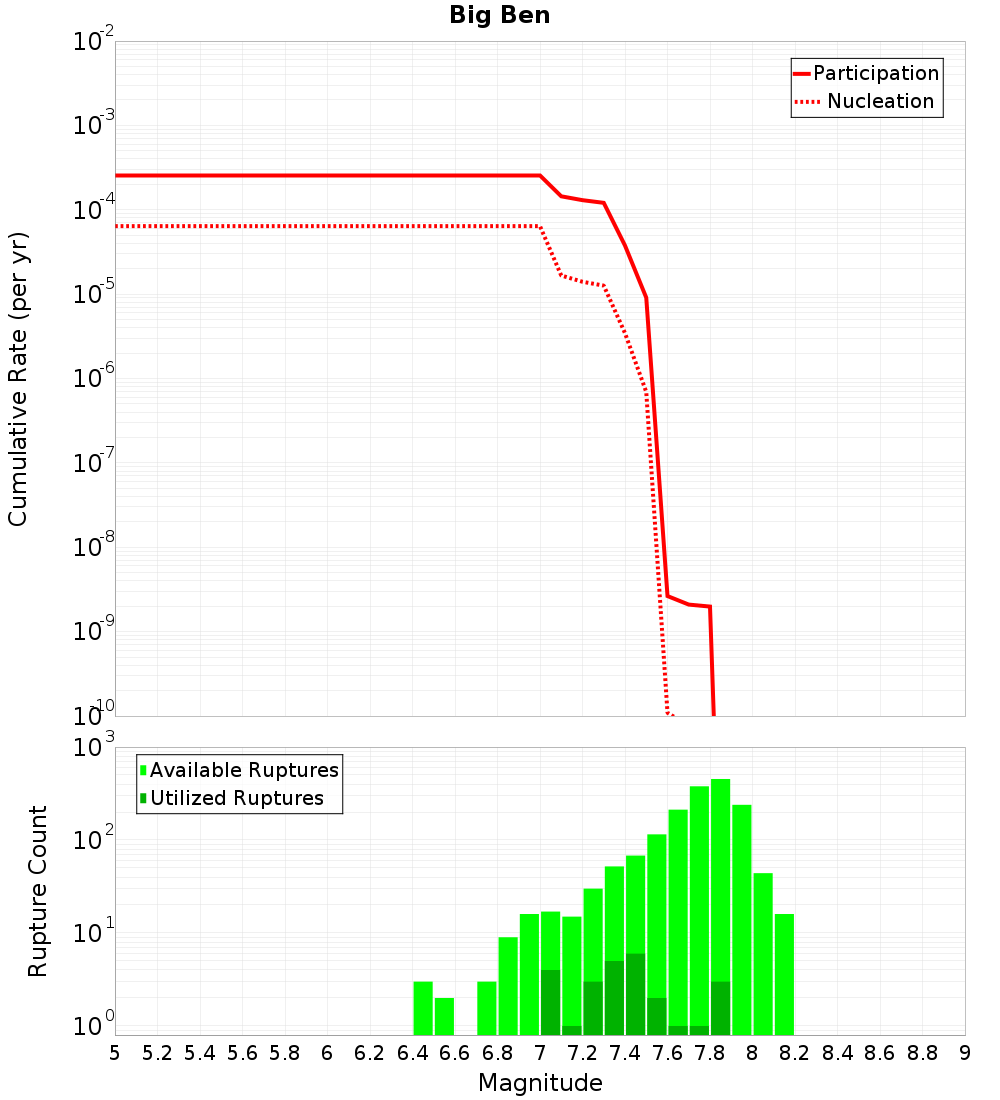

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

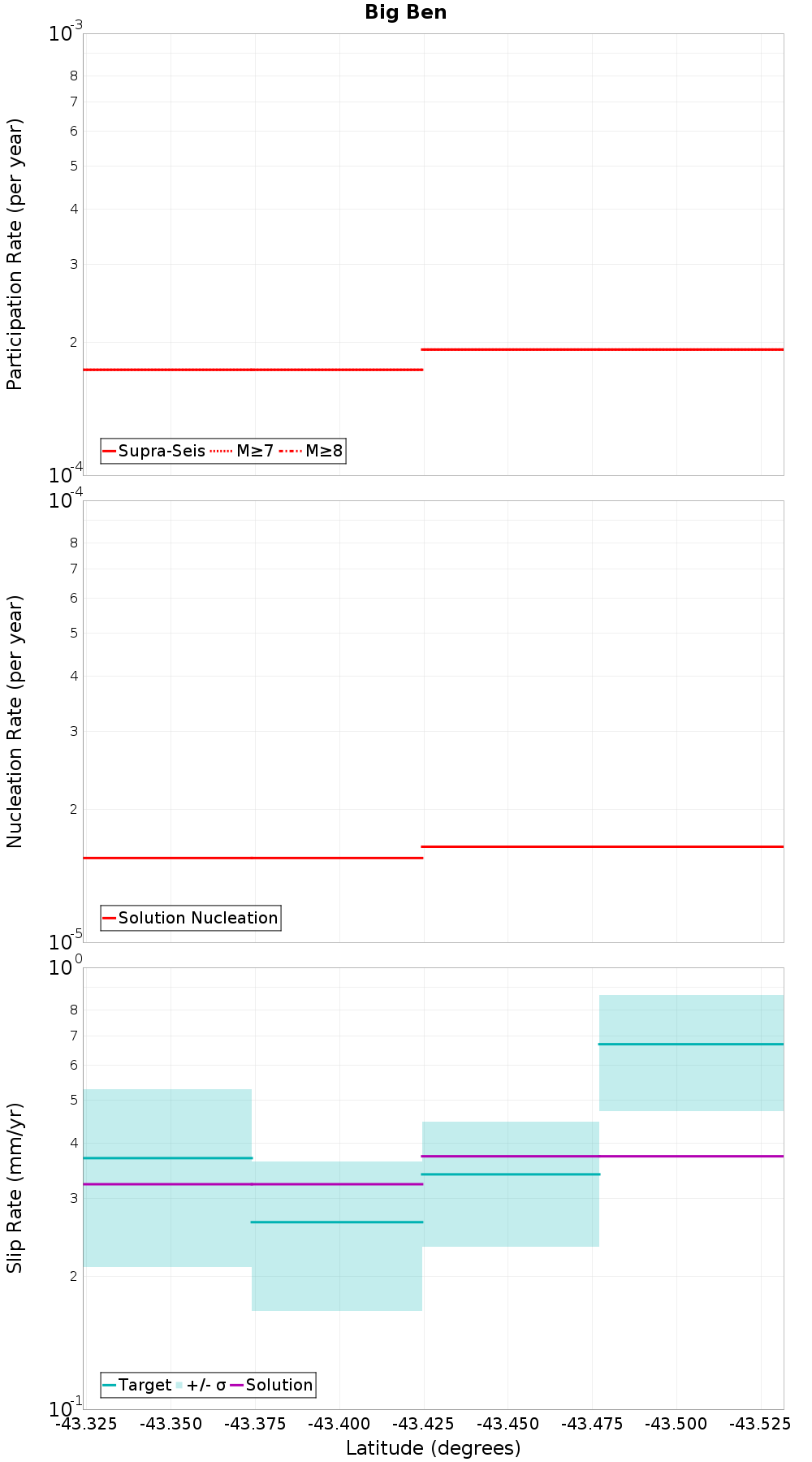

Along-Strike Values

(top)

Along-strike plot

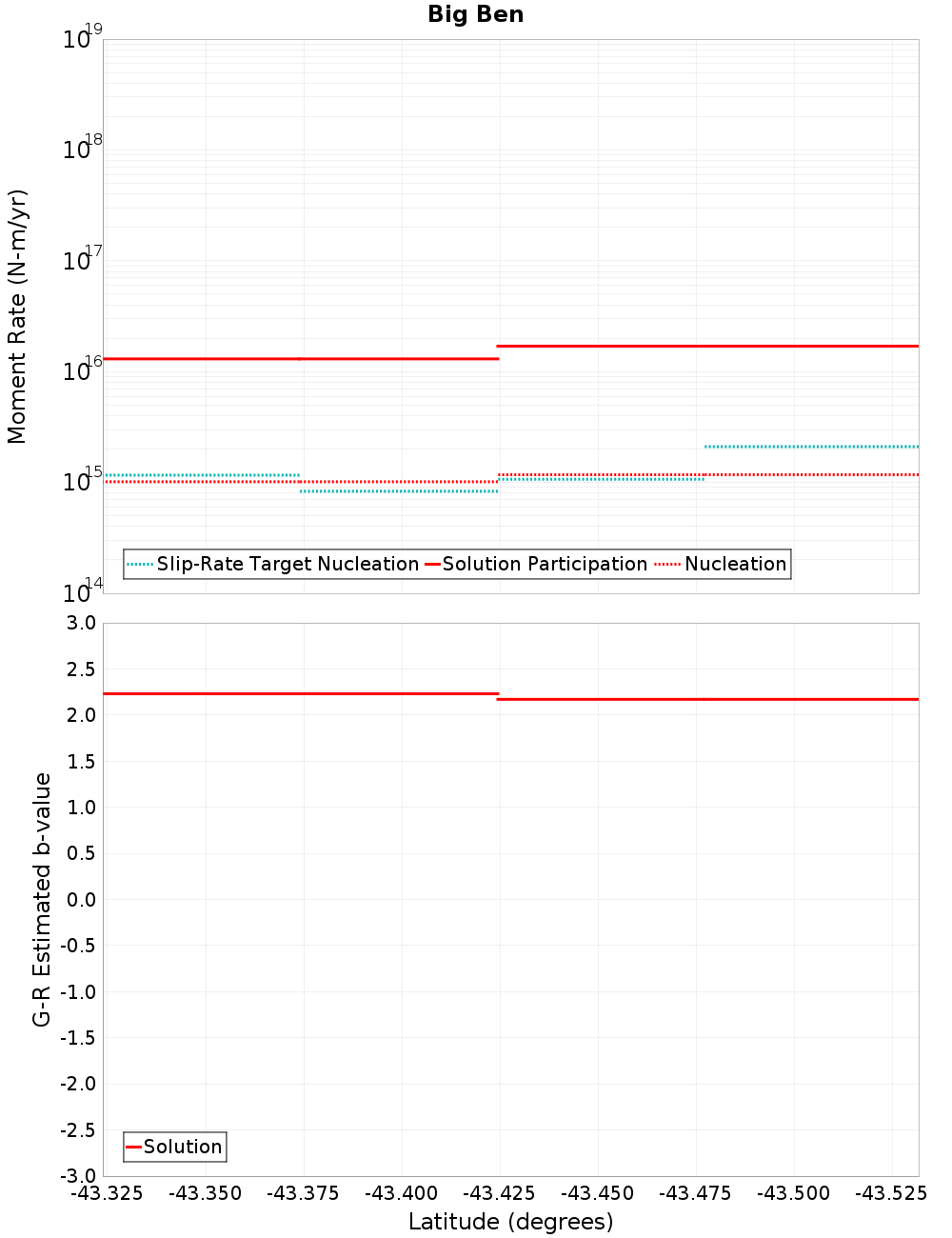

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Torlesse, 0.4 km away
Kowai - View Hill, 0.83 km away
High Peak - Sheffield, 1.56 km away
Hutt Peel, 2.07 km away
Porters Pass, 2.15 km away
Double Hill, 2.59 km away
Harper, 8.03 km away
Hororata, 8.04 km away
Cheeseman, 9.74 km away
Redcliffe, 12.41 km away
Sailor, 13.73 km away

Torlesse, 0.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMFNlbTdu
Connected?true
Directly Connected?true
Co-rupture Count105
Co-rupture Rate1.7317192E-4

Kowai - View Hill, 0.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMFNlbTdu
Connected?true
Directly Connected?true
Co-rupture Count1,244
Co-rupture Rate8.178735E-5

High Peak - Sheffield, 1.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMFNlbTdu
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hutt Peel, 2.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMFNlbTdu
Connected?true
Directly Connected?true
Co-rupture Count886
Co-rupture Rate2.5297398E-9

Porters Pass, 2.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMFNlbTdu
Connected?true
Directly Connected?true
Co-rupture Count267
Co-rupture Rate1.1009301E-4

Double Hill, 2.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMFNlbTdu
Connected?true
Directly Connected?true
Co-rupture Count69
Co-rupture Rate6.2513216E-5

Harper, 8.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMFNlbTdu
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Hororata, 8.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMFNlbTdu
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Cheeseman, 9.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMFNlbTdu
Connected?true
Directly Connected?false
Co-rupture Count52
Co-rupture Rate1.306291E-6

Redcliffe, 12.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMFNlbTdu
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Sailor, 13.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMFNlbTdu
Connected?true
Directly Connected?false
Co-rupture Count9
Co-rupture Rate0.0
