Ruataniwha Details

Property	Value
Rupture Count	1,421
Ruptures Above Sect Min Mag	1,417
Ruptures w/ Nonzero Rates	43
Magnitude Range	[6.68, 8.04]
Length Range	[17, 377] km
Total Rate	1.4140681E-4 /yr
Multi-Fault Rate	1.4140681E-4 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	79

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

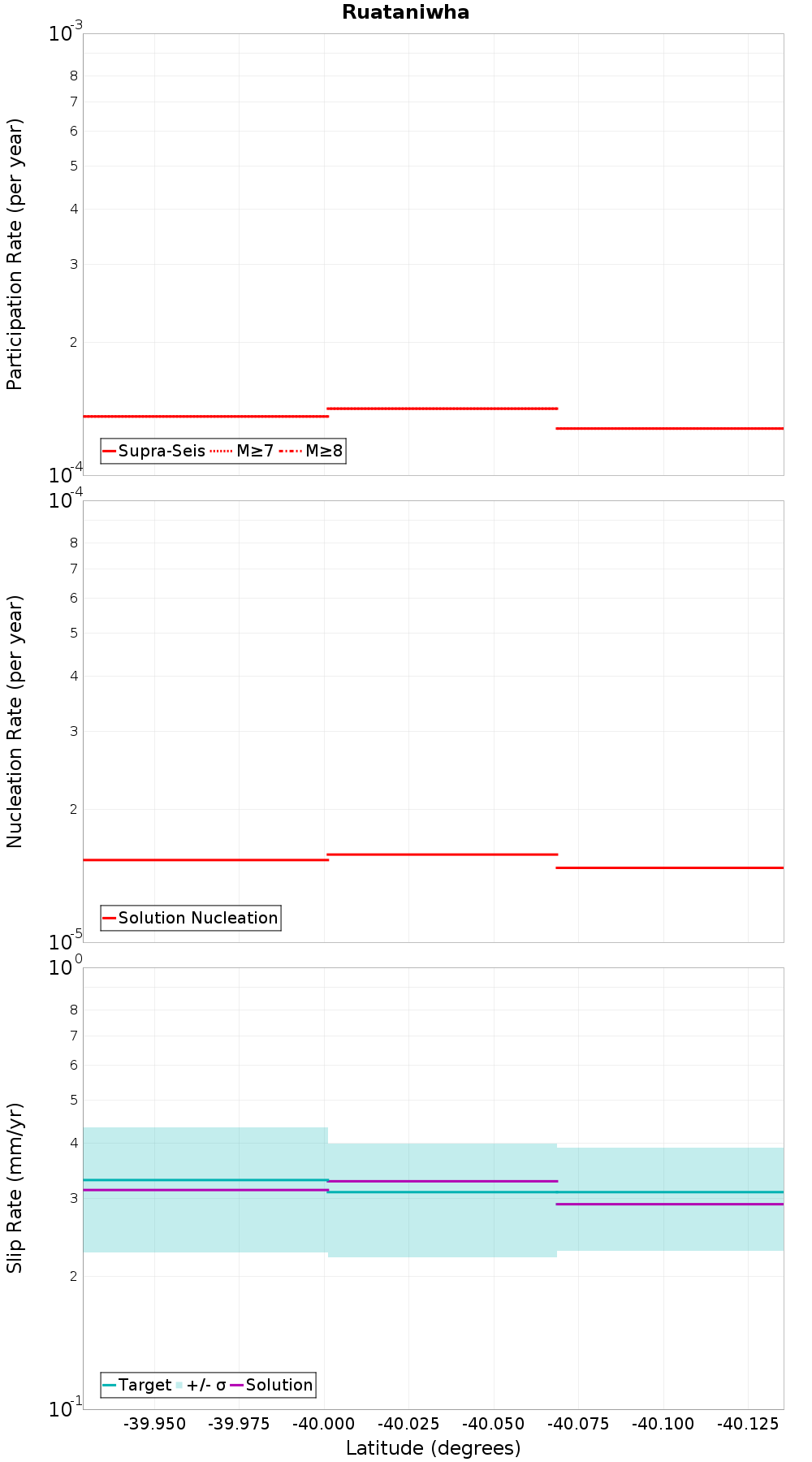

Along-Strike Values

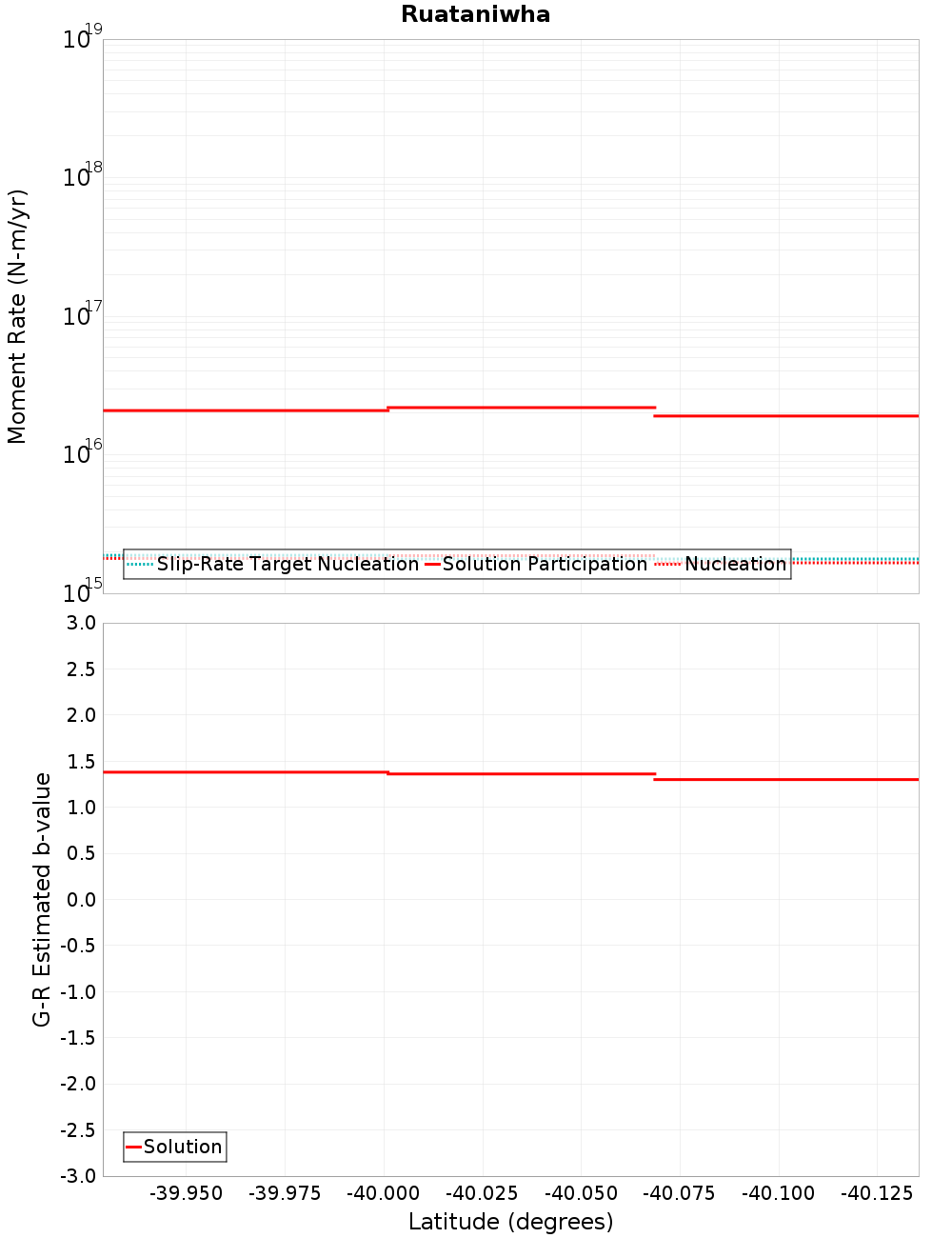

Moment-Rates and b-Values

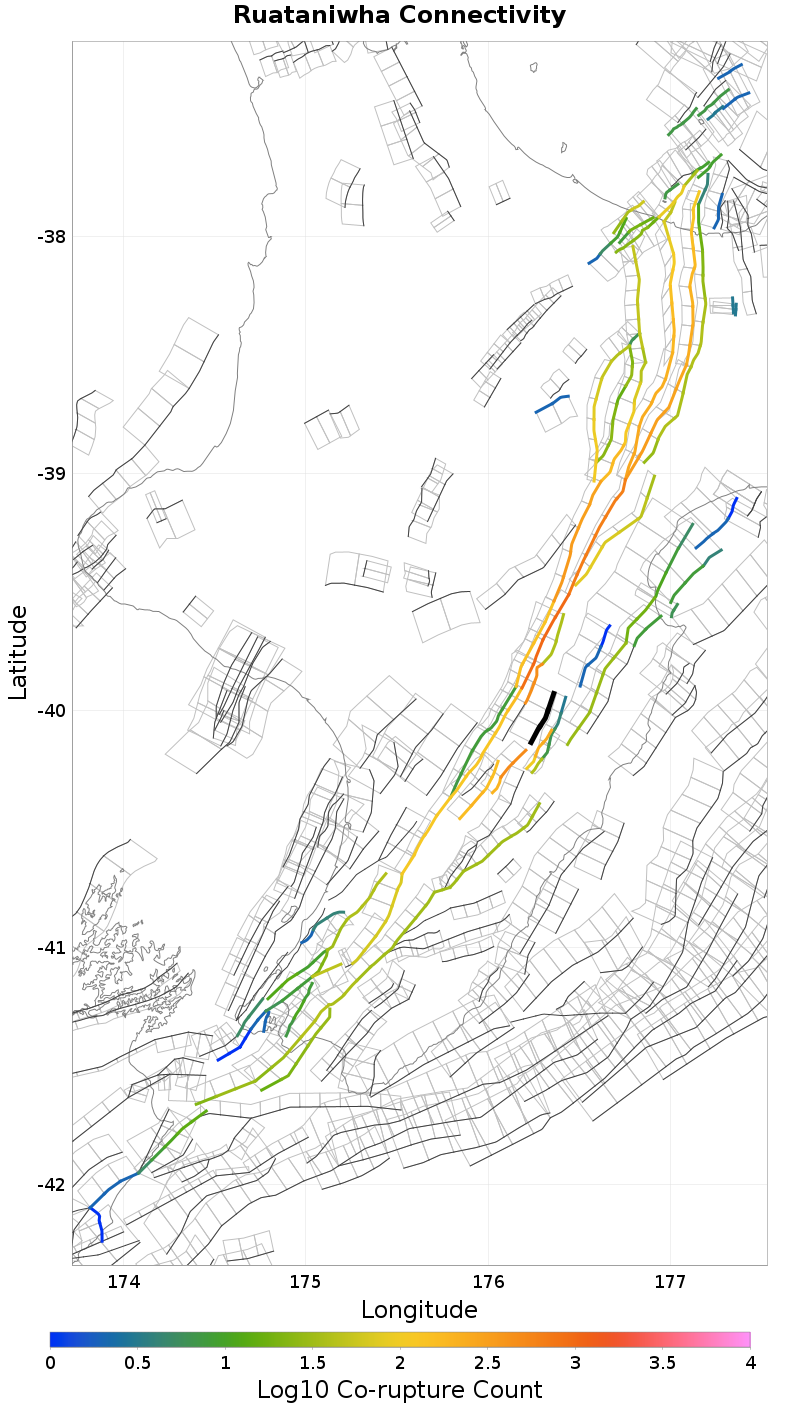

Connectivity

Nearby Sections

Fault Section
Maunga, 3.9 km away
Clear Hills - Waikopiro, 4.28 km away
Oruawharo - Mangatoro, 5.67 km away
Mohaka: South, 6.61 km away
Rangefront, 8.95 km away
Ruahine: South, 9.88 km away
Ruahine: Central, 9.91 km away
Te Heka, 12.06 km away
Waipukurau - Poukawa, 13.21 km away
Wakarara, 13.46 km away
Waewaepa, 13.99 km away
Pahiatua, 14.8 km away

Maunga, 3.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMFNlbTdu
Connected?	true
Directly Connected?	true
Co-rupture Count	490
Co-rupture Rate	1.2664468E-4

Clear Hills - Waikopiro, 4.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMFNlbTdu
Connected?	true
Directly Connected?	true
Co-rupture Count	244
Co-rupture Rate	8.163078E-7

Oruawharo - Mangatoro, 5.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMFNlbTdu
Connected?	true
Directly Connected?	false
Co-rupture Count	39
Co-rupture Rate	6.274135E-7

Mohaka: South, 6.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMFNlbTdu
Connected?	true
Directly Connected?	true
Co-rupture Count	1,203
Co-rupture Rate	5.344445E-5

Rangefront, 8.95 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMFNlbTdu
Connected?	true
Directly Connected?	true
Co-rupture Count	467
Co-rupture Rate	6.0628405E-5

Ruahine: South, 9.88 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMFNlbTdu
Connected?	true
Directly Connected?	false
Co-rupture Count	8
Co-rupture Rate	0.0

Ruahine: Central, 9.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMFNlbTdu
Connected?	true
Directly Connected?	false
Co-rupture Count	149
Co-rupture Rate	1.9138388E-5

Te Heka, 12.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMFNlbTdu
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	0.0

Waipukurau - Poukawa, 13.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMFNlbTdu
Connected?	true
Directly Connected?	false
Co-rupture Count	29
Co-rupture Rate	5.50274E-15

Wakarara, 13.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMFNlbTdu
Connected?	true
Directly Connected?	false
Co-rupture Count	38
Co-rupture Rate	1.0021862E-5

Waewaepa, 13.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMFNlbTdu
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pahiatua, 14.8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMFNlbTdu
Connected?	true
Directly Connected?	false
Co-rupture Count	243
Co-rupture Rate	2.9841056E-5
