Titri North Details

PropertyValue
Rupture Count31
Ruptures Above Sect Min Mag31
Ruptures w/ Nonzero Rates9
Magnitude Range[7.10, 7.72]
Length Range[29, 131] km
Total Rate1.538183E-4 /yr
Multi-Fault Rate1.3519423E-4 /yr (87.89%)
Directly-Connected Faults3
All Co-Rupturing Faults7

Table Of Contents

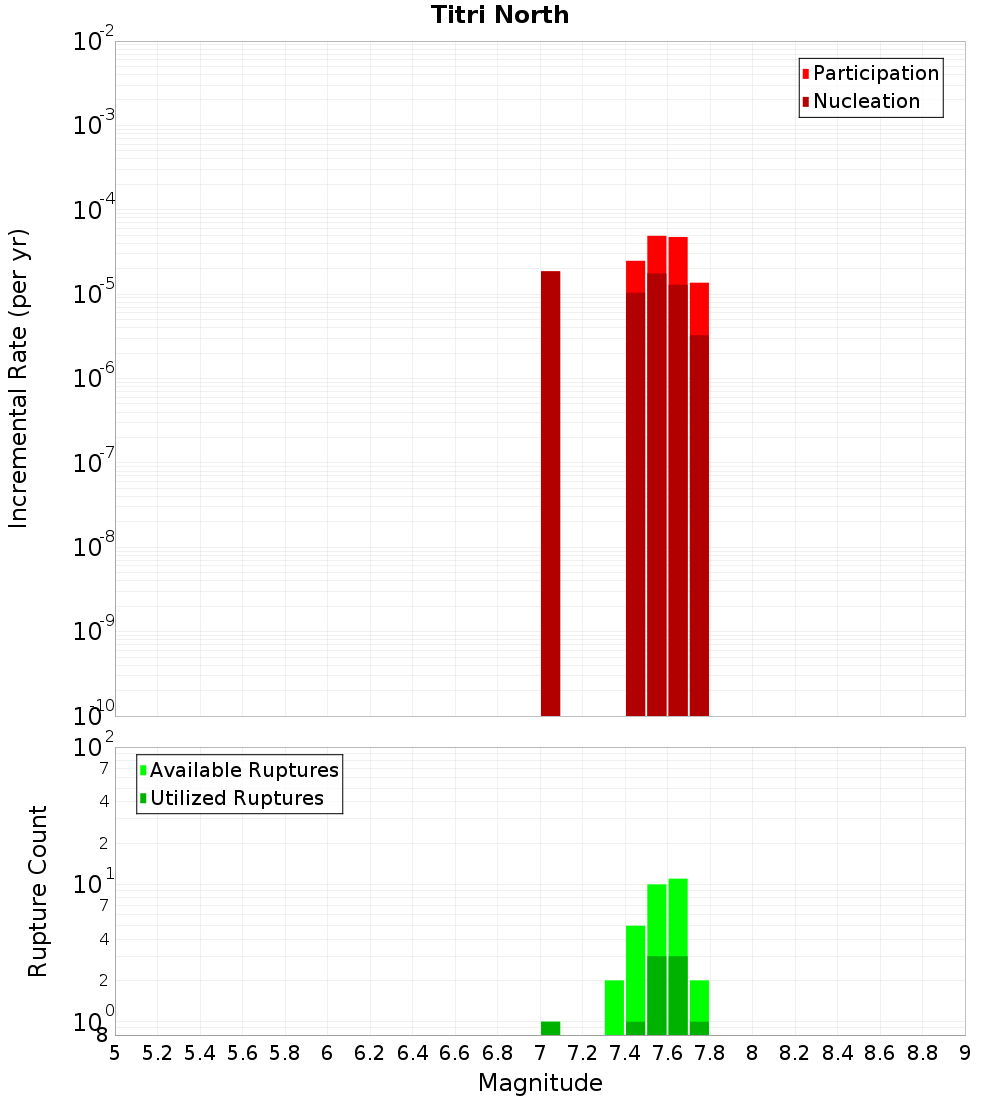

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

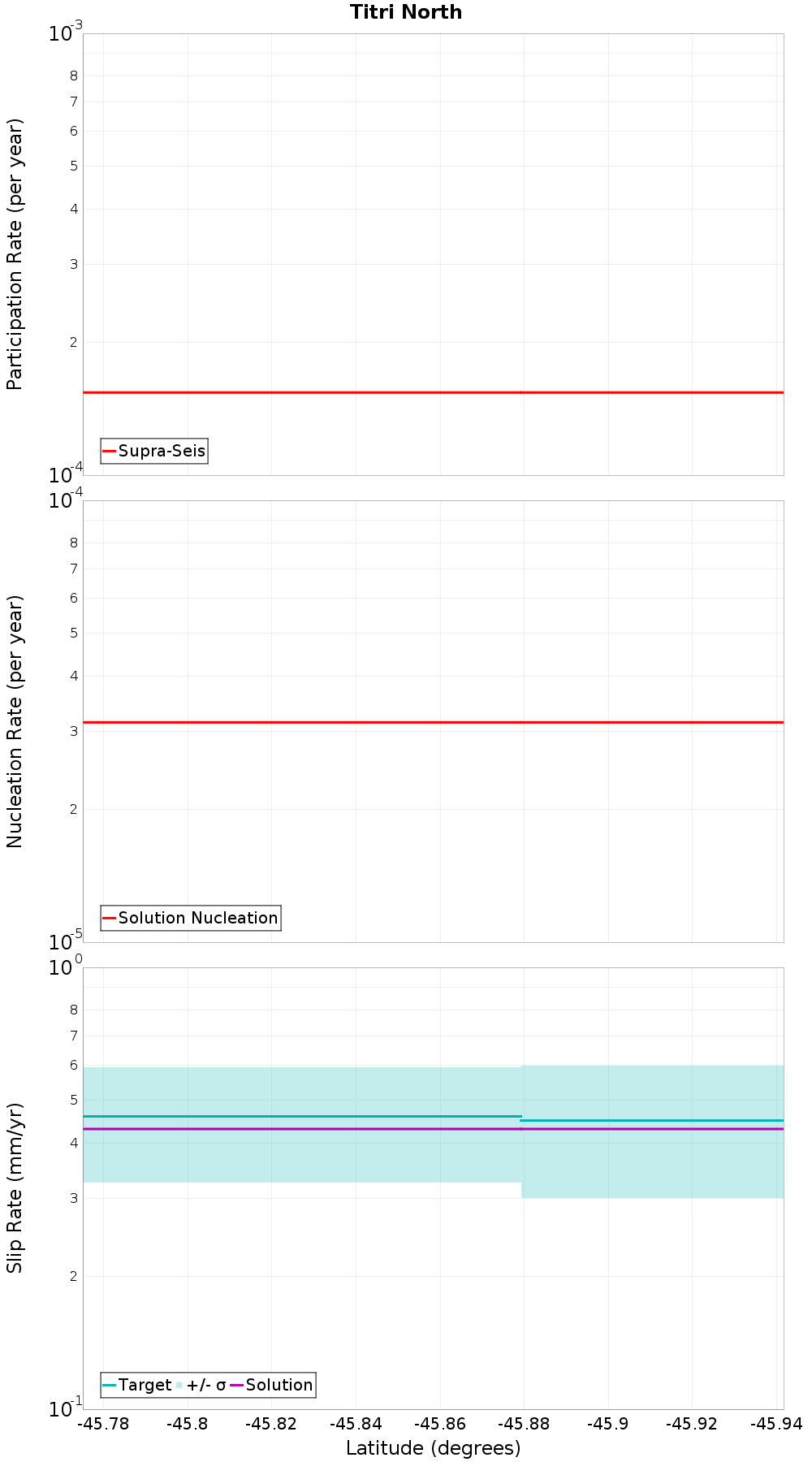

Along-Strike Values

(top)

Along-strike plot

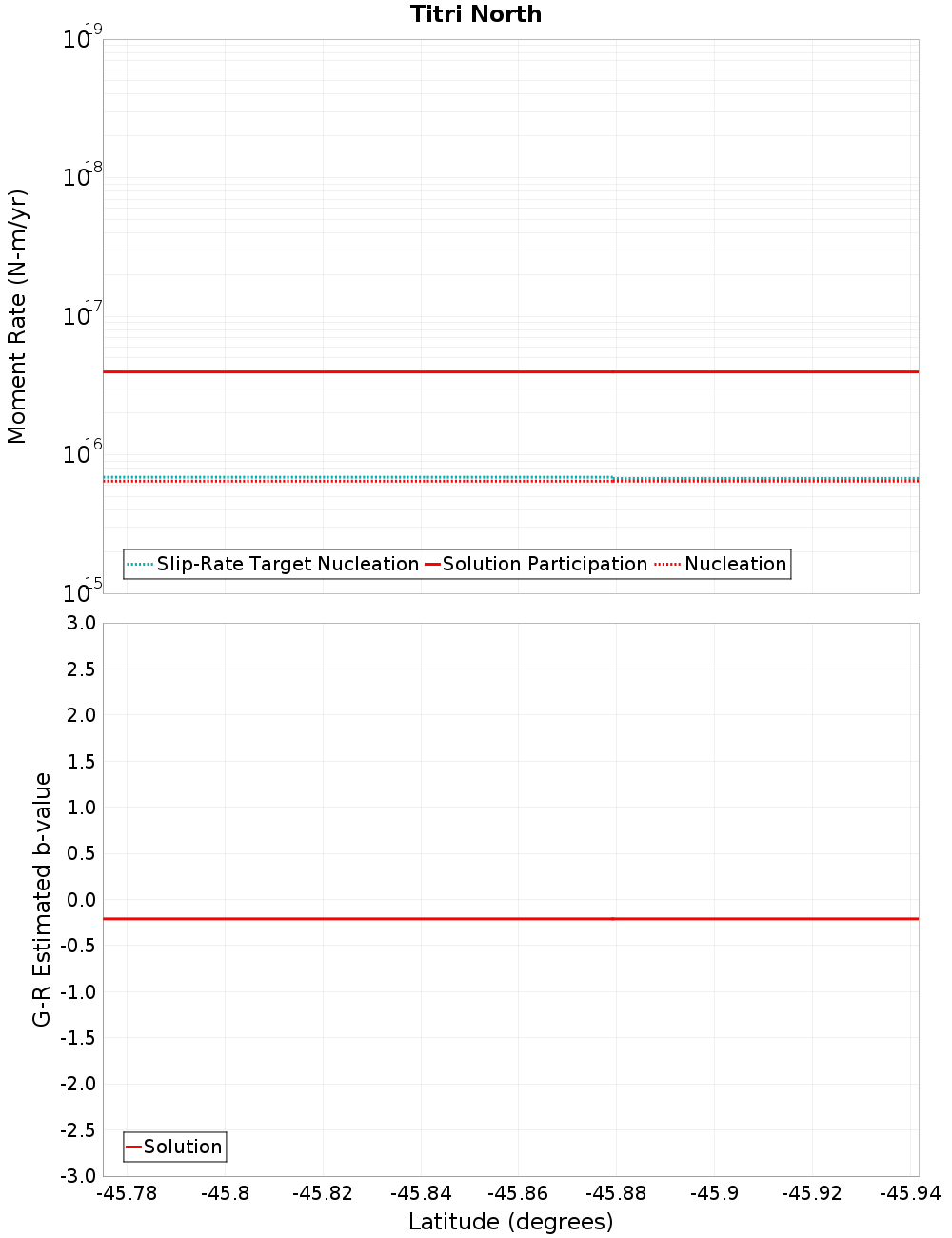

Moment-Rates and b-Values

(top)

Along-strike plot

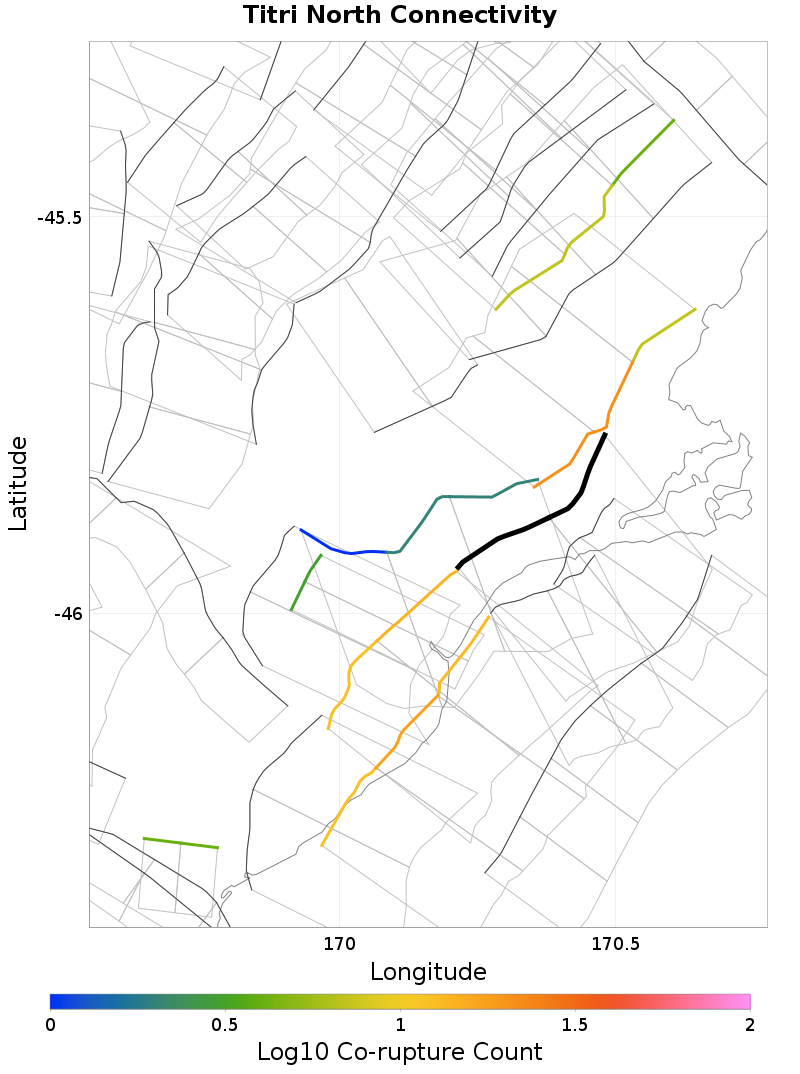

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Titri Central, 0.04 km away
Sliver Stream - Merton, 0.88 km away
Kaikorai, 2.69 km away
Maungatua - North Taieri, 3.41 km away
Akatore, 5.06 km away
Green Island, 5.36 km away
Waitahuna 2, 11.55 km away

Titri Central, 0.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMFNlbTdu
Connected?true
Directly Connected?true
Co-rupture Count14
Co-rupture Rate9.721561E-5

Sliver Stream - Merton, 0.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMFNlbTdu
Connected?true
Directly Connected?true
Co-rupture Count21
Co-rupture Rate6.125312E-5

Kaikorai, 2.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMFNlbTdu
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Maungatua - North Taieri, 3.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMFNlbTdu
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate4.358198E-5

Akatore, 5.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMFNlbTdu
Connected?true
Directly Connected?true
Co-rupture Count17
Co-rupture Rate3.7978625E-5

Green Island, 5.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMFNlbTdu
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waitahuna 2, 11.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMFNlbTdu
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate4.3051266E-5
