Wairau Details

PropertyValue
Rupture Count31,665
Ruptures Above Sect Min Mag31,641
Ruptures w/ Nonzero Rates205
Magnitude Range[6.70, 8.51]
Length Range[20, 1,132] km
Total Rate0.0014890451 /yr
Multi-Fault Rate0.0013924056 /yr (93.51%)
Directly-Connected Faults8
All Co-Rupturing Faults148

Table Of Contents

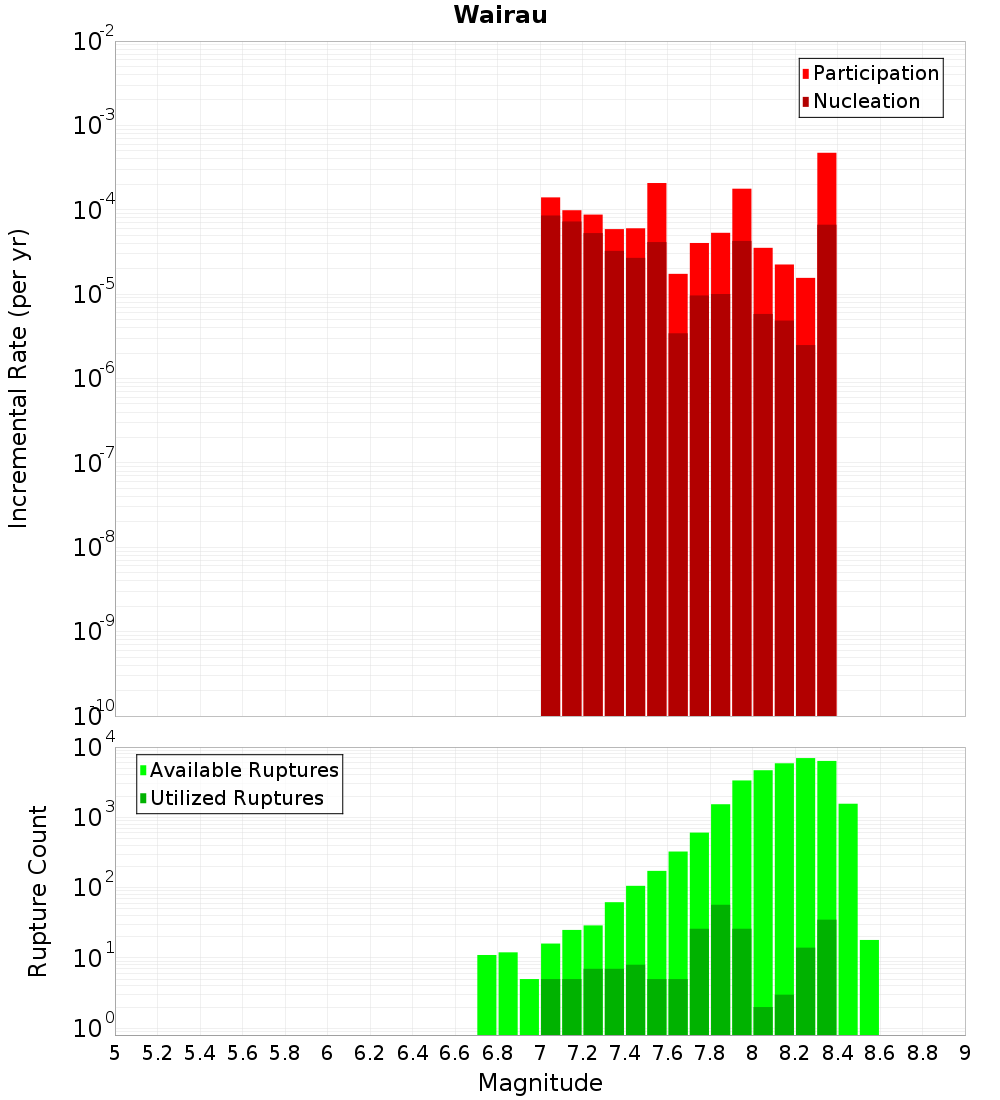

Magnitude-Frequency Distribution

(top)

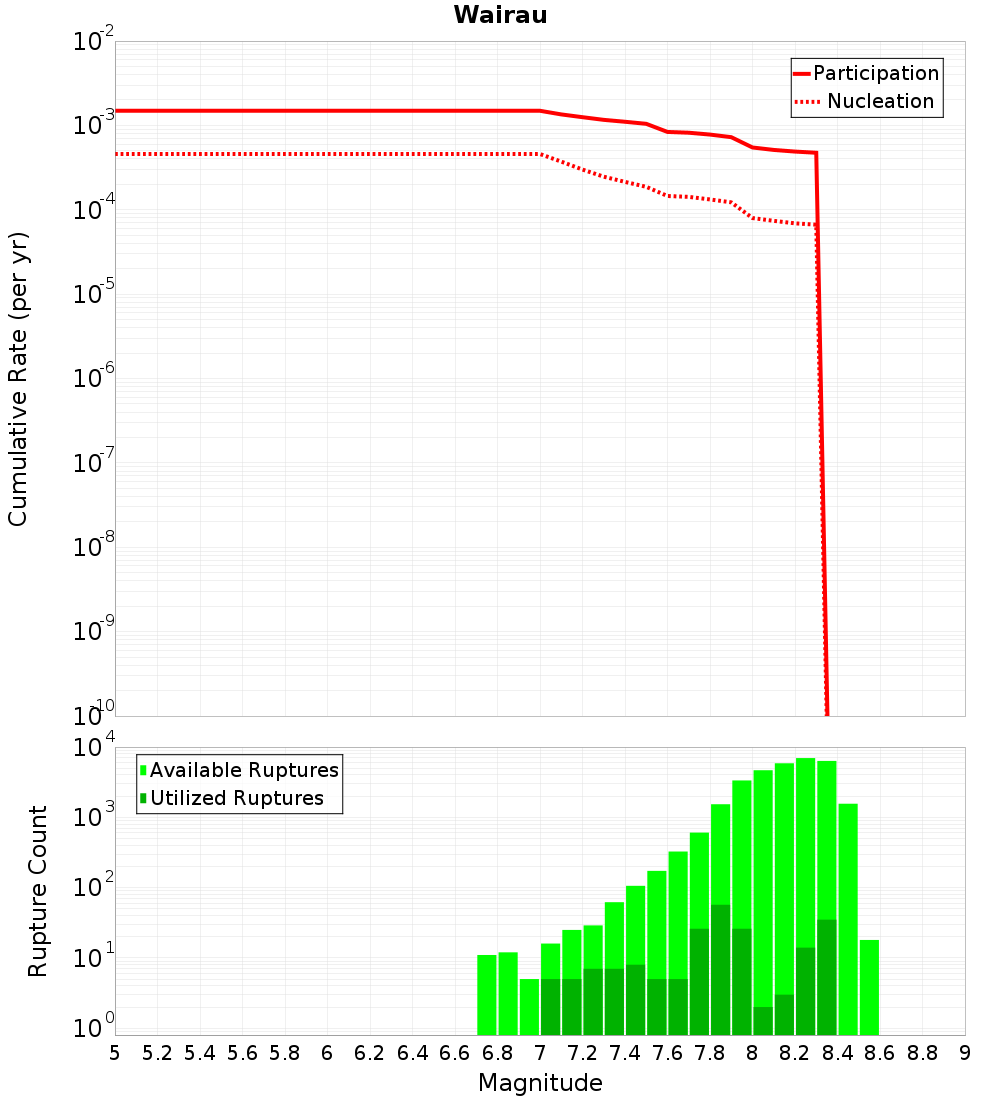

IncrementalCumulative
Incremental PlotCumulative Plot

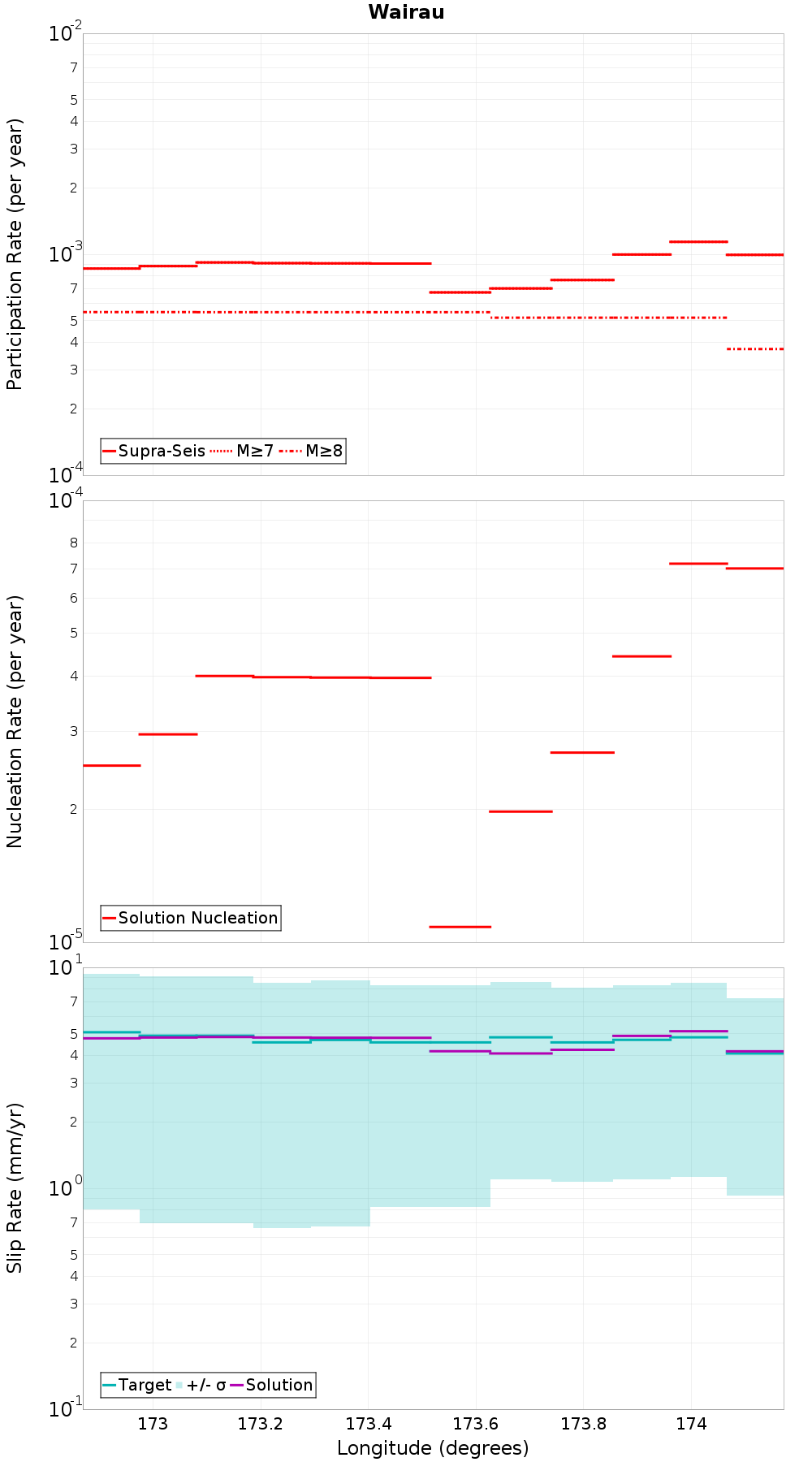

Along-Strike Values

(top)

Along-strike plot

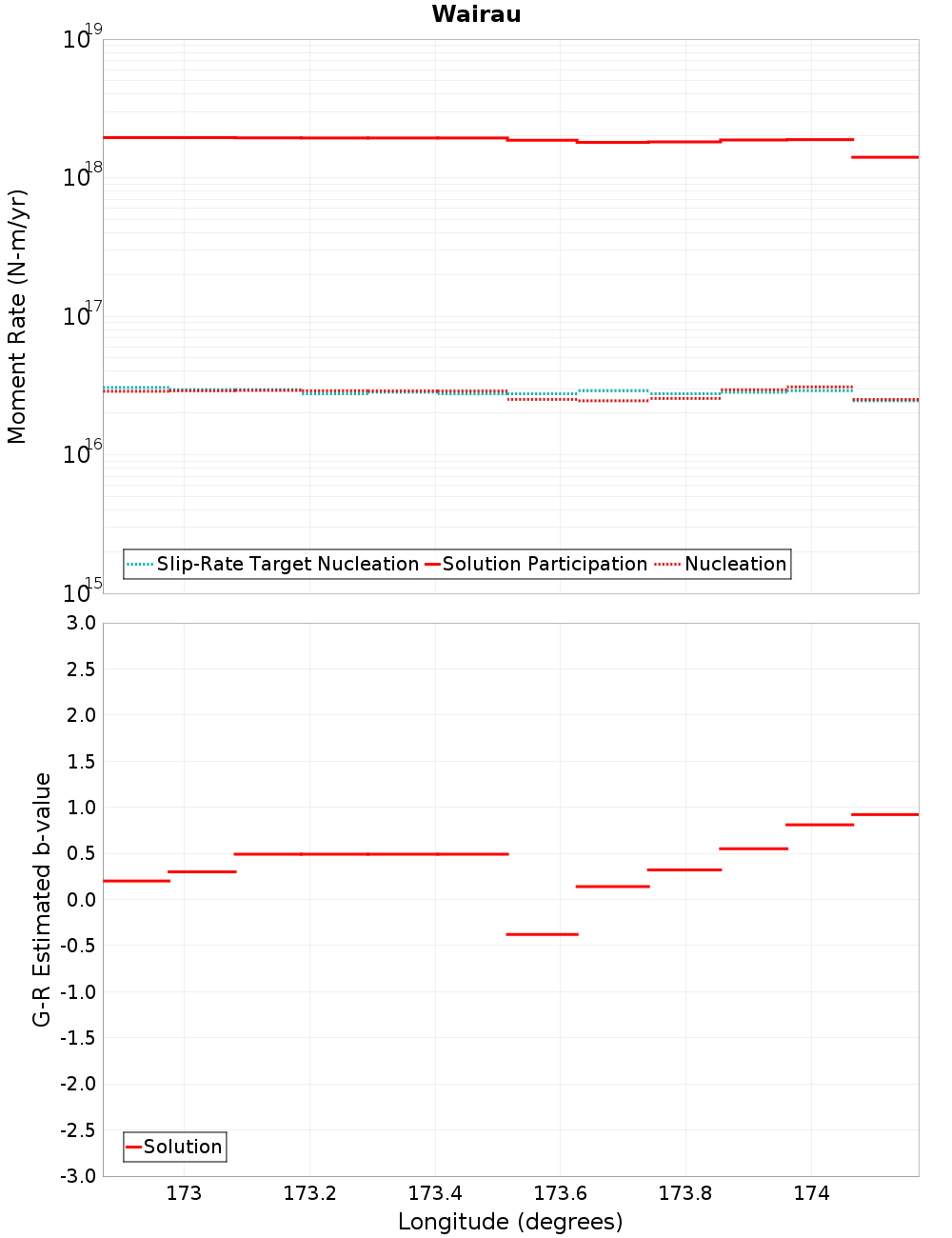

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Wairau 2, 0 km away
Whangamoa, 0 km away
Alpine: Springs Junction to Tophouse, 0 km away
Flaxmore - Waimea - Tahunanui, 0.19 km away
Tutaki, 7.32 km away
Awatere: Northeast 1, 11.05 km away
Awatere: Northeast 2, 12.04 km away
Cloudy 2, 12.85 km away
Cloudy 1, 12.85 km away
Wairau 3, 13.7 km away
Vernon 1, 14 km away
Vernon 2, 14 km away
Ruby Bay - Moutere, 14.97 km away

Wairau 2, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMFNlbTdu
Connected?true
Directly Connected?true
Co-rupture Count8,264
Co-rupture Rate4.982164E-4

Whangamoa, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMFNlbTdu
Connected?true
Directly Connected?true
Co-rupture Count5,287
Co-rupture Rate3.009209E-6

Alpine: Springs Junction to Tophouse, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMFNlbTdu
Connected?true
Directly Connected?true
Co-rupture Count29,329
Co-rupture Rate8.17606E-4

Flaxmore - Waimea - Tahunanui, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMFNlbTdu
Connected?true
Directly Connected?true
Co-rupture Count159
Co-rupture Rate1.1883594E-6

Tutaki, 7.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMFNlbTdu
Connected?true
Directly Connected?true
Co-rupture Count341
Co-rupture Rate1.1020868E-5

Awatere: Northeast 1, 11.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMFNlbTdu
Connected?true
Directly Connected?true
Co-rupture Count2,008
Co-rupture Rate2.0227705E-4

Awatere: Northeast 2, 12.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMFNlbTdu
Connected?true
Directly Connected?false
Co-rupture Count326
Co-rupture Rate0.0

Cloudy 2, 12.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMFNlbTdu
Connected?true
Directly Connected?false
Co-rupture Count17
Co-rupture Rate0.0

Cloudy 1, 12.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMFNlbTdu
Connected?true
Directly Connected?false
Co-rupture Count120
Co-rupture Rate0.0

Wairau 3, 13.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMFNlbTdu
Connected?true
Directly Connected?true
Co-rupture Count510
Co-rupture Rate2.931628E-4

Vernon 1, 14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMFNlbTdu
Connected?true
Directly Connected?true
Co-rupture Count430
Co-rupture Rate2.0435742E-4

Vernon 2, 14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMFNlbTdu
Connected?true
Directly Connected?false
Co-rupture Count344
Co-rupture Rate2.4224468E-5

Ruby Bay - Moutere, 14.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMFNlbTdu
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
