Kowhai Details

Property	Value
Rupture Count	7,456
Ruptures Above Sect Min Mag	7,443
Ruptures w/ Nonzero Rates	190
Magnitude Range	[6.58, 8.49]
Length Range	[15, 806] km
Total Rate	2.9164925E-4 /yr
Multi-Fault Rate	2.9164925E-4 /yr (100.00%)
Directly-Connected Faults	7
All Co-Rupturing Faults	209

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values

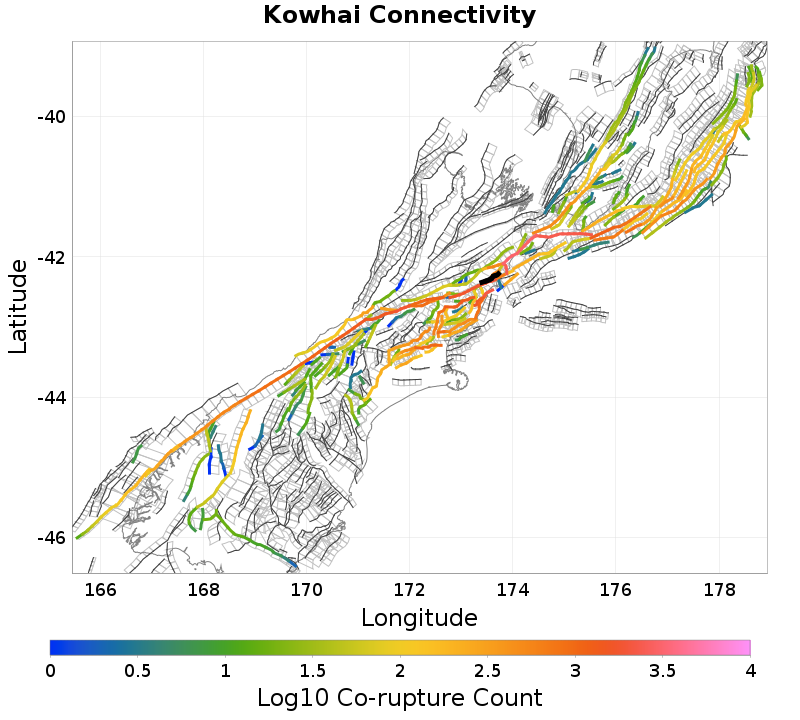

Connectivity
- Nearby Sections

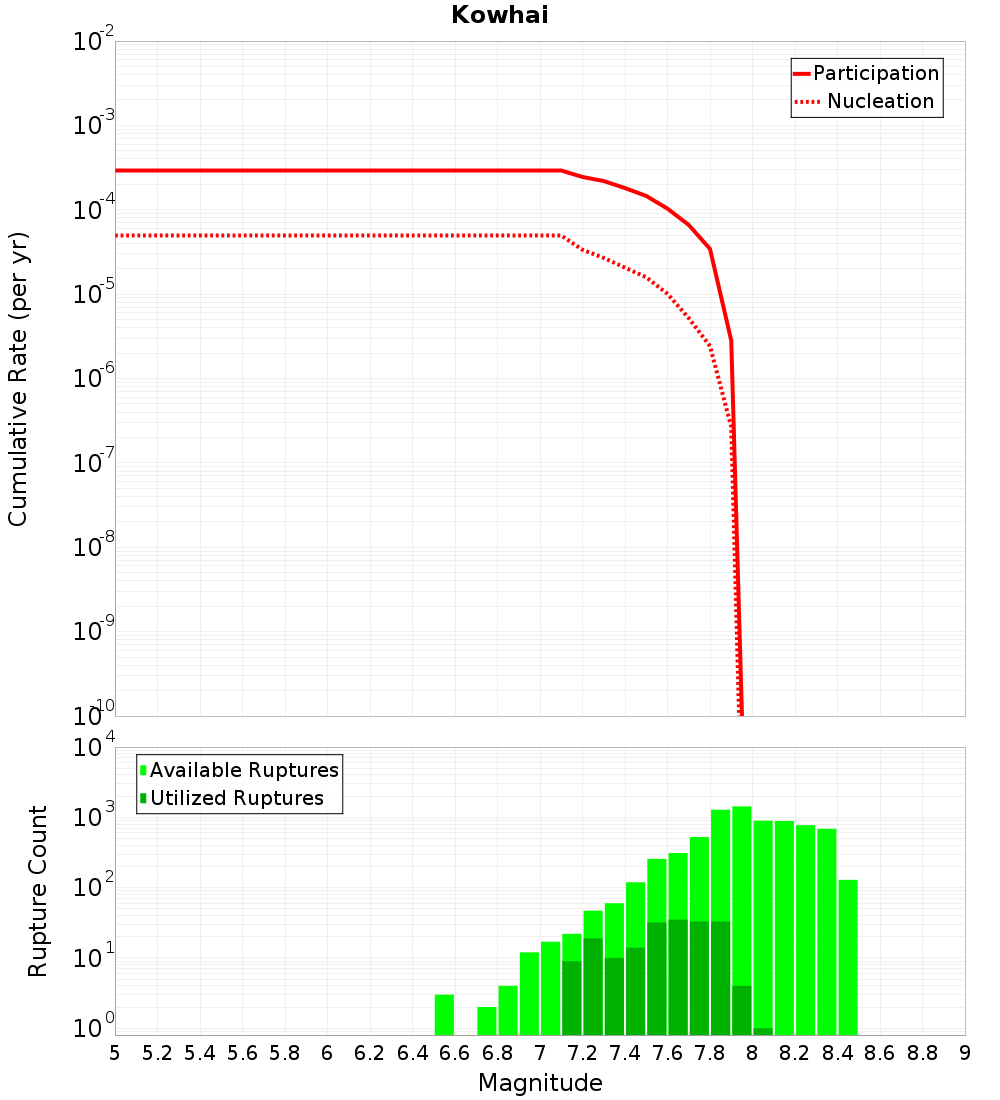

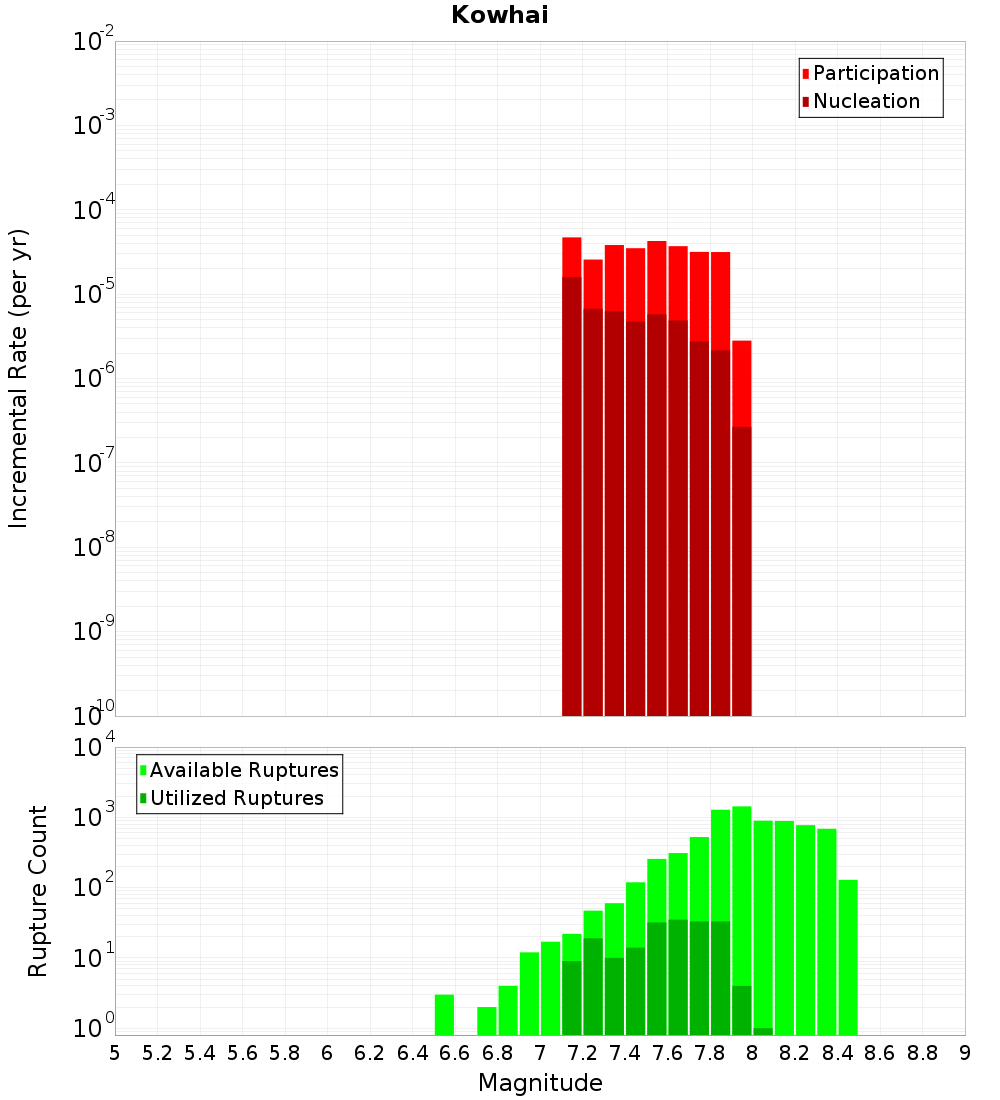

Magnitude-Frequency Distribution

Incremental	Cumulative

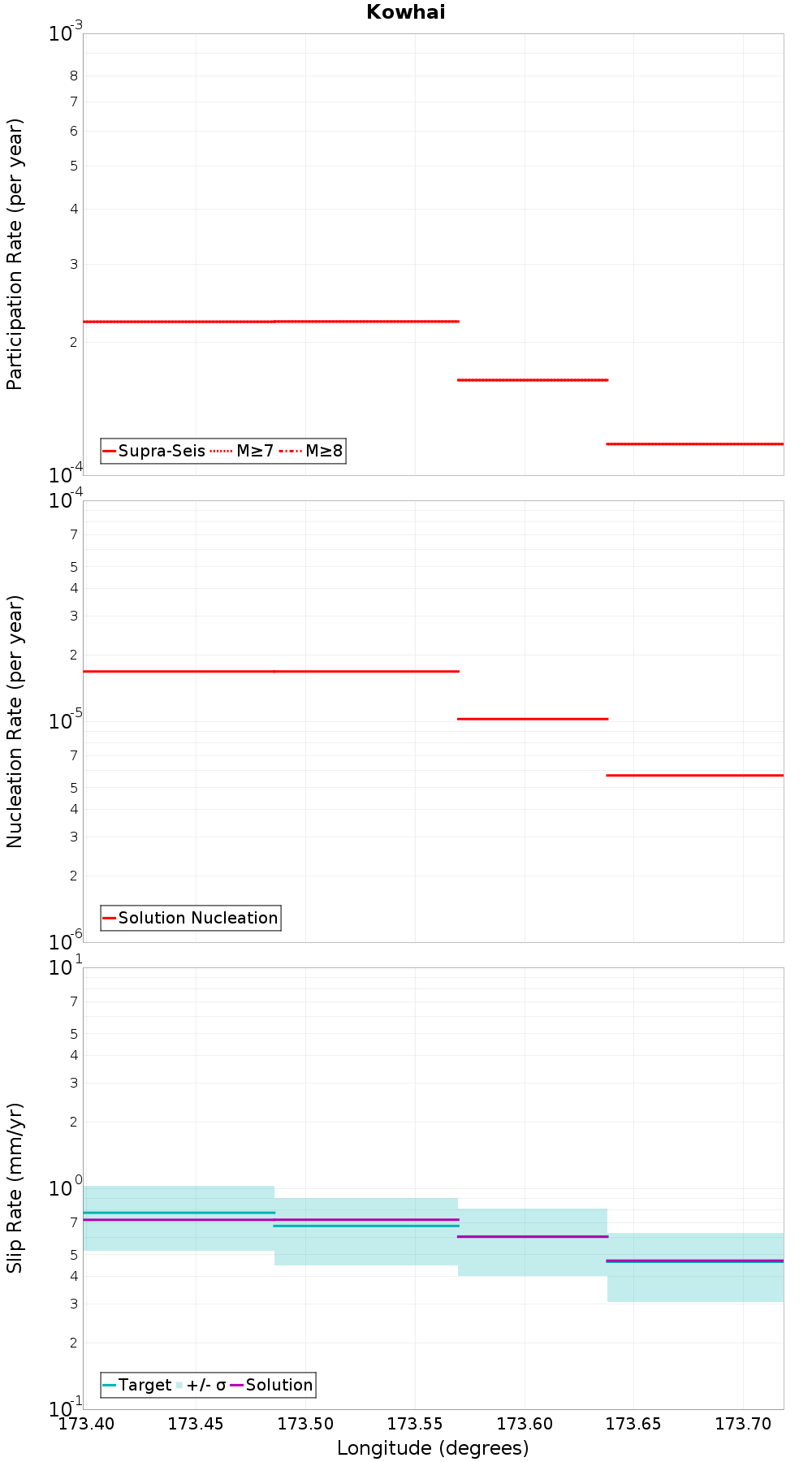

Along-Strike Values

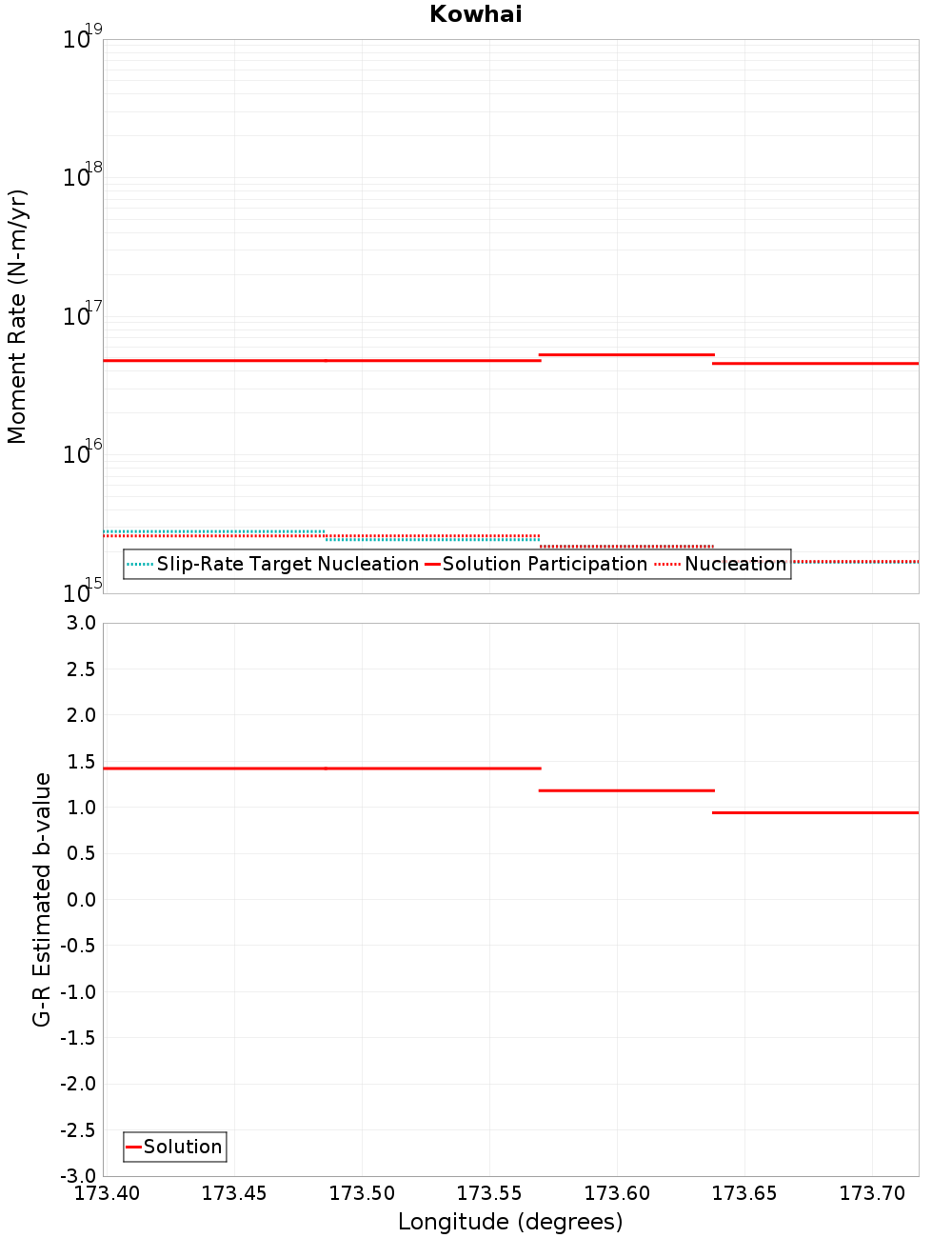

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Jordan, 0.03 km away
Upper Kowhai - Manakau, 0.06 km away
Offshore Splay Thrust, 0.18 km away
Hope: Conway, 0.31 km away
Hope: Seaward, 1.7 km away
Papatea, 4.46 km away
Kaikoura - Mangamaunu, 5.92 km away
Hundalee, 7.44 km away
Kaikoura 2, 7.44 km away
StoneJug, 7.51 km away
Leader: North, 9.28 km away
Fidget, 13.39 km away
Elliott, 14.44 km away

Jordan, 0.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMGRpRVh4
Connected?	true
Directly Connected?	false
Co-rupture Count	50
Co-rupture Rate	5.935553E-10

Upper Kowhai - Manakau, 0.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMGRpRVh4
Connected?	true
Directly Connected?	true
Co-rupture Count	641
Co-rupture Rate	3.5056597E-5

Offshore Splay Thrust, 0.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMGRpRVh4
Connected?	true
Directly Connected?	true
Co-rupture Count	249
Co-rupture Rate	3.2452013E-7

Hope: Conway, 0.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMGRpRVh4
Connected?	true
Directly Connected?	true
Co-rupture Count	1,913
Co-rupture Rate	8.963794E-5

Hope: Seaward, 1.7 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMGRpRVh4
Connected?	true
Directly Connected?	true
Co-rupture Count	693
Co-rupture Rate	2.2393408E-8

Papatea, 4.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMGRpRVh4
Connected?	true
Directly Connected?	true
Co-rupture Count	2,532
Co-rupture Rate	2.874471E-7

Kaikoura - Mangamaunu, 5.92 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMGRpRVh4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hundalee, 7.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMGRpRVh4
Connected?	true
Directly Connected?	true
Co-rupture Count	2,404
Co-rupture Rate	2.0171946E-4

Kaikoura 2, 7.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMGRpRVh4
Connected?	true
Directly Connected?	false
Co-rupture Count	3
Co-rupture Rate	0.0

StoneJug, 7.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMGRpRVh4
Connected?	true
Directly Connected?	false
Co-rupture Count	107
Co-rupture Rate	4.226075E-9

Leader: North, 9.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMGRpRVh4
Connected?	true
Directly Connected?	false
Co-rupture Count	28
Co-rupture Rate	1.5283252E-6

Fidget, 13.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMGRpRVh4
Connected?	true
Directly Connected?	true
Co-rupture Count	552
Co-rupture Rate	2.1604057E-8

Elliott, 14.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMGRpRVh4
Connected?	true
Directly Connected?	false
Co-rupture Count	50
Co-rupture Rate	2.406097E-9
