Madden Banks Details

Property	Value
Rupture Count	8,506
Ruptures Above Sect Min Mag	8,491
Ruptures w/ Nonzero Rates	77
Magnitude Range	[6.75, 8.31]
Length Range	[18, 626] km
Total Rate	5.081827E-4 /yr
Multi-Fault Rate	3.8563032E-4 /yr (75.88%)
Directly-Connected Faults	6
All Co-Rupturing Faults	55

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

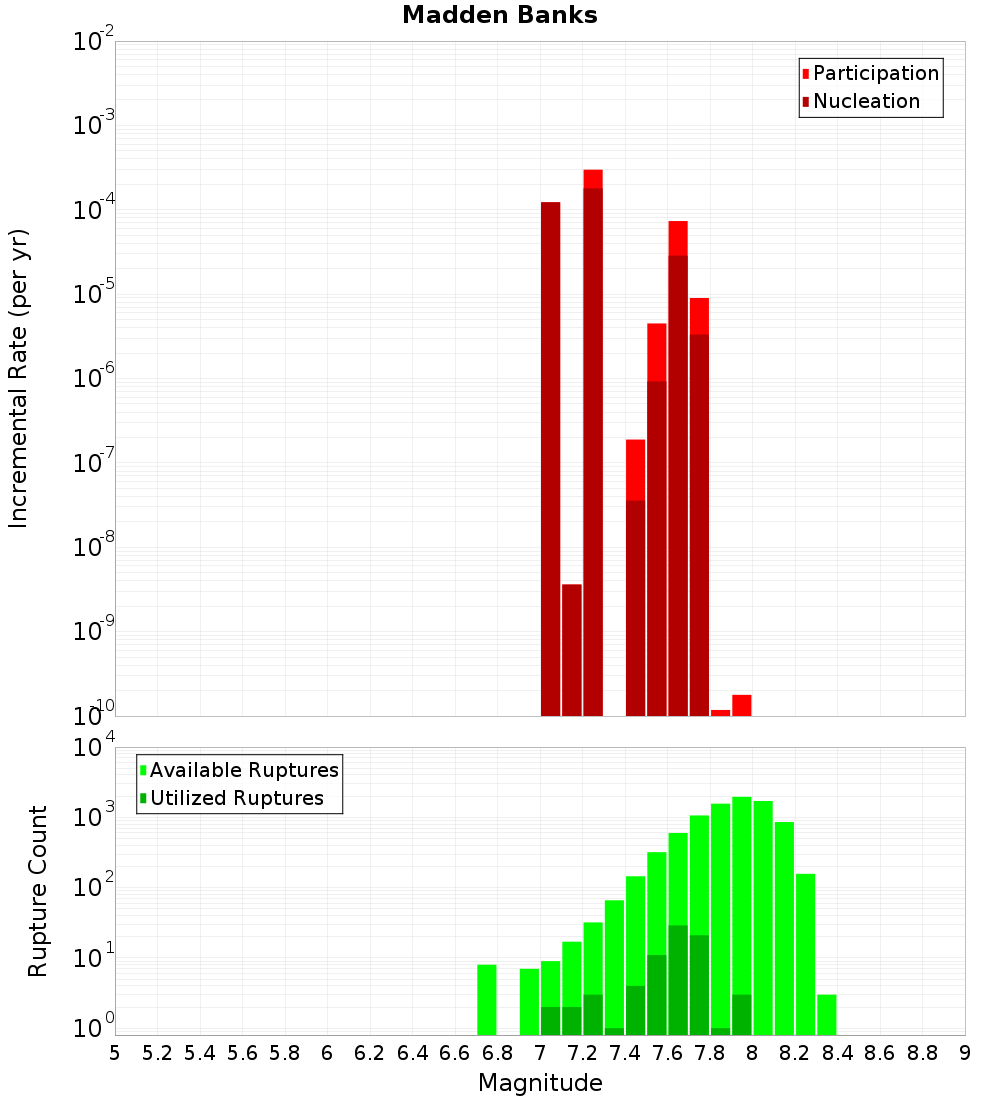

Magnitude-Frequency Distribution

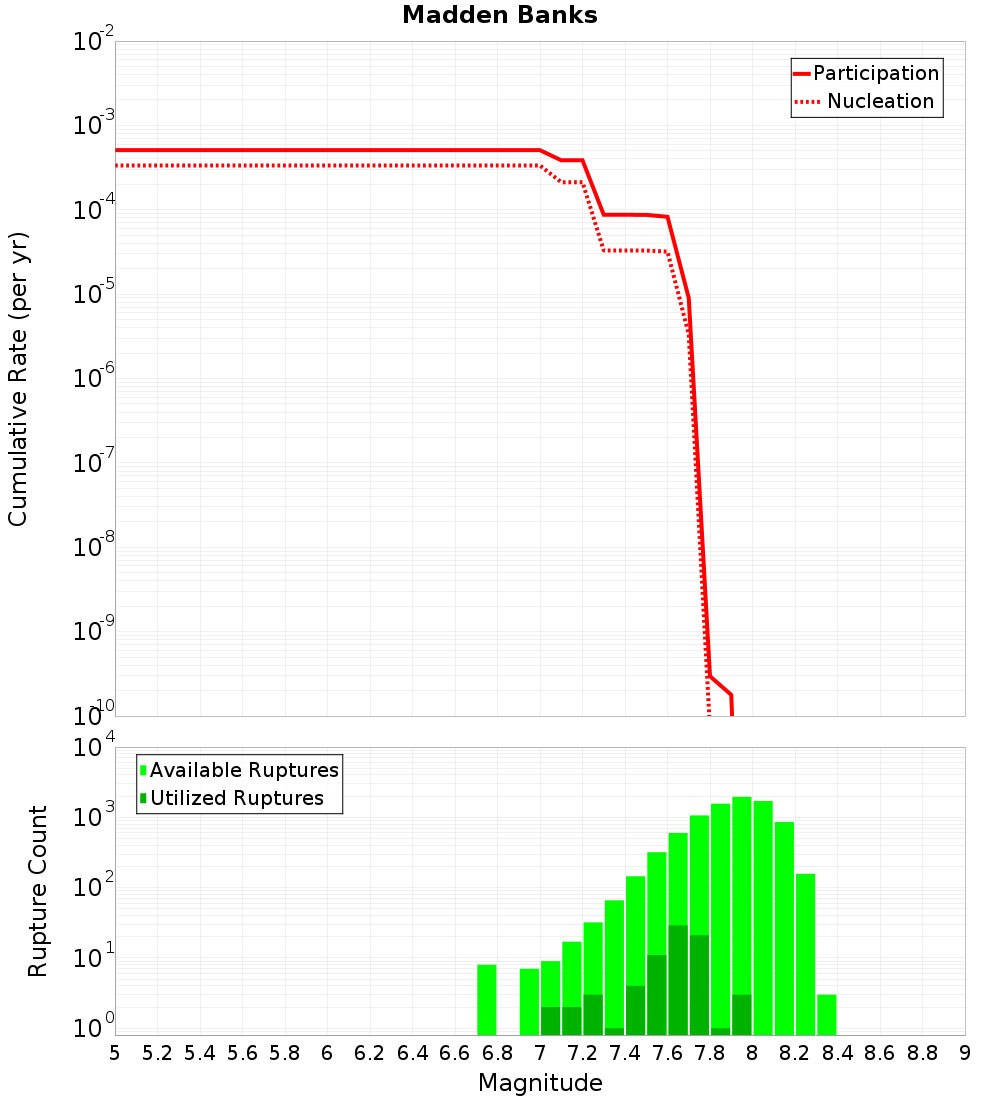

Incremental	Cumulative

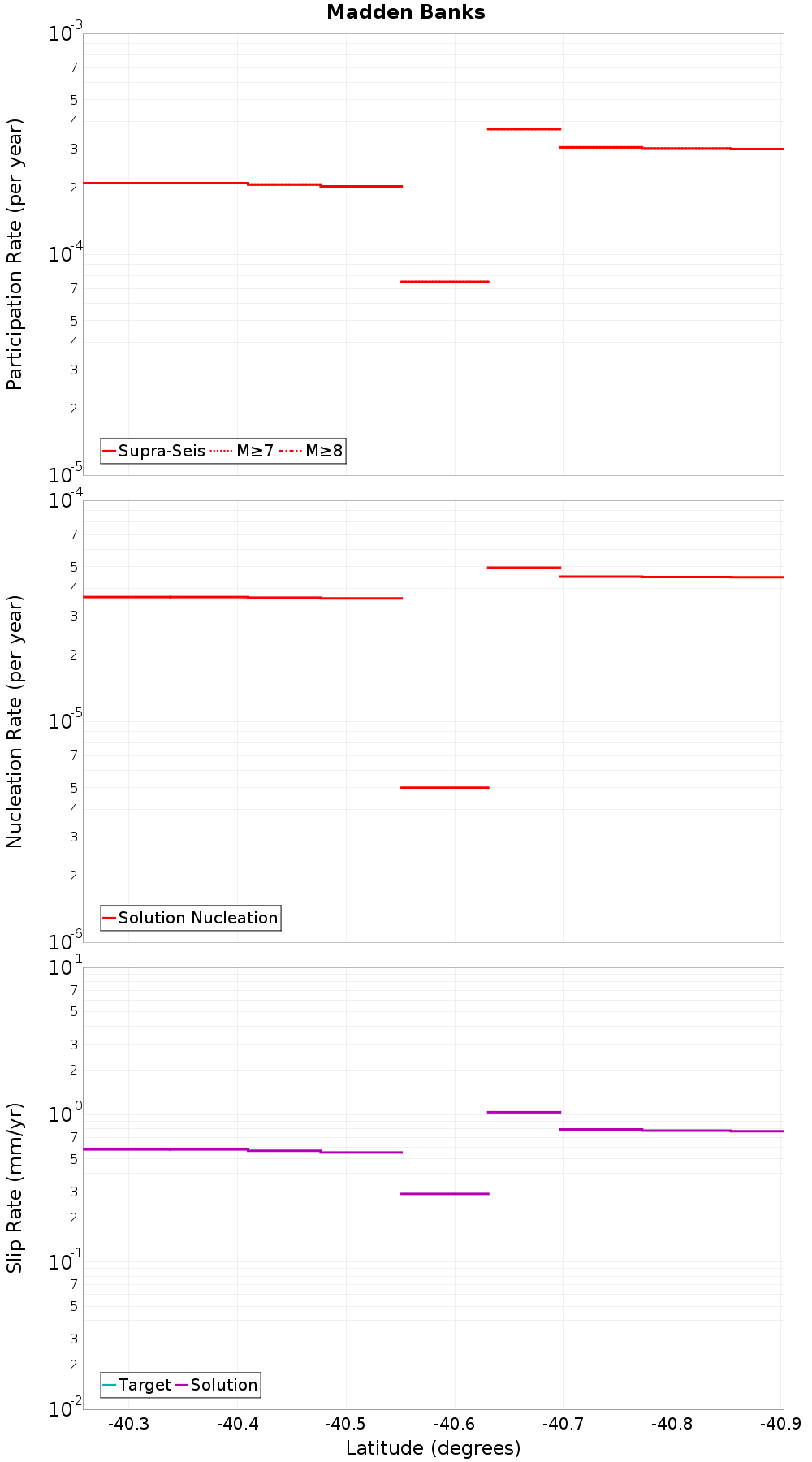

Along-Strike Values

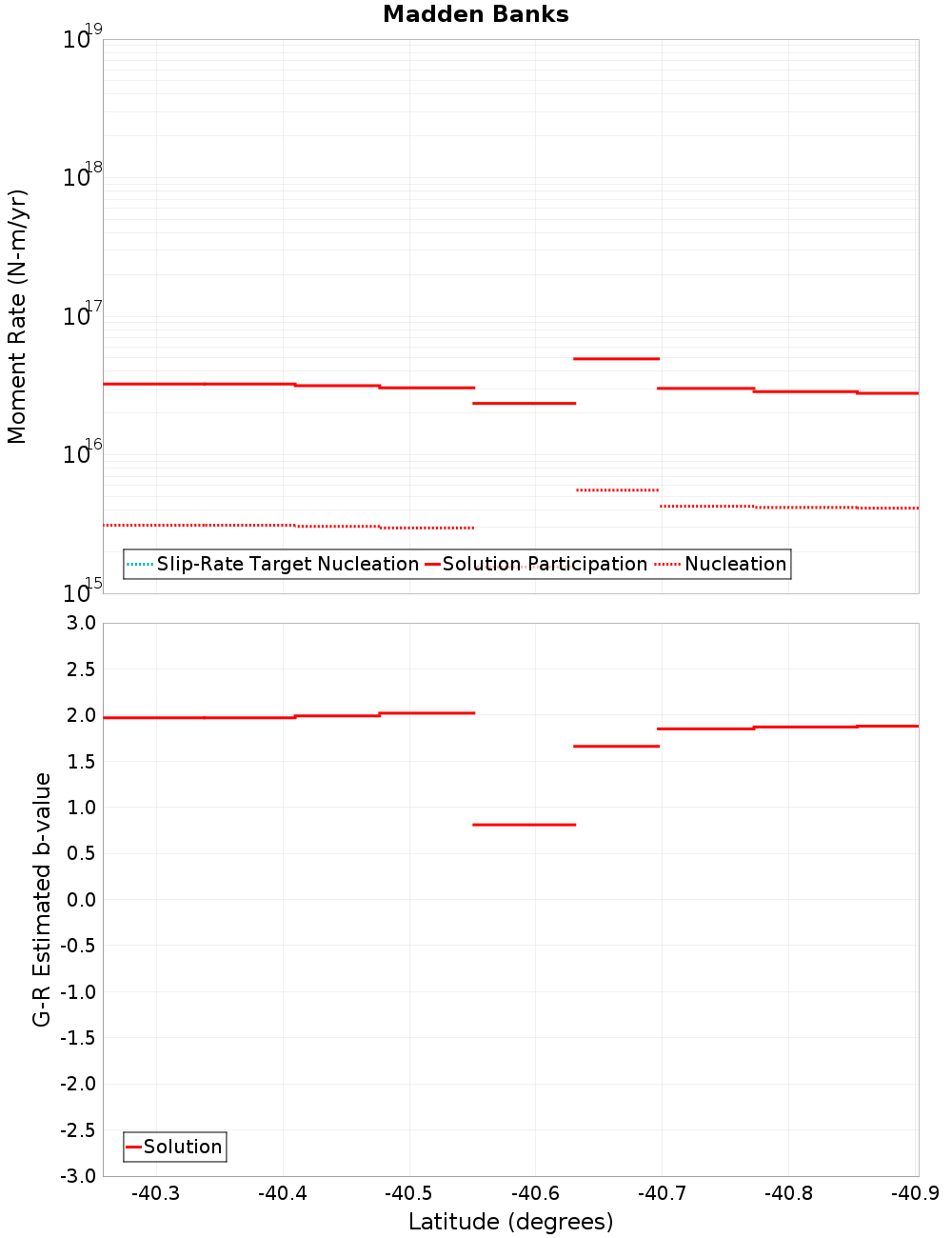

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Motu o Kura East, 0.5 km away
Uruti North, 3.77 km away
Uruti East - PorWest 1, 4.33 km away
Whareama Bank, 7.83 km away
Motu o Kura Ridge, 7.92 km away
PorWest2 - PaoanuiRSouth, 8.18 km away
Porangahau Basin, 9.02 km away
Omakere South, 13.38 km away
Porangahau Ridge, 14.87 km away

Motu o Kura East, 0.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMGRpRVh4
Connected?	true
Directly Connected?	true
Co-rupture Count	4,100
Co-rupture Rate	2.1112644E-5

Uruti North, 3.77 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMGRpRVh4
Connected?	true
Directly Connected?	true
Co-rupture Count	5,253
Co-rupture Rate	3.2855244E-8

Uruti East - PorWest 1, 4.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMGRpRVh4
Connected?	true
Directly Connected?	true
Co-rupture Count	2,586
Co-rupture Rate	3.6942513E-10

Whareama Bank, 7.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMGRpRVh4
Connected?	true
Directly Connected?	true
Co-rupture Count	207
Co-rupture Rate	2.984269E-4

Motu o Kura Ridge, 7.92 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMGRpRVh4
Connected?	true
Directly Connected?	true
Co-rupture Count	1,124
Co-rupture Rate	6.605773E-5

PorWest2 - PaoanuiRSouth, 8.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMGRpRVh4
Connected?	true
Directly Connected?	true
Co-rupture Count	503
Co-rupture Rate	1.3161264E-10

Porangahau Basin, 9.02 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMGRpRVh4
Connected?	true
Directly Connected?	false
Co-rupture Count	77
Co-rupture Rate	1.1800681E-10

Omakere South, 13.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMGRpRVh4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Porangahau Ridge, 14.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMGRpRVh4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
