Marlborough Slope 10 Details

PropertyValue
Rupture Count360
Ruptures Above Sect Min Mag348
Ruptures w/ Nonzero Rates15
Magnitude Range[6.76, 8.35]
Length Range[18, 586] km
Total Rate3.5496024E-4 /yr
Multi-Fault Rate3.5496024E-4 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults31

Table Of Contents

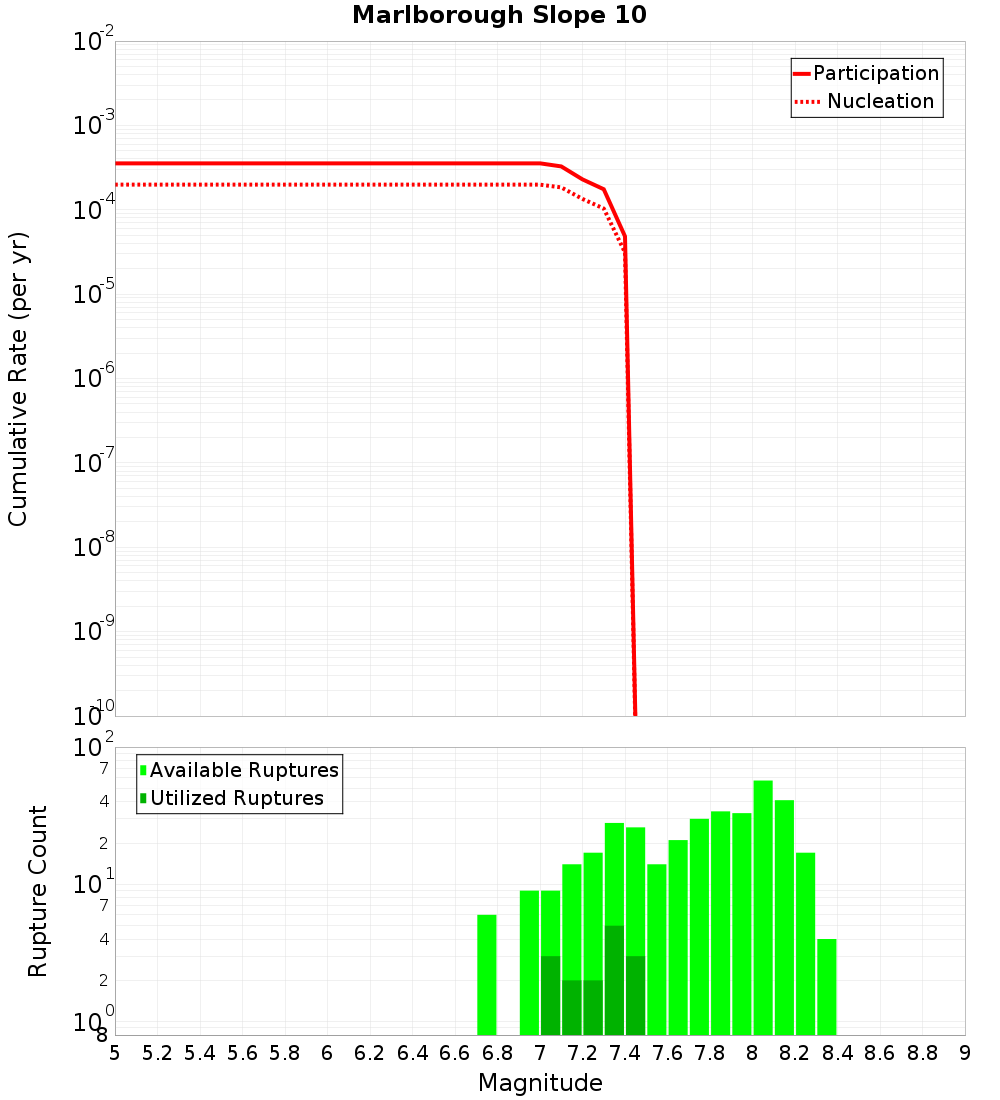

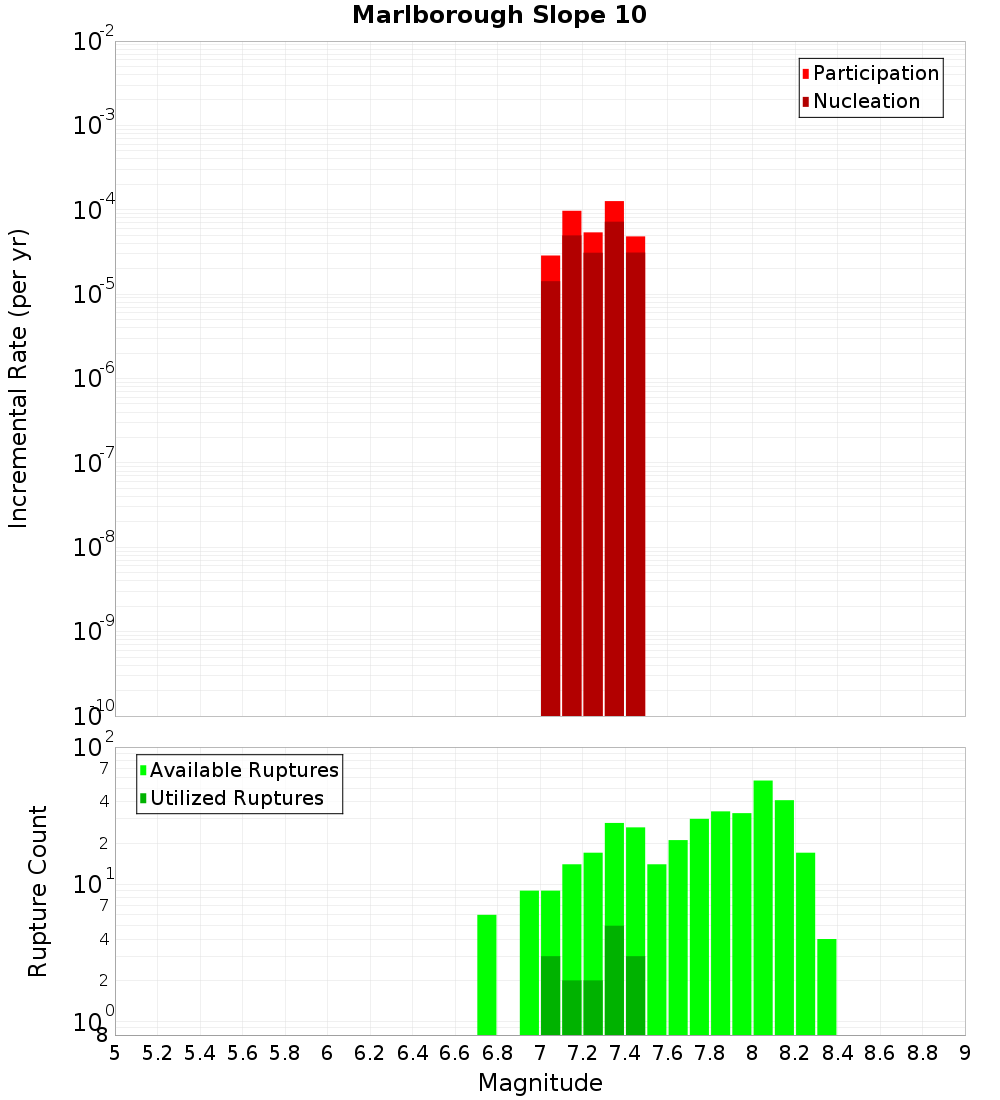

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

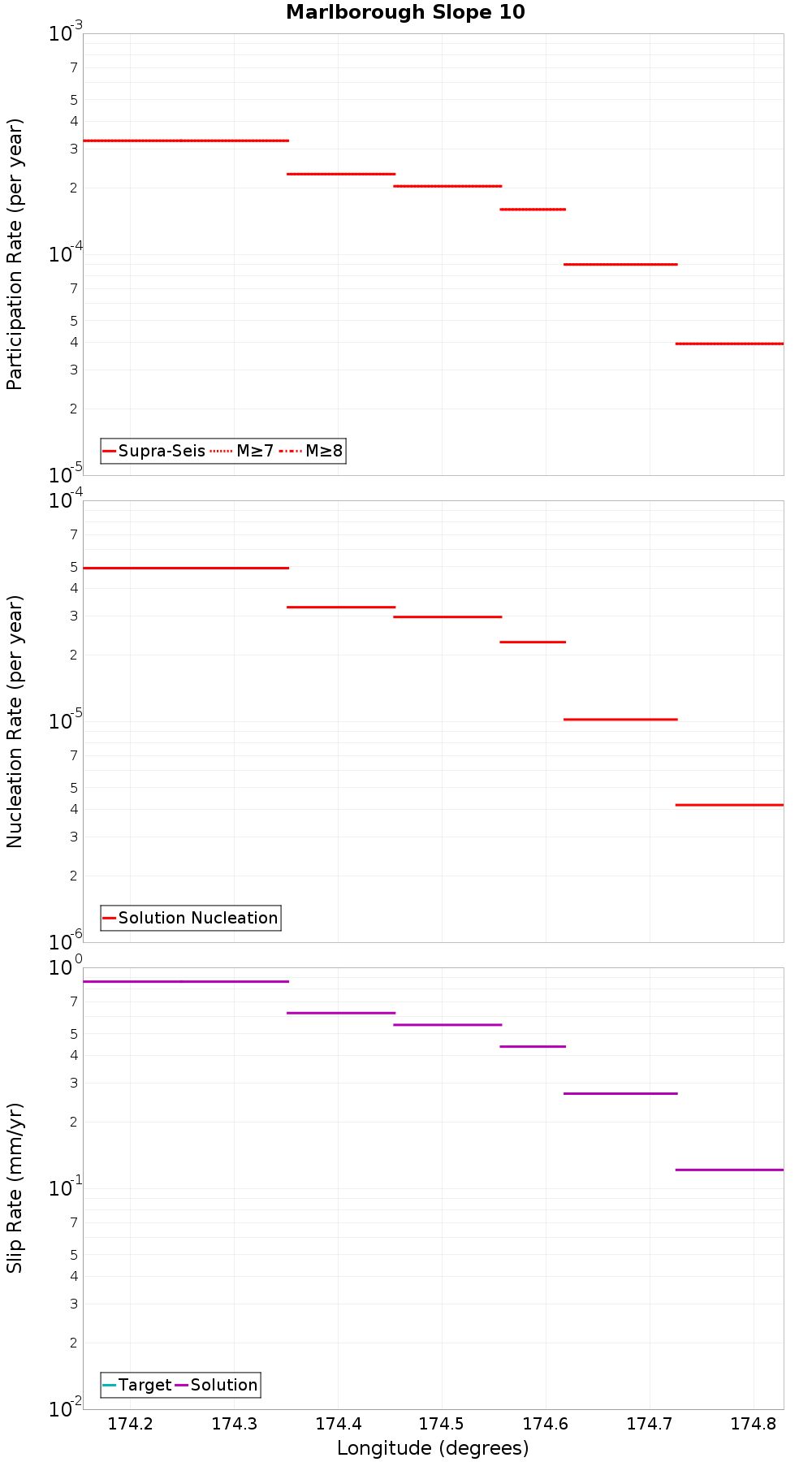

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

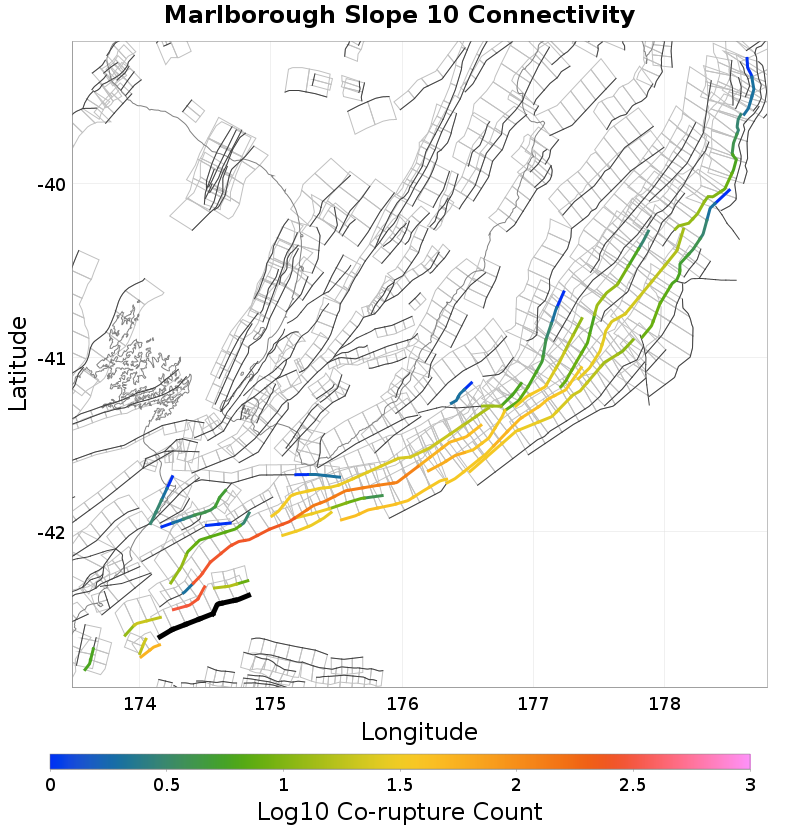

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Marlborough Slope 3, 4.06 km away
Marlborough Slope 9, 4.64 km away
Marlborough Slope 4, 7.31 km away
Marlborough Slope 2, 7.44 km away
Marlborough Slope 11, 8.8 km away
Kekerengu Bank, 11.7 km away

Marlborough Slope 3, 4.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMGRpRVh4
Connected?true
Directly Connected?true
Co-rupture Count16
Co-rupture Rate2.8698396E-5

Marlborough Slope 9, 4.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMGRpRVh4
Connected?true
Directly Connected?true
Co-rupture Count53
Co-rupture Rate0.0

Marlborough Slope 4, 7.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMGRpRVh4
Connected?true
Directly Connected?true
Co-rupture Count304
Co-rupture Rate5.4447333E-5

Marlborough Slope 2, 7.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMGRpRVh4
Connected?true
Directly Connected?false
Co-rupture Count20
Co-rupture Rate0.0

Marlborough Slope 11, 8.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMGRpRVh4
Connected?true
Directly Connected?true
Co-rupture Count21
Co-rupture Rate2.718145E-4

Kekerengu Bank, 11.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMGRpRVh4
Connected?true
Directly Connected?false
Co-rupture Count269
Co-rupture Rate4.7780645E-6
