North Mernoo E2-1 Details

Property	Value
Rupture Count	325
Ruptures Above Sect Min Mag	307
Ruptures w/ Nonzero Rates	16
Magnitude Range	[6.61, 7.72]
Length Range	[15, 193] km
Total Rate	1.1041292E-4 /yr
Multi-Fault Rate	1.1041292E-4 /yr (100.00%)
Directly-Connected Faults	7
All Co-Rupturing Faults	10

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

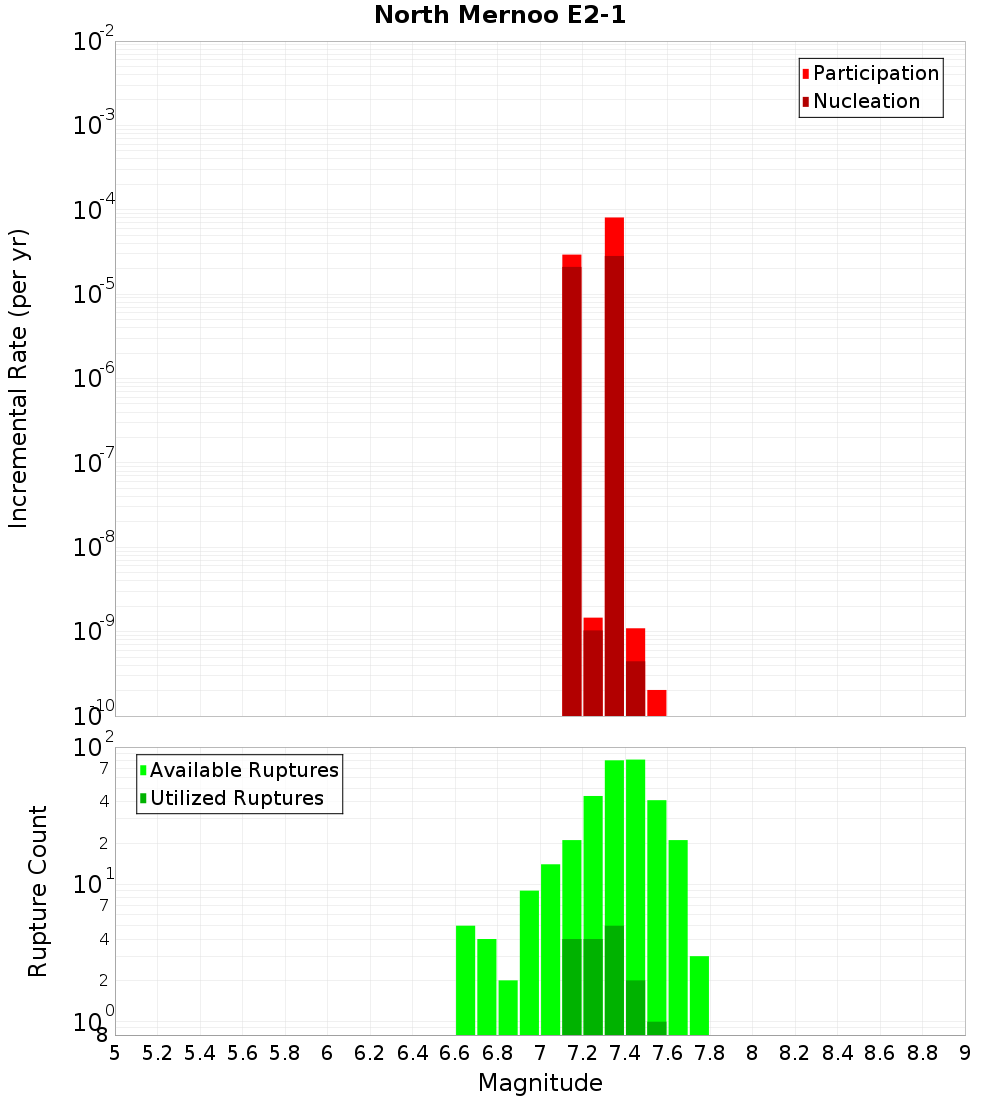

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
North Mernoo E2-2, 1.89 km away
North Mernoo F1, 2.78 km away
North Mernoo Fa-2, 3.22 km away
North Mernoo Fa-1, 7.2 km away
North Mernoo G, 9.36 km away
North Mernoo H, 11.95 km away
North Mernoo I, 13.83 km away
North Mernoo 15, 14.95 km away

North Mernoo E2-2, 1.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMGRpRVh4
Connected?	true
Directly Connected?	true
Co-rupture Count	77
Co-rupture Rate	1.3654434E-7

North Mernoo F1, 2.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMGRpRVh4
Connected?	true
Directly Connected?	true
Co-rupture Count	124
Co-rupture Rate	6.856939E-5

North Mernoo Fa-2, 3.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMGRpRVh4
Connected?	true
Directly Connected?	true
Co-rupture Count	40
Co-rupture Rate	2.9275887E-5

North Mernoo Fa-1, 7.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMGRpRVh4
Connected?	true
Directly Connected?	true
Co-rupture Count	85
Co-rupture Rate	1.24311155E-5

North Mernoo G, 9.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMGRpRVh4
Connected?	true
Directly Connected?	true
Co-rupture Count	150
Co-rupture Rate	6.856956E-5

North Mernoo H, 11.95 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMGRpRVh4
Connected?	true
Directly Connected?	true
Co-rupture Count	168
Co-rupture Rate	8.10006E-5

North Mernoo I, 13.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMGRpRVh4
Connected?	true
Directly Connected?	false
Co-rupture Count	148
Co-rupture Rate	1.2431269E-5

North Mernoo 15, 14.95 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NzYuMGRpRVh4
Connected?	true
Directly Connected?	true
Co-rupture Count	12
Co-rupture Rate	2.0355244E-10
