Spylaw Details
| Property | Value |
|---|---|
| Rupture Count | 3,529 |
| Ruptures Above Sect Min Mag | 3,529 |
| Ruptures w/ Nonzero Rates | 23 |
| Magnitude Range | [7.20, 8.28] |
| Length Range | [31, 525] km |
| Total Rate | 1.16762196E-4 /yr |
| Multi-Fault Rate | 1.0554961E-4 /yr (90.40%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 77 |
Table Of Contents

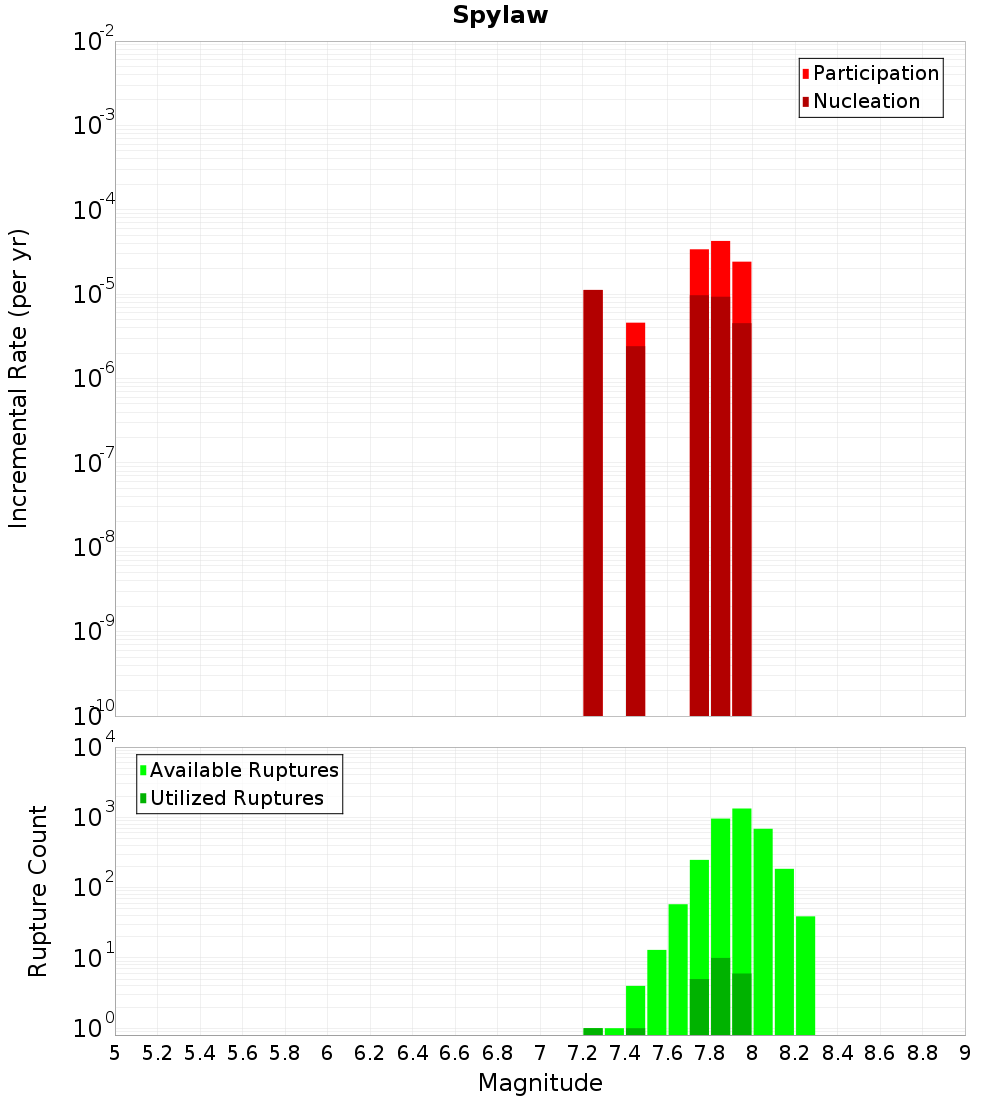

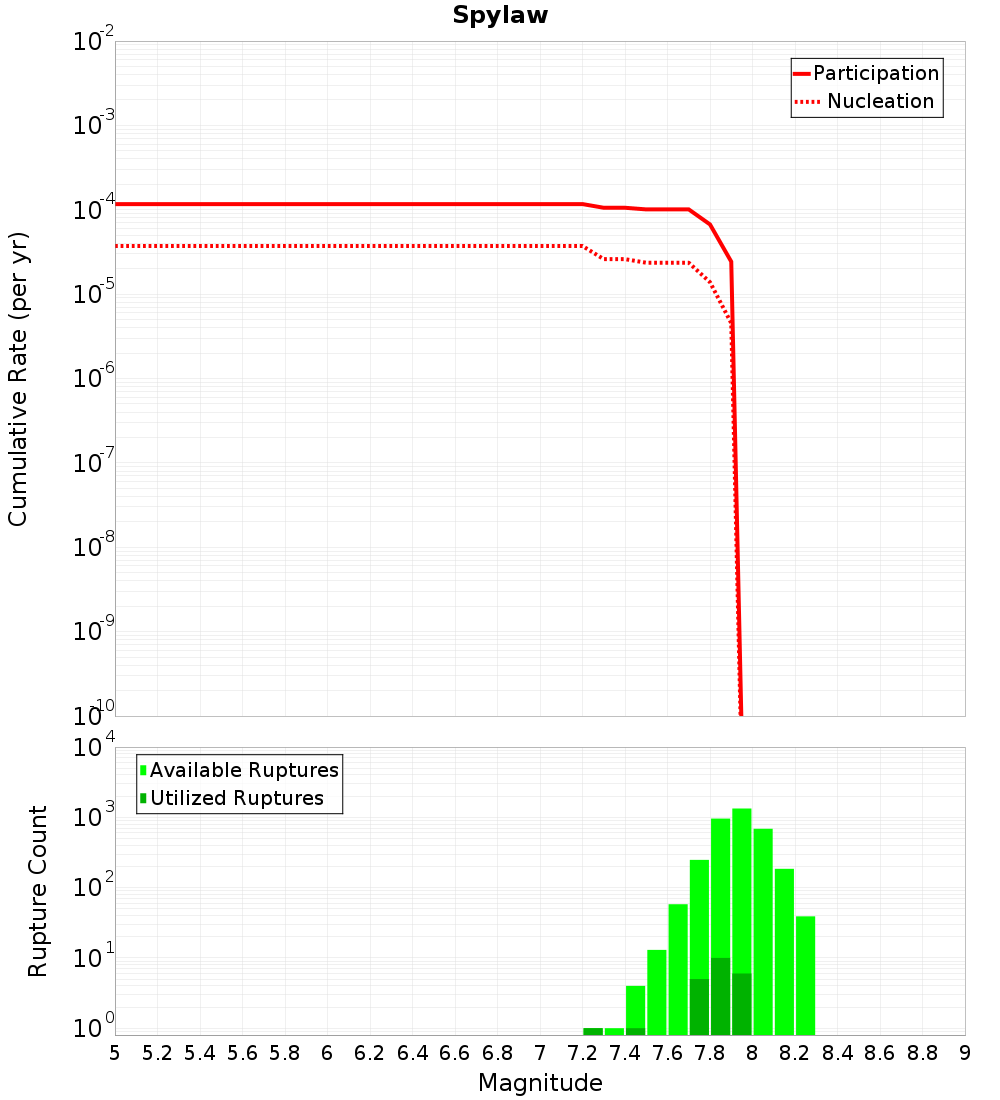

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

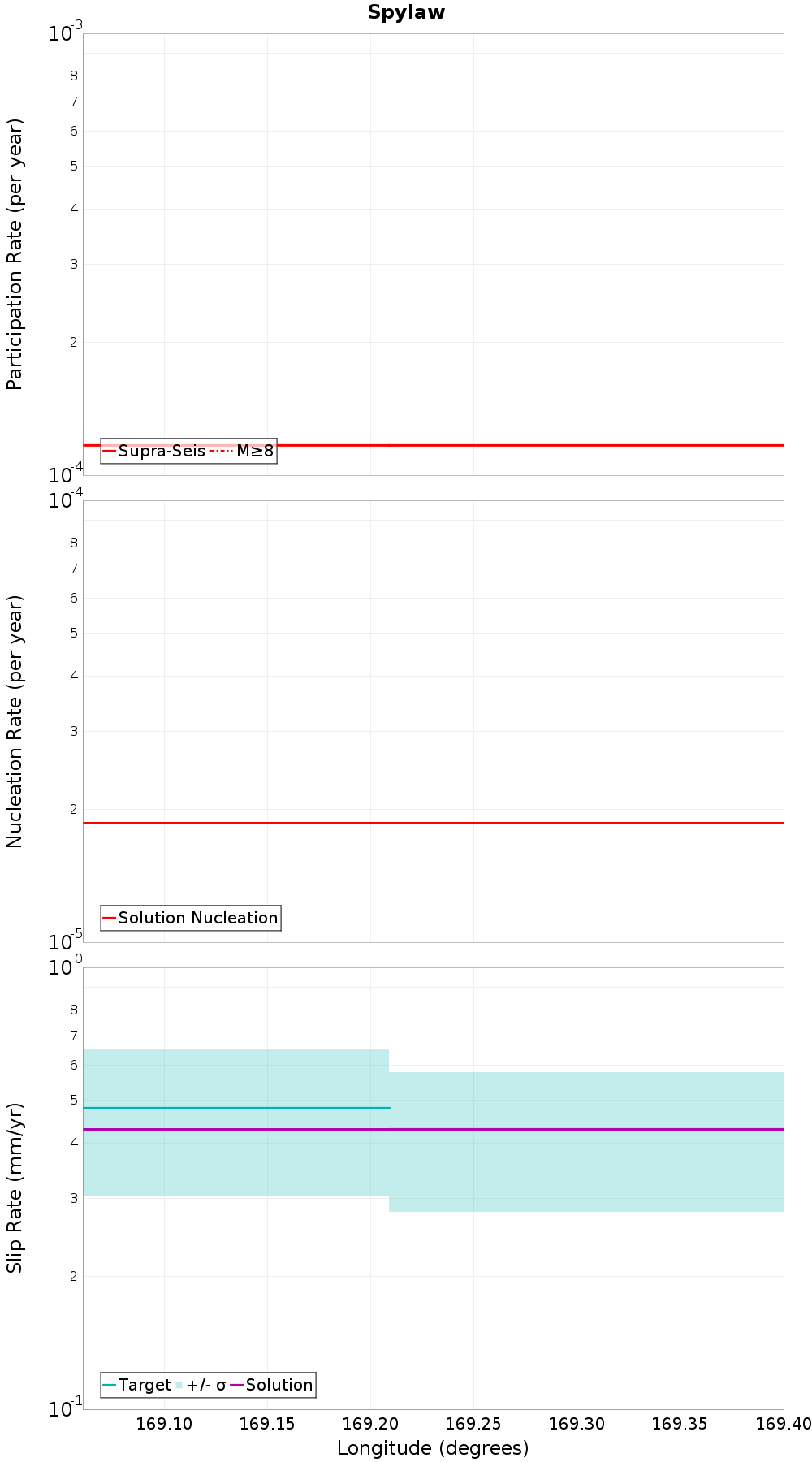

Along-Strike Values

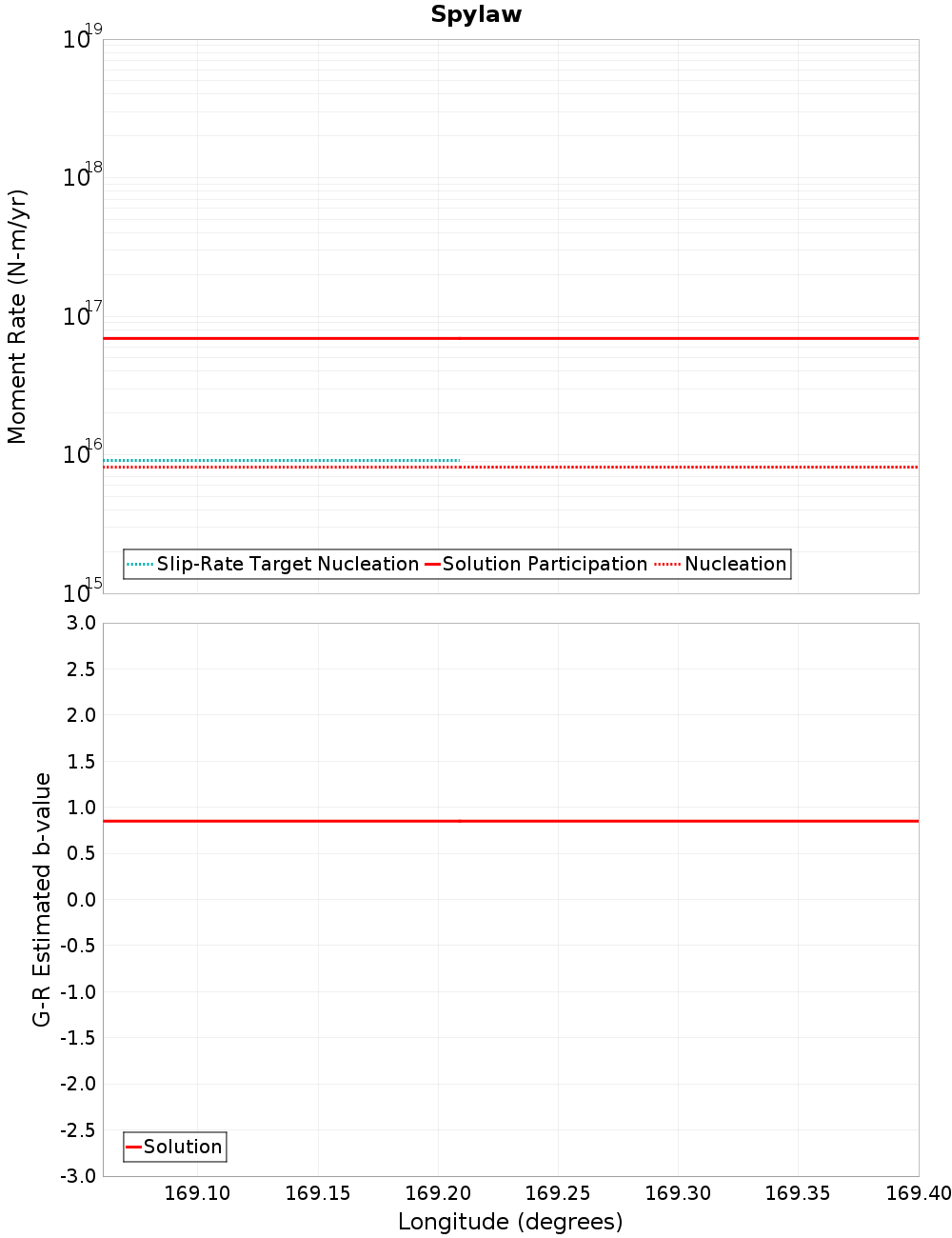

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Beacon Hill, 0.19 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3ODQuMGVUcFBL | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2,900 |
| Co-rupture Rate | 9.971481E-5 |
Teviot, 0.2 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3ODQuMGVUcFBL | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 909 |
| Co-rupture Rate | 5.834802E-6 |
Waikaka, 1.11 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3ODQuMGVUcFBL | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 20 |
| Co-rupture Rate | 0.0 |
Tuapeka, 2.17 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3ODQuMGVUcFBL | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 4 |
| Co-rupture Rate | 0.0 |
Wendon Valley, 3.74 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3ODQuMGVUcFBL | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 3 |
| Co-rupture Rate | 4.5899023E-6 |
Blue Mountain, 4.01 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3ODQuMGVUcFBL | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 807 |
| Co-rupture Rate | 0.0 |
Backbone, 4.68 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3ODQuMGVUcFBL | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2,620 |
| Co-rupture Rate | 9.512491E-5 |
Hillfoot, 11.54 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3ODQuMGVUcFBL | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1,248 |
| Co-rupture Rate | 6.1081874E-7 |
Old Man, 11.99 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3ODQuMGVUcFBL | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 98 |
| Co-rupture Rate | 0.0 |
Beaumont River, 12.97 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3ODQuMGVUcFBL | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1,149 |
| Co-rupture Rate | 0.0 |
