Cloudy 1 Details
| Property | Value |
|---|---|
| Rupture Count | 4,005 |
| Ruptures Above Sect Min Mag | 3,999 |
| Ruptures w/ Nonzero Rates | 59 |
| Magnitude Range | [6.51, 8.46] |
| Length Range | [11, 932] km |
| Total Rate | 2.0860288E-4 /yr |
| Multi-Fault Rate | 2.0860288E-4 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 110 |
Table Of Contents

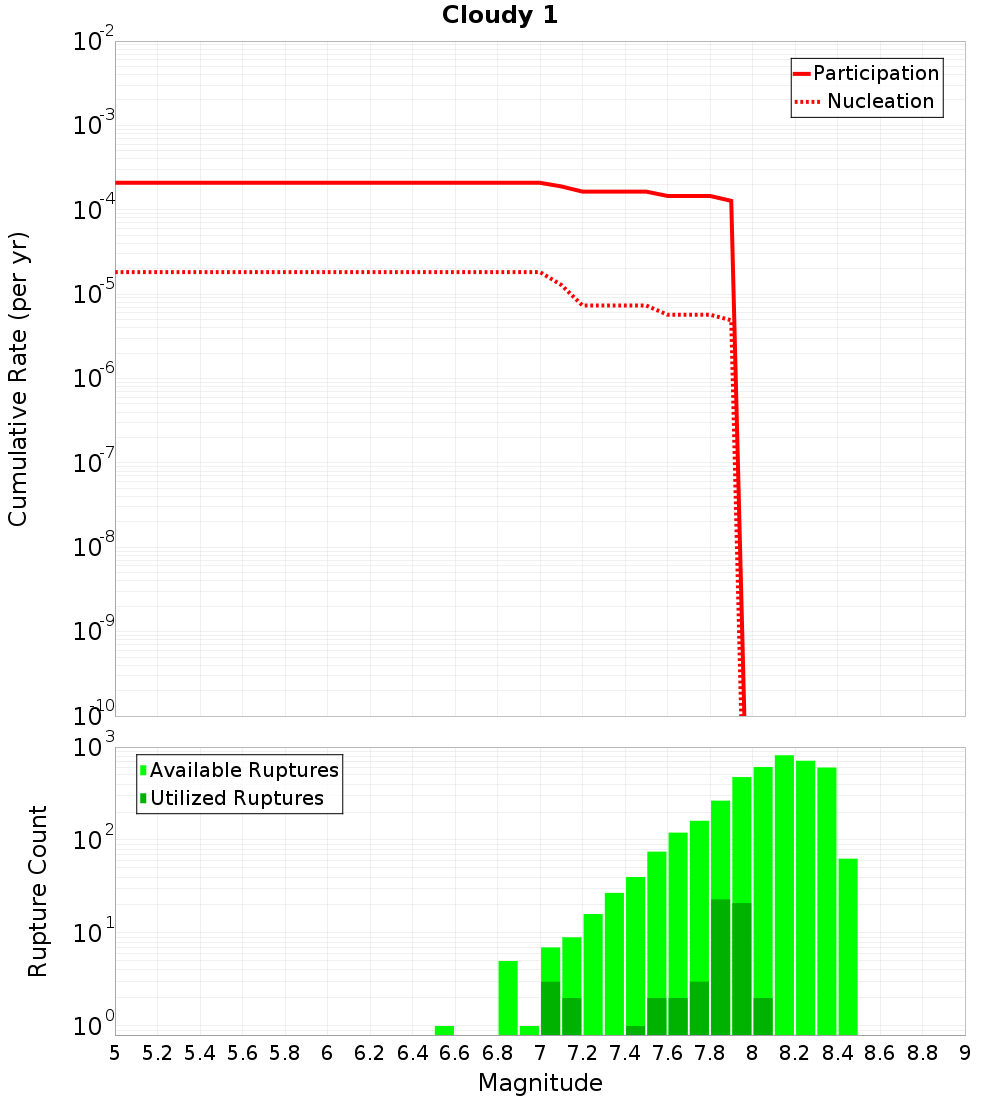

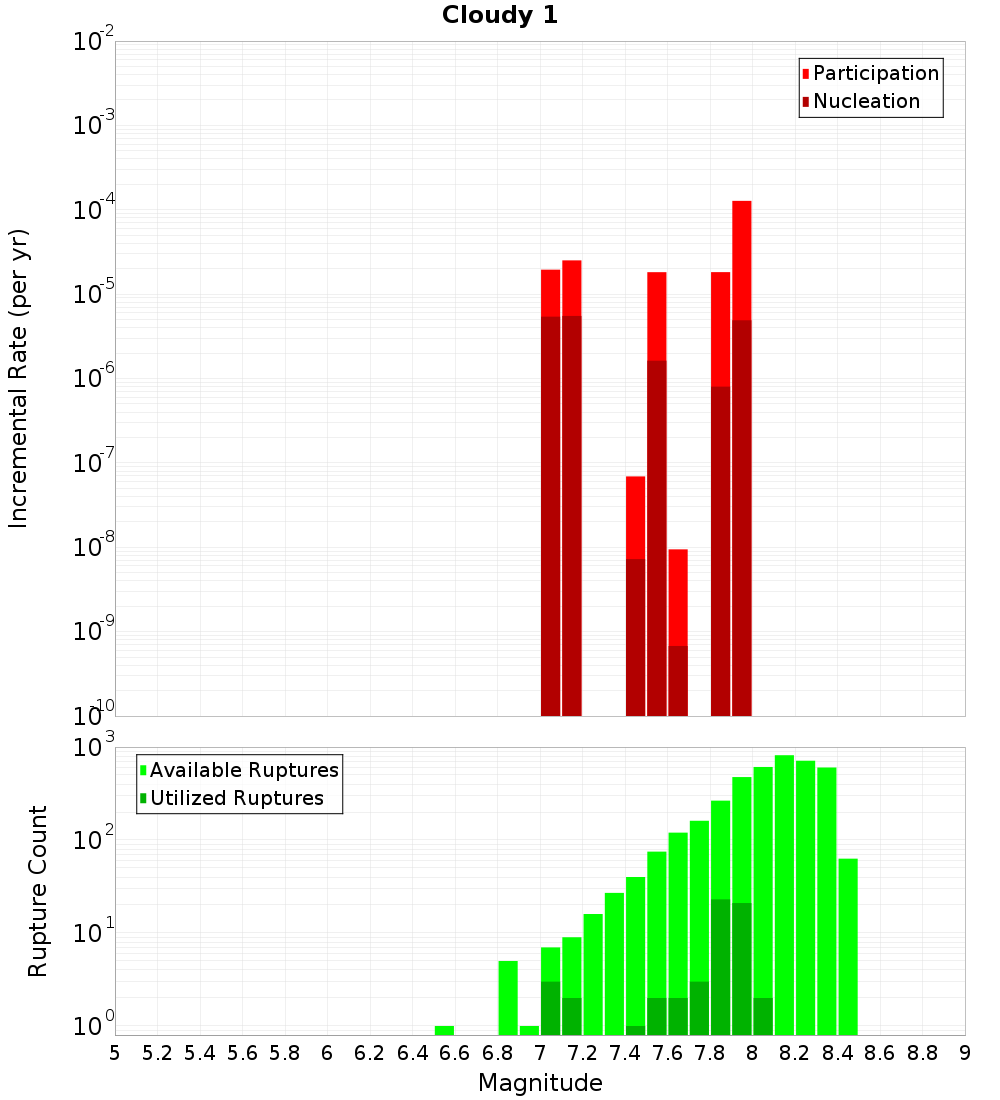

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

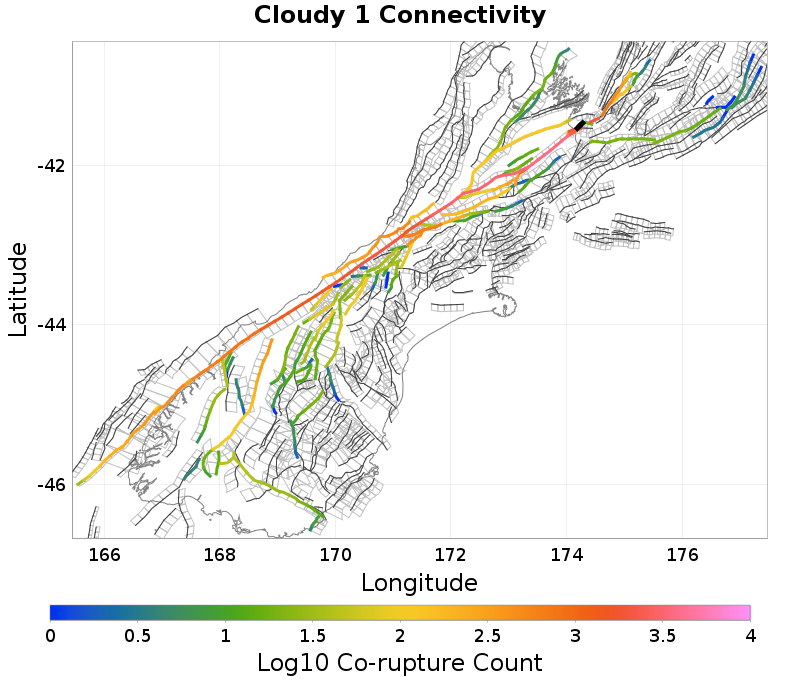

Connectivity
 |  |
|---|
Nearby Sections
Vernon 3, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3ODYuMDZVS3c2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 2 |
| Co-rupture Rate | 9.164735E-7 |
Cloudy 2, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3ODYuMDZVS3c2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 2 |
| Co-rupture Rate | 0.0 |
Vernon 2, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3ODYuMDZVS3c2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,618 |
| Co-rupture Rate | 7.240889E-5 |
Awatere: Northeast 2, 0.04 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3ODYuMDZVS3c2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2,384 |
| Co-rupture Rate | 1.36194E-4 |
Cloudy 3, 2.84 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3ODYuMDZVS3c2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 19 |
| Co-rupture Rate | 0.0 |
Vernon 4, 3.49 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3ODYuMDZVS3c2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Wairau 3, 4.88 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3ODYuMDZVS3c2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Vernon 1, 7.79 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3ODYuMDZVS3c2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 286 |
| Co-rupture Rate | 1.1610859E-4 |
Wairau 2, 8.19 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3ODYuMDZVS3c2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Ohariu South 1, 10.78 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3ODYuMDZVS3c2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2,123 |
| Co-rupture Rate | 2.086028E-4 |
Wairarapa: Needles, 10.84 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3ODYuMDZVS3c2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Needles East 2, 12.81 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3ODYuMDZVS3c2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Wairau, 12.85 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3ODYuMDZVS3c2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 120 |
| Co-rupture Rate | 0.0 |
